D-Link GO-SW-16G, GO-SW-24G Quick Installation Guide

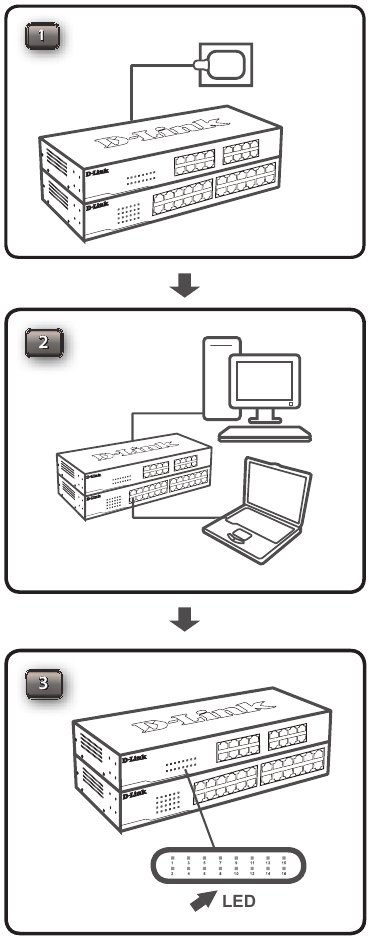

SET UP
LED INDICATIONS
| LED | Color | State | Description |
| Power (system) | Green | Solid Light | Device is powered on |
| Light off | Device is powered off | ||
| Link/Act/ Speed (port) | Green | Solid Light | Device connected at 1000 Mbps |
| Blinking | Activity on the port | ||
| Amber | Solid Light | Device connected at 10/100 Mbps | |
| Blinking | Activity on the port |

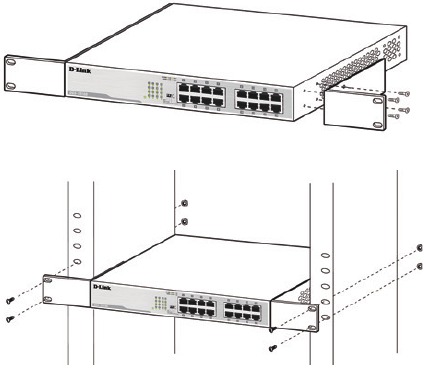

RACK INSTALLATION
To install in a rack, attach the mounting brackets to the switch's side panels (one on each side) and secure them with the screws provided. Then, use the hardware provided with the equipment rack to mount the switch in the rack.
INSTALLING POWER CORD RETAINER
To prevent accidental removal of the AC power cord, it is recommended to install the power cord clip together with the power cord.
- With the rough side facing down, insert the Tie Wrap into the hole below the power socket.
![Installing Power Cord Retainer - Step 1]( "D-Link - GO-SW-16G - Installing Power Cord Retainer - Step 1")

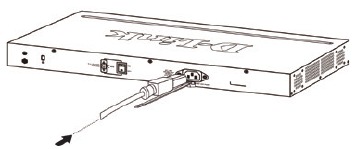

- Plug the AC power cord into the power socket of the Switch.
![Installing Power Cord Retainer - Step 2]( "D-Link - GO-SW-16G - Installing Power Cord Retainer - Step 2")
- Slide the Retainer through the Tie Wrap until the end of the cord.
![]()
- Circle the tie of the Retainer around the power cord and into the locker of the Retainer.
![]()
- Fasten the tie of the Retainer until the power cord is secured.
![]()
