Honeywell Farenhyt ECS-CE4 Product Installation Document

ECS-CE4
Audio Circuit Expander
Product Installation Document
1 Description
The ECS-CE4 is an Audio Circuit Expander that adds four audio circuits to the ECS-50W or ECS-125W. The ECS-CE4 mounts inside the ECS-50W
or ECS-125W cabinet.
NOTE:
Installation and wiring of this device must be done in accordance with NFPA 72 and local ordinances.
2 Compatibility
The ECS-CE4 is compatible with the following Honeywell Farenhyt Series FACPs:
• IFP-2100ECS
• IFP-300ECS
• IFP-100ECS
• IFP-1000ECS
• IFP-2000ECS
NOTE: For more information, refer to the FACP Installation Manual or ECS Series Manual (PN 151455).
3 Specifications
• Standby Current: 20mA
• Alarm Current: 180mA
4 Installation
1. Remove AC power from the ECS-50W or ECS-125W Amplifier and disconnect the backup batteries.
2. Mount the ECS-CE4 in the ECS-50W or ECS-125W cabinet using the four supplied screws.
Document 151456:B2 12/8/2021
Farenhyt™ Series
C I R C U I T 4 C IR C U I T 3 C IR C U IT 2 C I R C U IT 1
+ I N – + O U T – + I N – + O U T – + IN – + O U T – + I N – + O U T –

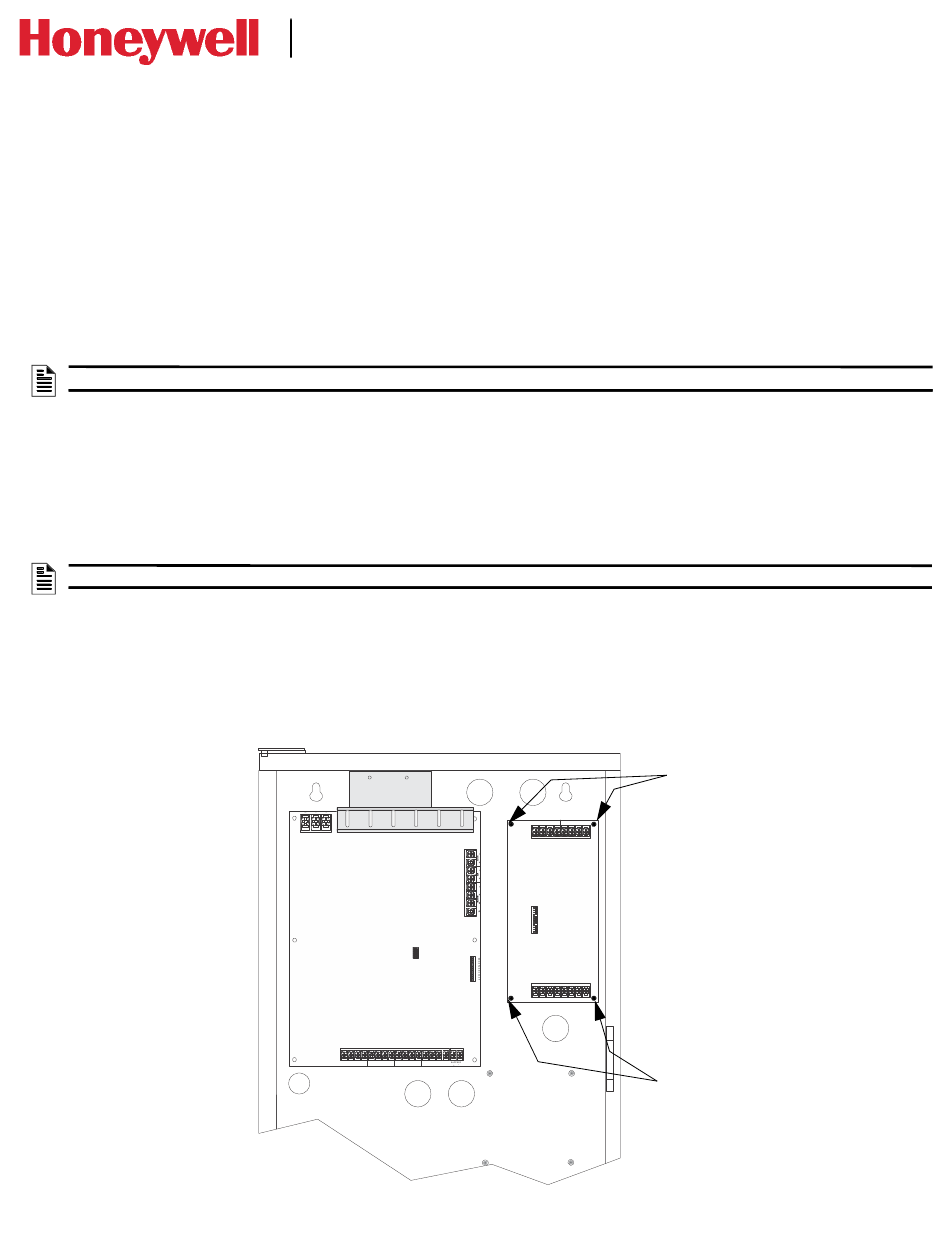

Figure 1 Mounting the ECS-CE4
ECN: 151770
secure with screws
CIRCU IT 5 CIRCU IT 6
+ OU T – + IN – + OU T – + IN –
ECS-CE4
CIRC U IT 8 CIR CU IT 7
+ OU T – + IN – + OU T – + IN –
secure with screws
