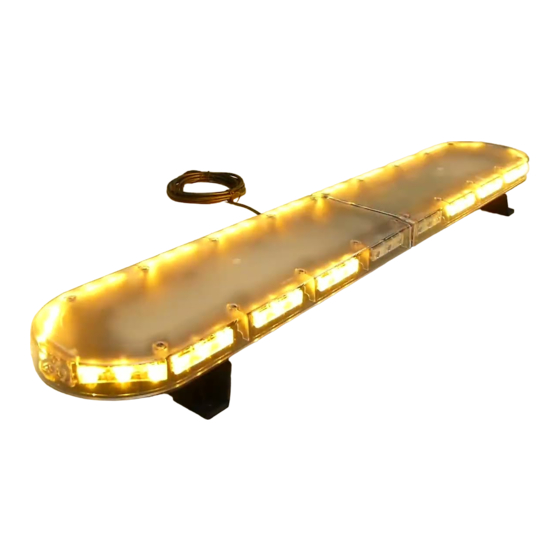

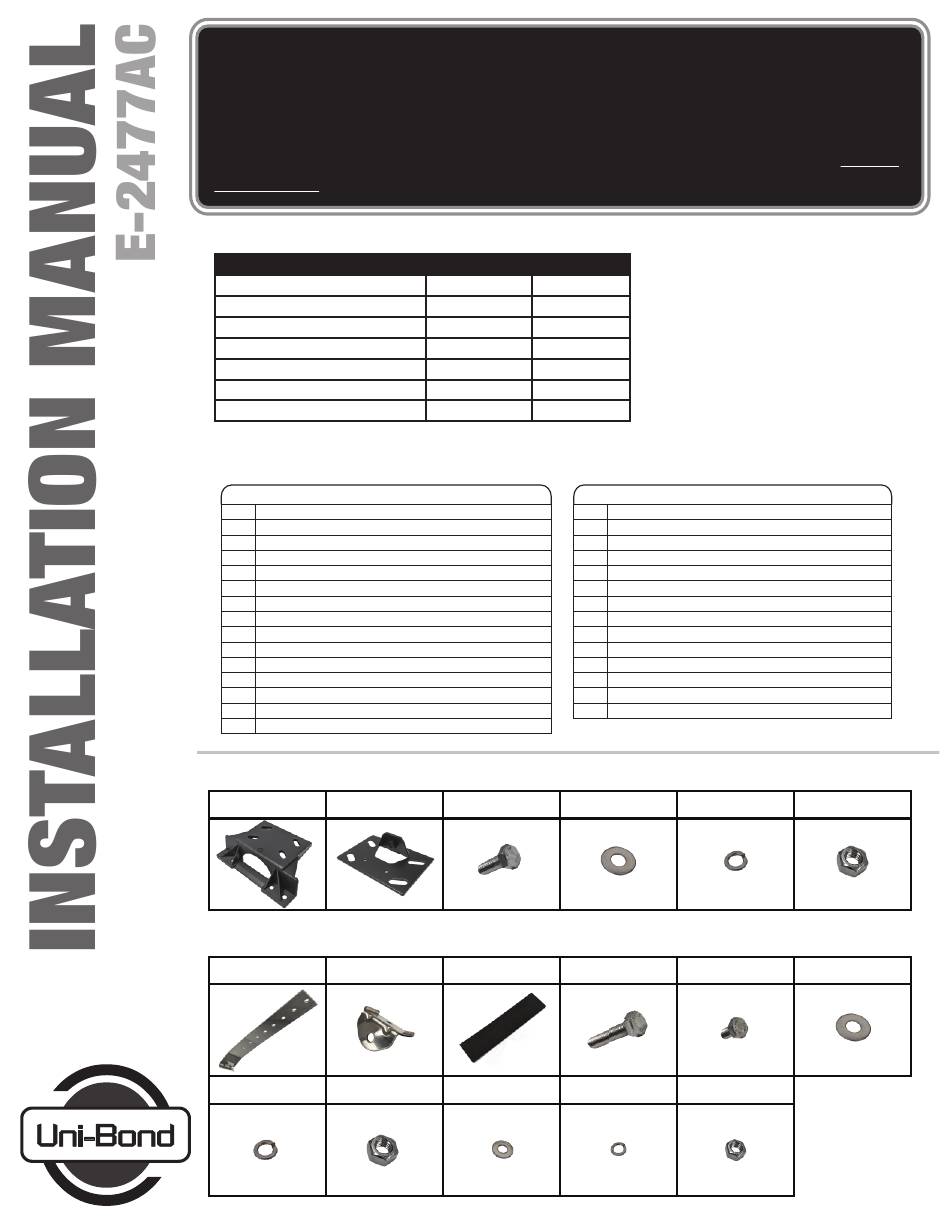

Uni-bond E-2477AC Installation Manual

Last Updated: 09/02/2022
[ WARNING!! ]
Installer must ensure that the Ground (black wire) be connected first before
connecting Power (red wire) or any other wires. Additionally, all wires MUST
only connect to Ground other than the Power (red wire) - refer to the Wiring
Information below.
Wiring Information
Function
Ground
Power
Left Warning Signal
Right Warning Signal
Take-Down Light
Alley Light
Flash Pattern Selection
Lamp should be fused with a 10 Amp Fuse (
Flash Patterns
NO. Flash Patterns
1 Random Patterns
2 Rotating Flash
3 Alternating Single Flash
4 Alternating Double Flash
5 Alternating Quad Flash
6 Alternating Quint Flash
7 Alternating Mega Flash
8 Alternating Ultra Flash
9 Alternating Single Flash / Alternating Quad Flash
10 Alternating Single Flash / Alternating High Intensity Single Flash
11 Alternating Double-Quad Flash
12 Alternating Single-Quad Flash
13 Simultaneous Single Flash
Simultaneous Double Flash [
14 SAE Class 1
15 Simultaneous Quad Flash
Hardware List - Surface Mount - Bag #1
ABS Support
Steel Holding Plate
Bracket
x2
Hardware List - Strap/Gutter Mount - Bag #2
Tightening
Lock Bracket
Hook
x2
M8 - Form A M8 - Form A
Spring Washers Hex Nut
x2
NOTE: Please ensure that all contents listed on the Hardware List above are present & correct before proceeding to Mounting Installation
Failure to follow instructions
can short-circuit lamp.
Wire Colour Connect To
Black - Ground
Red +12/24 V DC
Brown - Ground
Orange - Ground
Green - Ground
Blue - Ground
Yellow - Ground
)
ATM10 sold separately
NO.
16
17
18
19
20
21
22
23
24
25
26
27
28
]
29
M8 - 30mm M8 - Form A
Hex Bolt Flat Washers
x2 x8
M8 - 45mm
Mounting Pads
x2 x1
M6 - Form A M6 - Form A
Flat Washers Spring Washers
x2 x2
Pattern Selection
Briefly Connect Flash Pattern Selection wire
(Yellow wire) to Ground:
- Once to the next pattern
- Hold 3 seconds for flash pattern #29
Flash Patterns
Simultaneous Quint Flash
Simultaneous Mega Flash
Simultaneous Ultra Flash
Simultaneous 8 Single Flashes / 4 Quad Flashes
Simultaneous 8 Single Flashes / 6 Fast Single Flashes
Simultaneous Double Flash / Simultaneous Quad Flash
Simultaneous Single Flash / Simultaneous Quad Flash
Left Side Steady & Right Side Double Flash
Simultaneous Single Flash (2Hz)
Simultaneous Double Flash (2Hz) [
SAE Class 1
Simultaneous Triple Flash (2Hz)
Simultaneous Quad Flash (2Hz)
Simultaneous Quad Flash (Split)
Steady Corner Light
M8 - Form A
Spring Washers
x8 x8
M6 - 15mm
Hex Bolt Hex Bolt
x2 x2
M6 - Form A
Hex Nut
x2 x2
]
M8 - Form A
Hex Nut
x8
M8 - Form A
Flat Washers
x2
