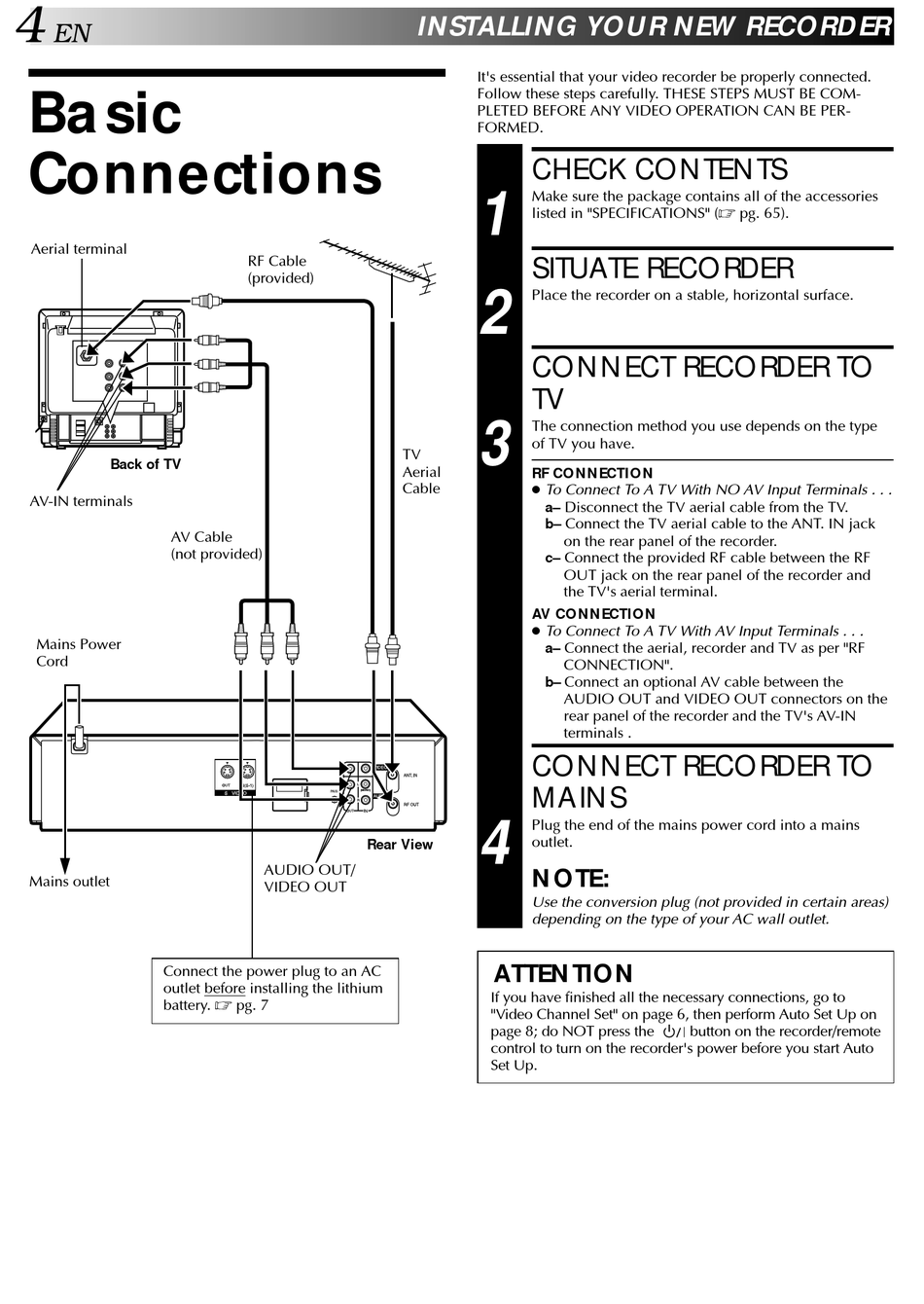

IN STALLIN G YO U R N EW RECO RD ER
It's essential that your video recorder be properly connected.
Follow these steps carefully. THESE STEPS MUST BE COM-
PLETED BEFORE ANY VIDEO OPERATION CAN BE PER-
FORMED.
CHECK CO N TEN TS
1
Make sure the package contains all of the accessories
listed in "SPECIFICATIONS" (
SITUATE RECO RDER
2
Place the recorder on a stable, horizontal surface.
CO N N ECT RECO RDER TO
TV
3
The connection method you use depends on the type
of TV you have.
RF CO N N ECTIO N
● To Connect To A TV With NO AV Input Terminals . . .
Disconnect the TV aerial cable from the TV.
a–
Connect the TV aerial cable to the ANT. IN jack
b–
on the rear panel of the recorder.
Connect the provided RF cable between the RF
c–
OUT jack on the rear panel of the recorder and
the TV's aerial terminal.
AV CO N N ECTIO N
● To Connect To A TV With AV Input Terminals . . .
Connect the aerial, recorder and TV as per "RF
a–
CONNECTION".
Connect an optional AV cable between the
b–
AUDIO OUT and VIDEO OUT connectors on the
rear panel of the recorder and the TV's AV-IN
terminals .
CO N N ECT RECO RDER TO
MAIN S
4
Plug the end of the mains power cord into a mains
outlet.
N O TE:
Use the conversion plug (not provided in certain areas)
depending on the type of your AC wall outlet.
ATTEN TIO N
If you have finished all the necessary connections, go to
"Video Channel Set" on page 6, then perform Auto Set Up on
page 8; do NOT press the
control to turn on the recorder's power before you start Auto
Set Up.
pg. 65).
button on the recorder/remote
