Honeywell Farenhyt Series Product Installation Document

RA-2000/RA-2000GRAY
Remote Annunciator
Product Installation Document
1 Description
The RA-2000/GRAY is an optional 4x40 remote annunciator that can be
surface or flush-mounted.RA-2000 is the red model. RA-2000GRAY is
the gray model.
Farenhyt™ Series
BACK BACK
NEXT NEXT

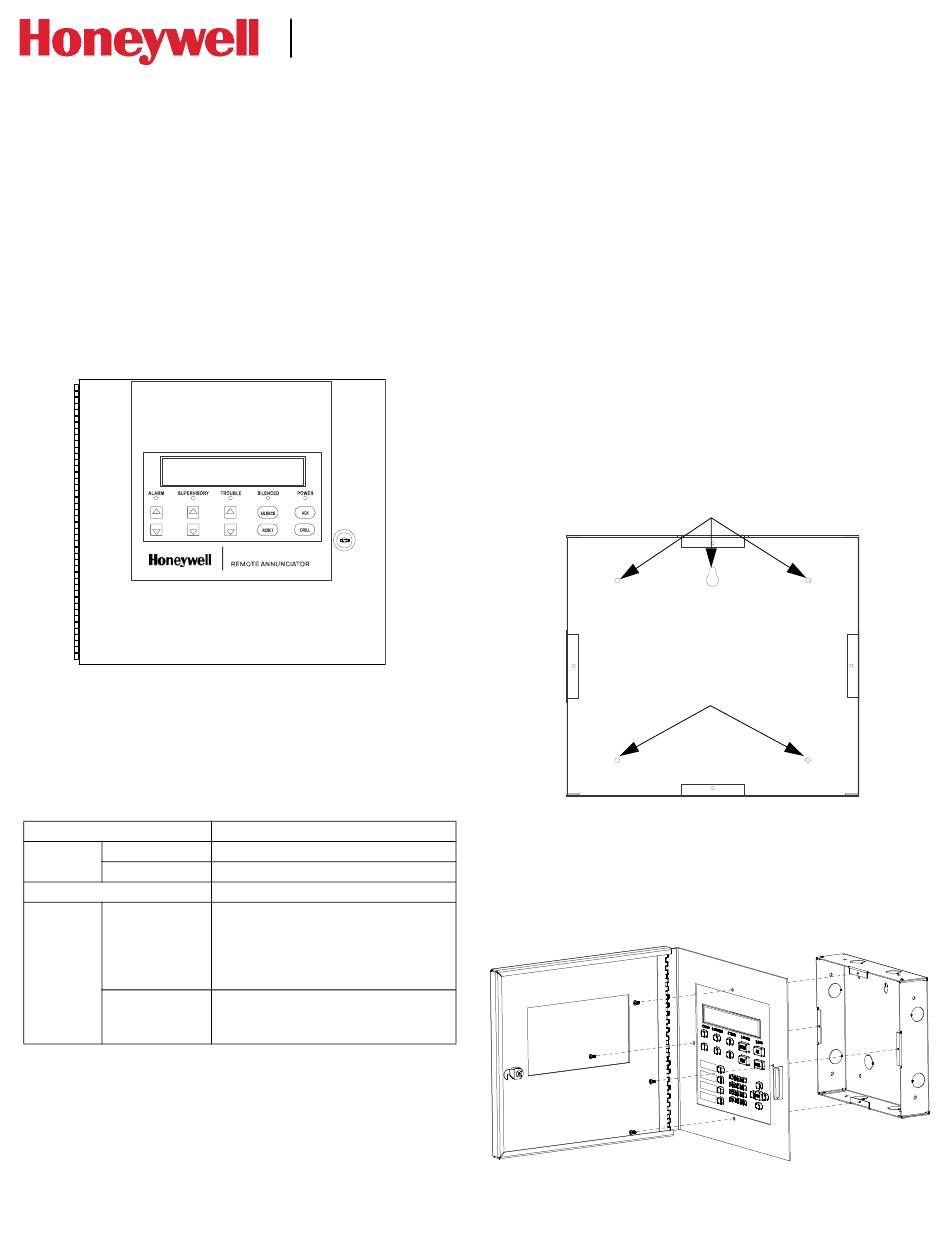

Figure 1 RA-2000 Remote Annunciator
1.1 Compatibility
The RA-2000/GRAY is compatible with the Honeywell's Farenhyt
Series FACPs. For more information, refer to the FACP Manual.
1.2 Specifications
Operating Voltage:
Current Standby Current: 27mA
Alarm Current:
Operating Temperature:
Dimensions Flush Mount:
Surface Mount:
Table 1 Specifications
2 Installation
1. Ensure power is turned off at the panel.
2. Mount the RA-2000/GRAY in the desired location. See Section 2.1.
3. Connect the RA-2000/GRAY to the panel. See Figure 5.
4. Use the DIP switches on the back of the RA-2000/GRAY to assign
an ID number. Refer to the FACP manual.
Document 151443:D 2/7/2022
Farenhyt™ Series
BACK
NEXT
Model RA-2000
24VDC
53mA
32° to 120° F (0° to 49° C)
Overall:
12.25" W x 11.5" H x 0.875" D
(31.1 cm W x 29.2 cm H x 2.2 cm D)
Backbox: 9.25" W x 8.375"H
(23.5cm W x 21.27cm H)
Including trim ring:
12.25" W x 11.5" H x 3.0" D
(31.1 cm W x 29.2 cm H x 7.6 cm D)
ECN: 151770
5. The RA-2000/GRAY module must be added to the system through
FACP programming. JumpStart can be used to automatically add
the module or it may be added manually. Refer to the FACP Manual
for more information.
2.1 Mounting
2.1.1 Flush Mounting
Follow these steps to flush mount the RA-2000/GRAY.
1. The backbox dimensions are 9.25" W x 8.375" H. The minimum
depth required is 2". Mount the backbox using the mounting holes
shown below.
mounting holes
mounting holes
Figure 2 RA-2000/GRAY Backbox Mounting
2. Remove knockouts as needed for wires. There are 10 knockouts
available, two on each side and two in the back of the cabinet.
3. Wire the annunciator board to the main control panel as shown in
Figure 5.
4. Attach the annunciator and door assembly to back box as shown
below using the supplied screws.
Figure 3 Attaching Annunciator/Door Assembly
