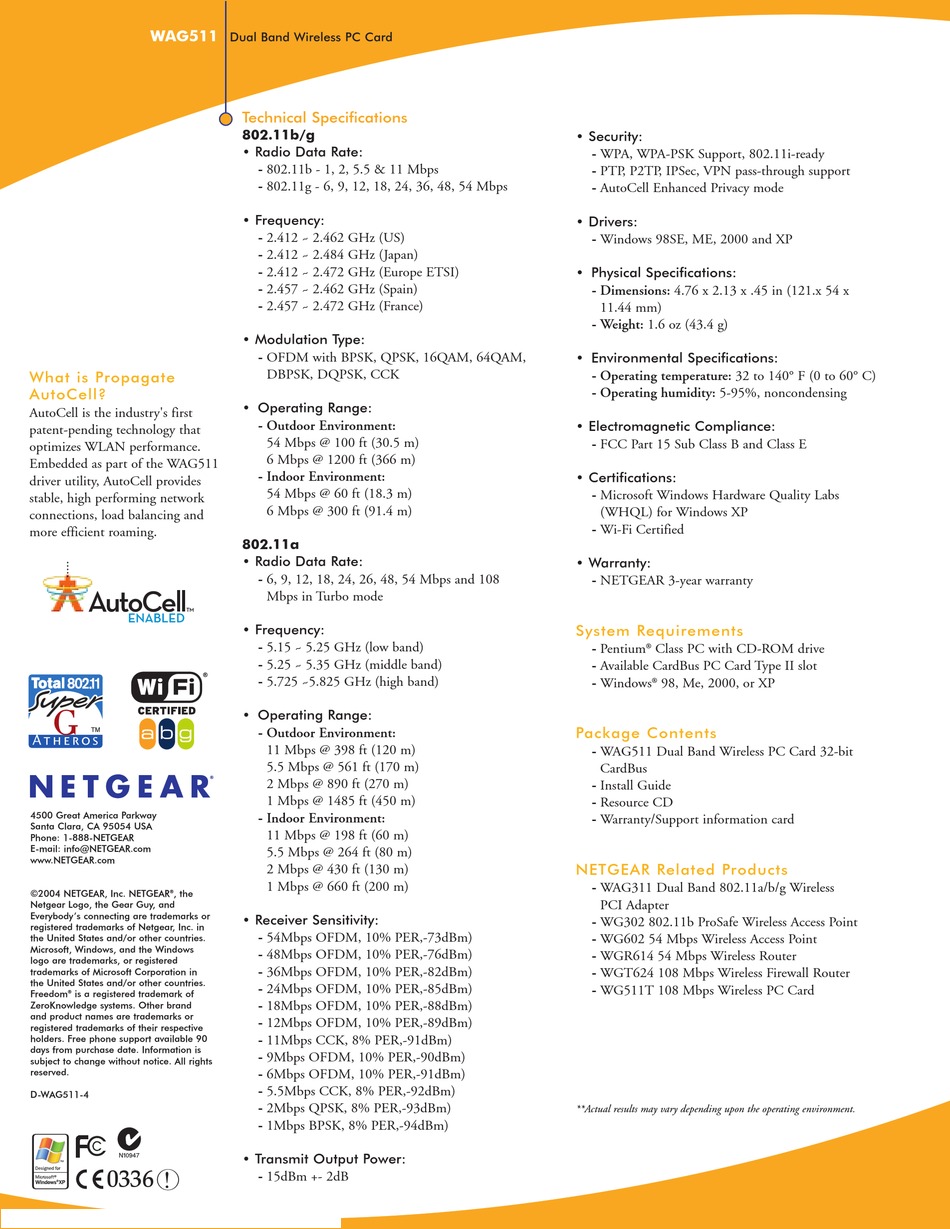

System Requirements; Package Contents - NETGEAR WAG511 Specifications

WAG511
What is Propagate
AutoCell?
AutoCell is the industry's first
patent-pending technology that
optimizes WLAN performance.
Embedded as part of the WAG511
driver utility, AutoCell provides
stable, high performing network
connections, load balancing and
more efficient roaming.
8 !
Everybody's Connecting.
4500 Great America Parkway
Santa Clara, CA 95054 USA
6 !
Phone: 1-888-NETGEAR
E-mail: info@NETGEAR.com
www.NETGEAR.com
©2004 NETGEAR, Inc. NETGEAR ®
Netgear Logo, the Gear Guy, and
Everybody's connecting are trademarks or
registered trademarks of Netgear, Inc. in
the United States and/or other countries.
Microsoft, Windows, and the Windows
logo are trademarks, or registered
trademarks of Microsoft Corporation in
the United States and/or other countries.
Freedom ® is a registered trademark of
ZeroKnowledge systems. Other brand
and product names are trademarks or
registered trademarks of their respective
holders. Free phone support available 90
U L
days from purchase date. Information is
®
subject to change without notice. All rights
©
reserved.
D-WAG511-4
0336 !
Dual Band Wireless PC Card
Technical Specifications
802.11b/g
• Radio Data Rate:
- 802.11b - 1, 2, 5.5 & 11 Mbps
- 802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency:
- 2.412 ~ 2.462 GHz (US)
- 2.412 ~ 2.484 GHz (Japan)
- 2.412 ~ 2.472 GHz (Europe ETSI)
- 2.457 ~ 2.462 GHz (Spain)
- 2.457 ~ 2.472 GHz (France)
• Modulation Type:
- OFDM with BPSK, QPSK, 16QAM, 64QAM,
DBPSK, DQPSK, CCK
• Operating Range:
- Outdoor Environment:
54 Mbps @ 100 ft (30.5 m)
6 Mbps @ 1200 ft (366 m)
- Indoor Environment:
54 Mbps @ 60 ft (18.3 m)
6 Mbps @ 300 ft (91.4 m)
802.11a
• Radio Data Rate:
- 6, 9, 12, 18, 24, 26, 48, 54 Mbps and 108
Mbps in Turbo mode
• Frequency:
- 5.15 ~ 5.25 GHz (low band)
- 5.25 ~ 5.35 GHz (middle band)
- 5.725 ~5.825 GHz (high band)
• Operating Range:
- Outdoor Environment:
11 Mbps @ 398 ft (120 m)
5.5 Mbps @ 561 ft (170 m)
2 Mbps @ 890 ft (270 m)
1 Mbps @ 1485 ft (450 m)
™
- Indoor Environment:
11 Mbps @ 198 ft (60 m)
5.5 Mbps @ 264 ft (80 m)
2 Mbps @ 430 ft (130 m)
1 Mbps @ 660 ft (200 m)
, the
• Receiver Sensitivity:
- 54Mbps OFDM, 10% PER,-73dBm)
- 48Mbps OFDM, 10% PER,-76dBm)
- 36Mbps OFDM, 10% PER,-82dBm)
- 24Mbps OFDM, 10% PER,-85dBm)
- 18Mbps OFDM, 10% PER,-88dBm)
- 12Mbps OFDM, 10% PER,-89dBm)
0768 !
- 11Mbps CCK, 8% PER,-91dBm)
- 9Mbps OFDM, 10% PER,-90dBm)
- 6Mbps OFDM, 10% PER,-91dBm)
- 5.5Mbps CCK, 8% PER,-92dBm)
- 2Mbps QPSK, 8% PER,-93dBm)
- 1Mbps BPSK, 8% PER,-94dBm)
• Transmit Output Power:
- 15dBm +- 2dB
• Security:
- WPA, WPA-PSK Support, 802.11i-ready
- PTP, P2TP, IPSec, VPN pass-through support
- AutoCell Enhanced Privacy mode
• Drivers:
- Windows 98SE, ME, 2000 and XP
• Physical Specifications:
- Dimensions: 4.76 x 2.13 x .45 in (121.x 54 x
11.44 mm)
- Weight: 1.6 oz (43.4 g)
• Environmental Specifications:
- Operating temperature: 32 to 140° F (0 to 60° C)
- Operating humidity: 5-95%, noncondensing
• Electromagnetic Compliance:
- FCC Part 15 Sub Class B and Class E
• Certifications:
- Microsoft Windows Hardware Quality Labs
(WHQL) for Windows XP
- Wi-Fi Certified
• Warranty:
- NETGEAR 3-year warranty

System Requirements

- Pentium
Class PC with CD-ROM drive
®
- Available CardBus PC Card Type II slot
- Windows 98, Me, 2000, or XP
®

Package Contents

- WAG511 Dual Band Wireless PC Card 32-bit
CardBus
- Install Guide
- Resource CD
- Warranty/Support information card
NETGEAR Related Products
- WAG311 Dual Band 802.11a/b/g Wireless
PCI Adapter
- WG302 802.11b ProSafe Wireless Access Point
- WG602 54 Mbps Wireless Access Point
- WGR614 54 Mbps Wireless Router
- WGT624 108 Mbps Wireless Firewall Router
- WG511T 108 Mbps Wireless PC Card
**Actual results may vary depending upon the operating environment.
