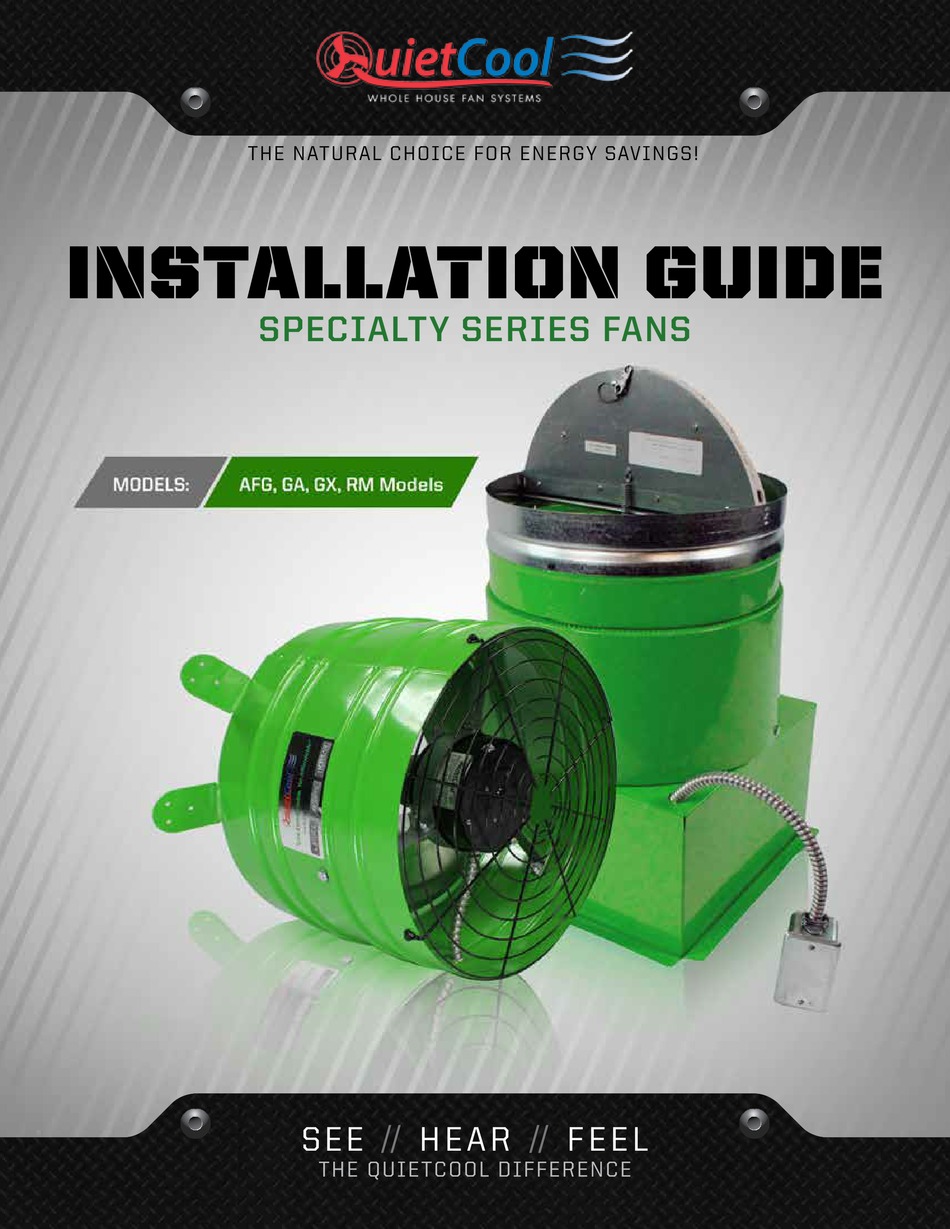

- Page 1 THE NATURAL CHOICE FOR ENERGY SAVINGS! INSTALLATION GUIDE SPECIALTY SERIES FANS H E A R F E E L THE QUIETCOOL DIFFERENCE...
-
Page 2: Table Of Contents
QuietCool Roof Mount Fans ........ -
Page 3: System Overview
QuietCool Roof Mount Fans: The QuietCool Roof Mount Fans offer great versatility for most applications. QuietCool Roof Mount Fans can be used as an attic fan, as a whole house fan with a duct, or as a whole house fan that pulls air through air intake grilles in multiple rooms. -
Page 4: Benefits
- Be sure to install enough inlet and outlet venting as described in the following table: Fan Model Required Inlet Venting* Required Outlet Venting** Airflow AFG CON-3.0 4 SQ. FT. 4 SQ. FT. 3013 CFM AFG ES-1500 2 SQ. FT. -
Page 5: Installation
Gable Fan. Use the mounting hardware included in the box to fasten the gable fan to the boards that frame the gable vents. To install the AFG, simply mount the gable fan to your gable vents as shown in the following steps: Figure 2.1A... -
Page 6: Installing Ga Model Fans
INSTALLATION OF GA MODEL FANS. 1. Determine which ceiling area you would like to install your QuietCool Garage Attic Fan. Now it’s time to find the exact location using a stud finder. Locate the ceiling studs and mark the location for the fan to be installed (see Figure 2.2A). -
Page 7: Installing Gx Model Fans
2.3 Installing GX Model Fans 1. Determine which area you would like to install your QuietCool Garage Exterior Mount Fan. Now it’s time to find the exact location using a stud finder. Locate the wall studs and mark the location for the fan to be installed on the wall (similar to Figure 2.2A). -
Page 8: Installing Rm Model Fans
Figure 2.3H Installing RM Model Fans 1. Determine which roof area you would like to install your QuietCool Roof Mount Fan. (see Figure 2.4D) IMPORTANT: If you are installing the RM fan as a ducted whole house fan, move on to step 2a. If you are installing the RM fan as a whole house fan without a duct, move on to step 2b. - Page 9 Flat Roof - No Duct: Works with CRB and FLT Models Flat Roof - With Duct: Works with CRB and FLT Models Sloped Roof - No Duct: Works with SLP Models Sloped Roof - With Duct: Works with SLP Models 1-888-QUIETCOOL...
-
Page 10: Wiring
3. WIRING NOTE: Wiring Diagrams are for examples ONLY. Wiring should be done by an experienced electrician. 3.1. Specialty Fan Wiring - Thermostat (see Figure 3.1A) For wiring of a Specialty Series Fan with a thermostat. This wiring method works with all of our Specialty Series fans, but we do NOT recommend using it with a Roof Mount fan that is being used as a whole house fan. - Page 11 Ground the fan to the junction box Ground the fan to the junction box using the green ground screw using the green ground screw Specialty Series Fan Specialty Series Fan Junction Junction 14-2 Wire 14-2 Wire 14-2 Wire 14-2 Wire Power Power Source Source 1-888-QUIETCOOL...
-
Page 12: Wiring With A Timer
3.2. Specialty Fan Wiring - Timer (see Figure 3.2A) For wiring of a Specialty Series Fan with a timer. This wiring method works with all of our Specialty Series fans. We recommend using this method if installing a Roof Mount fan as a whole house fan. This also works well with a Garage fan. -
Page 13: System Operating Instructions
4.3 QuietCool Roof Mount Fans The QuietCool Roof Mount Fans are the most versatile fans that we offer. They can be used as an attic fan, a whole house fan with a duct, or a whole house fan with multiple inlet vents. QuietCool Roof Mount Fans also work where a conventional QuietCool Whole House Fan will not. -
Page 14: Specialty Series Overview
SPECIALTY SERIES OVERVIEW AFG CON-3.0 The AFG CON-3.0 is the most powerful residential attic fan. At a great 12.1 CFM/Watt, this fan won’t break the bank either. Watts Airflow CFM/Watt 3013 CFM 12.1 AFG ES-1500 The AFG ES-1500 is the most energy efficient attic fan. -
Page 15: Warranty
QC Manufacturing, Inc. will not process any warranty claim without proof of purchase from an authorized QuietCool dealer. Where consumer may have additional warranty rights in accordance with federal and state law, such rights shall supersede those stated herein."... - Page 16 QuietCool is Proudly Designed and Built in California 43352 Business Park Drive, Temecula, CA 92590 // PH 951.325.6340 // QUIETCOOLSYSTEMS.COM 1-888-QUIETCOOL...
