Philips ADD6920 User Manual

Ro dispenser
Hide thumbs Also See for ADD6920:
Table of Contents

Advertisement

Quick Links

RO Dispenser
ADD6920
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Philips ADD6920

Summary of Contents for Philips ADD6920

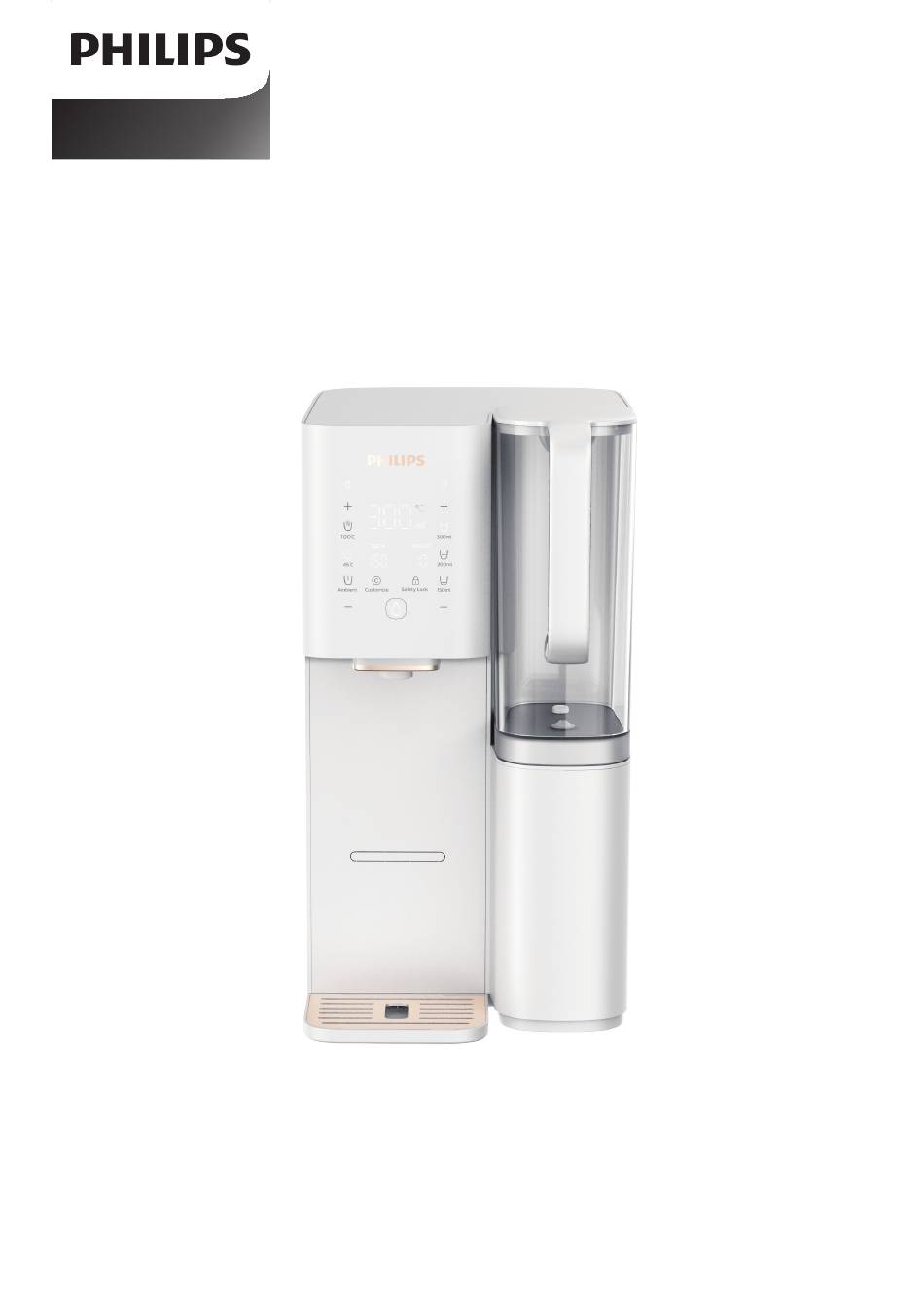

  • Page 1 RO Dispenser ADD6920 User Manual...

  • Page 3: Table Of Contents

    English CONTENTS Important Notes Usage instructions Product speci�cations Daily maintenance Filter replacement Product overview User interface Error codes Installation Trouble shooting Packing list...

  • Page 4: Important Notes

    1. Important Notes Note: All contents of this part relate to safety. The dangers, harmfulness, and potential accidents are explained herein. All users must strictly follow the instructions. • Misuse may cause injury. • The heating element surface is subject to residual heat after use. •...
  • Page 5 dispenser might be frozen and the elements of the dispenser will be damaged. • The dispenser can only be installed and used indoor, and with power supply of reliable grounding. • For �rst time use, or if the machine hasn’t been used for a long time, �ll the raw water tank and discard all the �ltered water.

  • Page 6: Product Speci�Cations

    2. Product speci�cations Product name Philips RO water dispenser Model ADD6920WH / ADD6920GY / ADD6920BK Rated voltage/frequency 220V-240V~ Rated gross power 2100W-2400W Filter cartridge total rated water puri�cation amount 2000L 0.2L/min Water �ltration �ow rate Applicable water source Municipal tap water Inlet water pressure 0 - 0.06MPa...

  • Page 7: User Interface

    4. User interface Changing water Water �ltration indicator indicator Filtered water jug Filter lifetime indicator indicator Temperature Volume selection button selection button Customize Safety Lock Water extraction button Tap water TDS value Filtered water TDS value There could be a temperature deviation of ±3℃, There could be a volume deviation of ±10%, the actual temperature and volume depends on usage environment and local tap water quality.

  • Page 8: Usage Instructions

    First time use • During �rst time use, please check if any water leaks from or gathers around the dispenser. If there is any strange noise, burnt smell or smoke coming out from the product, please disconnect the power cord immediately.
  • Page 9 Rinsing • The dispenser will do auto rinsing before and after water �ltration once it is connected with power supply and the raw water tank is covered; the “water �ltration” indicator will light up under rinsing status. • Forced rinsing: long press “Ambient” + “Safety lock” for 3 seconds and the dispenser will rinse for 3 minutes.
  • Page 10 Water temperature adjustment • Water temperature presets: there are three water temperature presets for selection - ambient, 45℃ and 100℃. • Stepless temperature control: Select a water temperature preset, the display will show the water output temperature; pressing the temperature “+”...
  • Page 11 Customization • Long press the “ ” button for 3 seconds to enter the intelligent memory setup mode. The “ ” indicator will start �ashing. Select the needed water temperature and volume, then press the “ ” button again, the machine will make a beep sound and the “...
  • Page 12 Sleep mode • If no operation in 1 minute, the dispenser will automatically go to sleep mode. • When the dispenser is in sleep mode, only the safety lock indicator is on, all other indicators are off. • Touch any button to end the sleep mode. Boiling point calibration •...

  • Page 13: Daily Maintenance

    New �lter cartridge can be purchased from authorized retailers and service centers. The model is ADD583. Name All-in-one RO Filter Model ADD583 Suggested Replacement Cycle 1 year * Only the original Philips �lter cartridge can be used for replacement.
  • Page 14 Filter lifetime indicator • The color of the �lter lifetime indicator shows the remaining lifetime of the �lter cartridge: - White light: more than 10% lifetime left; - Flashing red light: less than 10% lifetime left; - Red light: less than 7-day lifetime left. Filter cartridge replacement instructions •...

  • Page 15: Error Codes

    9. Error codes E1: Water temperature sensor abnormality Solutions: Check the �ltered water jug, discard the �ltered water if the water temperature exceeds the room temperature; put the �ltered water jug back to the machine, when the �ltration is completed, extract 300ml of ambient water. Please contact customer services if the problem cannot be solved.

  • Page 16: Trouble Shooting

    10. Trouble shooting Error Causes Solutions The product is not connected with Check if the dispenser is well connected with Cannot extract the power supply power supply ambient water Button is not pressed properly Press the water extraction button again Extract ambient water for several times, The dispenser is dry-heating and then extract hot water...

  • Page 17: Packing List

    Removable drip tray User manual Filtered water jug If you need information or have any questions, please visit www.philips.com/support or contact consumer service center in your country/region. If there is no consumer service center in your country/region, please contact your local distributor.
  • Page 19 © 2022 AquaShield All rights reserved. The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by and is sold under the responsibility of Hong Kong AquaShield Health Technology Company Limited and Hong Kong AquaShield Health Technology Company Limited is the warrantor in relation to this product.
