Chapter 3. PROFIBUS Network Adapters
3.2.1.6 STXPBS116 – Adapter with 16 relay output isolated

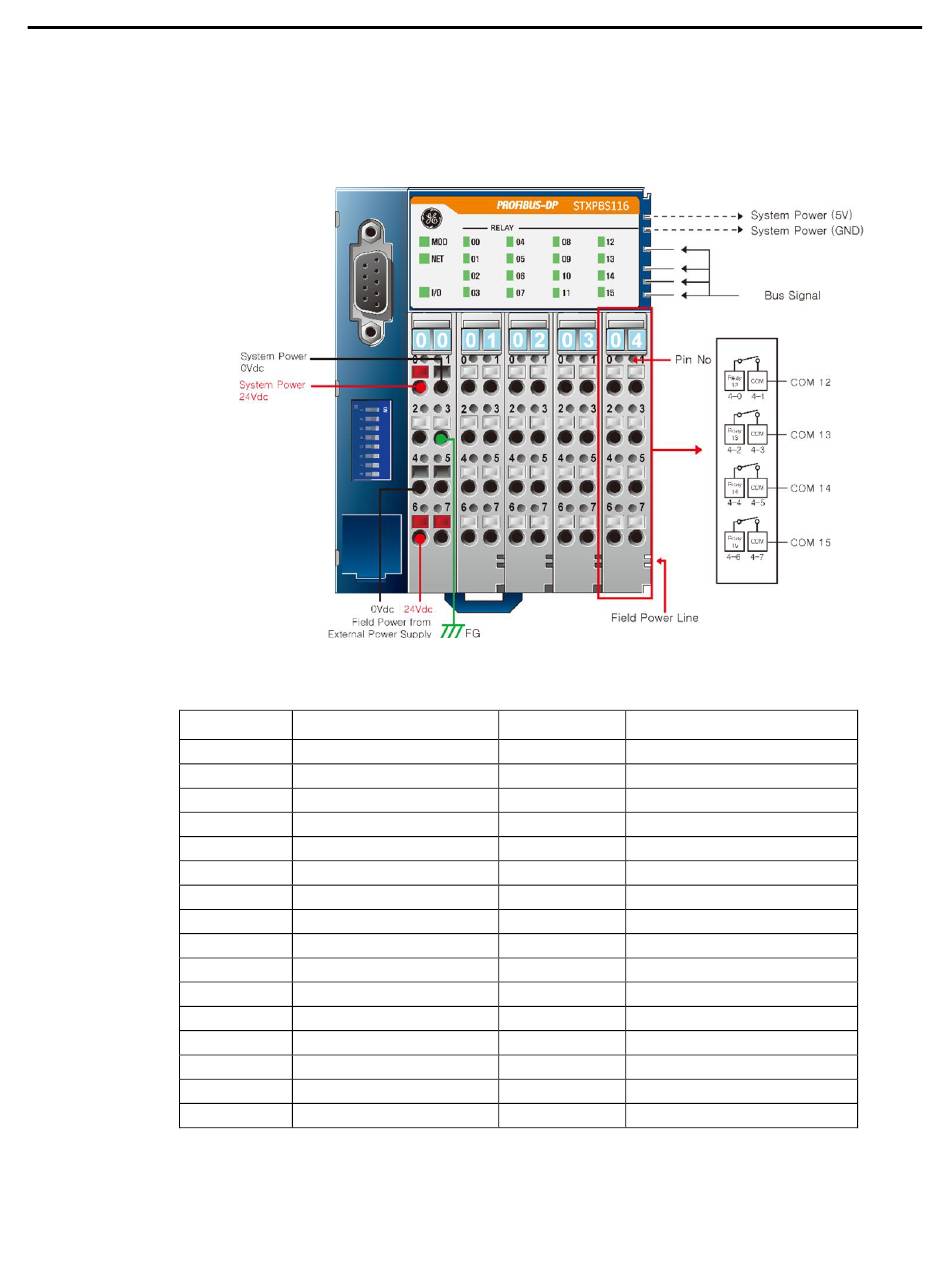

The following figure shows the interface diagram for STXPBS116.
Figure 15: PROFIBUS Network Adaptor Module: STXPBS116
Table 10: STXPBS116: Pin Description
Pin Number
01-0
01-1
01-2
01-3
01-4
01-5
01-6
01-7
02-0
02-1
02-2
02-3
02-4
02-5
02-6
02-7
28
Description
Relay Output 0
COM 0
Relay Output 1
COM 1
Relay Output 2
COM 2
Relay Output 3
COM 3
Relay Output 4
COM 4
Relay Output 5
COM 5
Relay Output 6
COM 6
Relay Output 7
COM 7
PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Pin Number
03- 0
Relay Output 8
03-1
COM 8
03-2
Relay Output 9
03-3
COM 9
03-4
Relay Output 10
03-5
COM 10
03-6
Relay Output 11
03-7
COM 11
04-0
Relay Output 12
04-1
COM 12
04-2
Relay Output 13
04-3
COM 13
04-4
Relay Output 14
04-5
COM 14
04-6
Relay Output 15
04-7
COM 15
Description
GFK-2746B
