Panasonic 5054 Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Technical Manual
5054
Rev 0
D
U
5054
ISPLAY
NIT
Firmware V2
MA446
May 2021

Advertisement

Table of Contents
loading

Related Manuals for Panasonic 5054

Summary of Contents for Panasonic 5054

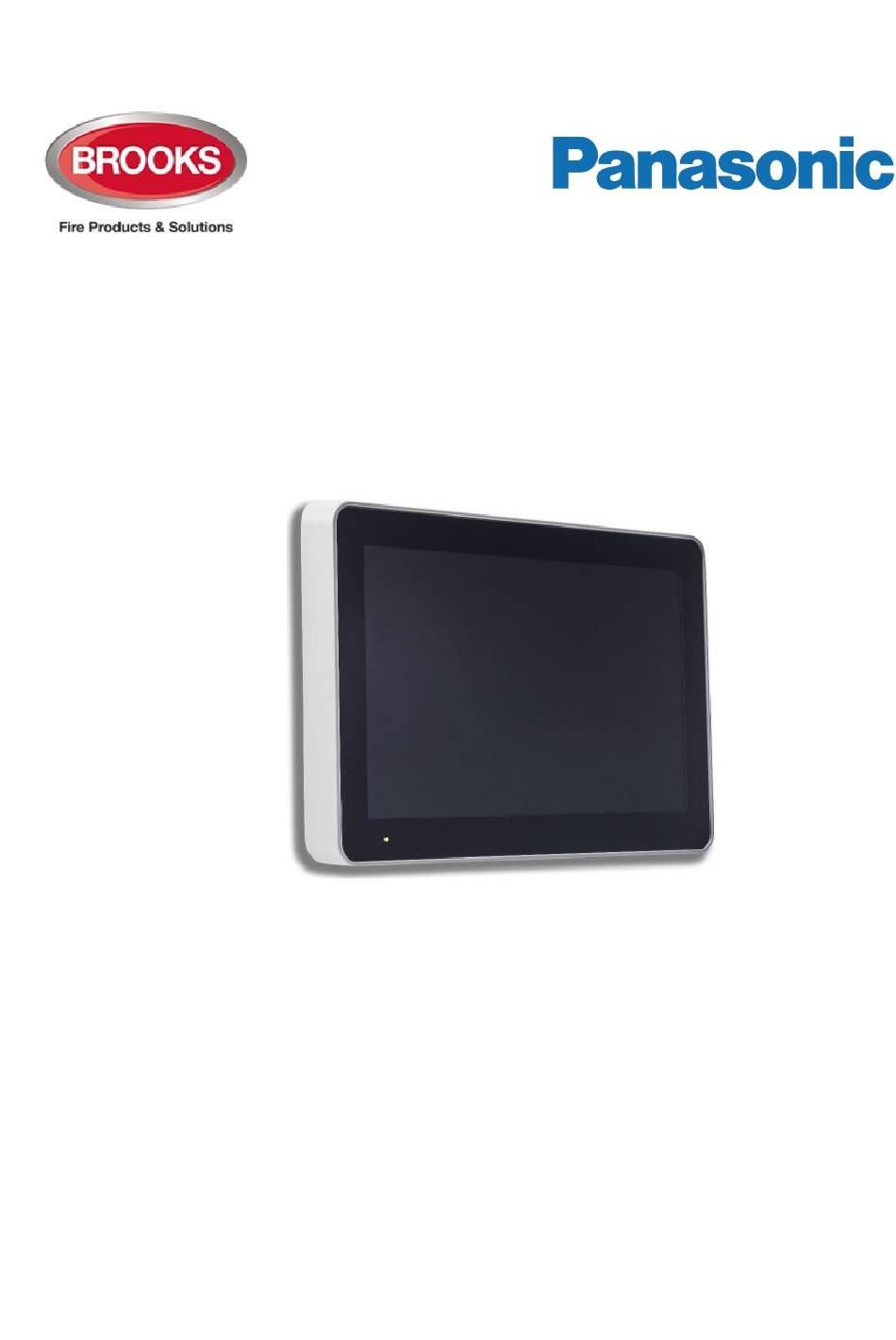

  • Page 1 Technical Manual 5054 Rev 0 5054 ISPLAY Firmware V2 MA446 May 2021...
  • Page 2 This page has deliberately been left blank.

  • Page 3: Table Of Contents

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Table of Contents INTRODUCTION ............................3 RS485 ............................3 Power supply ..........................4 1.2.1 Joint communication and power supply in twisted pairs, shielded, RS485-cables ..4 1.2.2 Separate communication cable ..................4 1.2.3...
  • Page 4 Table of Figures Figure 1 Dimensions of 5054 Display Unit ...................... 3 Figure 2 5054 Display configured as an External Presentation Unit .............. 7 Figure 3 5054 configured as an Alert Annunciation Unit ................9 Figure 4 Fire brigade option (not conforming to AS4428.3 ................13...

  • Page 5: Introduction

    For Firmware V2.0.x Introduction The display unit 5054 is a coloured touch screen display. It is intended to be used for fire alarm presentation and information in the fire alarm system. When a fire alarm is activated in the FDCIE, the fire alarm information will be sent to the remote display unit.

  • Page 6: Power Supply

    5054 Rev 0 For Firmware V2.0.x A termination resistor 120R has to be connected in the last unit on the RS485 bus. In 5054 units, this is done via jumper "J7" or “J3”. ("J7" shunted = the termination resistor is connected.)

  • Page 7: Touch Screen

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Touch Screen The display is a coloured touch screen. The screen brightness and volume can be adjusted, see section 5.5 Display Brightness, page 15. The touch screen goes to sleep mode after 2 minutes.

  • Page 8: Generic Alarm Presentation

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Generic Alarm Presentation 1. First zone in alarm 2. Last zone in alarm 3. Latest alarm 4. Free text 5. Displayed alarm in the list 6. Ethernet connection 7. Number of zones in alarm Note: The above picture is only for illustration, it cannot be used as a fire brigade panel.

  • Page 9: External Presentation Unit

    5054 Rev 0 For Firmware V2.0.x External Presentation Unit When 5054 is programmed as an external presentation unit, the display will be as shown in Figure 2 below. Figure 2 5054 Display configured as an External Presentation Unit 1. Fire alarm indicator 2.

  • Page 10: Disablement Message

    5054 Rev 0 For Firmware V2.0.x The buzzer can be silenced but the alarm devices in the system cannot be silenced via 5054 “Silence buzzer”. If the buzzer is programmed in EBLWin as "Disabled", in this case it will never sound.

  • Page 11: Alert Annunciation Unit

    5054 Rev 0 For Firmware V2.0.x Alert Annunciation Unit When 5054 is programmed as an alert annunciation unit, the display will be as shown in Figure 3 below. Figure 3 5054 configured as an Alert Annunciation Unit 1. Fire alarm indicator 2.

  • Page 12: 3.1.2 Fire Alarm With Alert Annunciation

    If two or more alarms exist in the system, the button “Alarms queued” will be shown, and the user can scroll amongst the alarms. When all fire alarms are reset (from 5054), the display unit will return to normal operation (if the fire alarm is cleared).

  • Page 13: Alert Annunciation Function

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Alert Annunciation Function The alert annunciation function can be used to avoid nuisance alarms to the fire brigade (if connected). The function is configured via EBLWin and normally analogue smoke detectors and zones with smoke detectors, can be programmed for alert annunciation. Heat detectors and manual call points should not normally be programmed for alert annunciation.

  • Page 14: Quiet Alarm

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Quiet Alarm Quiet alarm can be shown in the display unit. Operation The time glass symbol is activated whilst an alert annunciation function is active in the system. Buttons “Acknowledge” is Visible when there are un-acknowledged alert annunciation alarms exist in the system.

  • Page 15: External Fire Brigade Panel

    Technical Manual 5054 Rev 0 For Firmware V2.0.x External Fire Brigade Panel Figure 4 Fire brigade option (not conforming to AS4428.3 1. Fire alarm indicator 2. Extinguishing symbol 3. Ventilation symbol 4. Fire brigade tx symbol 5. Silence buzzer 6. Silence alarm devices 7.

  • Page 16: Service Menu

    The service menu can also be opened via menu “Activate address setting mode for DU” in the FDCIE, see the operation manual for the FDCIE. Unit Type When 5054 is connected to FT128 or FT1020G3, the unit type can be changed to one of the following: External presentation unit •...

  • Page 17: Unit Address

    (45 mA in quiescent and 180 mA in active condition). Ensure the current supplied to 5054 units is sufficient. 5054 current calculation consider the worst case scenario , 50 mA quiescent and 350 mA @ 12V DC active.

  • Page 18: Network Settings

    Network settings will show basic system information e.g. device name, IP address, etc. 5.10 Selective Alarm Presentation Normally all fire alarms will be presented in the FDCIE and 5054. It is possible to select which alarms may be presented in the display unit. For example, if there are many buildings in a system, the units in one specific building can present alarms activated within this building only.

  • Page 19: User Definable Text Messages

    Technical Manual 5054 Rev 0 For Firmware V2.0.x User Definable Text Messages The user definable text messages (alarm texts) are dependent on which unit type the display unit is running in. Each alarm text (up to 40 alphanumeric characters) will be shown on the second row.

  • Page 20: Fault Messages In The Display Unit

    Displayed when any fault not corrected or serviced in the system and any non-acknowledged fault in the system. To see the faults, refer to the FDCIE menu system. Note: General fault is shown only when 5054 configured as external presentation unit, but not displayed for alert annunciation unit.

  • Page 21: Ip Camera And Drawing

    (both x64 and x86 versions). These can be requested to download from Brooks engineering. Note: The settings are saved in the “Panasonic Fire and Security” folder. The user account that the EBL Service is running under must have at least read access to the folder where the EBL Graphics configuration is located.
  • Page 22 9. Select EBL Service and click Start. The IP address of the PC with EBL Service installed also need to be set in EBLWin. 10. Open the Display unit 5054 properties window in EBLWin as shown in Figure 5 below.

  • Page 23: Figure 5 Display Unit Property Window In Eblwin

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Figure 5 Display unit property window in EBLWin Note: The bottom section of the 5054 properties window shown in Figure 5 above is available only in software V2.0.x.

  • Page 24: Firmware And File System

    V2.0.x and V2.0.x respectively. X indicates only a small correction and is not required to be the same. It is highly recommended to have the same versions in all the 5054 units in the system. Display unit 5054 Driver A driver is required to download the firmware and the file system software into your PC.

  • Page 25: Firmware Download

    2. In EBLWin, click Tools / Download software to open the EBL Firmware Manager, the following window displays: 3. Select the “Display unit (5054)” tab. 4. Browse to the firmware file location in your PC to be downloaded, DU5054_x.x.x_FW.dfu. You must select the correct file extension.

  • Page 26: 9.3.1 Download Firmware In Boot Mode

    If the display unit cannot be restarted, it can be forced into boot mode to be able to download a new firmware. A Display unit driver in section 9.2 “Display unit 5054 Driver” page 22 is needed when the unit is in boot mode. Make sure you have the driver installed on your computer before you open EBL Firmware Manager.

  • Page 27: File System Download

    1. Connect your PC to the display unit via the USB and start EBLWin. 2. In EBLWin, click Tools / Download software to open the EBL Firmware Manager. 3. Select the “Display unit (5054) file system” tab as shown below. 4. Browse to the file system location in your PC to be downloaded, DU5054_x.x.x_FS.bin.

  • Page 28: Mounting

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Mounting The display unit must be mounted on the wall. Screws for wall mounting are not supplied. The following procedures can be used to mount the display unit: 1. Remove the two screws (Torx T10) at the bottom of the display unit and open the cover.
  • Page 29 Technical Manual 5054 Rev 0 For Firmware V2.0.x 7. Remove the insulating cover on the cables. The remaining strip of the shield should be about 15 mm. 8. Bend the shield backwards over the insulating cover. 9. Clamp the cables on the ground bar plate. In order to avoid short circuit, ensure secured connection, do not let the sprawl outside the cable fixing clamp.

  • Page 30: 10.1 Drill Measurement

    Technical Manual 5054 Rev 0 For Firmware V2.0.x 10.1 Drill Measurement...

  • Page 31: Installation And Wiring

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Installation and Wiring Up to 1200 metre communication cable (RS485) can be used. Data Cable Ø (mm) Area (mm2) Wire size (Min) 0.64 0.33 Wire size (Max) 1.62 2.08 Jumper links and connections...

  • Page 32: Restart

    FT128: “FAULT: No reply EPU x” • If an SSD memory fault in 5054 or no SSD downloaded, the display unit will still work since the alarm texts will be sent out from the FDCIE. A fault message will be shown in the FDCIE: FT1020G3: “FAULT: Site specific data, display unit xx, control unit xx”...

  • Page 33: Commissioning

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Commissioning This chapter describes the correct procedures to install, set, and check the display unit. Preparations 1. Prepare the FDCIE: • FT1020G3: Remove the fuse “F19” on the main board. FT128: Ensure to power of the FDCIE is disconnected and that the •...

  • Page 34: Specifications

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Specifications Note: All current consumptions are valid by nominal voltage and by 25 °C. Voltage: Allowed 12-30V DC Normal 24V DC Current: 12 V DC 24 V DC Quiescent 80 mA 45 mA Active (incl.

  • Page 35: Guarantee

    5054 display units. Brooks guarantees 5054 display units for a period of 15 month from the date of purchase the equipment or 12 months from the date of operation.

  • Page 36: Revision History

    Technical Manual 5054 Rev 0 For Firmware V2.0.x Revision history Issue Date Description Written By Checked By 7/5/2021 First revision of firmware V2.03 Manual A.S. AS / HN...
  • Page 37 Technical Manual 5054 Rev 0 For Firmware V2.0.x NSW - Head Office P.O. Box 7050 Silverwater NSW 1811 4 Pike Street Rydalmere NSW 2116 Ph: 02 9684 1466 Website: www.Brooks.com.au 9/71 Victoria Crescent, Abbotsford VIC 3067 Ph: 03 9879 5294 P.O.
