  • Page 1 Wireless-N USB Network Adapter User Guide WIRELESS WUSB300N Model No.
  • Page 2 Wireless-N USB Network Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved.

  • Page 3: Table Of Contents

    Roaming Network Layout Chapter 3: Getting to Know the Wireless-N USB Network Adapter The LED Indicators Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Starting the Setup Connecting the Adapter Setting up the Adapter Chapter 5: Using the Wireless Network Monitor...
  • Page 4 Wireless-N USB Network Adapter Appendix G: Warranty Information Appendix H: Regulatory Information Appendix I: Contact Information...
  • Page 5 List of Figures Figure 3-1: Front Panel Figure 4-1: Setup Wizard’s Welcome Screen Figure 4-2: Setup Wizard’s License Agreement Figure 4-3: Connecting thWPAe Adapter Figure 4-4: Available Wireless Networks Figure 4-5: WEP Key Needed for Connection Figure 4-6: WPA Needed for Connection...
  • Page 6 Wireless-N USB Network Adapter Figure 5-7: WPA Needed for Connection Figure 5-8: WPA2 Personal Needed for Connection Figure 5-9: Profiles Figure 5-10: Creating a Profile Figure 5-11: WEP Key Needed for Connection Figure 5-12: WPA Needed for Connection Figure 5-13: WPA2 Personal Needed for Connection...

  • Page 7: Chapter 1: Introduction Welcome

    The included Setup Wizard walks you through configuring the Adapter to your wireless network settings, step by step. Use the instructions in this Guide to help you set up and connect the Adapter using the Setup Wizard. These instructions should be all you need to get the most out of the Adapter.
  • Page 8 This appendix supplies the Adapter’s warranty information. • Appendix H: Regulatory Information This appendix supplies the Adapter’s regulatory information. • Appendix I: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 1: Introduction What’s in this User Guide?

  • Page 9: Chapter 2: Planning Your Wireless Network

    Linksys wireless adapters also provide users access to a wired network when using an access point or wireless router. An integrated wireless and wired network is called an infrastructure network. Each wireless PC in an infrastructure network can talk to any computer in a wired network infrastructure via the access point or wireless router.

  • Page 10: Network Layout

    When you wish to connect your wired network with your wireless network, network ports on access points and wireless routers can be connected to any of Linksys's switches or routers. With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about wireless products.

  • Page 11: Chapter 3: Getting To Know The Wireless-N Usb Network Adapter

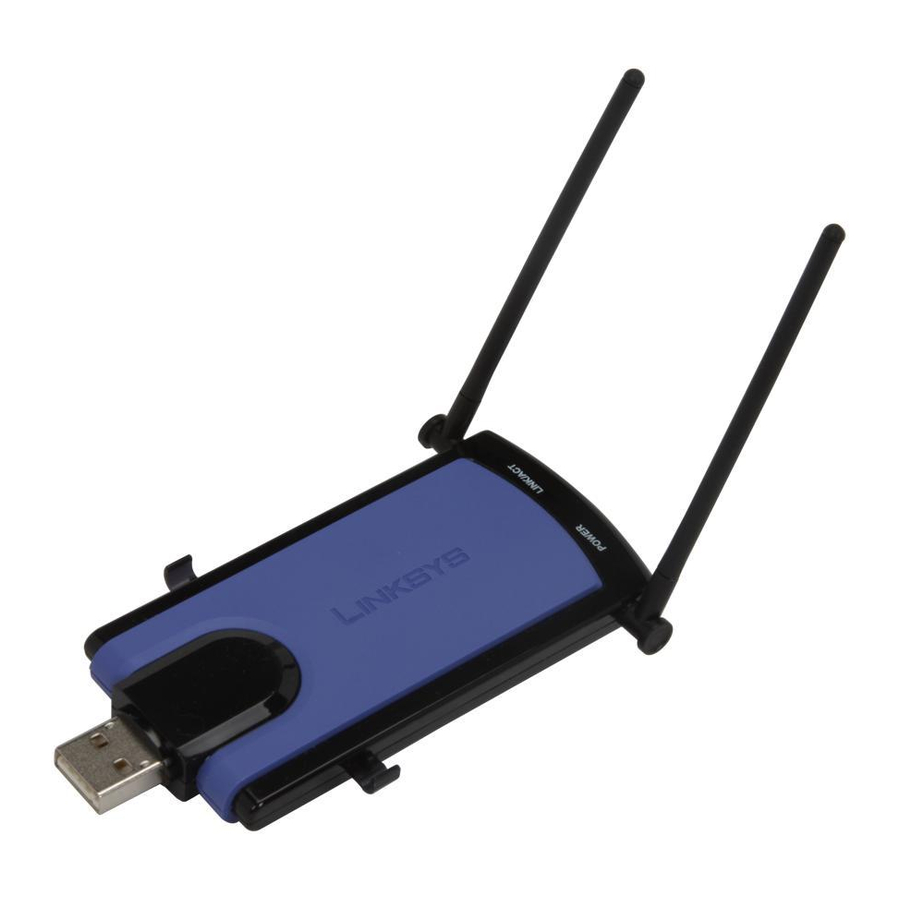

    Power Green. The Power LED lights up when the Adapter is powered on. Link/Act Green. The Link/Act LED lights up when the Adapter has an active connection. Chapter 3: Getting to Know the Wireless-N USB Network Adapter The LED Indicators...
  • Page 12 USB Extension Base A USB Extension Base is provided for easy access to the USB port. The USB Extension Base is connected to the USB port in your PC, then the Adapter is connected to the Base. Figure 3-2: USB Extension Base...

  • Page 13: Welcome

    The Wireless-N USB Network Adapter Setup Wizard will guide you through the installation procedure. The Setup Wizard will install the driver and Wireless Network Monitor, as well as connect and configure the Adapter. IMPORTANT: Do not connect the Adapter until you are instructed to do so or the setup will not work.

  • Page 14: Connecting The Adapter

    PC, then insert the Adapter into the USB port on the Base. 3. If you want to use the included USB Extension Cable, connect the Adapter to the female end of the USB Extension Cable, then connect the male end of the Cable to the PC.

  • Page 15: Figure 4-5: Wep Key Needed For Connection

    16 alphanumeric characters. It must match the passphrase of your wireless network and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network.

  • Page 16: Figure 4-7: Wpa2 Personal Needed For Connection

    For more information about the Wireless Network Monitor, refer to Chapter 5: Using the Wireless Network Monitor. Congratulations! The installation of the Wireless-N USB Network Adapter is complete. To check the link information, search for available wireless networks, or make additional configuration changes, proceed to Chapter 5: Using the Wireless Network Monitor.

  • Page 17: Figure 4-9: Available Wireless Network

    IP Address - This IP Address must be unique to your network. Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask. Default Gateway - Enter the IP address of your network’s Gateway here.

  • Page 18: Figure 4-12: Ad-Hoc Mode Settings

    16 alphanumeric characters. This passphrase must match the passphrase of your wireless network and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.)

  • Page 19: Figure 4-14: Wireless Security - Wpa

    Pre-shared Key - Enter a Pre-shared Key of 8-63 characters in the Pre-shared Key field. Click the Next button to continue or the Back button to return to the previous screen. Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Setting up the Adapter...

  • Page 20: Figure 4-16: Wireless Security - Wpa Enterprise - Eap-Tls

    TKIP or AES, from the Encryption drop-down menu. Click the Next button to continue or the Back button to return to the previous screen. Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Setting up the Adapter...

  • Page 21: Figure 4-18: Wireless Security - Wpa2 Enterprise - Eap-Tls

    Trust Any. Then select the authentication method used inside the PEAP tunnel. Click the Next button to continue or the Back button to return to the previous screen. Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Setting up the Adapter...

  • Page 22: Figure 4-20: Wireless Security - Radius - Eap-Tls

    Trust Any. Then select the authentication method used inside the PEAP tunnel. Click the Next button to continue or the Back button to return to the previous screen. Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Setting up the Adapter...

  • Page 23: Figure 4-22: Confirm New Settings

    To check the link information, search for available wireless networks, or make additional configuration changes, proceed to Chapter 5: Using the Wireless Network Monitor. Chapter 4: Setting up and Connecting the Wireless-N USB Network Adapter Setting up the Adapter Figure 4-22: Confirm New Settings...

  • Page 24: Chapter 5: Using The Wireless Network Monitor

    Accessing the Wireless Network Monitor After installing the Adapter, the Wireless Network Monitor icon will appear in the system tray of your computer. If the Wireless Network Monitor is enabled, then the icon will be green. If the Wireless Network Monitor is disabled or the Adapter is not connected, then the icon will be gray.

  • Page 25: Figure 5-3: More Information - Wireless Network Status

    IP Address - The IP Address of the Adapter is displayed here. Subnet Mask - The Subnet Mask of the Adapter is shown here. Default Gateway - The Default Gateway address of the Adapter is displayed here. DNS1 - This is the DNS address of the Adapter.

  • Page 26: Figure 5-4: More Information - Network Statistics

    The Wireless Networks Statistics screen provides statistics on your current network settings. Transmit Rate - This is the data transfer rate of the current connection. (In Auto mode, the Adapter dynamically shifts to the fastest data transfer rate possible at any given time.) Receive Rate - This is the rate at which data is received.

  • Page 27: Connect

    The Connect screen displays a list of available networks in the table on the left. The table shows each network’s Wireless Network Name, Channel, and the quality of the wireless signal the Adapter is receiving. You may click Wireless Network Name, CH (Channel), or Signal, to sort by that field.

  • Page 28: Profiles

    Wireless-N USB Network Adapter • If the network has WPA2 Personal wireless security enabled, then you will see the WPA2 Personal Needed for Connection screen. Enter the network’s Pre-shared Key in the Pre-shared Key field. You must enter the same security settings used on your network.

  • Page 29: Create A New Profile

    Connect button to connect to it. Click the Refresh button to update the Available Wireless Networks list. • Advanced Setup. If your network is not listed on this screen, select Advanced Setup to set up the adapter manually. This method of setting up the Adapter is intended for Advanced Users only.

  • Page 30: Figure 5-12: Wpa Needed For Connection

    Wireless-N USB Network Adapter the passphrase of your wireless network and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters.

  • Page 31: Figure 5-15: Available Wireless Networks

    IP Address - This IP Address must be unique to your network. Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask. Default Gateway - Enter the IP address of your network’s Gateway here.

  • Page 32: Figure 5-17: Wireless Mode

    Wireless-N USB Network Adapter 3. The Wireless Mode screen shows a choice of two wireless modes. Click the Infrastructure Mode radio button if you want to connect to a wireless router or access point. Click the Ad-Hoc Mode radio button if you want to connect to another wireless device directly without using a wireless router or access point.

  • Page 33: Figure 5-19: Wireless Security - Wep

    16 alphanumeric characters. This passphrase must match the passphrase of your wireless network and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network.

  • Page 34: Figure 5-20: Wireless Security - Wpa

    Wireless-N USB Network Adapter WPA Personal WPA Personal offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select TKIP or AES for encryption. Then enter a Pre-shared Key that is 8-63 characters in length. You must enter the same security settings used on your network.

  • Page 35: Figure 5-22: Wireless Security - Wpa Enterprise - Eap-Tls

    Wireless-N USB Network Adapter WPA Enterprise WPA Enterprise features WPA security used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) WPA Enterprise offers two authentication methods, EAP- TLS and PEAP, as well as two encryption methods, TKIP and AES, with dynamic encryption keys. You must enter the same security settings used on your network.

  • Page 36: Figure 5-24: Wireless Security - Wpa2 Enterprise - Eap-Tls

    Wireless-N USB Network Adapter WPA2 Enterprise WPA2 Enterprise features WPA2 security used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) WPA2 Enterprise offers two authentication methods, EAP- TLS and PEAP. You must enter the same security settings used on your network.

  • Page 37: Figure 5-26: Wireless Security - Radius - Eap-Tls

    Wireless-N USB Network Adapter RADIUS RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) RADIUS offers two authentication types: EAP-TLS and PEAP. You must enter the same security settings used on your network.

  • Page 38: Figure 5-28: Confirm New Settings

    Wireless-N USB Network Adapter 6. The Confirm New Settings screen will appear next and show the new settings. To save the new settings, click the Save button. To edit the new settings, click the Back button. To exit the Advanced Setup through the Wireless Network Monitor, click Exit.

  • Page 39: Appendix A: Troubleshooting

    Wireless-N USB Network Adapter. Read the description below to solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com.
  • Page 40 Wireless-N USB Network Adapter What is the IEEE 802.11g standard? It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard.
  • Page 41 Wireless-N USB Network Adapter simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates such factors as signal strength and quality, as well as the message load currently being carried by each access point and the distance of each access point to the wired backbone.
  • Page 42 Wireless-N USB Network Adapter What is WPA? WPA is Wi-Fi Protected Access, a wireless security protocol that can be used in conjunction with a RADIUS server. What is WPA2? WPA2 is Wi-Fi Protected Access2, a wireless security protocol that can be used in conjunction with a RADIUS server, but has stronger encryption than WPA.

  • Page 43: Appendix B: Windows Xp Wireless Zero Configuration

    If you want to switch back to the Wireless Network Monitor, right-click the Wireless Network Monitor icon, and select Use Linksys Wireless Network Monitor. 1. After installing the Adapter, the Windows XP Wireless Zero Configuration icon will appear in your computer’s system tray. Double-click the icon.

  • Page 44: Figure B-4: Available Wireless Network

    Wireless-N USB Network Adapter 2. The screen that appears will show any available wireless network. Select the network you want. Click the Connect button. If your network does not have wireless security enabled, go to step 3. If your network does have wireless security enabled, go to step 4.

  • Page 45: Figure B-6: Network Connection - Wireless Security

    Wireless-N USB Network Adapter 4. If your network uses wireless security WEP, enter the WEP Key used into the Network Key and Confirm network key fields. If your network uses wireless security WPA Personal, enter the Passphrase used into the Network Key and Confirm network key fields. Click the Connect button.

  • Page 46: Appendix C: Wireless Security

    Wireless-N USB Network Adapter Appendix C: Wireless Security Linksys wants to make wireless networking as safe and easy for you as possible. The current generation of Linksys products provide several network security features, but they require specific action on your part for implementation.
  • Page 47 This includes hackers. So, don’t broadcast the SSID. Wireless networking products come with a default SSID set by the factory. (The Linksys default SSID is “linksys”.) Hackers know these defaults and can check these against your network. Change your SSID to something unique and not something related to your company or the networking products you use.
  • Page 48 These security recommendations should help keep your mind at ease while you are enjoying the most flexible and convenient technology Linksys has to offer. Appendix C: Wireless Security Security Threats Facing Wireless Networks...

  • Page 49: Appendix D: Windows Help

    Wireless-N USB Network Adapter Appendix D: Windows Help All wireless products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix.

  • Page 50: Appendix E: Glossary

    This glossary contains some basic networking terms you may come across when using this product. For more advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary. Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network.
  • Page 51 Wireless-N USB Network Adapter DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be "seen" from the Internet. DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses.
  • Page 52 Passphrase - Used much like a password, a passphrase simplifies the WEP encryption process by automatically generating the WEP encryption keys for Linksys products. Ping (Packet INternet Groper) - An Internet utility used to determine whether a particular IP address is online.
  • Page 53 Wireless-N USB Network Adapter RJ-45 (Registered Jack-45) - An Ethernet connector that holds up to eight wires. Roaming - The ability to take a wireless device from one access point's range to another without losing the connection. Router - A networking device that connects multiple networks together.
  • Page 54 Wireless-N USB Network Adapter TKIP (Temporal Key Integrity Protocol) - a wireless encryption protocol that provides dynamic encryption keys for each packet transmitted. Topology - The physical layout of a network. TX Rate - Transmission Rate. Upgrade - To replace existing software or firmware with a newer version.

  • Page 55: Appendix F: Specifications

    Wireless-N USB Network Adapter Appendix F: Specifications Standards IEEE 802.11b, IEEE 802.11g, draft IEEE 802.11n, USB 1.1, USB 2.0 Port LEDs Power, Link/Act Protocols 802.11b: CCK, QPSK, BPSK 802.11g: OFDM Wireless-N: BPSK, QPSK, 16-QAM, 64-QAM RF Pwr (EIRP) 802.11b: 14±1dBm (Typical) 802.11g: 14±1dBm (Typical)
  • Page 56 Wireless-N USB Network Adapter Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Appendix F: Specifications...

  • Page 57: Appendix G: Warranty Information

    Your exclusive remedy and Linksys' entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates.

  • Page 58: Appendix H: Regulatory Information

    Wireless-N USB Network Adapter Appendix H: Regulatory Information FCC Statement This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 59 Wireless-N Notebook Adapter Safety Notices Caution: To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord. Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 60 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) This document contains important information for users with regards to the proper disposal and recycling of Linksys products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:...
  • Page 61 Wireless-N USB Network Adapter Appendix H: Regulatory Information...
  • Page 62 Wireless-N USB Network Adapter Appendix H: Regulatory Information...
  • Page 63 Wireless-N USB Network Adapter Appendix H: Regulatory Information...
  • Page 64 Wireless-N Notebook Adapter For more information, visit www.linksys.com. Appendix H: Regulatory Information...

  • Page 65: Appendix I: Contact Information

    Can't find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at: Or fax your request in to: If you experience problems with any Linksys product,...
