Linksys USB200M Quick Installation

This Quick Installation is meant to help you install the product quickly and easily. For detailed instructions on installation and
configuration, please consult the User Guide.
Instant EtherFast ® Series
C C o o m m p p a a c c t t U U S S B B 2 2 . . 0 0 1 1 0 0 / / 1 1 0 0 0 0
N N e e t t w w o o r r k k A A d d a a p p t t e e r r
USB200M
Package Contents
System Requirements
• One Compact USB 2.0 10/100 Network
One PC with the following:
Adapter (1)
• 200MHz or Faster Processor
• 64MB RAM Recommended • One Driver Installation CD with User
• Available USB Port (USB 2.0 for maxi- Guide Included (2)
mum throughput) • One USB Coupler (3)
• One Quick Installation guide
• CD-ROM Drive
• One Registration Card
• Windows 98, Millennium, 2000, or XP

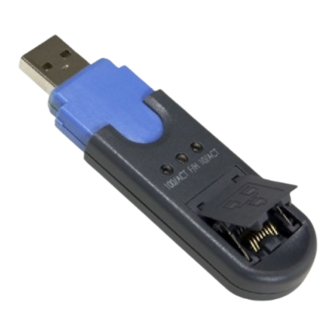

Connecting the Compact USB 2.0
10/100 Network Adapter to Your PC
A. With your PC turned off, insert the Adapter's USB end (or the end of the
USB extension cable connected to the Adapter) into your PC's USB port or
USB hub.
Note: For maximum speed, connect the Adapter to a USB 2.0 port on your PC.
If you are using a hub, make sure it is a USB 2.0 hub.
B. Insert one end of an Ethernet network cable into the Adapter's RJ-45 port.
B
C. Insert the other end of the Ethernet network cable into an Ethernet net-
working device.
Proceed to Step 2.
Installing the Driver for the Compact
USB 2.0 10/100 Network Adapter
Proceed to the section for the Windows operating system your
PC is running.
Note: Throughout this Quick Installation guide, it is assumed that "D" is the
letter of your CD-ROM drive.
Windows 98
A. If you haven't already, start your computer.
B. Windows 98 will automatically detect the Adapter connected to your PC.
When the first Add New Hardware Wizard screen appears, insert the Driver
Installation CD into your CD-ROM drive, and click the Next button.
C. Select Search for the best
driver for your device
(Recommended), and click
the Next button.
C
D. Select Specify a location:
to find the correct driver,
and enter D:\win98 in the
field provided. Click the
Next button to continue.
E. When Windows notifies
you that it is ready to install
the driver files, click the
Next button to continue.
D
F. Windows will begin copying the driver files to your computer. If Windows
asks you for the original Windows CD-ROM, insert the CD-ROM, and
direct Windows to the proper location for the CD-ROM (e.g., D:\). If you
have the Windows 98 setup files already installed in a directory, click OK,
and enter the name of the directory, e.g., C:\windows\options\cabs (if
"C" is the letter of your hard drive) in the window that appears. When
Windows has completed copying the files, click the Finish button.
G. When asked if you want to restart your computer, remove the Driver
Installation CD from the CD-ROM drive, and click the Yes button. If
Windows does not ask you to restart your PC, click Start. Choose Shut
Down, and select Restart. Then click the OK button.
Congratulations! The installation of the Compact USB 2.0 10/100
Network Adapter is complete.
Continued on back
