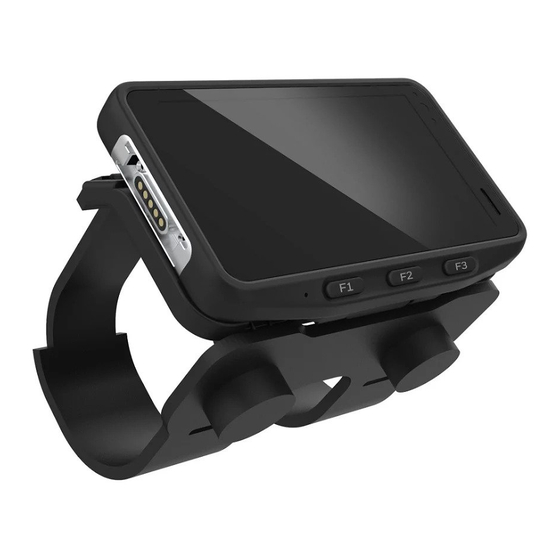

- Page 1 DRAFT CW45 powered by Android™ Quick Start Guide CW45-A-ES-QS-01-AG Rev A 10/22...
- Page 2 DRAFT Agency Models CW45-X0N Out of the Box Make sure that your shipping box contains these items: • CW45 mobile computer • Arm mount • Rechargeable Li-ion battery • Product documentation Note: Arm strap (CW45-STRAP) sold separately. If you ordered accessories for your mobile computer, verify that they are also included with the order.
-
Page 3: Computer Features
DRAFT Computer Features Camera Lens and Flash Battery Latch Power Button Battery Status/ Notification LED Front Camera I/O Connector Speaker F2 Function Function Button Button (Volume (Volume Down*) Touch Panel Up*) F3 Function Microphone Button (Scan*/Enter) *Out of the box configuration. - Page 4 DRAFT Battery Battery Latch Mount Slot I/O Connector...
- Page 5 DRAFT Mount Features Mount Attachment Arm Strap Attachment Clips Arm Strap Attachment Clips Comfort Pad Mount Release Latch...
-
Page 6: About The Battery
Avant d’essayer d’utiliser, de charger ou de remplacer la batterie de l’appareil, lisez attentivement toutes les étiquettes, marquages et documentation du produit fournis dans la boîte ou en ligne à sps.honeywell.com. Pour en savoir plus sur l’Entretien de Batteries pour Appareils Portables, consultez-le honeywell.com/... -
Page 7: Install The Battery
DRAFT Install the Battery Note: Battery can be installed with or without the mount in place. Assemble the Mount and Arm Strap Attachment Hook CW45-STRAP (sold separately) Mount... - Page 8 DRAFT CW45...
- Page 9 DRAFT Strap Adjustment Dial Left Arm Setup Right Arm Setup...
- Page 10 DRAFT Remove Mount Assembly...
- Page 11 If the mobile computer is drawing more current than supplied by the charging source, charging will not take place. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty.
-
Page 12: Turn Power On/Off
DRAFT CW45 series mobile computers are designed for use with CW45 charging accessories. For more information, see the CW45 Accessories User Guide available for download at sps.honeywell.com. Ensure all components are dry prior to mating the computers and batteries with peripheral devices. -
Page 13: Battery Replacement
DRAFT Battery Replacement Hot Swap You can replace the battery on demand provided the following conditions are met: • The computer has been powered on for at least 4 minutes. • You insert a new battery within 60 seconds. Swap Battery Mode Swap Battery mode places the computer in a low power state so that the battery can be removed for a short time. -
Page 14: Screen Timeout
DRAFT Remove the Battery Press and hold the battery latches and lift the battery out of the computer. Screen Timeout The screen timeout (sleep mode) automatically turns the touch panel display off and locks the computer to save battery power when the computer is inactive for a programmed period of time. - Page 15 DRAFT About the Home Screen Notification / Status Bar Search Bar Home Screen Panel Navigation Buttons Favorites Tray...
-
Page 16: Navigation And Function Buttons
DRAFT Navigation and Function Buttons For button locations, see Computer Features on page 2. Button Description Back Return to the previous screen. Home Return to the Home screen. Recent Apps View and switch between recently used apps. Power • Turn Power On/Off •... - Page 17 DRAFT F3 Button Out of the box, the F3 button has been remapped to Scan so that you can use a configuration barcode during setup. To clear the remapping and return the F3 button to its default (Enter), scan the barcode below or use Keyremap. (Refer to the CW45 User Guide for more information about Keyremap.) Note: Performing a Factory Reset will remap the F3 key back to Scan.
- Page 18 DRAFT Scan a Barcode with the Scan Demo For optimum performance, avoid reflections by scanning the barcode at a slight angle. Swipe up on the screen. Select Demos > Scan Demo. Point the computer at the barcode. Touch Scan on the screen.
- Page 19 DRAFT Select either File Transfer or PTP. Open the file browser on your computer. Browse to the CW45. You can now copy, delete, and move files or folders between your computer and CW45 as you would with any other storage drive (e.g., cut and paste or drag and drop).
- Page 20 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
- Page 21 This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII. Copyright © 2022 Honeywell Group of Companies. All rights reserved.
