Operation
from marine growth and corrosion which
could damage the power trim and tilt
mechanism.
EMU30410

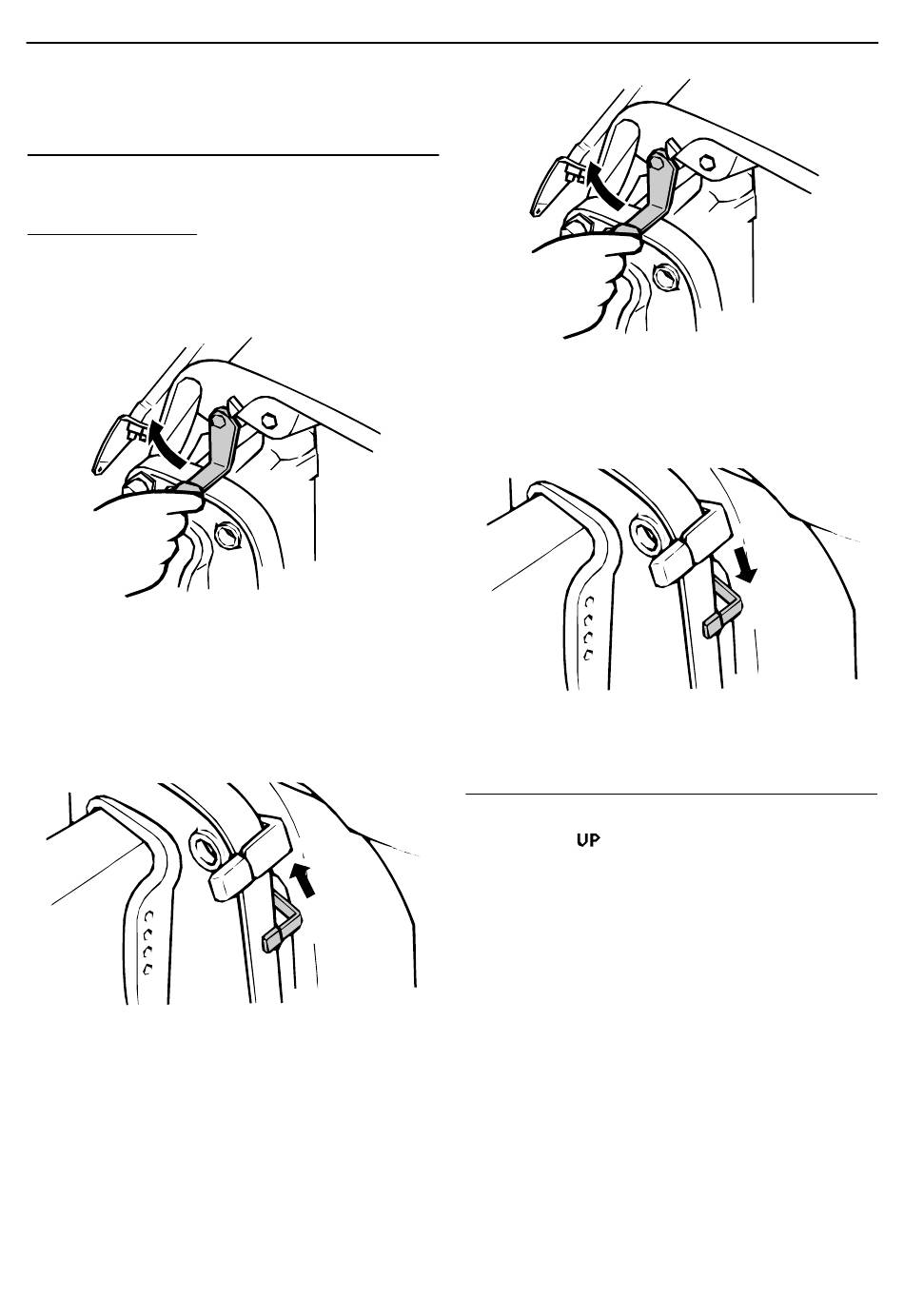

Procedure for tilting down

Manual tilt models
1. Slightly tilt the engine up.
2. On models equipped with a tilt support
lever, return it to the release position.
3. Slowly tilt the engine down.
EMU28041
Procedure for tilting down (manual
and hydro tilt models)
1. Release the tilt lock lever.
2. Hold the rear of the top cowling with one
hand, tilt the outboard motor up slightly
and pull out the tilt support knob or re-
turn the tilt support lever.
44
3. Slowly tilt the outboard motor down.
4. Place the tilt lock lever in the lock posi-
tion.
ZMU02569
EMU28052
Procedure for tilting down
Power trim and tilt models / power tilt models
1. Push the power tilt / power trim and tilt
switch "
is supported by the tilt rod and the tilt
support lever / tilt support knob becomes
free.
2. Release the tilt support lever or pull out
the tilt support knob.
ZMU03120
" (up) until the outboard motor
ZMU02569
ZMU03121
