Page 7
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM · 文字標誌和圖形標誌為 Bluetooth SIG, Inc. 所有的註冊商標 , 且SHARP 在授權下使用任何該等標記 。 其他商 Bluetooth ® 標和商名為各自所有者的商標和商名 。...
SHARP shall not be liable to you or any third party for your failure to abide by such authorization or terms of use. Unless otherwise specifically authorized by the applicable content or service provider, all third party content and services provided are for personal and non-commercial use;...
Page 9
附件 隨機附件 。 請確認如下附件隨同本機附送 遙控器 交流電源線 請務必使用隨機附送的交流電源線 。 插入電池使用 。 第 13 頁 “AA”型電池 ( x 2) 使用說明書 第 19 頁 底座組件 短螺絲釘 長螺絲釘 底座支架 底座 ( x 4) ( x 6) ( x 2) 第 9 頁...
Page 37
其他有用功能 RS-232C 指令列表 RS-232C指令 ·此處未列出之指令 , 不能確保其能夠運作 。 控制項目 指令 參數 控制內容 控制項目 指令 參數 控制內容 切換(影音) 電源設置 P O W R 0 _ _ _ 電源關閉(備用) 寬屏模式 W I D E 0 _ _ _ W I D E 1 _ _ _ 標準(影音)...

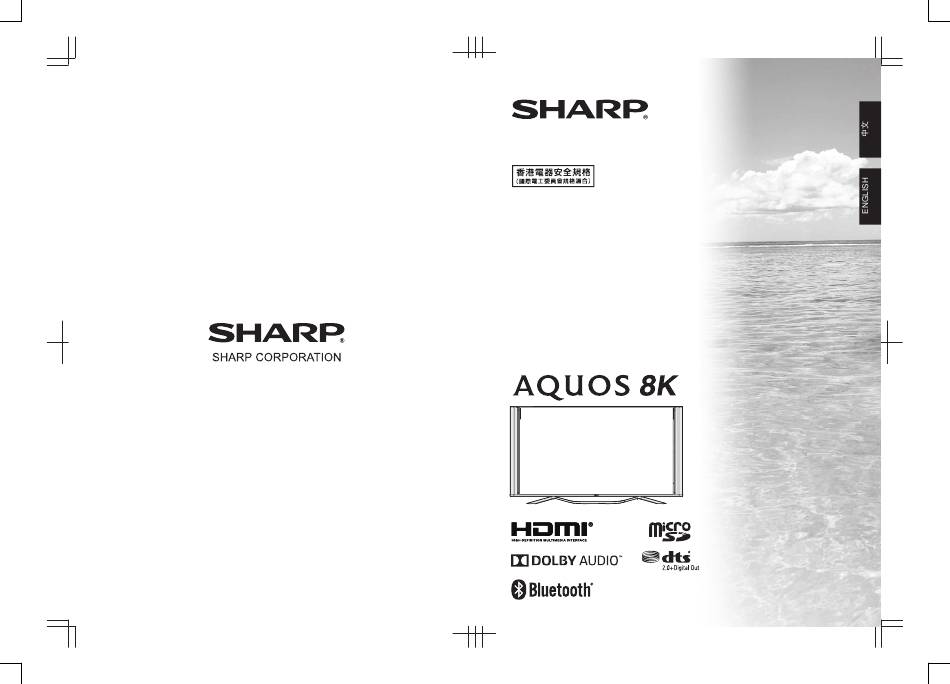

OPERATION MANUAL Dear SHARP customer Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.
Page 42
Contents Default input method ...................23 Mouse ......................23 No signal power off ..................23 Sleep timer ....................23 Illumination ....................23 Starting sound ....................23 Watching TV (Continued) Video ........................23 AV mode ...................... 23 Contrast/Brightness/Tint/Sharpness/Colour/Backlight/Gamma setting ..24 Colour temp. (Colour temperature) .............. 24 Wide mode ....................24 DNR ......................24 Active contrast .....................
Page 43
Contents Buttons for USB media operation ..................... 31 List of file formats compatible with USB mode.................32 Connecting a PC ......................... 34 PC compatibility chart ................... 34 PC control of the TV ......................... 35 Communication conditions for RS-232C ................. 35 RS-232C Commands List ......................36 Appendix Troubleshooting ..........................
Precautions for daily use Observe the following items Maintenance of the cabinet • When cleaning the cabinet, use a soft cloth (made of cotton, floss, etc.) to clean gently. Do not use a dry or damp rag mixed with chemicals, as this could cause the ingredients of the cabinet body to deteriorate or crack. •...
AC outlet before cleaning the product. of glass. Therefore, it can break when the Use a damp cloth to clean the product. product is struck forcefully or with a sharp Do not use alcohol cleaners, spray object. If the LCD panel is broken, be careful cleaners or chemical cloth when cleaning not to be injured by broken glass.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,Inc. and any use of such marks by SHARP Corporation is under license. Other trademarks and trade names are those of their respective owners. • This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology...
Accessories Supplied accessories Make sure the following accessories are provided with the product. Remote control unit AC cord Used with batteries inserted. Please use the AC cord supplied with the TV. Page 13 “AA” size battery ( x 2) Operation manual Page 19 Stand unit Short screw...
Preparation Attaching the stand unit • When you attach the stand unit, put the TV on a flat surface. • Before attaching (or detaching) the stand unit, unplug the AC power cord from the AC power outlet. • Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it from being damaged.
Preparation How to make a simple platform To make such a simple platform, you need to use the packing box and the three foam blocks inside it: TOP-L, TOP-C and TOP-R . 1 As shown in Figure A, place it face down. As shown in the following figure, remove the plastic lock at the bottom of packing box.
• For details, refer to the instructions supplied with the optional bracket. CAUTION • This TV should be mounted on a wall only with a wall mount bracket recommended by SHARP. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.
Preparation Remote control unit (POWER (Standby/On)) To switch the power on and off. (See page 20.) (HOME) Display the smart home. 3 SLIDE BAR Touch the slide bar to switch between TV interface and App interface. (Cursor) Select a desired item on the setting screen. 5 OK Execute a command.
Point the remote control unit towards the bottom of TV ( near trademark), SHARP press "OK" and " " at the same time until red and blue lights stop flashing alternately . Press "OK" on the remote control unit to complete the Bluetooth pairing .
Preparation Before turning on the power Notes on installing the TV • Avoid direct sunlight and place the TV in a well-ventilated location. • Place the TV in a level location. • Do not turn on the power of the TV before connecting the AC cord. •...
Preparation Connecting external devices You can connect many types of external equipment to your TV, like a VCR, Digital TV Set Top Box (STB), game console, camcorder, DVD player and PC. To view external source images, press (HOME) to the smart home interface, touch the slide bar to switch to TV interface, select the input source and then press OK.
Preparation Connecting external devices When connecting external devices that support 8K output (commercially available) Use 4 HDMI cables to connect HDMI 4(A~D) ( devices support 8K output). • Use 4 HDMI cables to connect this TV and 8K output devices (output resolution7680×4320 ) . •...
• Do not unplug the memory card while data is being transferred. Otherwise the TV may malfunction. • Regularly back up data in the memory card to prevent data corruption or operating errors of the TV. (SHARP shall not bear any responsibility for data corruption or destruction.)
Preparation Inserting the batteries Before using the TV for the first time, insert two “AA” size batteries (supplied) in the remote control. When the batteries become depleted and the remote control fails to operate, replace the batteries with new “AA” size batteries.
Preparation User Guide Turning the TV on/off When the TV powers on for the first time after Running the TV for the first time purchase, the setting wizard appears. Follow the menus and make the necessary settings one after After inserting the AC cord, the TV is in standby. another.
Watching TV Press to select "Subtitle Language" and When the initial setup has completed, you can enter then press OK. to TV interface. Press , or touch the SLIDE BAR to switch the Press to select the desired subtitle page between TV and smart interface.If you want to language, and then press OK.
Watching TV Program Edit PC Mode Select only when inputting a signal from HDMI 1/2/3 Use this menu to set up a channel individually. and PC terminal. It's suitable for computer to display Press (MENU) to display the menu screen in full-screen TV programs.
GAME Lowers image brightness for easier viewing. • The initial installation of the TV is “IQQI-International”. • If you use any other input method, SHARP cannot USER Allows the user to customise settings as guarantee its compatibility with television system.
Watching TV Contrast/Brightness/Tint/Sharpness/ Colour/Backlight/Gamma setting Normal Zoom 14:9 Panorama You can adjust the picture to your preference. Selected item button button Contrast For less contrast. For more contrast. Cinema 14:9 Cinema 16:9 Full Brightness For less brightness. For more brightness. Tint Skin tones become Skin tones become...
Watching TV Reset Audio Reset all audio adjustment items to the factory preset Set the audio as you desired . values. Channel Set the channel as you desired . AV mode Please see page 23. Auto volume Auto search Different sound sources sometimes do not have the You can run auto installation again, even after setting same volume level, such as a programme and its up the preset channels.
Watching TV Manual search Subtitle You can set the channel manually. Setup preferred subtitle language if the subtitle languages are available. Item Description NOTE Storage to Save programme to your desired • If subtitles for the selected language are not included in [1~99] channel number.
Network function Connecting to the Network NOTE • This TV has received the following certifications. To enjoy internet services, you need to connect the – Wi-Fi CERTIFIED™ (certification program from the Wi-Fi TV to a router with a high speed connection to the Alliance ®...
Network function Network setting Select “Setting” in the menu, and then press OK. to select “Network”, and then press OK. It Press displays the connect format. Ethernet network connection You can select "Ethernet" to connect the network. DHCP System will attempt to obtain IP address and other information automatically.
• Please regularly back up data in the memory card to download more apps from the app store. prevent data corruption or operating errors of the TV. (SHARP shall not bear any responsibility for data corruption Installing Apps or destruction.) From “App Store”, select the App you desired, and...
Other useful features Playing back files on a USB You can connect a USB memory device or a USB hard disk drive (HDD) to the TV to enjoy viewing pictures, memory device listening to the audio, and watching videos. NOTE •...
Other useful features Buttons for USB media operation Video Audio Picture Button/menu Description mode mode mode Play/Pause. Go to the previous file. Go to the next file. Loop. Each time you press OK, the mode will switch from Order play, Repeating all songs, Play this song only once, Repeating current song and Shuffle is on.
Other useful features List of file formats compatible with USB mode Supported video format File Video decoder Audio decoder Subtitle extension MPEG2 MP@HL MPEG4 SP@L0-3,ASP@L-05 MPEG4 ASP(GMC 0,1p) External: H.264 HP@Up to Level 4.0 WMA,WMA Pro MicroDVD H.264 MP@L 4.0 H.265(HEVC) Main Profile @ AAC,support MPEG2 AAC(AAC-LC) &...
Page 73
Other useful features File Video decoder Audio decoder Subtitle extension MPEG2 MP@HL MPEG4 SP MPEG1 Layer 1/2 External: MPEG4 ASP@Level 5 Dolby Digital Plus MicroDVD MPEG-4 SP@HL 3.0 & MPEG-4 ASP@HL 4.0 Dolby Digital H.264 HP@Up to Level 5.1 MPEG4 (AAC) .mp4 H.264 HP@Up to Level 4.1 H.264(AVC) MP@L4.0...
Other useful features Connecting a PC Use the PC terminals to connect a PC. RGB cable (Commercially available) 3.5mm stereo minijack cable (Commercially available) Signal names for 15-pin mini D-sub connector Pin No. Signal name Pin No. Signal name Pin No. Signal name GND (Ground) Not connected...
Other useful features PC control of the TV • When a programme is set, the TV can be controlled from the PC using the RS-232C. • The input signal (PC/ video) can be selected, the volume can be adjusted and various other adjustments and settings can be made,enabling automatic programmed playing.
Other useful features RS-232C Commands List RS-232C Commands • Commands not indicated here are not guaranteed to operate. CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS P O W R 0 _ _ _ W I D E 0 _ _ _ POWER SETTING POWER OFF (STANDBY) toggle(AV)...
Appendix Troubleshooting The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced. Problem Possible solution • No power. • Is the AC cord disconnected? (See page 15) • Has the power been turned on? (See page 20) •...
Without stand Weight 51.0 kg With stand Operating temperature 0 °C to + 45 °C • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice.
