- Page 1 Video-228PCI Series nVIDIA GeForceFX 5200 User’s Manual Version 7.00 C o p y r i g h t © 2 0 0 6 J a t o n C o r p o r a t i o n , U S A...
-
Page 2: Table Of Contents
INTRODUCTION...4 FEATURES ...5 PCI B ...5 NTERFACE RAPHICS ROCESSOR ...5 ERFORMANCE ...6 OMPATIBILITY HDTV/DVD P LAYBACK SYSTEM REQUIREMENT...6 CHECK LIST ...7 HARDWARE DESCRIPTION ...7 DISPLAY DEVICES OUTPUT...10 Device Output Connection (TVout) ...10 Device Output Connection (Dual RGB out)...10 HARDWARE INSTALLATION ...12 NSTALLATION ROCEDURES : ...12... - Page 3 ® XP D INDOWS TECHNICAL ASSISTANCE...33 REQUENTLY SKED PINOUT AND SYNC FREQUENCIES...36 NALOG OLOR ISPLAY ONVERSION ABLE -15 P ONVERSION ...37 ECHNICAL UPPORT LIMITED WARRANTY..40 ..40 THER IMITS XCLUSIVE BLIGATION ..41 THER TATEMENTS ERMS AND ONDITIONS : ...42 ERVICES AGREEMENT .
-
Page 4: Introduction

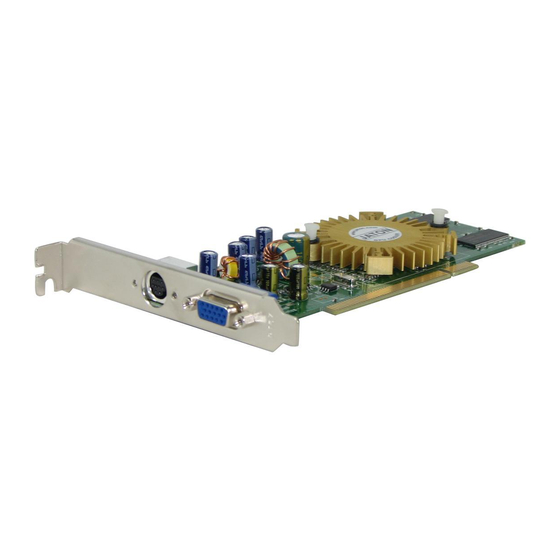

Introduction The Video-228PCI Series video accelerators are excellent 2D/3D multimedia video adapters for PCI local bus desktop PCs’. Based on nVIDIA GeForceFX 5200 core technology, built-in with 128MB DDR memory module, these video cards will provide multiple display outputs onboard for TVout (Analog and Digital) or Dual RGBout (Twin) in optional. -
Page 5: Features
Features PCI Bus Interface PCI Bus mastering compatible PCI 2.2 compliance Graphics Processor Unit (GPU) 256-bit graphics engine 128MB DDR memory access bus. Integrated dual 270 MHz RAMDACs drives CRT display 2 dual 128bit pixel pipelines rendering Surface engine for high-order surfaces and patches Programmable Vertex Shader Programmable Pixel Shader HRAA - high - resolution anti-aliasing... -
Page 6: Compatibility
API support - DirectX® 8.1 and lower Compatibility nVIDIA Unified Driver Architecture Industry’s first fully compliant professional OpenGL 1.3 support for Windows® operating systems Windows® 98, Windows®Me, Windows®NT™4.0, Windows® 2000, and Windows®XP HDTV/DVD Playback High-Definition Video Processor (HDVP) for full- screen, full-frame video playback of HDTV and DVD resolutions Independent hardware color controls for video... -
Page 7: Check List
MS Windows® 98/Me/NT 4.0/2000/XP operating systems Check List Video-228PCI-TV, Video-228PCI-LP, Video-228PCI- Twin or Video-228PCI –DVI Multimedia accelerator LFH 59pin to 2xVGA adapter cable (part# CB59D00001C00) – Video228PCI low profile twin series only LFH to Dual DVI adapter cable (part# CB59DVI- I2C00) - Video228PCI-DVI series only Software &... - Page 8 Alternative brackets can be purchased at http://store.anvshopper.net/index.html Video-228PCI-Twin series DB 15 VGA (RGB out) DB 15 VGA (RGB out) Product Name / PCB Version Video-228PCI-Twin 82208M nVIDIA GeForce FX5200 82228M nVIDIA GeForce FX5200 Low profile twin series Product name / PCB version Video-228PCI-LP 82228P nVIDIA GeForce FX5200...
- Page 9 Video-228PCI-DVI series Product name / PCB version Core Chipset PCB Size Memory Size Video-228PCI-DVI 82228Q nVIDIA GeForce FX5200 W=6.1” X H=2.5” 16M*16 x 4 DDR BGA 128MB...
-
Page 10: Display Devices Output
Display Devices Output Device Output Connection (TVout) TV set CRT Monitor Device Output Connection (Dual RGB out) CRT Monitor 2 CRT Monitor 1 RCA Composite Connector S_Video Connector DB 15 VGA Connector (Additional output Connector) DB 15 VGA Connector DB 15 VGA Connector (Default output Connector) Plate AGP Plate... - Page 11 Low profile twin series Video-228PCI-DVI series...
-
Page 12: Hardware Installation
Hardware Installation Installation Procedures The manufacturer assumes no liability for any damage, caused directly or indirectly, by improper installation of any components by unauthorized service personnel. If you do not feel comfortable performing the installation, consult with a qualified computer technician Steps: Turn OFF all powers to your system, including any peripherals (printer, external drives, modem, etc.). -
Page 13: Software Installation
You have now completed the installation of your new graphics adapter on your system. Upgrade Steps: To add or change your video adapter to an existing system, you may proceed a few steps before you install the new hardware and software(video display driver). The following are some of the considerations: 1. - Page 14 2. Check [Search for the best driver for your device] then select [Next]. 3. Insert the software’s CD. 4. Check [Specify a location:] ,Under that enter D:\NVIDIA_FX\Win9x, then select [Next]. 5. Select [Next] to install “Video-228PCI Series, NVIDIA GeForceFX 5200” driver. 6.
- Page 15 10. Click the Next button. 11. Click the Finish button. 12. Click the Close button. 13. Click Close at the Display Properties screen. 14. Click the Yes button next to restart computer. InstallShield® Program: Since the Microsoft InstallShield® program has been added into our software’s CD, the Display Driver Installation and its procedures are much easier for users to run with Windows®...
- Page 16 Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it. Microsoft InstallShield® Wizard has start loading its setup process, please wait until it is finished.
- Page 17 Click on “Next” to continue the process. Windows system will copy all driver files from source media to your local hard disk, please wait until the process has completed.
-
Page 18: Windows ® M Edrive Installation
Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. ® Windows Me Drive Installation Upgrade video adapter to an existing system. (Windows has been pre-loaded) Select [Next] to install Standard VGA Graphics Adapter at Add New Hardware Wizard screen. - Page 19 Select [Finish] to restart the computer. To a new system: 1. SELECT the “Display” icon from control panel and then tab on “Settings” screen. 2. Select Advanced at selection bar. 3. Click on Adapter tab. 4. Click the Change button at Adapter Screen 5.
- Page 20 Windows. After the desktop is loaded completely, insert the software’s CD into CD ROM drive and proceed to the display driver installation which provided from the hardware manufacturer. Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it. Microsoft InstallShield®...
- Page 21 Click on “Next” to continue the process. Windows system will copy all driver files from source media to your local hard disk, please wait until the process has completed.
-
Page 22: Microsoft Windows ® Nt™4.0
Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. Microsoft Windows The procedure of display driver installation requires setup with service pack 6 (Microsoft® Windows NT™4.0) first. After your windows desktop has fully loaded service pack 6, you may insert the software CD into CD ROM drive and follow the install steps below: Upgrade video adapter to an existing system. - Page 23 Windows NT 4.0 prompt you for the location where those files for video driver. INPUT the path or unfold with “X:\ is the CD ROM drive where the Software & Documents CD has been inserted.) If the driver “Video-228PCI Series, NVIDIA GeForceFX 5200”...
- Page 24 1. Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on Microsoft InstallShield® Wizard has preparing its setup, please wait until it completes.
- Page 25 Click on “Next” to continue. Scroll down and Select on the “Video-228PCI Series, NVIDIA GeForceFX 5200” , then click on “OK” for next screen.
-
Page 26: Windows ® 2000 Driver Installation
Windows system will transmit all driver files from source media to your local hard disk, please wait until the process has completed. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. ®... - Page 27 Insert the Software’s CD. Check [Specify a location:] Under [Copy manufacturer’s files from:] enter NVIDIA_FX\ WIN2K&XP, where D is your CD_ROM drive. Then click on [OK]. Select [Next] to install “Video-228PCI Series, NVIDIA GeForceFX 5200” driver. Select [Finish] to restart the computer. InstallShield®...
- Page 28 Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it. Microsoft InstallShield® Wizard has start loading its setup process, please wait until it has completed. Click on “Next” to continue the process.
- Page 29 Click on “Yes” to continue the installation. Otherwise, you may terminate the process by click on “No”. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up.
-
Page 30: Windows ® Xp Driver Installation
® Windows XP Driver Installation Upgrade video adapter to an existing system. (Windows has been pre-loaded) Select [Next] at Found New Hardware Wizard. Check [Search for a suitable driver for my device (recommended) ]then select [Next]. Insert the Software’s CD. Check [Specify a location:] Under [Copy manufacturer’s files from:] enter NVIDIA_FX\... - Page 31 Autorun feature brings-up the “Welcome Screen”, and you may point to “display driver” then press on it. Microsoft InstallShield® Wizard has start loading its setup process, please wait until it has completed.
- Page 32 Click on “Next” to continue the process. 4. Click on “Continue Anyway” to complete the installation. Otherwise, you may terminate the process at this time.
-
Page 33: Technical Assistance
Windows system will transmit all driver files from source media to your local hard disk, please wait until the process has completed. Click on “Finish” to restart your computer, the new display driver will be in place after Windows boots-up. Technical Assistance Frequently Asked Questions (FAQ) Q1 Why do we need 3D graphics capability in our PC? - Page 34 3D technology is becoming increasingly important (and common) not only in games, but also in other applications such as VRML, which allows 3D scene descriptions in Web applications. 3D technology is used for image editing, modeling, and an increasing number of these are found in home and business applications.
- Page 35 stratagems, the speed of software rendering for simple scenes can approach that of low-level hardware 3D rendering. On the other hand, as scenes become more complex (or frame sizes become larger), there are conflicts between using the CPU for high-level game logic, geometry, lighting, and rendering, all of which increase their demands.
-
Page 36: Pinout And Sync Frequencies
Pinout and Sync Frequencies Analog Color Display Pinouts (DB 15) FUNCTION Red Video 1 Green Video 1 Blue Video 1 Not Used Ground Red Return (ground) Green Return (ground) Blue Return (ground) Vcc (+5v DDC Power) Sync Return (ground) Monitor ID (not used) SDA (DDC support) Horizontal Sync Vertical Sync... -
Page 37: Technical Support
Technical Support In the event you have a technical problem with this product, please read the README files in the software CD_ROM. Updated drivers are available through Jaton Web site. Have following information handy when you contact technical support: Name of the product. - Page 38 commitment on the part of the company. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or the inability to use the product or documentation, even if advised of the possibility of such damages.
- Page 39 Macrovision, and is intended for home and other limited viewing used only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. All Trademarks and Registered Trademarks belong to respective owners. © 2006 Jaton Corporation. All rights reserved.
-
Page 40: Limited Warranty
(2) years from manufacturing date. This limited warranty applies only to the original purchaser of Jaton Product and is not transferable. This limited warranty does not apply if failure to the Product Registration, or over thirty (30) days from purchase (original invoice date). -
Page 41: Exclusive Obligation
Reseller/ Vendor: Registered User: Others: This warranty applies only for a period of two (2) years from purchase date of Jaton original invoice. This warranty applies only for a period of two (2) years from manufacturing date. This warranty applies only for... -
Page 42: Services Agreement
Services agreement: (1) All applicants shall completed a service request form from Manufacturer. (2) All returned checks will be charged a $20.00 fee by Manufacturer. (3) All repair and replacement services allow 4-6 weeks from the date of receiving by Manufacturer. -
Page 43: Reducing Warranty Claim Rejections
This warranty applies only to this product, and is governed by the law of the State of California. Reducing Warranty Claim Rejections. To reduce the potential of incurring damages not covered by Manufacturers warranties, we strongly recommend the following: • Read your manuals before installing peripherals and/or before making changes to the machine’s configuration;... - Page 44 product is not working because it is not compatible with another product, or because it has not been properly installed and set-up, the manufacturer does not pay for the service time. To help avoid these inconveniences, contact a professional consultant that one can help you determine the possibility of incompatibility issue before you purchase add-on or accessories.
