INSTALLATION
INSTRUCTIONS

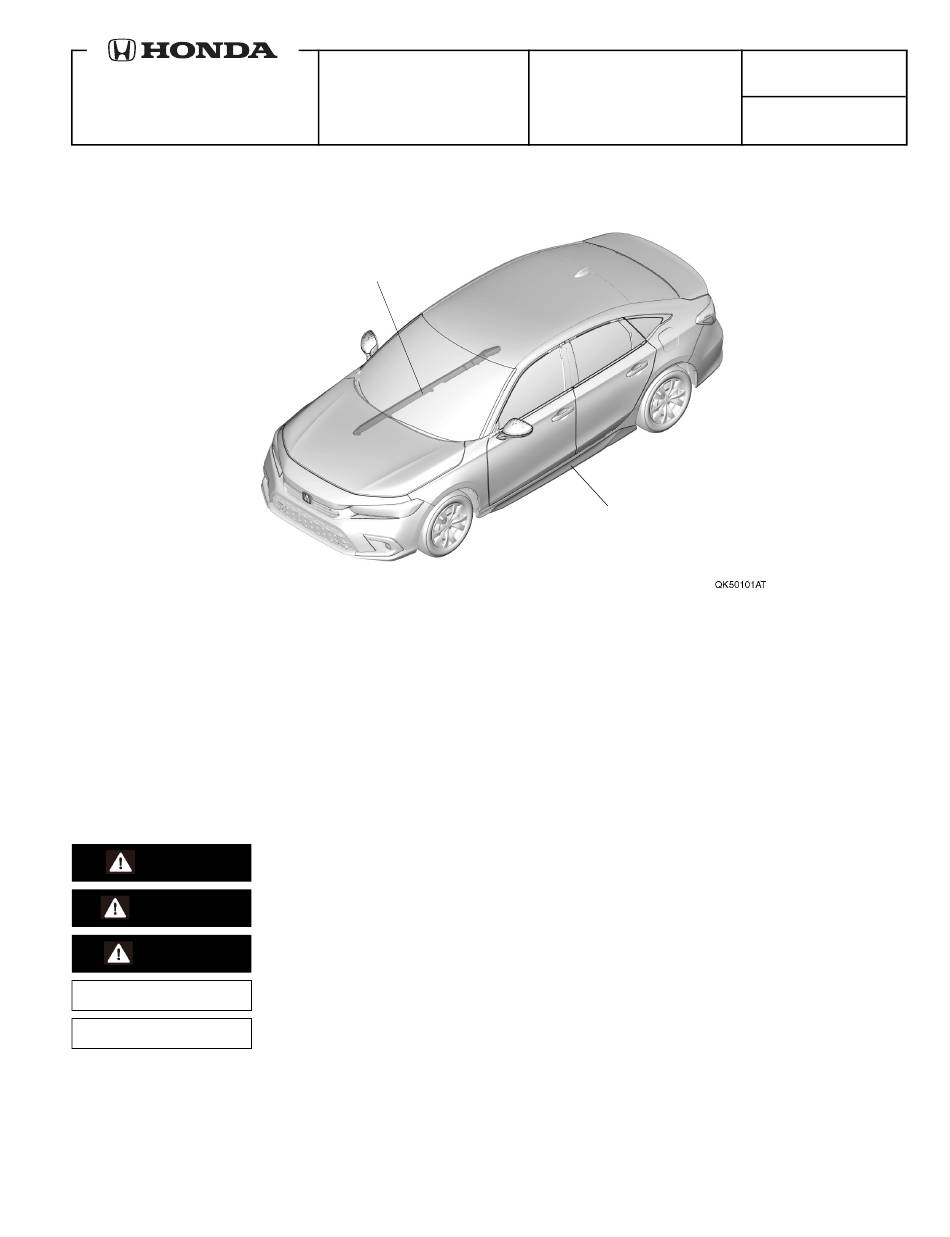

GENERAL VIEW
FOR YOUR SAFETY (Read carefully.)
Warning Symbols
Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service
procedures, we have provided safety messages where appropriate. Of course, it is not practical or possible to warn you
about all the hazards associated with servicing a vehicle - you must use your own good judgment.
You will find important safety messages preceded by one of following symbols:
*All symbols are not used in all installation instructions.
DANGER
WARNING
CAUTION
NOTICE
NOTE
© 2021 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
SIDE UNDER SPOILERS
RIGHT SPOILER
You will be killed or seriously hurt if you do not follow the instructions.
You can be killed or seriously hurt if you do not follow the instructions.
You can be hurt if you do not follow the instructions.
Gives advice to prevent damage to the product, vehicle, the environment or other property.
Gives helpful information or instructions to be followed when installing this product.
Application
2022 CIVIC
LEFT SPOILER
AII (2106)
Publications No.
AII
Issue Date
JUN 2021
1 of 11
08F04-T20-1000-90
