Cisco Linksys RV0041 Quick Install

®
A Division of Cisco Systems, Inc.
Package Contents
• 10/100/1000 4-Port VPN Router
• User Guide CD-ROM
• AC Power Cable
• Rack Mounting Kit
• Quick Installation
• Registration Card
Quick Installation

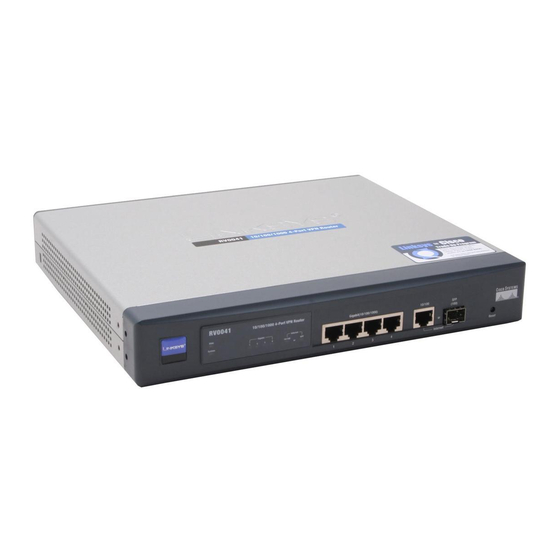

10/100/1000 4-Port
VPN Router
Quick Installation
WIRED
Model No. RV0041
Model No.
1

Connect the Router

A
Before you begin, make sure
that all of your hardware is
powered off, including the
Router, PCs, hubs, switches,
and cable or DSL modem.
B
Connect one end of an Ether-
net network cable to one of
the numbered ports on the
front of the Router. Connect
the other end to an Ethernet
port on a network device, e.g.,
a PC, print server, hub, or
switch.
Repeat this step to connect
more PCs or other network
devices to the Router.
C
Connect your cable or DSL
modem's Ethernet cable to
the Router's Internet port.
D
Power on the cable or DSL
modem and the other network
device if using one.
E
Connect the included AC
power cable to the Router's
Power port on the back of the
Router, as shown in Figure E,
and then plug the other end of
the power cable into an elec-
trical outlet.
The System LED on the front
E
panel will light up as soon as
the power adapter is con-
nected properly.
2

Configure the Router

In Step 2, you will need the setup
instructions provided by your Inter-
net Service Provider (ISP). If you do
not have this information, then con-
tact your ISP before proceeding.
The instructions from your ISP tell you
how to set up your PC for Internet
access. Because you are now using
the Router to share Internet access
among several computers, you will
use the setup information to config-
ure the Router instead of your PC.
NOTE:: Make sure your PC's Ethernet
adapter is set to obtain an IP address
automatically. For more information,
refer to Windows Help.
A
A
Open your PC's web browser.
Enter http://192.168.1.1 (the
Router's default local IP
address) in the web browser's
Address field. Then press the
Enter key.
B
A screen will appear and ask
you for a User Name and Pass-
B
word. Enter admin (the default)
in the the User Name and Pass-
word fields. Then click the OK
button.
