4405 FOUNTAIN

Halsey Taylor Owners Manual

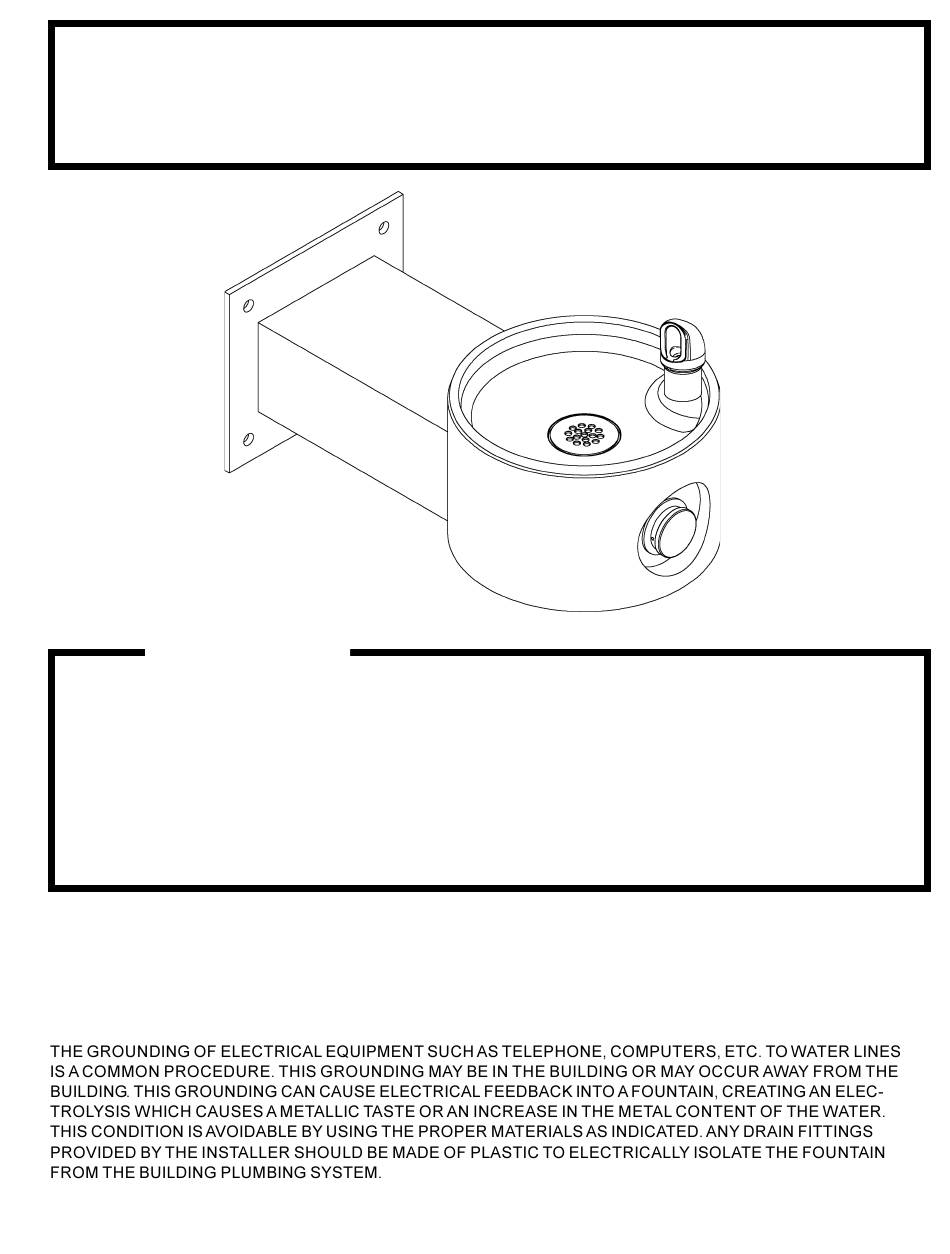

Model 4405

Wall Mounted Tubular Fountain

INSTALLER

Halsey Taylor Fountains are among the easiest to install Fountains on the

market today. To assure you install these models easily and correctly,

PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE

INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH

PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After install-

ation, leave these instructions with the Fountain for future reference.

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON

IMPORTANT! INSTALLER PLEASE NOTE.

PAGE 1

97586C (Rev. M - 5/04)

Page 1 Model 4405 Wall Mounted Tubular Fountain INSTALLER Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES.
Page 2 LEGEND A = 3/8" O.D. UNPLATED COPPER TUBE CONNECT - SHUT OFF VALVE BY OTHERS B = REMOVABLE BOTTOM COVER...
Page 3 4405 FOUNTAIN TROUBLE SHOOTING AND MAINTENANCE Actuation of Quick Connect Water Fittings: FIG. 1 3/8" O.D. UNPLATED 1/4" O.D. TUBE COPPER TUBE CONNECT WATER INLET COLD WATER SUPPLY TO COOLER BUILDING WATER INLET NOTE: WATER FLOW SERVICE STOP DIRECTION (NOT FURNISHED) FIG.
Page 4 4405 FOUNTAIN Touch-up Paint FIG. 3 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.3500 FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620 PRINTED IN U.S.A. 97586C (Rev. M - 5/04) PAGE 4...
