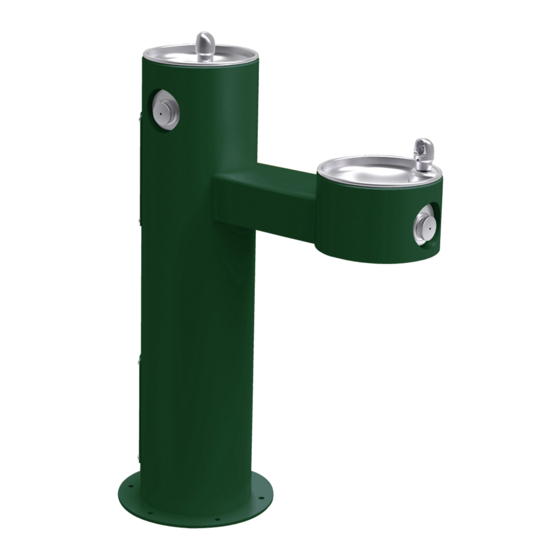

Halsey Taylor 4420 Owner's Manual

Freeze resistant tubular fountain
Hide thumbs Also See for 4420:

Advertisement

Quick Links

Download this manual
Halsey Taylor Owners Manual
PLEASE READ THE FOLLOWING
• INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN.
WITH 97482C DUAL VALVE CONTROL ASSEMBLY ARE
LOCATED ON PAGES 2 - 5.
• INSTALLATION INSTRUCTIONS FOR THE 4420FR FTN.
WITH SANITARYFR2 VALVE ARE LOCATED ON PAGES
6 - 12.
INSTALLER
Halsey Taylor Fountains are among the easiest to install Fountains on the market today. To
assure you install these models easily and correctly, PLEASE READ THESE SIMPLE IN-
STRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR
COMPLIANCE WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After
installation, leave these instructions with the Fountain for future reference.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
4420 Freeze Resistant Tubular Fountain
STOP!
INFORMATION.

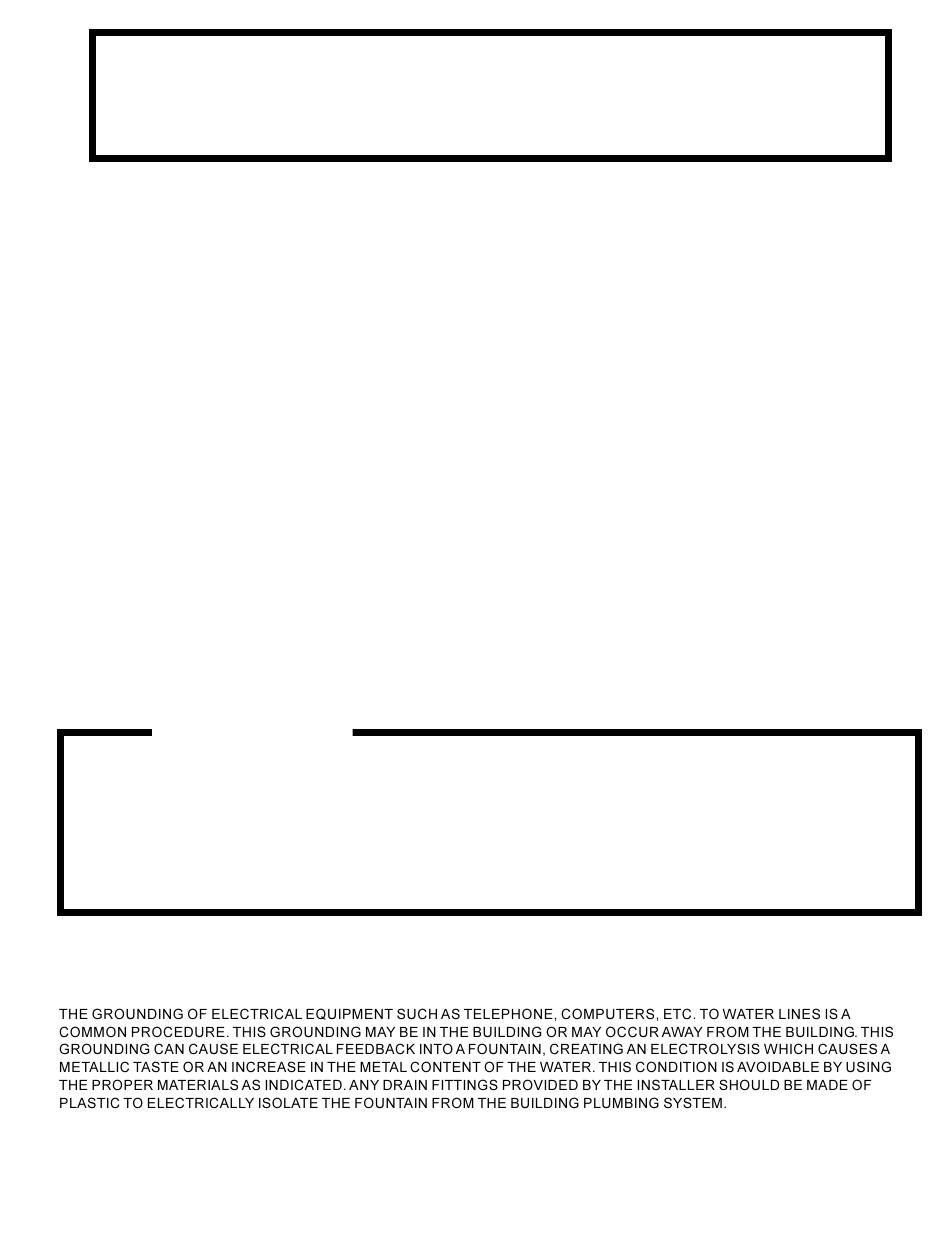

IMPORTANT
IMPORTANT
4420FR-FTN
PAGE 1
97734C (Rev. H - 4/04)
