- Page 1 Lars Thrane A/S September 19, 2016 LT-1000 NRU & LT-500 AHRS Installation on Grand Banks 64 Aleutian...
- Page 2 LT-1000 NRU – Key Features • Navigation Reference Unit with 12 precision sensors • True heading, magnetic heading, deviation, variation, roll, pitch, UTC time and date, position, satellite information, ground speed, course over ground, air pressure and temperature • 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with SBAS correction •...
- Page 3 LT-1000 NRU - Specifications • Certification & standards: CE, IEC 60945, IEC 60950, EN 300440-2, FCC, IC, RCM, RoHS, NMEA 0183, NMEA 2000 • Dimensions, with pole mount: 151.4 x 81.65 x 128.0 mm (5.96 x 3.21 x 5.04 in.) •...
- Page 4 • Easy configurable NMEA 0183 data rate (4800 or 38400 baud) • Mount in any orientation without compromising the high performance • Each unit is factory calibrated and functional tested over temperature prior to shipment • Worldwide maritime certification 19-09-2016 Lars Thrane A/S - www.thrane.eu...
- Page 5 • Communication Interface: 8-pin female connector for NMEA 0183, NMEA 2000 and power • Input power: 9-40 VDC • Power consumption: < 1W • Load Equivalent Number (LEN): 2 • Compass safe distance: 0.3 m (1 ft) 19-09-2016 Lars Thrane A/S - www.thrane.eu...
- Page 6 LT-1000 NRU and LT-500 AHRS for primary navigation equipment • The GB64 originally had Sperry Marine Satellite Compass as navigation equipment (removed) • The LT-1000 NRU and LT-500 AHRS provides heading and positioning information to: • Autopilot • ECDIS (radar & chart plotter) •...

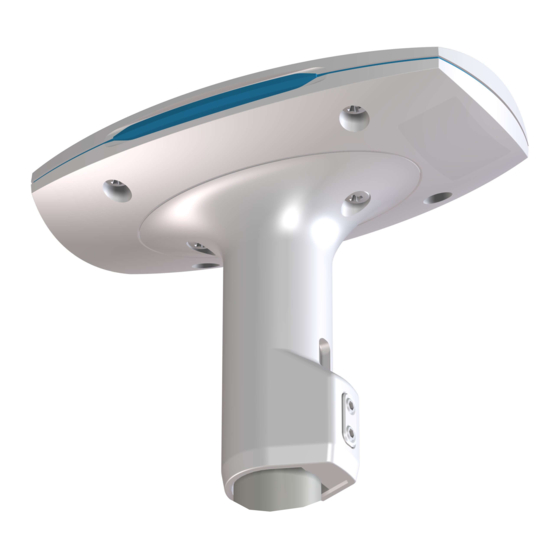

- Page 7 LT-1000 NRU - Installation • The LT-1000 NRU is mounted on the radar arch (targa) using the 1” pole mount • The ‘old’ Sperry Marine Satellite Compass (antennas) is visible on the radar arch on the starboard side of the LT-1000 NRU •...
- Page 8 (buttons and display) • Mount the unit away from possible magnetic disturbances (e.g. loudspeakers and power cables) • Further mounting considerations can be found in the LT-500 AHRS User & Installation Manual 19-09-2016 Lars Thrane A/S - www.thrane.eu...
- Page 9 MF-HF system Note: • The LT-500 AHRS is configured to By connecting the LT-500 AHRS and the LT-1000 NRU 38400 baud and connected on the NMEA 2000 backbone, the LT-500 AHRS is receiving position and time and can be configured to output true directly to the autopilot and ECDIS heading.
- Page 10 GB64 Navigation Wiring Diagram 19-09-2016 Lars Thrane A/S - www.thrane.eu...
- Page 11 External Navigation Equipment • The following external navigation equipment is installed and interfaced from the LT-1000 NRU and LT-500 AHRS on the GB64: • NMEA 2000: • Garmin GMI-20 (heading) • NMEA 0183: • Sperry Marine Autopilot – NAVIPILOT 4000 (heading, rate of turn) •...
-
