- Page 1 Network Mobile Camera Quick Start Guide...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 Network Mobile Camera·Quick Start Guide IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 5 Network Mobile Camera·Quick Start Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
- Page 6 Network Mobile Camera·Quick Start Guide Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 7 Network Mobile Camera·Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information. ● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard.
- Page 8 Network Mobile Camera·Quick Start Guide malfunction), and affect the endurance of sensor at the same time. ● The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
- Page 9 Network Mobile Camera·Quick Start Guide responsibility for problems caused by unauthorized repair or maintenance.)
-
Page 10: Table Of Contents
Network Mobile Camera·Quick Start Guide Table of Contents 1 Appearance Description ............10 2 Installation ................12 3 Setting the Network Camera over the LAN ......... 15 Wiring ................. 15 Activating the Camera ............16 3.2.1 Activation via Web Browser ........16 3.2.2 Activation via SADP Software ........ -
Page 11: Appearance Description

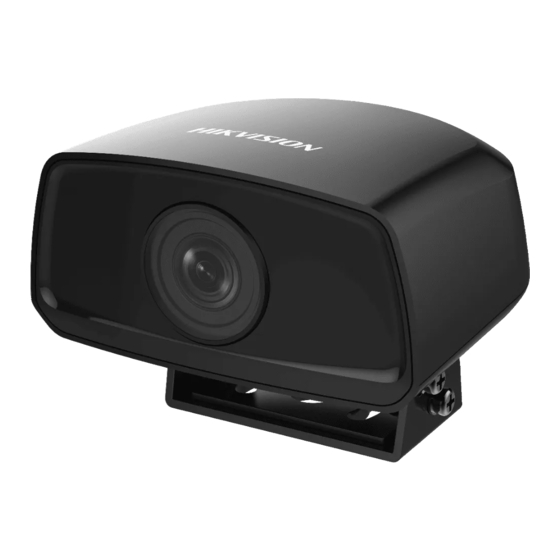

Network Mobile Camera·Quick Start Guide 1 Appearance Description The overview of the mobile camera is shown below: DC12V IN Figure 1-1 Overview Table 1-1 Description Description Description Lens Bracket base Power cord (12 VDC) M12 aviation plug Power cord (12 VDC) RJ45 Ethernet interface... - Page 12 Network Mobile Camera·Quick Start Guide Notes: ● The camera series has two types of cable groups (shown in overview). You camera has either of them. ● The relation between RJ45 wire and M12 wire is shown in the following figure and table. M12 Aviation Plug RJ45 Network Interface Figure 1-2 RJ45 Interface and M12 Aviation Plug...
-
Page 13: Installation
Network Mobile Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12 VDC, please make sure your power supply matches with your camera. - Page 14 Network Mobile Camera·Quick Start Guide Bracket Base Figure 2-1 Separate Bracket Base from Camera 2. Past the drill template to desired mounting surface. Note: The thickness of the mounting surface would better be less than 5 3. Drill screw holes (Ø 4.2 mm recommended) according to the drill template.
- Page 15 Network Mobile Camera·Quick Start Guide Spring Washer Flat Washer Screw Figure 2-3 Secure the Bracket Base 5. Loosely screw the camera back to the bracket base. 6. Adjust the tilting position. Tilt: +20° to -15° Pan: +20° to -20° Figure 2-4 Adjust Surveillance Angle 7.
-
Page 16: Setting The Network Camera Over The Lan
Network Mobile Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 17: Activating The Camera
Network Mobile Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. We will take activation via SADP software and Activation via Web Browser as examples to introduce the camera activation. -
Page 18: Activation Via Sadp Software
Network Mobile Camera·Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 19 Network Mobile Camera·Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2.
-
Page 20: Modifying The Ip Address
Network Mobile Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 21 Network Mobile Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 3-5 Modify the IP Address...
- Page 22 Network Mobile Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.
-
Page 23: Accessing Via Web Browser
Network Mobile Camera·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 24 Network Mobile Camera·Quick Start Guide 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 25: Operating Via Hik-Connect App
Network Mobile Camera·Quick Start Guide 5 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using... -
Page 26: Enable Hik-Connect Service Via Web Browser
Network Mobile Camera·Quick Start Guide Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. 5.1.2 Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. - Page 27 Network Mobile Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Figure 5-2 Platform Access Configuration (Web) 3. Select Platform Access Mode as Hik-Connect. 4.
-
Page 28: Hik-Connect Setup
Network Mobile Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before... - Page 29 Network Mobile Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
-
Page 30: Initializing The Memory Card
Network Mobile Camera·Quick Start Guide Initializing the Memory Card Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection. - Page 31 UD06239B-A...
