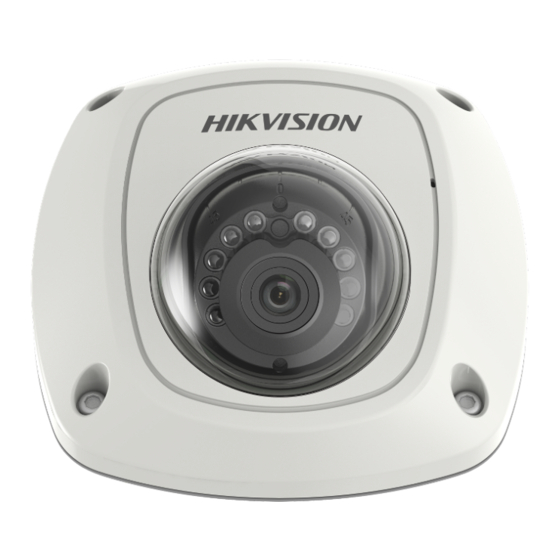

- Page 1 Network Mini Dome Camera Quick Start Guide UD04328B 0504051070109 0504001060516...
- Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 4 Network Mini Dome Camera·Quick Start Guide IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 5 Network Mini Dome Camera·Quick Start Guide EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
- Page 6 Network Mini Dome Camera·Quick Start Guide Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
- Page 7 Network Mini Dome Camera·Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information. ● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 24 VAC or 12 VDC according to the IEC60950-1 standard.
- Page 8 Network Mini Dome Camera·Quick Start Guide malfunction), and affect the endurance of sensor at the same time. ● The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
- Page 9 Network Mini Dome Camera·Quick Start Guide responsibility for problems caused by unauthorized repair or maintenance.)
-
Page 10: Table Of Contents
Network Mini Dome Camera·Quick Start Guide Table of Contents 1 Appearance Description ............... 10 1.1 Overview ............... 10 1.2 Cables Description ............12 2 Installation ..................15 2.1 Memory Card Installation ..........16 2.2 Camera Mounting ............17 2.3 Installation of Network Cable Water-proof Jacket (Optional) ................. -
Page 11: Appearance Description
Network Mini Dome Camera·Quick Start Guide 1 Appearance Description Overview Figure 1-1 Overview of Mobile Network Mini Dome Camera... - Page 12 Network Mini Dome Camera·Quick Start Guide Description of Mobile Network Mini Dome Camera Description Dome Cover Mounting Base Lens Dome Drive Mic. Serial Port Reset Button Memory Card Slot IR LED Press Reset Button about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
-
Page 13: Cables Description
Network Mini Dome Camera·Quick Start Guide Cables Description This camera series has several camera models, each of which may have different cable group. The following figures and tables show the description of all possible cables in this camera series. Figure 1-2 Cable Overview... - Page 14 Network Mini Dome Camera·Quick Start Guide Cable Description Description RJ45 Network Cable M12 Aviation Plug Video Out (BNC) Black: power negative Power Supply and Red: power positive Audio Out Cable White and Brown: audio out Power Supply Cable Audio Out (Line Out) Cable The relation between RJ45 wire and M12 wire is shown in the following figure and table.
- Page 15 Network Mini Dome Camera·Quick Start Guide Wire Relation M12 Wire RJ45 Wire...
-
Page 16: Installation
Network Mini Dome Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC or 24V AC, please make sure your power supply matches with your camera. -
Page 17: Memory Card Installation
Network Mini Dome Camera·Quick Start Guide Memory Card Installation Camera of this series supports a memory card as the local storage. Follow the following steps to mount the memory card. Steps: 1. Unscrew the dome cover to disassemble the camera with supplied wrench. -
Page 18: Camera Mounting
Network Mini Dome Camera·Quick Start Guide Camera Mounting Before you start: ● Do not tear off the protection film until the installation is completed. ● Do not touch the inside face of the bubble with your hands. Steps: 1. Paste the drill template to the desired mounting place. Hole A: for cables routed through the ceiling Screw hole 1: for Mounting Base Drill Template... - Page 19 Network Mini Dome Camera·Quick Start Guide If you want to route cable through the side outlet of the mounting base, use a plier to remove the piece of plastic that blocks the side outlet. Figure 2-4 Clear the Side Outlet 3.
- Page 20 Network Mini Dome Camera·Quick Start Guide Install the Mounting Base 4. Route and connect cables. Fix the camera to the mounting base with two PM4×8 screws. (Optional) For cameras that are installed outdoor, it is recommended to install water-proof jacket to the network interface. See Section 2.3.
- Page 21 Network Mini Dome Camera·Quick Start Guide 5. Adjust the surveillance angle. Pan: -30° to 30° Plastic Ring Rotate: 0° to 360° Tilt: 0° to 80° 3-Axis Adjustment View the image via the web browser. Slightly loosen the screw beside the RESET button to adjust the surveillance angle.
-
Page 22: Installation Of Network Cable Water-Proof Jacket (Optional)
Network Mini Dome Camera·Quick Start Guide Install the Dome Cover 7. Tear off the protection film softly to complete the installation. 2.3 Installation of Network Cable Water-proof Jacket (Optional) Purpose: If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the camera is secured on the installation surface. - Page 23 Network Mini Dome Camera·Quick Start Guide Table 2-1 Components Components Camera’s Network Interface Socket O-Type Gasket Network Plug Waterproof Endcap Waterproof Rubber Gasket Lock Nut Network Cable from Router/Switch Steps: Feed the plugless network cable ⑦ through the lock nut ⑥, waterproof rubber gasket ⑤...
- Page 24 Network Mini Dome Camera·Quick Start Guide Insert the waterproof rubber gasket ⑤ into the waterproof endcap ④, and secure lock nut ⑥ with the waterproof endcap ④. Align the snap on the waterproof endcap ④ with the notch on the camera’s network interface socket ①, and then secure the waterproof endcap ④...
-
Page 25: Setting The Network Camera Over The Lan
Network Mini Dome Camera·Quick Start Guide 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 26: Activating The Camera
Network Mini Dome Camera·Quick Start Guide Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported. -
Page 27: Activation Via Sadp Software
Network Mini Dome Camera·Quick Start Guide Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 28 Network Mini Dome Camera·Quick Start Guide Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps: 1. Run the SADP software to search the online devices. 2.
-
Page 29: Modifying The Ip Address
Network Mini Dome Camera·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. - Page 30 Network Mini Dome Camera·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an active device. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address...
- Page 31 Network Mini Dome Camera·Quick Start Guide Note: You can enable the Hik-Connect service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.
-
Page 32: Accessing Via Web Browser
Network Mini Dome Camera·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 33 Network Mini Dome Camera·Quick Start Guide 4. Click Login. Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 34: Operating Via Hik-Connect App
Network Mini Dome Camera·Quick Start Guide 5 Operating via Hik-Connect App Purpose: Hik-Connect is an application for mobile devices. With the App, you can view live image of the camera, receive alarm notification and so Note: Hik-Connect service is not supported by certain camera models. Enable Hik-Connect Service on Camera Purpose: Hik-Connect service should be enabled on your camera before using... -
Page 35: Enable Hik-Connect Service Via Web Browser
Network Mini Dome Camera·Quick Start Guide Verification Code Setting (SADP) Note: The verification code is required when you add the camera to Hik-Connect app. 3. Click and read "Terms of Service" and "Privacy Policy". 4. Confirm the settings. Enable Hik-Connect Service via Web Browser Before you start: You need to activate the camera before enabling the service. - Page 36 Network Mini Dome Camera·Quick Start Guide Steps: 1. Access the camera via web browser. Refer to Chapter 4. 2. Enter platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access Platform Access Configuration (Web) 3. Select Platform Access Mode as Hik-Connect. 4.
-
Page 37: Hik-Connect Setup
Network Mini Dome Camera·Quick Start Guide Hik-Connect Setup Steps: 1. Download and install the Hik-Connect app by searching “Hik-Connect” in App Store or Google Play 2. Launch the app and register for a Hik-Connect user account. 3. Log in Hik-Connect app after registration. Adding Camera to Hik-Connect Before you start: You need to enable the Hik-Connect service on camera before... - Page 38 Network Mini Dome Camera·Quick Start Guide You can find the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blur to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.
-
Page 39: Initializing The Memory Card
Network Mini Dome Camera·Quick Start Guide Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
