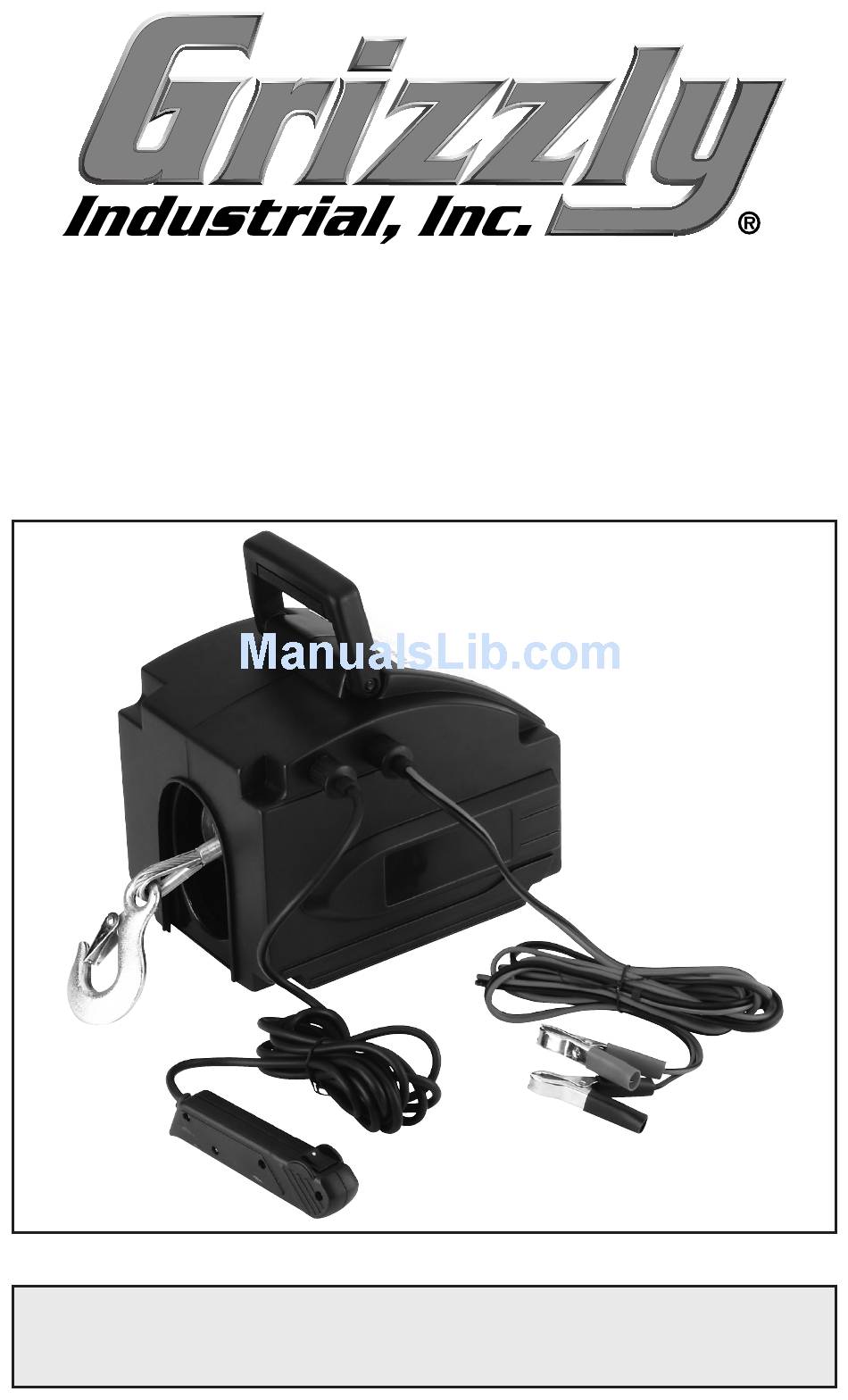

- Page 1 2000 LB. ELECTRIC WINCH MODEL H7604 INSTRUCTION MANUAL COPYRIGHT © JUNE, 2005 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #EW7266 PRINTED IN CHINA...
-
Page 3: Table Of Contents
Safety Instructions for Machinery ...3 Additional Safety Instructions for Electric Winches ...5 SECTION 2: SET UP ...6 Inventory ...6 Wiring ...7 Mounting Receiver Hitch ...8 Mounting Winch ...9 SECTION 3: Operations ...10 Pulling Capacity ...10 Hand Crank ...10 Receiver Hitch ...10 Winch ...11... -
Page 4: Introduction
INTRODUCTION Foreword We are proud to offer the Grizzly Model H7604 2000 Lb. Electric Winch. This model is part of a growing Grizzly family of fine power tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s... -
Page 5: Section 1: Safety
PRODUCES DUST. Wood dust is a carcinogen and can cause cancer and severe respiratory illnesses. H7604 2000 Lb. Electric Winch Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. - Page 6 ALLERGIC REACTION IN PEOPLE WHEN EXPOSED TO FINE DUST. Make sure you know what type of WITH wood dust you will be exposed to and always wear an approved respi- rator. H7604 2000 Lb. Electric Winch USING MACHINERY. AWARE THAT CERTAIN CAUSE...
-
Page 7: Additional Safety Instructions For Electric Winches
There is danger associated with the use of the Model H7604. Accidents are frequently caused by lack of familiar- ity or failure to pay attention. Use this machine with respect and caution to lessen the possibility of operator injury. -
Page 8: Section 2: Set Up
Inventory H7604 2000 Lb. Electric Winch... -
Page 9: Wiring
Failure to comply with these and other warnings could result in seri- ous personal injury. H7604 2000 Lb. Electric Winch To temporarily wire the winch to a 12V battery: 1. Plug the power cable into the cor- responding plug socket on the winch. -
Page 10: Mounting Receiver Hitch
® ��������� ������� Figure 2. Receiver hitch installation. ball (not included) into the receiver and secure it with a hitch pin in order to attach a trailer or temporarily mount the winch. H7604 2000 Lb. Electric Winch... -
Page 11: Mounting Winch
Mounting Winch The Model H7604 is designed to be mounted temporarily to a hitch ball on a vehicle; however, you may also attach the winch mounting plate permanently to a trailer or vehicle. To mount the winch temporarily: 1. Slide the heads of the mounting plate studs into the keyhole slots on the back of the winch. -
Page 12: Section 3: Operations
2. Slide a draw bar with a hitch ball into the receiver and secure it with a hitch pin. 3. Connect the trailer to the hitch ball and attach the safety chains to the receiver hitch. H7604 2000 Lb. Electric Winch... -
Page 13: Winch
4. Hook onto the pulling object using a pulling point, tow strap, or chain as shown in Figure 6. Figure 6. Cable attachment. H7604 2000 Lb. Electric Winch Never wrap the cable around an object and attach the hook to the cable. This can damage the object and fray or kink the cable. - Page 14 WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
