Philips CEM5100 Quick Start Manual

Register your product and get support at
EN Quick start guide
PT-BR Guia de início rápido
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
CEM5100X_78_QSG_V1.0
All manuals and user guides at all-guides.com

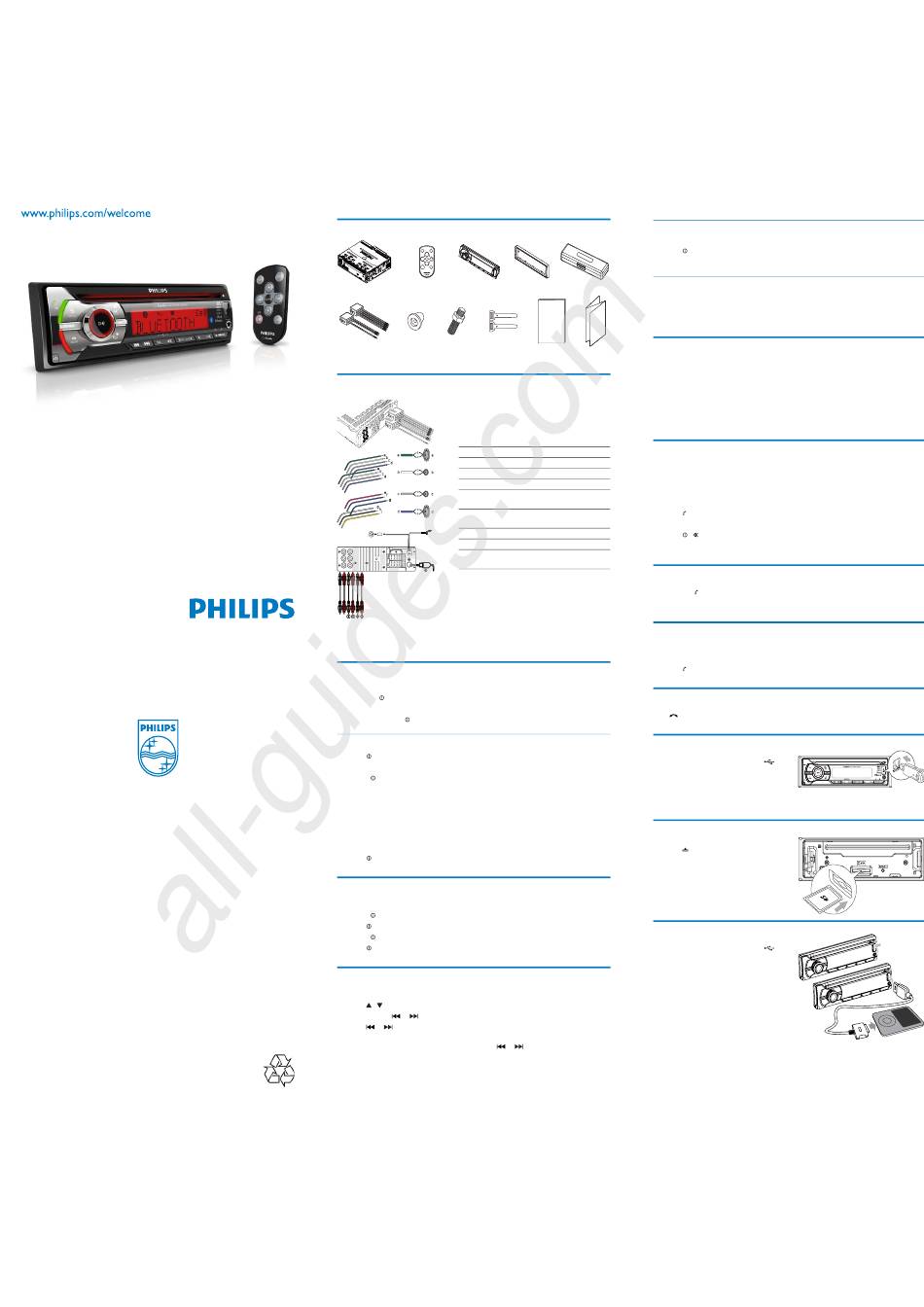

CEM5100
What's in the box
Main unit Remote
(with a sleeve) control
ISO male connector Rubber cushion
Connect wires: ISO male connectors
g
f
REAR AUX
R L
L
R
REAR FRONT
h
i
Turn on
7R WXUQ WKH XQLW RQ
‡ press .
7R WXUQ WKH XQLW RII
‡ press and hold until the unit is turned off.
Select country/region
1
Press to turn the unit on.
» [SELECT OPERATING REGION] is displayed.
2
Rotate to select an option:
‡ [USA] (United States)
‡ [LATIN] (Latin America)
‡ [EUROPE] (Western Europe)
‡ [RUS] (Russia)
‡ [M-EAST] (Middle East)
‡ [ASIA] $VLD 3DFLÀF
‡ [JAP] (Japan)
‡ [AUST] (Australia)
3
Press WR FRQÀUP
Set clock
1
Press MENU UHSHDWHGO\ XQWLO FXUUHQW WLPH LV ÁDVKHG
2
Rotate to set hour.
3
Press WR FRQÀUP
4
Rotate to set minute.
5
Press WR FRQÀUP
Listen to radio
1
Press SOURCE repeatedly to select radio mode.
2
Press / repeatedly to select band: [FM1] [FM2] [FM3] [AM1] RU [AM2] .
3
Press and hold or XQWLO WKH IUHTXHQF\ GLJLW LV ÁDVKHG
4
Press or to tune to a radio station manually.
» The radio station is broadcast.
‡ 7R VHDUFK IRU D UDGLR VWDWLRQ DXWRPDWLFDOO\ SUHVV
Á
Quick start guide
Front panel Trim plate Carrying case
Screw Disassembly tools User manual Quick start guide
x 1 pc x 2 pcs
1
Connect the supplied male connector to the unit.
2
Check the car's wiring carefully and connect them
to the supplied male connector.
1 Green/black strip Left speaker (Rear)
2 White/black strip Left speaker (Front)
3 Gray/black strip Right speaker (Front)
4 Purple/black strip Right speaker (Rear)
e Red Ignition key +12V DC when
ON/ACC
f Blue Motor/electric antenna relay
control lead
g Blue/white $PSOLÀHU UHOD\ FRQWURO OHDG
h Black Ground
i Yellow To the +12V car battery
which is energized at all times
3
&RQQHFW WKH DQWHQQD DQG DPSOLÀHU DV LOOXVWUDWHG LI
applicable.
or .
Store stations automatically
1
,Q UDGLR PRGH SUHVV DQG KROG DBB until [STORE - - -] is displayed.
2
Press WR FRQÀUP
» The six strongest stations of the selected band are saved in the preset channel automatically.
Store stations manually
1
Tune to a station that you want to store.
2
Press a numeric button for three seconds.
» The station is saved in the selected channel.
Pairing bluetooth devices
1
Turn on bluetooth function on your device.
2
Search for other bluetooth devices that can pair with your device.
3
Select "Philips" in the pairing list.
4
Enter default password "0000".
» [PAIR OK] is displayed on the panel if pairing is successful.
» The paired device connect to the car audio system automatically.
Make a call
To make call through the mobile phone.
1
Use the Mobile Phone to dial and make an outgoing call.
2
2QFH FRPSOHWHG WKH GLDOLQJ [CALLING] is displayed.
‡ To redial number.
1
Press .
» [REDIAL] is displayed.
2
Press / again.
» [CALLING] is displayed and the unit starts dialing the number dialed last time.
Call transfer
Press and hold until [TRANSFER] is displayed.
» Voice transfers from loudspeaker to mobile phone.
Receive call
1
,I WKHUH LV LQFRPLQJ FDOO WKH SKRQH QXPEHU LV GLVSOD\HG
‡ LI WKH LQFRPLQJ FDOO KDV QR SKRQH QXPEHU [PHONE IN] is displayed.
2
Press to answer/accept the call.
Terminate call
Press to terminate call.
Play from USB
1
Slide the USB socket cover marked to
the left.
2
Insert the USB device into the USB socket.
» The unit starts playing from the USB
device automatically.
Insert a card
1
Press to release the panel.
2
Insert the card into the card slot.
3
Close the front panel.
» The unit starts playing from the card
automatically.
Play from iPod/iPhone
1
Slide the USB socket cover marked to
the left.
2
Insert USB adaptor on one end of iPod/iPhone
cable to the USB socket on the main unit.
3
Insert the other end of the iPod/iPhone cable
to the iPod/iPhone socket.
» The unit starts playing from the USB
device automatically.
