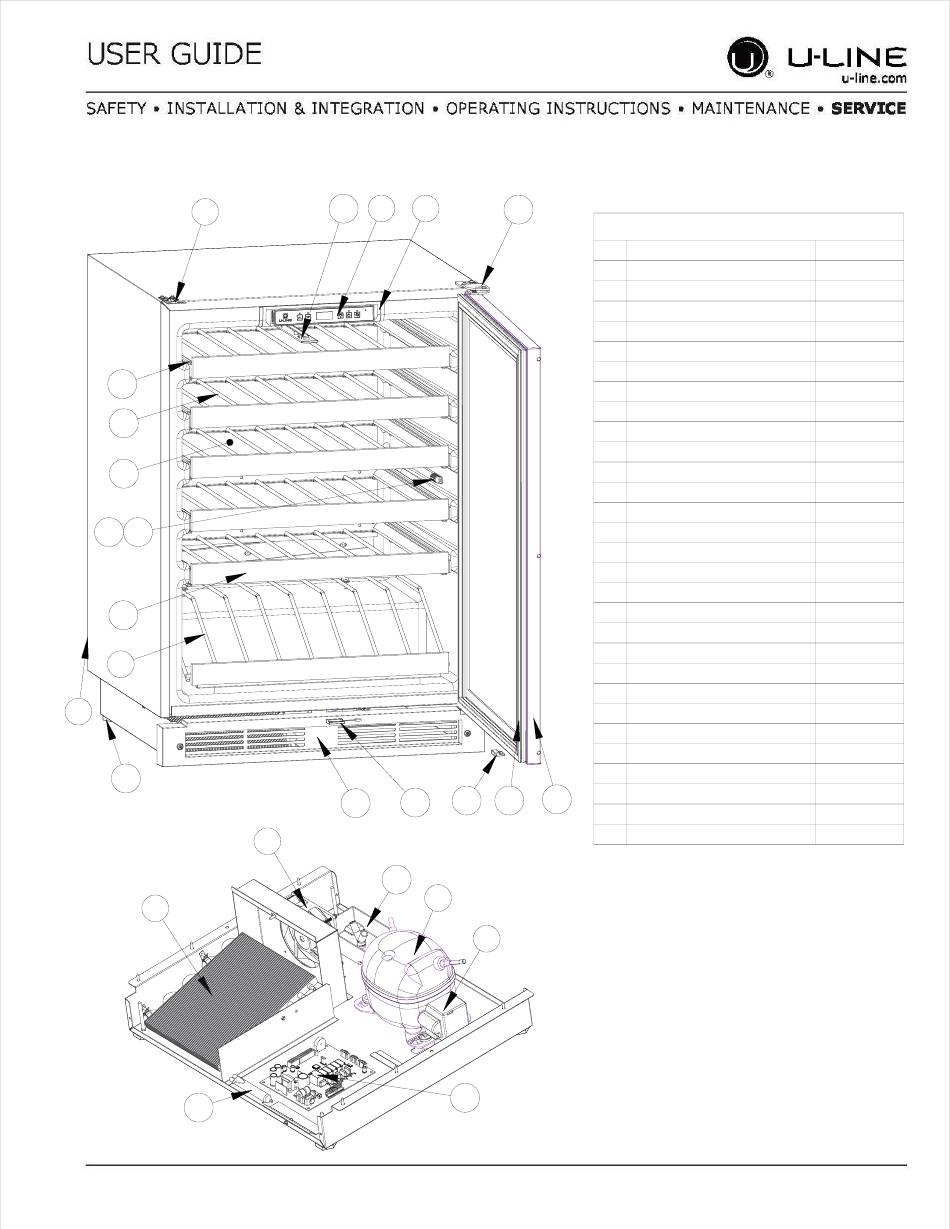

Parts

1
25
23
14
26 27
29
9
2
18
5
13
17 8 7
24
15
6
12
4
16
Item
1 Anti tip bracket w/screws
2 Back panel
3 Compressor electricals only
4 Compressor w/electricals
5 Condenser assembly
6 Condenser fan w/screws
7 Control Housing
8 Display module
9 Display rack, btm
10 Door assembly w/ hinges
11 Gasket, door
12 Drain pan w/double sided tape
13 Drier
14 Evaporator assembly
15 Grille w/screws
16 Hinges(2) w/screws
17 LED light strip and cover assy
18 Leg Levelers (4)
19 Magnet w/brkt and screws
20 Main board (no case or wires)
21 Packaging
22 Power cord
23 Rack Assembly
24 Reed switch
25 Slide Assembly
26 Thermistor (1 pc)
27 Thermistor cover and pin
10
19 11
28 Wire harness, board
29 Wood front w/screws
3
20
U-1224WCINT-00B
Description U-Line P/N
80-54221-00
80-54204-00
80-54149-00
80-54150-00
80-54264-00
80-54014-00
80-54265-00
80-54252-00
80-54318-00
80-54263-00
80-54213-00
80-54217-00
80-54055-00
80-54262-00
80-54267-00
80-54208-00
80-54000-00
80-54201-00
80-54250-00
80-54008-00
80-54209-00
80-54171-00
80-54269-00
80-54284-00
80-54219-00
80-54006-00
80-54023-00
80-54251-00
80-54283-00
Parts 1
