Installation Guide
Color CCTV Camera
WV-CP500L/G
Model No.
WV-CP504LE

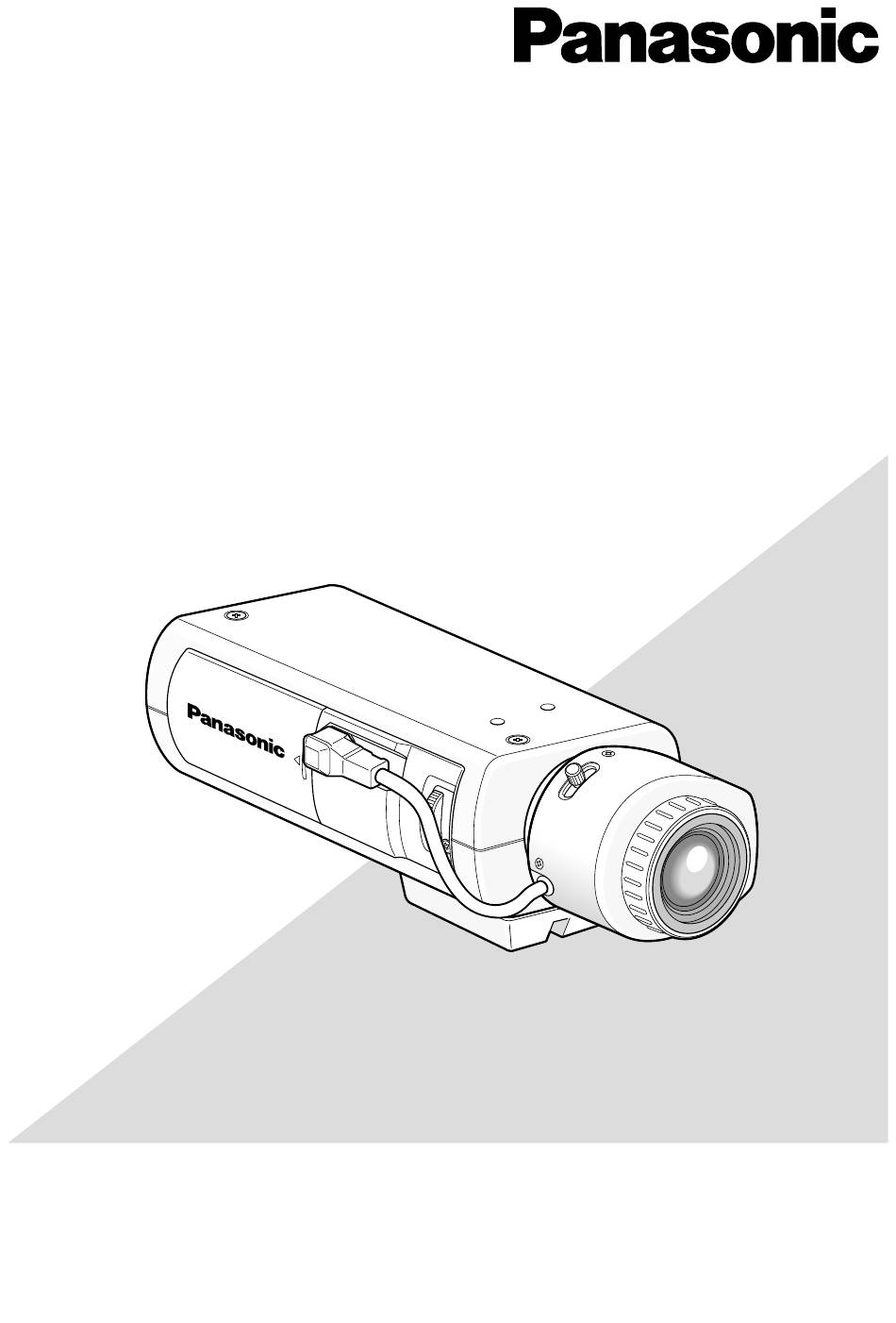

This illustration represents WV-CP500L/G.
Lens: Option
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Advertisement
Table of Contents
Related Manuals for Panasonic WV-CP504LE
Summary of Contents for Panasonic WV-CP504LE
- Page 1 Installation Guide Color CCTV Camera WV-CP500L/G Model No. WV-CP504LE This illustration represents WV-CP500L/G. Lens: Option Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual.
- Page 2 We declare under our sole responsibility that the product Vi deklarerar härmed vårt fulla ansvar för att den produkt to which this declaration relates is in conformity with the t i l l v i l k e n d e n n a d e k l a r a t i o n h ä n v i s a r ä r i standards or other normative documents following the överensstämmelse med de standarder eller andra provisions of Directives 2006/95/EC and 2004/108/EC.
-
Page 3: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. -
Page 4: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 5: Preface
Preface This product is a 1/3-inch type {1/3"} CCD color CCTV camera. Connection of this product to a video monitor allows users to use this product as a monitoring camera. • WV-CP500L: 220 to 240 V AC power supply • WV-CP504L: 24 V AC, 12 V DC power supply Introduction of SUPER-D5 (super dynamic function) Integration of SUPER-D5 into the CCD and signal processing circuit has achieved approximately 160 times higher dynamic range as compared with conventional camera. -
Page 6: About The User Manuals
About the user manuals The operating instructions of the camera consist of 2 sets: this book and operating instructions (PDF). This book explains how to install the camera. Refer to the "Operating Instructions (PDF)" on the provided CD-ROM for descriptions of how to per- ®... -
Page 7: Table Of Contents
Contents Important safety instructions ...................... 3 Limitation of liability ........................4 Disclaimer of warranty ........................ 4 Preface ............................5 About the user manuals ......................6 Trademarks and registered trademarks..................6 Precautions ..........................8 Major operating controls and their functions ................9 Precautions for installation ...................... -
Page 8: Precautions
Precautions This product has no power switch. this product. When the dirt is hard to remove, Power is supplied from an external 12 V DC/ use a mild detergent and wipe gently. Then, 24 V AC (WV-CP504L) or 220 to 240 V AC wipe off the remaining detergent with a dry (WV-CP500L) power-supply device. -
Page 9: Major Operating Controls And Their Functions
Major operating controls and their functions Side view (WV-CP500L) ALC lens connector Flange-back adjusting ring Flange-back lock screw LOCK Side cover Tripod mount base Inside the side cover (Slide the cover leftward to the lock position.) (UP) BF/MENU Operation buttons* (LEFT) (SET) (RIGHT) - Page 10 Rear view (WV-CP500L) External terminal ALARM OUT POWER Power indicator Video output connector VIDEO OUT 220 - 240V ~ 50Hz Power connector Rear view (WV-CP504L) External terminal Power indicator ALARM OUT VIDEO OUT POWER (UP) BF/MENU Operation buttons* 24V ~ IN (LEFT) (SET) (RIGHT)
- Page 11 Side cover (only for WV-CP500L) Power indicator When the operation buttons are used, the side This indicator lights up when the power is on. cover is slide leftward to the lock position. External terminal (☞ page 18) ALC lens connector The ALC connector is connected to this ALC Power connector (only for WV-CP500L) lens connector.
-
Page 12: Precautions For Installation
Precautions for installation This camera is designed to be used • Locations subject to vibrations (This prod- indoors. This camera is not operable out- uct is not designed for on-vehicle use.) doors. • Locations subject to condensation as the result of severe changes in temperature Do not operate this product beyond the specified temperature, humidity or power Avoid installing the camera in a place with... - Page 13 Power cord (only for WV-CP500L) Connect the power cord securely. Run the power cord so that no load is applied to the cord when panning or tilting the camera. (Failure to observe this may disconnect the power cord, and accordingly no image is dis- played.)
-
Page 14: Installation And Connection
Installation and connection Cautions: • ONLY CONNECT WV-CP504L TO 24 V AC OR 12 V DC CLASS 2 POWER SUPPLY. • Be sure to connect the grounding lead to the GND terminal. Rotate the lens (option) clockwise slowly to mount the lens. Important: • For use of C-mount lens, use the C-mount adaptor (option). • For prevention of damage to the camera body, use a lens with protrusion of 5.5 mm or less from the flange surface. - Page 15 Connect the lens cable to the ALC lens connector of the camera. ALC lens connector Pin No. Dump @ Dump ! Drive ! Drive @ Secure the camera mount bracket <Installation sample on a ceiling> (option) to an installation position, and mount the camera on the camera mount Camera mount bracket.
- Page 16 • The mounting conditions of the camera mount bracket are described as follows: Installation Applicable mount Recommended Number of Minimum pull-out place bracket screw screw strength (per 1 pc.) On ceiling WV-7011 4 pcs. 196 N WV-7010 3 pcs. 196 N WV-7012 3 pcs. 196 N On wall WV-831 4 pcs. 921 N WV-7013 3 pcs.
- Page 17 The video output cable is connected to this video output connector. Important: • Be sure to turn off the power of each device before connection. • Be sure to secure the coaxial cable connectors. Connect a coaxial cable to the video output connector. Coaxial cables ALARM OUT POWER To video input VIDEO OUT 220 - 240V ~ 50Hz WV-CP500L Use a cable tie (locally procured) to attach the coaxial cable to the camera mount bracket.
-
Page 18: About External Terminal
About external terminal Important: • Be sure to turn off the power of each device before connection. Alarm output Input specification: Open collector out- WV-CP500L put (max. voltage: 16 V DC) ALARM OUT POWER Off: Internally pulled up 2 V to 4 V DC VIDEO OUT On: Output voltage 1 V DC or less (max. drive current: 100 mA) 220 - 240V ~ 50Hz Functions: Alarm output... - Page 19 Turn on the power. WV-CP500L The included power cord is connected to this power connector. Connect between the power connector on the rear side of the camera and a plug socket with the supplied power cord. ALARM OUT POWER Power cord (accessory) VIDEO OUT 220 to 240 V AC, 50 Hz...
-
Page 20: When A Varifocal Lens Or A Zoom Lens Is Used
Adjust the camera angle by loosening the screw of the camera mount bracket while viewing the video monitor. Be sure to loosen the screw of the camera mount bracket when the camera angle is adjusted. If the camera angle is changed when the screw is tight, excessive force is applied to the cam- era mount bracket and camera, and accordingly they may be damaged. -
Page 21: How To Adjust Focus With Use Of The Focus Assist Function
How to adjust focus with use of the focus assist function The angular field of view and focus are adjustable in accordance with the distance to a subject. Adjustment of the angular view of field and focus shall be conducted simultaneously with camera angle adjustment. -
Page 22: How To Adjust Flange Back
• The out-of-focus level in the near-infrared light region may be higher than that in the visible light region. • When a non-Panasonic lens that has an extended range for lens focusing is used, adjust the back focus after setting the focus to a position at a short distance from the FAR end. If adjust- ment is performed in the extended range, appropriate adjustment cannot be obtained. -
Page 23: Setup Menu
Setup menu Performing each setting item in the setup menu should be completed in advance to use this unit. Perform the settings for each item in accordance with the conditions of the camera shooting area. Refer to the operating instructions (PDF) for further information. List of setup menu Setup item Description... - Page 24 Setup item Description SPECIAL CHROMA GAIN Adjusts the chroma level. AP GAIN Adjusts the aperture level. PEDESTAL Adjusts the pedestal (brightness) level. PIX OFF Corrects image defects such as flaws. COMMUNICATION Performs the communication setting of the system with a receiver into which this unit is integrated.
-
Page 25: Basic Operation
Basic operation The description below explains how to operate the setup menu basically. The operations in the setup menu are performed with the operation buttons (☞ pages 9 and 10) after calling up the setup menu on the connected video monitor. The operations in the setup menu can also be performed through the system controller (option). - Page 26 Screenshot 3 The selected setup screen in the setup menu appears on the screen. Step 4 Perform the settings for each item. • Selection of setting item: **CAMERA SETUP** SCENE1 Press the up button or down button to ALC/ELC move the cursor. SHUTTER ON(HIGH) • Change of settings: SENS UP...
-
Page 27: Screen Transition Diagram
Screen transition diagram Top screen "CAMERA ID" screen MODEL WV-CP L SRS **CAMERA ID** CAMERA ID 0123456789 CAMERA ABCDEFGHIJKLM SYSTEM NOPQRSTUVWXYZ SPECIAL ().,'":;&#!?= LANGUAGE +- */%$ SPACE POSI RET TOP END RESET ....SETUP ENABLE "CAMERA SETUP" screen **CAMERA SETUP** SCENE1 ALC/ELC SHUTTER... -
Page 28: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages • Are the power cord and coaxial cable... - Page 29 Inspect the power cord, power plug and power connectors periodically. Reference Symptom Cause/solution pages Damaged power cord sheathing • The power cord, power connector, or power plug is damaged. Heated portion of power line Use of the damaged cord, connector, consisting of power cord, or plug may cause electric shock or –...
-
Page 30: Specifications
Specifications • General Power source: WV-CP500L: 220 to 240 V AC 50 Hz WV-CP504L: 24 V AC 50 Hz, 12 V DC Power consumption: WV-CP500L: 3.7 W WV-CP504L: 24 V AC: 3.6 W, 12 V DC: 310 mA Ambient operating temperature: –10 °C to +50 °C Ambient operating humidity: Less than 90 % (non condensing) -
Page 31: Standard Accessories
×16, ×32) White balance: ATW1/ATW2/AWC Digital noise reduction: HIGH/LOW Simple black/ white changeover: AUTO/OFF VMD: Video Motion Detection Scene Change Detection Number of scene file: Privacy zone: ON (1)/ON (2)/OFF Image stabilizer: ON/OFF Electronic zoom: ON (up to 2x)/OFF Display language: JAPANESE/ENGLISH/FRANÇAIS/ESPAÑOL/DEUTSCH/ ITALIANO/РУССКИЙ... - Page 32 If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Panasonic Corporation http://panasonic.net Importer's name and address to follow EU rules: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg F.R.Germany © Panasonic System Networks Co., Ltd. 2010 Ns0809-1109/1 3TR006325BZA Printed in China...
