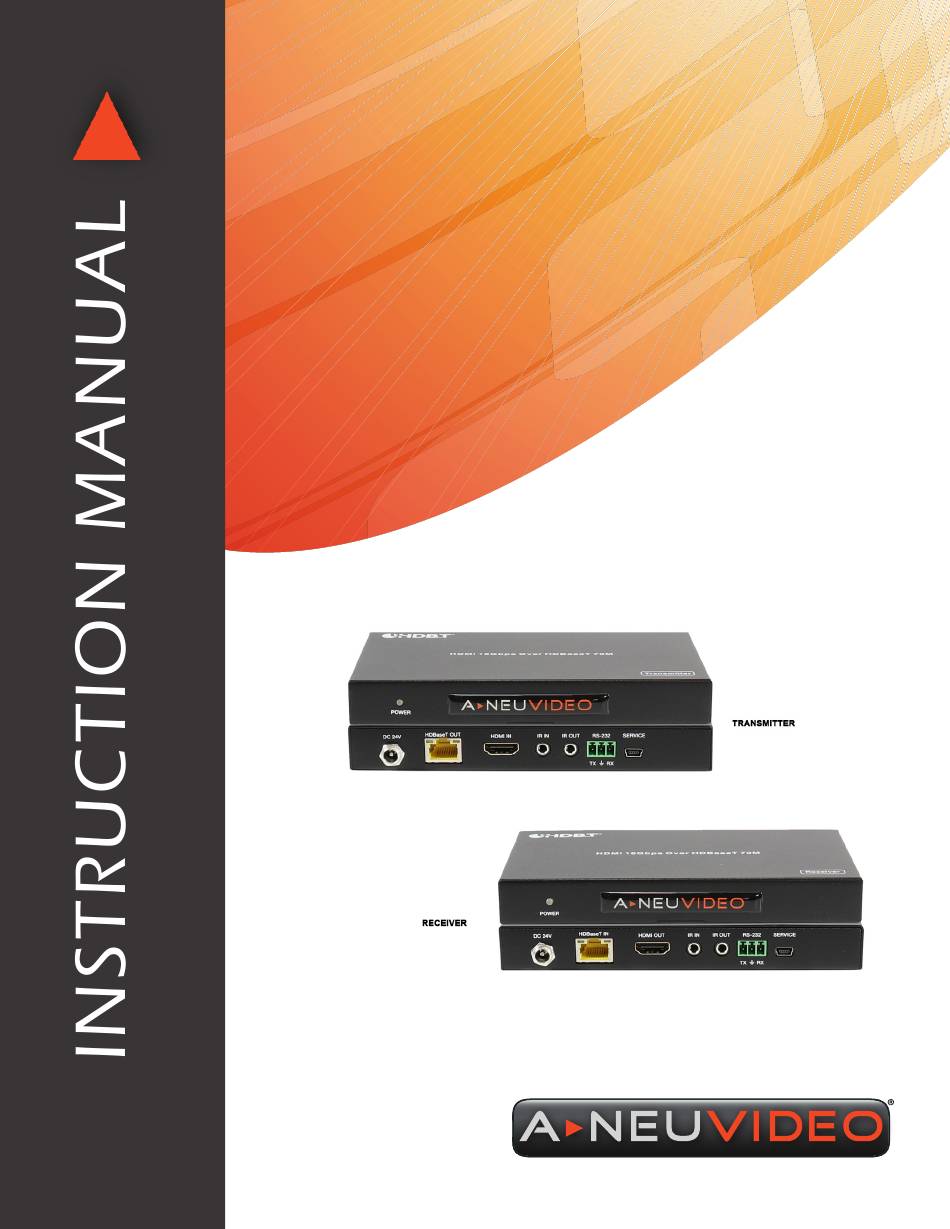

- Page 1 ANI-HDR-70 HDMI 18Gbps Extender Over CAT5e/CAT6 TRANSMITTER & RECEIVER A-NeuVideo.com Frisco, Texas 75034 (469) 277-7606 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
4:4:4 chroma sampling, as well as HDMI data rates up to 18Gbps. • To protect the unit from overheating, do not block any vents or The ANI-HDR-70 provides HDMI transmission up to 230 ft (70M) openings in the unit housing that provide ventilation and allow for for 1080p video and up to 130ft (40M) for 4K HDR over CAT6a/7 sufficient space for air to circulate around the unit. -
Page 4: Features & Cable Termination
NEUVIDEO FEATURES & cable termination FEATURES • Fully supports video resolutions, audio formats and color space formats for HDMI 2.0 specifications (18Gbps), HDCP 2.2 and DVI compliant • Video resolutions up to 4K/UHD capability @60Hz with 4:4:4 chroma sampling, plus support for HDR formats •... -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS Specifications • HDMI Compliance: HDMI 2.0b • HDCP Compliance: HDCP 2.2 and HDCP 1.4 • Video Bandwidth: 18Gbps • Video Resolutions: up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz,1080p@120Hz and 1080p 3D@60Hz • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 • Color Depth: 10-bit, 12-bit •... -
Page 6: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Transmitter POWER LED: System power indicator. DC 24V: Connect the 24V/1A adaptor to the AC wall outlet for power. HDBaseT OUT: Standard HDBaseT signal output port. Connects the HDBaseT receiver with a UTP cable following the standard ™... - Page 7 NEUVIDEO OPERATION CONTROLS & FUNCTIONS Receiver POWER LED: System power indicator. DC 24V: Connect the 24V/1A adaptor to the AC wall outlet for power. HDBaseT Standard HDBaseT signal input port. Connects the HDBaseT Transmitter with a UTP cable following the standard ™...
-
Page 8: Descriptions
NEUVIDEO Description Description 1 POC (Power Over Cable) Application Example Description 2 Bidirectional Infrared Control Application Example Description 3 Bidirectional RS-232 Control Application Example... -
Page 9: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM Connection Diagram... -
Page 10: Wideband Ir
NEUVIDEO CONNECT & OPERATE Wideband IR (30KHz---60KHz) introduction IR RECEIVER (RX): • To control the source: Plug IR Receiver into the IR RX port of the receiver unit; place the receiver at or near the display. • To control the display: Plug the IR Receiver into IR RX port of the transmitter unit; place the receiver in position where it is able to receive remote signals. - Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
