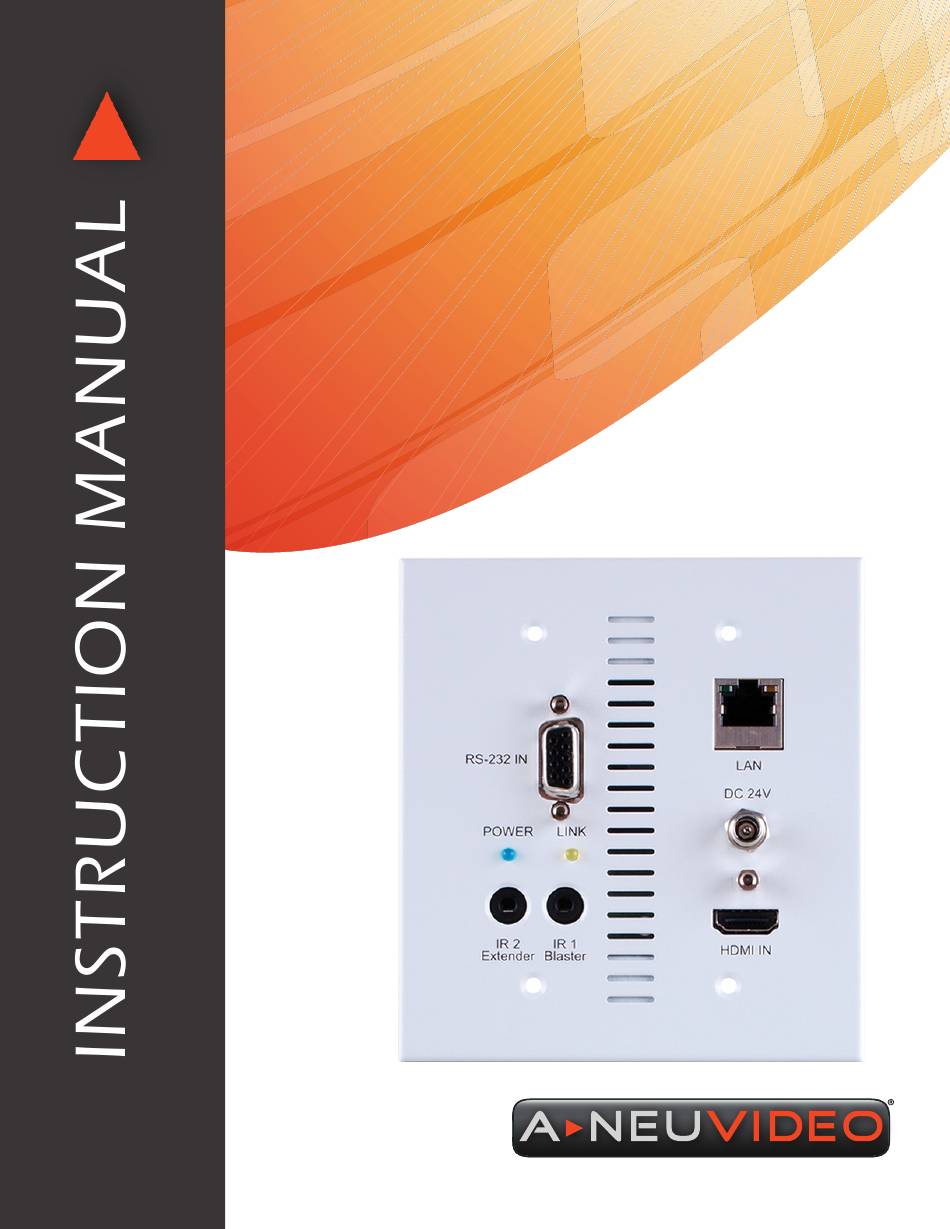

- Page 1 ANI-705WPT HDMI over Single CAT5e/6/7 Wall-plate Transmitter A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Do not attach the power supply cabling to building surfaces. INTRODUCTION • Use only the supplied power supply unit (PSU). Do not use the The ANI-705WPT is a CAT5e/6/7 over HDMI Wall-Plate Transmitter PSU if it is damaged. that can receive uncompressed audio/video over a single run of •... -
Page 4: Features
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant • Supports HDCP repeater and CEC bypass functions • Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 328ft/100M •... -
Page 5: Hardware Description
NEUVIDEO HARDW ARE DESCRIPTION Front & BACK Panels RS-232 IN: Connects to a PC/laptop or RS-232 control system with D-sub 9-pin male cable for the transmission of RS-232 commands. POWER LED: This LED will illuminate when the transmitter is connected to a power supply. IR 2 EXTENDER: Connects an IR Extender cable for IR signal reception. -
Page 6: Ir Pin Assignment
NEUVIDEO OPERATION CONTROLS & FUNCTIONS IR Pin Assignment D-Sub 9-Pin Definitions DEFINITIONS DEFINITIONS TxD/RxD RxD/TxD... -
Page 7: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... - Page 8 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
