Summary of Contents for Beko TFF673APB

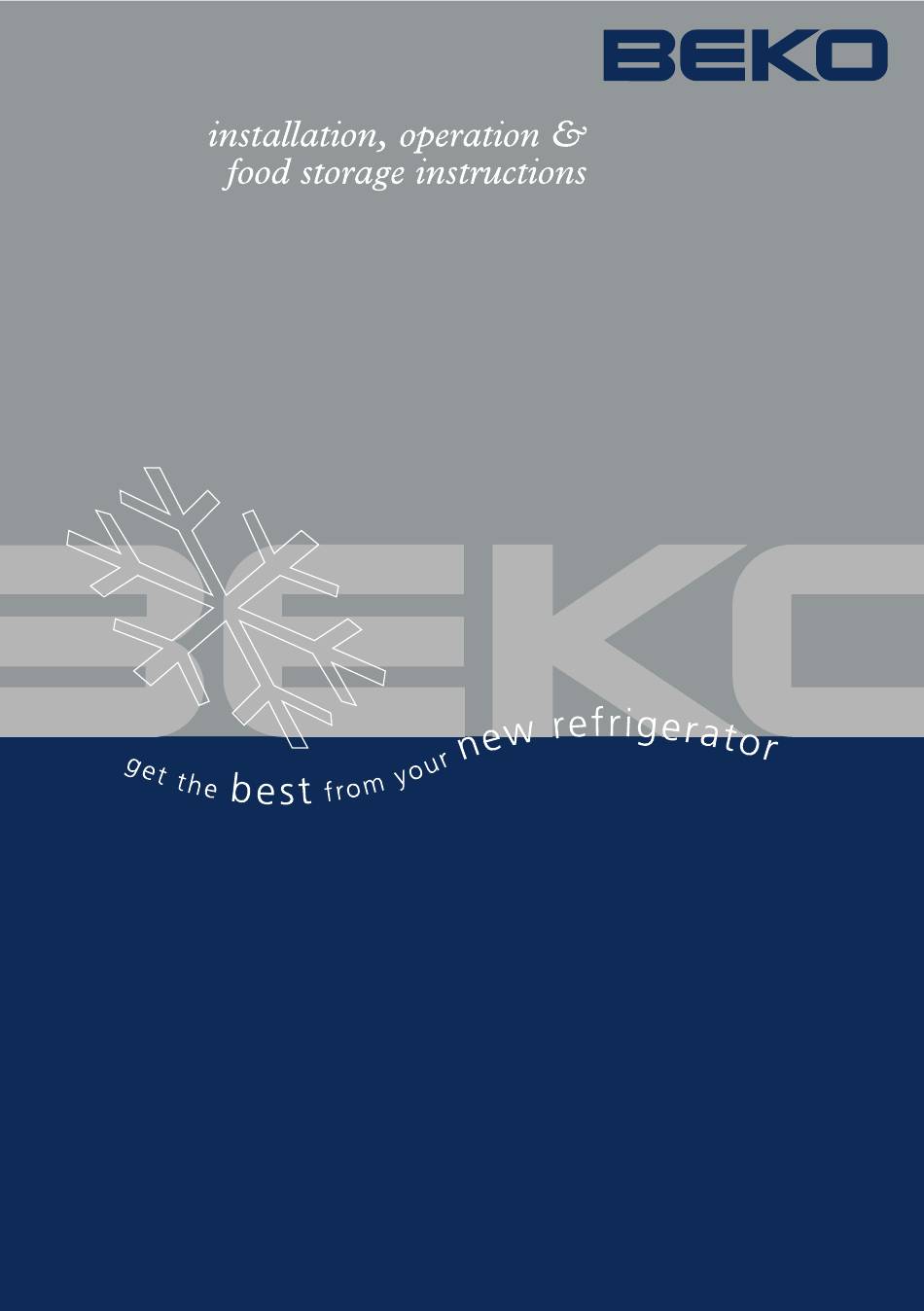

- Page 1 Tall Larder Fridge TFF673APB SOM 9650...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you with years of good service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future reference.
-
Page 3: Table Of Contents
CONTENTS 1 Your refrigerator 5 Using your refrigerator 11 Setting the operating temperature 11 Indicator lights ......12 2 Warnings Making ice cubes ......13 ELECTRICAL REQUIREMENTS ..5 Defrosting of the appliance ..13 WARNING! THIS APPLIANCE MUST BE EARTHED ........ 5 6 Maintenance and cleaning 3 Installation... -
Page 4: Your Refrigerator
Your refrigerator MAX. 1. Control Panel 2. Flap (Fast-Freeze compartment) 3. Ice cube tray & Ice bank 4. Drawers 5. Adjustable front feet C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. -
Page 5: Warnings
• Do not dispose of the appliance on a • Do not use mechanical devices fire. At BEKO, the care and protection or other means to accelerate the of our environment is an ongoing defrosting process, other than those commitment. -
Page 6: Electrical Requirements
With alternative plugs a 13 A fuse must mains lead which can only be obtained be fitted either in the plug or adaptor from a BEKO Authorised Service or in the main fuse box. If in doubt Agent. contact a qualified electrician. -
Page 7: Installation
Installation 5. The appliance should be located on INSTALLATION INSTRUCTIONS a smooth surface. The two front feet can be adjusted as 1. The space in the room where the required. appliance is installed must not be smaller than 10 cubic metres. To ensure that,your appliance is standing upright adjust the two front feet by turning clockwise or anti-... -
Page 8: Reversing The Doors
REVERSING THE DOORS 3.Gently prise off plastic hinge covers on both sides of front top panel using a small flat-headed screwdriver. (1-2) We recommend that you reverse the 4-Unscrew the bolts of the top hinge door before switching on for the first and remove top hinge. - Page 9 15-Locate and re-fit door to bottom hinge pin. (14) 16-Re-fit the upper hinge on the opposite side by using a flat headed screwdriver. (15) 17.Fit front top panel plastic hinge covers on the opposite sides. (16) Remove the handle cover gently taking care not to damage the appliance.(17) 19.Unscrew and remove the handle...
- Page 10 (12) 45 ° 180°...
-
Page 11: Before Operating Starting
Before operating STARTING 9.We recommend that you set the Final Check thermostat knob at MIN setting and Before you start using the refrigerator monitor the temperature to ensure the check that: appliance maintains desired storage temperatures (See Temperature 1.The front feet have been adjusted Control and Adjustment section). -
Page 12: Using Your Refrigerator
Using your refrigerator Remember to take the reading immediately since the thermometer Setting the operating temperature will rise very rapidly after temperature you remove it from the freezer. The operating temperature is regulated This appliance is designed to by the temperature control. operate at temperatures specified 1 = Lowest cooling setting (Warmest in the table below is equipped with... -
Page 13: Indicator Lights
MAX. Thermostat knob Indicator lights The thermostat knob is located on the indicator light frame. There are three coloured indicator lights located inside the appliance Important: which show the operating mode of the When you press the fast-freeze switch freezer. or adjust the set temperature, there may be a short delay before the Amber Indicator... -
Page 14: Making Ice Cubes
Do not exceed the freezing capacity It is strongly recommended to keep of your appliance in 24 hours. See the the knob at MAX. position at least rating label. 24 hours to freeze maximum amount In order to maintain the quality of the of fresh food declared as freezing food, the freezing must be effected as capacity. -
Page 15: Maintenance And Cleaning
Maintenance and cleaning ** We recommend that you switch ** Any dust that gathers on the off the appliance at the socket outlet condenser, which is located at the and pull out the mains plug before back of the freezer, should be removed cleaning. -
Page 16: Do's And Don'ts
Do's and Don'ts Do-Check contents of the freezer at Don’t- Exceed the maximum freezing regular intervals. capacity (16 kg in any 24 hours) when Do- Clean your freezer regularly. freezing fresh food. Do- Keep food for as short a time as Don’t- Consume ice-cream and water possible and adhere to “Best Before”, ices direct from the freezer. -
Page 17: Problem Solving
PROBLEM SOLVING If the appliance does not operate when switched on, check: • The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance) •... - Page 18 • The cost of functional replacement parts, but excluding consumable items. • The labour costs of a Beko approved repairer to carry out the repair. What is not covered? • Transit, delivery or accidental damage or misuse and abuse.
- Page 19 If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document. Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Beko Customer Help-Line. Tel: 0845 6004911...
- Page 20 BEKO plc Beko House Caxton Way Watford Hertfordshire WD18 8UF Tel: 0845 6004911 Fax: 0845 6004922 Printed in Turkey e-mail: service@beko.co.uk 48 9703 0000 Part no: website: www.beko.co.uk Revision no:...
