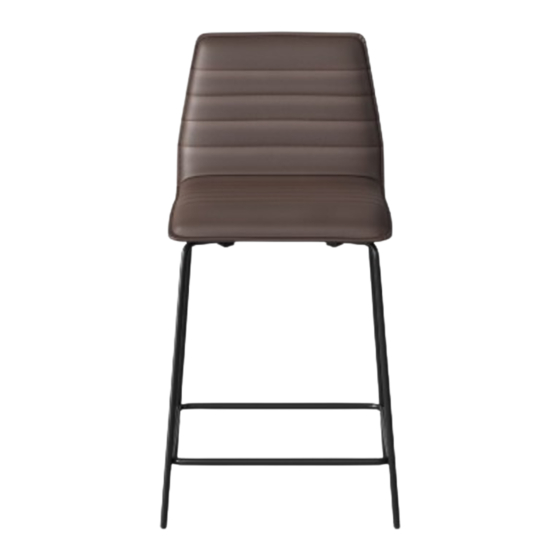

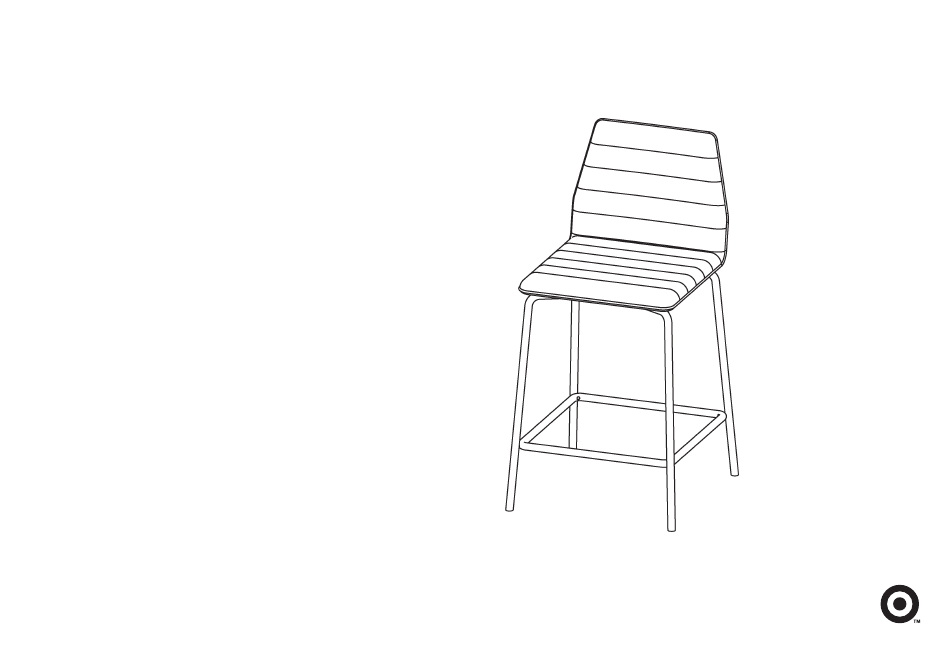

salk
counter stool
style # TGTRAPCS01 (brown)
dpci # 249-01-3918
tcin # 52379449
style # TGTRAPCS07 (espresso)
dpci # 249-01-4813
tcin # 52978439
style # TGTRAPCS02 (black)
dpci # 249-01-4144
tcin # 52379466
style # TGTRAPCS03 (smoke)
dpci # 249-01-4809
tcin # 52978435
style # TGTRAPCS04 (gunmetal)
dpci # 249-01-4810
tcin # 52978413
style # TGTRAPCS05 (herbal)
dpci # 249-01-4811
tcin # 52978430
style # TGTRAPCS06 (linen)
dpci # 249-01-0061
tcin # 52978437
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target salk TGTRAPCS01
Summary of Contents for Target salk TGTRAPCS01
- Page 1 # 52978413 style # TGTRAPCS05 (herbal) dpci # 249-01-4811 tcin # 52978430 style # TGTRAPCS06 (linen) dpci # 249-01-0061 tcin # 52978437 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list assembly QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 4 (H2) x 4 (H3) x 2 (H4) x 1 (H5) x 1 long flat head bolt short flat head bolt round head bolt large allen wrench small allen wrench (H6) x 4 (H7) x 4 stand-off stand-off cap...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY seat foot rest... - Page 6 step 1: attach legs and stand-offs (H3) x 2 (H6) x 4 (H4) x 1 round head stand-off large allen bolt wrench 1.1. Align bolts with pre-drilled holes. 1.2. Do not over tighten bolts. 1.3. Slide stand-offs onto legs.
- Page 7 step 2: attach foot rest (H2) x 4 (H5) x 1 short flat head small allen bolt wrench front 2.1. Align bolts with pre-drilled holes. 2.2. Do not over tighten bolts.
-
Page 8: Step 3: Attach Seat
step 3: attach seat (H1) x 4 (H5) x 1 (H7) x 4 long flat head small allen stand-off cap bolt wrench 3.1. Align bolts with pre-drilled holes. 3.2. Do not over tighten bolts. 3.3. Push stand-off caps into stand-offs. - Page 9 WARNING Not for commercial use. 250 lbs. 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2.
- Page 10 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
