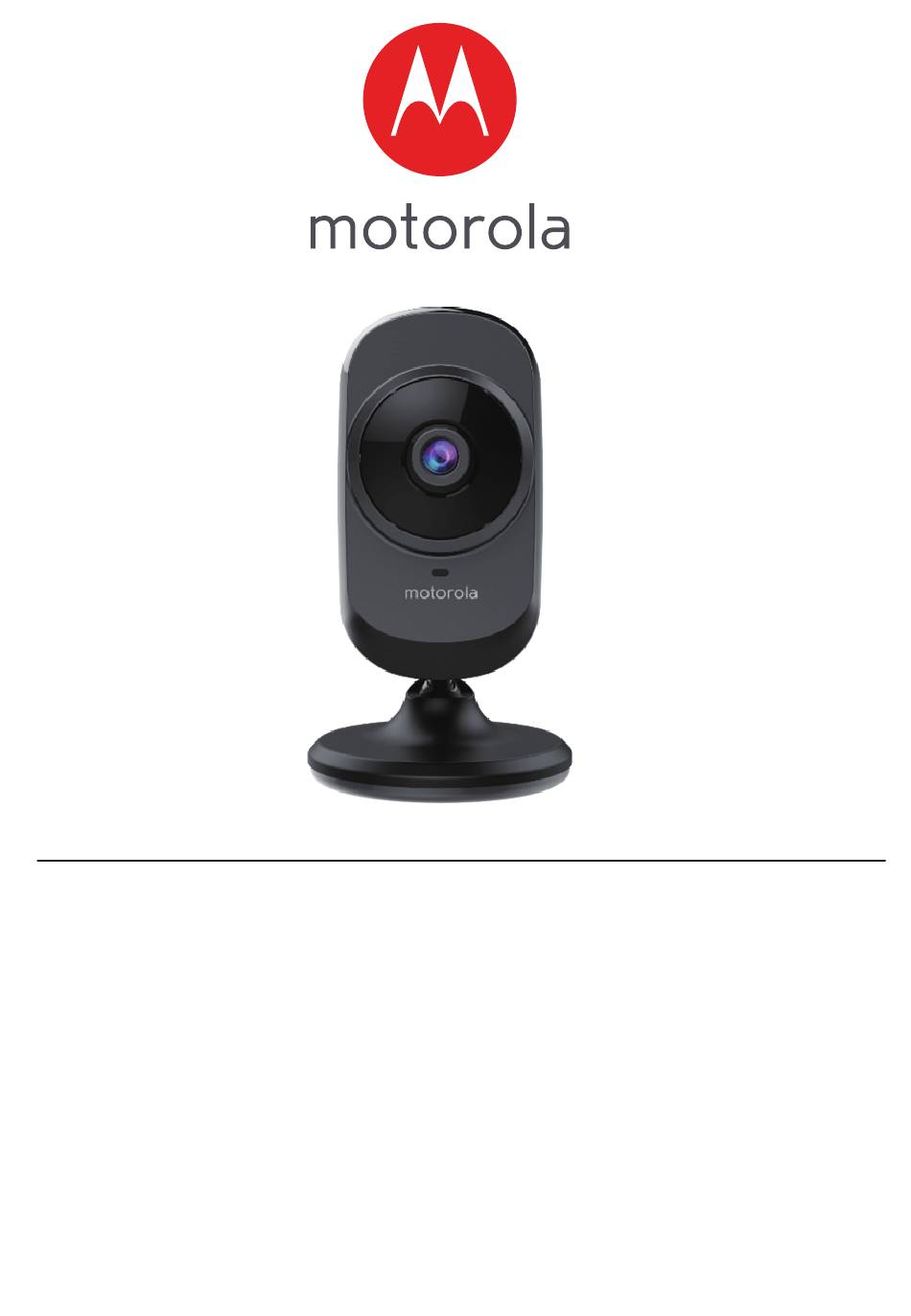

USER’S GUIDE Wi-Fi ® Home Video Camera Models: FOCUS68P, FOCUS68P-2, FOCUS68P-3, FOCUS68P-4 FOCUS68P-W, FOCUS68P-W2, FOCUS68P-W3, FOCUS68P-W4 The features described in this user’s guide are subject to modifications without prior notice.
Page 2
® /iPad ® or Android™ devices. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
Page 3
Overview of your Camera Pair 1. Light Sensor (for night mode 6. Temperature Sensor detection) 7. ON/OFF Switch 2. Power / Status indicator 8. Night Light 3. Microphone 9. Speaker 4. Camera Lens 10. Micro USB socket 5. Infrared LEDs (for night vision) 11.
Power ON and Connect the Camera ..........9 3.2.2 Download Hubble for Motorola Monitors App ......... 9 3.2.3 Run Hubble for Motorola Monitors App on Android™ device ..9 3.2.4 Add the Camera to your account ............ 10 ® ® ......14 3.3 User Account and Camera Setup on iPhone...
1. Safety Instructions WARNING: STRANGULATION HAZARD - In case this unit is being used to monitor infants or children, keep the unit and adapter cord more than 1 metre away from the cot and out of their reach. Never place the Camera or cords within a cot or near a bed.
Page 6
WARNING This Wi-Fi ® Camera Unit is compliant with all relevant electromagnetic field standards and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device. •...
3. Getting started - Connecting Devices How does it work? Access your FOCUS68P Wi-Fi Router View your Camera from any Camera locally Camera compatible device remotely Hubble Service When a user tries to access the Camera, our Hubble server authenticates the user’s identity and permits access to the Camera.
When you hear one beep, this means that the Camera is ready for setup. 3.2.2 Download Hubble for Motorola Monitors App • Go to Google Play™ Store to search for "Hubble for Motorola Monitors". • Download "Hubble for Motorola Monitors" App from Google Play™ Store and install it on your Android™ device 3.2.3...
3.2.4 Add the Camera to your account on the lower right corner of the screen to add camera. (Picture A2) • • The following setup instructions will appear on the screen. (Pictures A3, A3a) • Plug in and switch on the camera, and wait for a couple of minutes for it to warm up.
Page 11
• The following setup instructions will appear on the screen. (Picture A4) • Press and hold the PAIR button on the bottom left edge of the Camera Unit for 3 seconds. You will then hear a beep tone, followed by a voice prompt indicating that the Camera is ready for pairing.
Page 12
Select your Wi-Fi ® Network, enter your password and then tap Connect. • (Pictures A7, A8) It will take a few minutes for the Camera to connect to the Wi-Fi ® • networkbefore showing the connection status. (Pictures A9, A10) •...
Page 13
• Night Light: Tap Night Light Icon to select the control modes Off – Turn off Light On – Turn on Light Auto – Turn on when environment light is low Getting started - Connecting Devices...
Camera is ready for setup. 3.3.2 Download Hubble for Motorola Monitors App • Go to App Store to search for "Hubble for Motorola Monitors". • Download "Hubble for Motorola Monitors" App and install it on your iPhone ® /iPad ® .
3.3.4 Add the Camera to your account on the lower right corner of the screen to add camera. • • The following setup instructions will appear on the screen. (Pictures i3, i4) • Plug in and switch on the camera, and wait for a couple of minutes for it to warm up.
Page 16
• The following setup instructions will appear on the screen. (Picture i5) • Press and hold the PAIR button on the bottom left edge of the Camera for 3 seconds. Go to Settings > Wi-Fi menu on your iPhone ® /iPad ® . (Picture i6) •...
Page 17
• Tap Continue. (Picture i9) Select your Wi-Fi ® network and tap Continue. (Picture i10) • Enter your Wi-Fi ® password and tap Next. (Picture i11) • Getting started - Connecting Devices...
Page 18
It will take a few minutes for the Camera Unit to connect to the Wi-Fi ® • network before showing the connection status. (Picture i12) • Tap View Live Camera to view the video captured by the Camera. The LED indicator on the Camera Unit will light up in blue.
4. Camera Functions Connecting the Camera Unit to power • Connect the power adapter to an electrical outlet and insert the plug into the micro USB socket on the back of the Camera Unit. • Slide the ON/OFF switch to the ON position. The power indicator LED will light up in blue if the camera is already connected, or will flash red if it needs to be paired.
Page 20
Lullabies Tap to access the Melody menu and select one of the 5 pre-set melodies you wish to play on your Camera Unit. Temperature The temperature reading from the Measure temperature sensor at the back of the Camera Unit will display on the screen of your device.
5. Working with PC/Notebook • Go to http://www.hubbleconnected.com/motorola/login/ • Enter your User Name and Password and then click Login if you have already created an account. • Click on the Camera list paired in your account via Android™ device or iPhone ®...
6. Procedure for Resetting the Camera Note: If your Camera is moved from one router (e.g. home) to another (e.g. office) or you have Camera setup issues, then the Camera must be reset. Please reset the Camera with the following procedures: 1.
7. Help Noise interference To avoid background noise or echoes, ensure that there is enough distance between your device and the Wi-Fi ® Camera Unit. Use of other 2.4 GHz products, such as Bluetooth™ systems or microwave ovens, may cause interference with this product. Keep the Wi-Fi ® Camera Unit at least 1.5m away from these types of products, or turn them off if they appear to be causing interference.
Page 24
Account I am unable to receive 1. The e-mail might have been sent a new password to your Junk Mail Folder. Please although I have used check your Junk Mail Folder. the “Forgot password” 2. There might be a delay in getting option.
Page 25
Setting Up While I am adding a If you are trying to add a Camera new Camera to my which has previously been added into account, I am not able your account or another account, you to find any Cameras to will first have to reset the Camera.
Page 26
Setting Up During setup on Please reset the Camera to setup devices for Android™ mode and try again. Press and hold and iOS, I am not able the PAIR button on the bottom of the to find my Camera Camera untill you hear a beep. Wait during the last step and for a minute for the Camera to restart.
Page 27
App for Android™ and – Open the Google Play Store on iOS devices? your Android™ device. – Select Search – Type in “Hubble for Motorola Monitors” – The results will show the Hubble – Select to install it iOS Device: –...
Page 28
Setting up When the video is cut You will need to turn off the Auto Lock off, the application function of your device to ensure attempts to reconnect continuous video/audio streaming. and this results in lost sound and choppy video. Features How many users can If you are accessing in Local Mode,...
Email: support@motorolastore.com Consumer Products and Accessories Limited Warranty (“Warranty”) Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD (“BINATONE”). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold...
Page 30
PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
Page 31
(c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
Page 32
(b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.
Page 33
FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 34
WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...
9. Technical Specifications Camera Unit Wi-Fi ® 2400 -2483.5 MHz(802.11 b/g/n) Image sensor Colour CMOS 1M Pixels Lens f=2.80 mm, F=2.5 IR LED 8 pcs Power Adapter Zhongshan Baolijin Electronic Co.,Ltd. BLJ06W050100P1-U, Input: 100-240V 50/60HZ 0.2A; Output: 5V 1000mA. TenPao International Ltd. S006AKU0500100, Input: 100-240V 50/60HZ 0.2A;...
