Summary of Contents for Panasonic RP-BTS35E

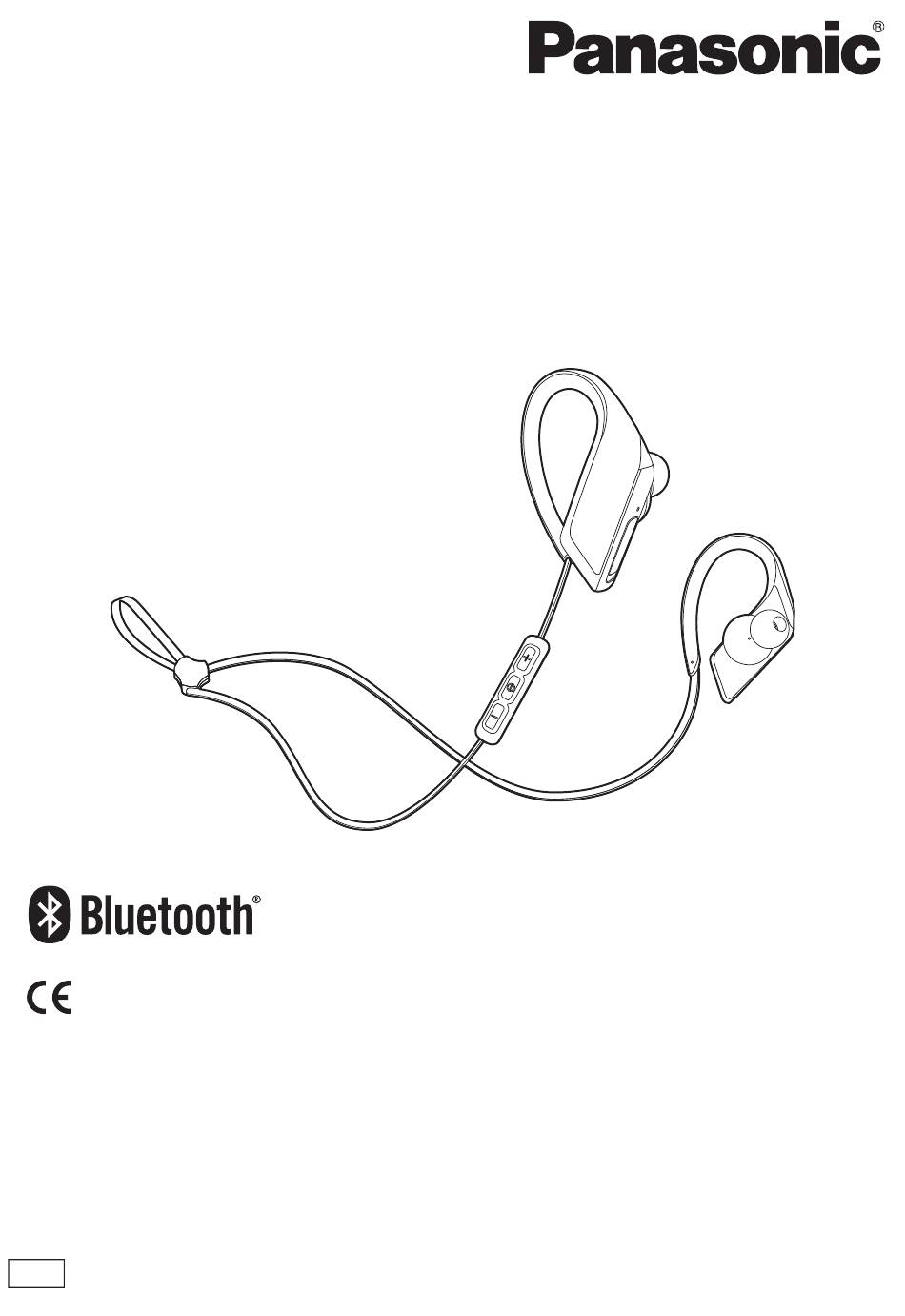

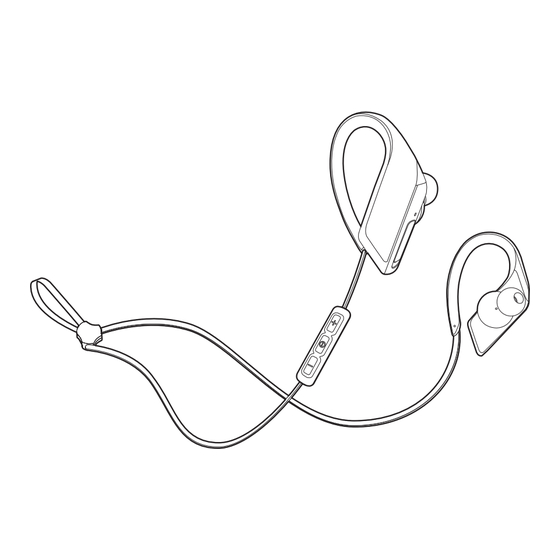

- Page 1 Operating Instructions Digital Wireless Stereo Earphones RP-BTS35 Model No. Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use. TQBM0184...
-
Page 2: Safety Precautions
Safety precautions ∫ Unit WARNING: To reduce the risk of fire, electric shock or product damage, • Do not let water or other liquids drip or splash inside the unit. • Do not expose accessories (USB charging cord) to rain, moisture, dripping or splashing. •... -
Page 3: About Bluetooth
Malfunction due to exposure to water by improper handling by the customer will not be covered by the warranty. Supplied USB charging cord is not water resistant. ® About Bluetooth Panasonic bears no responsibility for data and/or information that is compromised during a wireless transmission. ∫ Frequency band used This unit uses the 2.4 GHz frequency band. -
Page 4: Table Of Contents
Table of contents Safety precautions ............................2 (Important) About water resistance ......................2 ® About Bluetooth ............................3 Before use Accessories ..............................5 Maintenance..............................5 Part names..............................6 Preparation Charging..............................7 Turning the power on/off ..........................8 ® Connecting a Bluetooth device........................ -
Page 5: Before Use
Before use Expressions used in this document • Pages to be referred to are indicated as “ ±±”. • The product illustrations may differ from the actual product. Accessories Please check and identify the supplied accessories. ∏ 1 x USB charging cord ∏... -
Page 6: Part Names
Before use Part names A Right earphone B Remote controller C Left earphone Clip Charging terminal (DC IN) USB lid • Open the USB lid and connect the USB charging Cord adjuster cord (supplied) to this terminal when charging. Raised dot indicating the left side Earpiece [+] button... -
Page 7: Preparation
Preparation Charging The rechargeable battery (installed in the unit) is not charged initially. Charge the battery before using the unit. Connect this unit to a computer using the USB charging cord. • Within approximately 3 seconds after the connection is established, the LED on the right earphone will light in red. -
Page 8: Turning The Power On/Off
Preparation Turning the power on/off In the power-off state, press and hold [ ] of this unit for approx. 3 seconds until the LED (blue) blinks. • A beep will sound and the LED on the right earphone will blink. ∫... -
Page 9: Connecting A Bluetooth Device
Preparation ® Connecting a Bluetooth device Preparation ® • Place the Bluetooth device within approx. 1 m from the unit. • Check the device operation using its operation instructions as required. ® Pairing (Registration) this unit with the Bluetooth device for connection In the power-off state, press and hold [ ] of this unit until the LED blinks. -
Page 10: Connecting A Paired Bluetooth ® Device
Preparation ® Connecting a paired Bluetooth device Turn on this unit. • Press and hold [ ] of this unit for approx. 3 seconds until the LED (blue) blinks. • A beep will sound, and the LED (blue) will blink slowly. ®... -
Page 11: How To Wear The Earphones
Preparation How to wear the earphones Check the sides (L and R), then wear the earphones from behind your neck and hook over both ears, and bend the clip to adjust. Move the cord adjuster towards the back of your head. •... -
Page 12: Operation
Operation Listening to music ® ® If the Bluetooth compatible device supports the “A2DP” and “AVRCP” Bluetooth profiles, music can be played back with remote control operations on the unit. • A2DP (Advanced Audio Distribution Profile): Transmits audio to the unit. •... -
Page 13: Making A Phone Call
Operation Making a phone call ® ® With Bluetooth enabled phones (cell phones or smartphones) that support the “HSP” or “HFP” Bluetooth profile, you can use the unit for phone calls. • HSP (Headset Profile): This profile can be used to receive monaural sounds and establish two-way communication using the microphone on the unit. -
Page 14: Useful Functions
Operation Useful functions Resetting the unit This unit can be reset when all operations are rejected. To reset the unit, connect the unit to a computer using the USB charging cord. All the previous operations will be cancelled. (The pairing device information will not be deleted.) Auto power off ®... -
Page 15: Other
The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. Other system names and product names appearing in this document are in general the registered trademarks or trademarks of the respective developer companies. -
Page 16: Troubleshooting
Other Troubleshooting Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated do not solve the problem, consult your dealer for instructions. General The unit does not respond. •... -
Page 17: Phone Calls
Other Sound from the device is cut off. / Sound quality is bad. • Sound may be disrupted if signals are blocked. Do not fully cover this unit with the palm of your hand, etc. • The device may be out of the 10 m communication range. Move the device closer to this unit. •... -
Page 18: Specifications
Other Specifications ∫ General Power supply DC 5 V, 500 mA (Internal battery: 3.7 V (Li-polymer 90 mAh)) Operating time Approx. 6 hours Charging time (25 oC) Approx. 1.5 hours Charging temperature range 10 oC to 35 oC Operating temperature range 0 oC to 40 oC Operating humidity range 35%RH to 80%RH (no condensation) -
Page 19: To Remove The Battery When Disposing Of This Unit
Other To remove the battery when disposing of this unit The following instructions are not intended for repairing purposes but for the disposal of this unit. This unit is not restorable once disassembled. • When disposing of this unit, take out the battery installed in this unit and recycle it. ∫... - Page 20 Other Hold the top of the left earphone (L), and put a straight-slot screwdriver (commercially available) under the upper cover A. • Make sure to keep fingers away from the tip of the screwdriver. • Select a screwdriver to be large enough for a space under the upper cover. Use the screwdriver for leverage, and push the upper cover A upward.
- Page 21 Other Declaration of Conformity (DoC) Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Customers can download a copy of the original DoC to our RE products from our DoC server: http://www.ptc.panasonic.eu...
