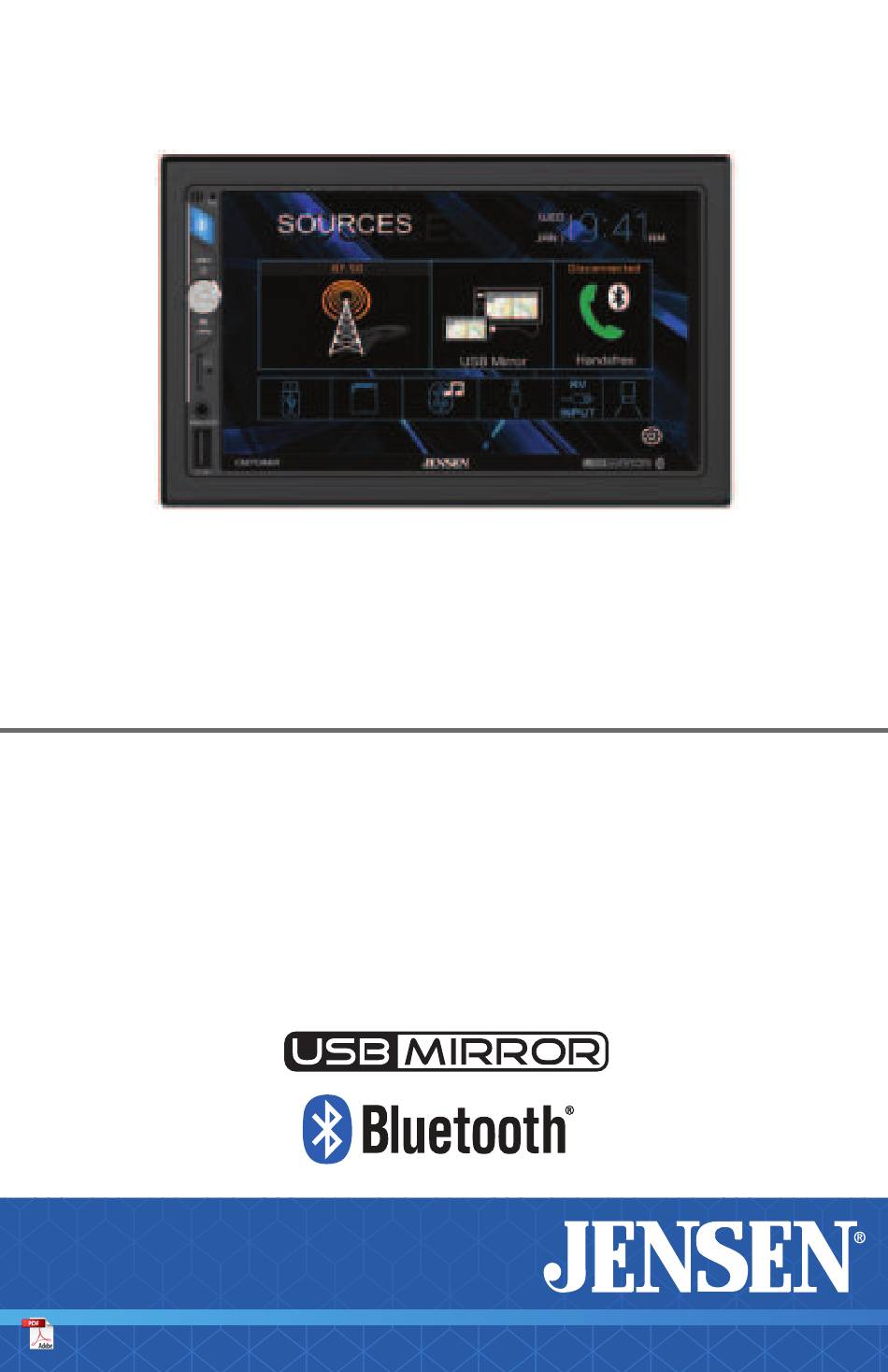

- Page 1 CM701MIR 7” TOUCH SCREEN MULTIMEDIA MECHLESS RECEIVER AM-FM, Bluetooth USB Mirroring Front & Rear Camera Input INSTALLATION & OWNER’S MANUAL...
-
Page 2: Fcc Compliance
INFORMATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Safety Notice
The SAFETY NOTICE is reminder to drive responsibly and safely while using your mobile phone device, or any APP’s that are compatible with this unit. it is highly recommended that your JENSEN CM701MIR is installed by a professional installer or an authorized dealer. - Page 4 INSTALLATION Preparation Please read and understand entire manual before installation. Consult a qualified technician for detailed instructions or installation assistance. Before You Start • Disconnect negative battery terminal. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 (1) 10 amp ATC blade-type fuse located on the back of the unit. Front / Rear camera inputs Up to two cameras (not included) can be used. We recommend JENSEN Part # BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for rear camera.
-
Page 6: Operation
OPERATION Main Control Locations Microphone microSD Card Slot Mode / Voice Assistant Reset Tune/Track Up Auxiliary Input Volume / Power / Mute USB Slot Tune/Track Down... - Page 7 OPERATION Source Menu Operation Radio Press to access Radio. USB Mirroring Press to initiate USB mirroring. Bluetooth Phone Press to access Bluetooth phone. Settings Press to display and adjust system settings. Camera Press to display the rear and front cameras. AV Input Press to access AV input.
-
Page 8: On Screen Controls
OPERATION On Screen Controls Screen Brightness Press up to two times to dim the screen. Press a third time to put the unit in standby mode (screen will go black). Press anywhere on the screen to return to normal screen operation. Voice Assistant Press to activate the voice assistant feature. -
Page 9: Audio Settings
OPERATION Audio Settings Select any of the preset EQ settings (Flat, Classic, Rock, Pop, Jazz, Beat or User) or use the touch screen to manually adjust EQ settings. Select any of the preset Surround settings: Concert, Church, Passive, Wide, Live or None. Adjust balance (8L to 8R) and fader (8F to 8R), or use the touch screen to manually adjust balance and fader settings. -
Page 10: Settings Menu
OPERATION Settings Menu From the Main Menu, press the gear icon to access the Setup menu and adjust the following: General, Audio, Display and Bluetooth. General: • OSD Language - Select English. • Wallpaper - Select from three different wallpaper options. •... -
Page 11: Tuner Operation
OPERATION Tuner Operation Select the Radio icon from the Main Menu Radio Operation screen. Press to return to Main Menu screen. Main Menu Displays the current mode of operation. Mode Indicator Press to tune to a lower frequency one step at Tune Down a time. - Page 12 OPERATION USB/microSD Operation To play MP3 files from a USB device or microSD card, USB/microSD Operation insert a USB device or microSD card, and playback will begin automatically. To return to USB or microSD playback from another mode of operation, select the corresponding icon from the Main Menu.
-
Page 13: Media Compatibility
OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 32/44.1/48kHz MPEG 1 Sampling 12/16/22.05/24kHz MPEG 2 Frequency 8/11.025/12kHz MPEG 2.5 MPEG 1 32 ~ 320kbps Bitrate... -
Page 14: Bluetooth Operation
Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “CM701MIR”. The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. -
Page 15: App Operation
Next Track Press to advance to the next track. App Operation The Jensen Smart app is the ultimate wireless remote control for your receiver. You can download the Jensen Smart app from the Apple App Store or Google Play Store and install it on your smartphone or tablet. - Page 16 OPERATION USB Mirroring To set up USB Mirroring capabilities, select USB Mirroring from the main menu and follow the on-screen directions for connecting your Android phone or Apple iPhone. Once completed, the unit will mirror the phone display onto the receiver’s display. Drong Screen App’s QR Code 1.
-
Page 17: Rear Camera
OPERATION Rear Camera Connect an optional rear camera to the Rear Camera inputs (Yellow RCA connector for video; there is no audio connection for a front camera). Refer to the wiring diagram for details. Manual selection - Touch the REAR CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. -
Page 18: Steering Wheel Controls
OPERATION Steering Wheel Controls A third-party adapter must be used in order for the CM701MIR to be compatible with any OEM steering wheel controls. The CM701MIR has a built-in 3.5mm SWC interface that compatible with many popular 3rd party SWC control modules, such as PAC, METRA, and others. - Page 19 Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized JENSEN dealer and used in the U.S.A. What is covered? This warranty covers all defects in material and workmanship in this product.
-
Page 20: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your JENSEN product. Dealer Info Dealer Name:... -
Page 21: Warranty
WARRANTY Specifications FM Tuner US Tuning Range: 87.5MHz-107.9MHz EU Tuning Range: 87.50MHz-108.00MHz Usable Sensitivity: 8.5dBf 50dB Quieting Sensitivity: 10dBf Stereo Separation@ 1kHz: 30dB Frequency Response: 30Hz-13kHz AM Tuner Tuning Range: 530kHz-1710kHz Usable Sensitivity: <42dBu Frequency Response: 30Hz-2.2kHz Bluetooth Version: 4.1 + EDR Profiles: HFP / A2DP / PBAP Up to 33ft / 10m... -
Page 22: Installation
CM701MIR INSTALLATION & OWNER’S MANUAL Customer Support 1-888-921-4088 (Monday-Friday, 9AM-5PM EST) Visit https://www.jensenmobile.com Designed and Engineered in USA All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
