Honeywell A04HF013H-06 Assembly And Installation Instructions

LED INDOOR
MOTION SENSOR LIGHTS
MODEL: A04HF013H-06
ASSEMBLY AND INSTALLATION INSTRUCTIONS
5 YEAR LIMITED WARRANTY
You should read all of the instructions before attempting to use this product.
International Development Company (IDC) warrants this product against defects in material or workmanship for a period
of five (5) years from the date of original purchase. IDC agrees to either repair the product or replace it, at the sole discretion
of IDC. Only the original purchaser of this product is extended this warranty. No warranty work will be provided under this
warranty without purchaser's receipt or other proof of the date of original purchase acceptable to IDC. Proof of the date of
purchase must be provided to IDC if the product is returned. Purchasing this product from a third party vendor negates
all warranties (expressed or implied) in this warranty.
The warranty does not apply to the following terms/conditions:
1.) Acts of God.
2.) Products that have been subjected to unauthorized repair, opened, disassembled, and/or otherwise modified.
3.) Products used not in accordance with directions.
4.) Damages exceeding the total cost of product.
5.) Plastic or plastic shades.
8.5"
6.) The finish of any portion of the product (i.e. surface scratches, weathering, corrosion, discoloration of brass
components, as this is considered normal wear and tear).
7.) Damages caused by shipping, improper handling, accident, misuse or abuse. IDC is not responsible for damage of
merchandise in transit. Repaired or replaced products shall be subject to the terms of this warranty and are inspected
prior to return shipment. Damages that are incurred during transit should be reported at once to the carrier and a claim
should be filed with them.
8.) warranty does not cover replacement of Alkaline batteries included with this product.
IDC SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
USE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL IMPLIED WARRANTIES, IF ANY,
INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN CURATION TO THE DURATION OF THIS EXPRESS WARRANTY. Some states do not allow the exclusion
or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you. No other warranty, written or verbal, will be honored for this product.
This warranty grants you specific legal rights, you may also have other rights which vary from state to state. There are no
other warranties except those stated above.
Thank You
We appreciate your purchase of this IDC product.
IDC has made every effort to supply a quality product that insures long, trouble free service. In the event that you have
any type of problems with this product and require a return address or for any other assistance please call our
Toll Free Number 1-877-723-0723
8:00 A.M. - 5:00 P.M. Central Time, Monday - Friday
Email us at: customerservice@idctexas.com
You will need the following information:
Model/Item Number of Product, Receipt, and Date of Purchase
All drawings and text are © copyright of IDC • Printed in China
International Development Company
899 Henrietta Creek Rd.
Roanoke, TX 76262 USA
Toll-free: 1-877-723-0723
© 2019 IDC, all rights reserved.
The Honeywell Trademark is used under license from Honeywell International Inc.
Honeywell International Inc. makes no representations or warranties with respect
to this product. This product is manufactured for International Development Company.
Fold
11"
INSTRUCTIONS
Tools Required
Pencil Screwdriver
Hardware Included
AA: Screw (6) BB: Wall Anchor (6)
DD: Mounting Plate (3)
Marking the Hole Location and Attaching the Mounting Plate
STEP 1
1. Find the location where you want to mount the light.
2. Mark the location where you want to mount the light by ensuring the mounting plate is level and then making two
marks in the open holes on the mounting plate. The distance between the two holes is 2.48in.(63mm).
NOTE:
If attaching to drywall or plaster surface proceed to step 2, if attaching to wood proceed to step 4.
STEP 2
Remove mounting plate and drill two 0.24in. (6mm) holes in the marked locations.
STEP 3
Insert wall anchors (BB) into previously drilled holes, place mounting plate over hole locations and attach screws
with screwdriver or drill.
STEP 4
Pre-drill 0.08in. (2mm) holes. Place mounting plate over holes and attach screws with screwdriver or drill.
NOTE:
Be careful not to over-tighten.
x
x
step 1 step 2 step 3
Each light requires 3 AA batteries (included)
1. To install the batteries (CC) pull down the battery cover (FF). (Figure 2)
2. Install 3 AA batteries (included) ensuring the polarity +/- is correct.
3. Put the battery cover back into the corresponding position of the card slot to complete the installation.
NOTE:
Follow these steps for recurring battery installation.
Mounting the Light
1. Mount the light on the mounting plate (DD) by aligning the slots on the back of the light to the slots on the front of the
mounting plate. (Figure 3)
2. Slide and lock into place.
FF
CC
Figure 2 Figure 3
Fold
Fold
CAUTIONS
Caution Statement
- Always purchase the correct size and grade of battery most suitable for the intended use.
- Always replace the whole set of batteries at one time,taking care not to mix old and new ones, or
batteries of different types or brands.
- Clean the battery contacts and also those of the device prior to battery installation.
- Ensure the batteries are installed correctly with regard to polarity (+ and -).
- Remove batteries from equipment which is not to be used for an extended period of time.
- Remove used batteries promptly.
Electric drill
- For recycling and disposal of batteries to protect the environment, please check the internet or
drill bit size:
your local phone directory for local recycling centers and/or follow local government regulations.
ø2.0mm or ø6.0mm
OPERATING INSTRUCTIONS
Each light has two buttons: 1) Timer Button 2) Power / Link Button (Figure 4).
The lights can be operated independently or linked together (maximum of 3 lights).
Lights set up independently will sense motion 1 by 1 and not trigger other lights.
Lights set up linked will sense motion on 1 light and turn on any other linked lights.
CC: AA Battery (9)
1. To operate lights independently, press the power/link button to turn on the light. Use the sliding timer
to set period of time light should remain on when motion is sensed (15, 30 or 45 second intervals).
Slide to desired time setting.
NOTE:
After turning on the light, the motion sensor will activate and operate after 15s.
2. To operate lights with linking function, press the power/link button two times on each light to be linked.
You will see a red light which indicates all lights have been linked successfully.
NOTE:
When lights enter linking mode, the red light will light for 15s and then change to flashing every
6s to reduce power consumption.

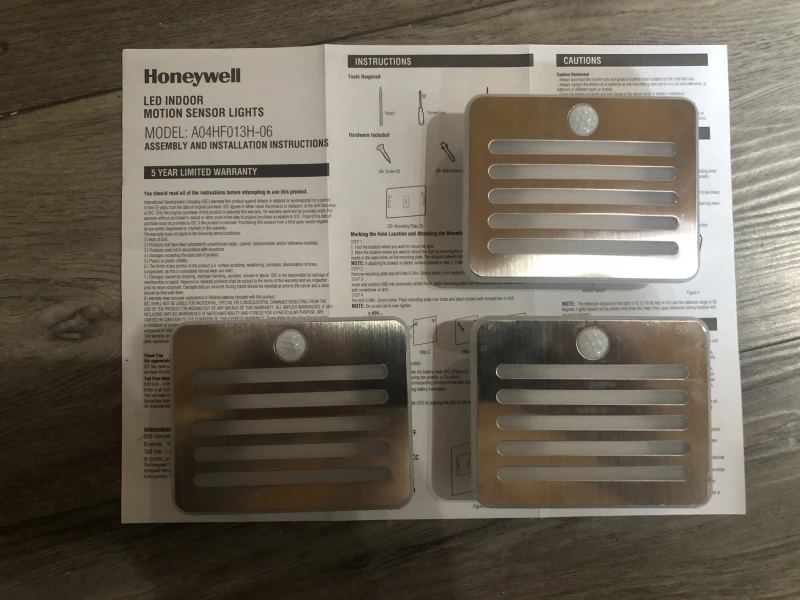

EE: Light (3)
(Figure 1)
Motion Sensor
NOTE:
The detection distance of the light is 13.12-19.68 feet (4-6m) and the detection angle is 90
degrees. Lights should not be placed more than 49.2 feet (15m) apart otherwise linking function will
not work properly.
DD
SAFETY INFORMATION
BB AA
WARNING
1. This product is not a toy and contains small parts. Close supervision is necessary when this unit
is used near children.
step 4
2. To reduce the risk of electrical shock, do not put the unit in water or other liquid. For cleaning,
Figure 1
use a soft dry cloth. Do not place or store appliance where it can fall or be pulled into a tub or sink.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmfull interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
EE
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired
operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
RF EXPOSURE: This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance of 20 cm between the radiator and your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Fold
Timer Button Power / Link Button
Figure 4
