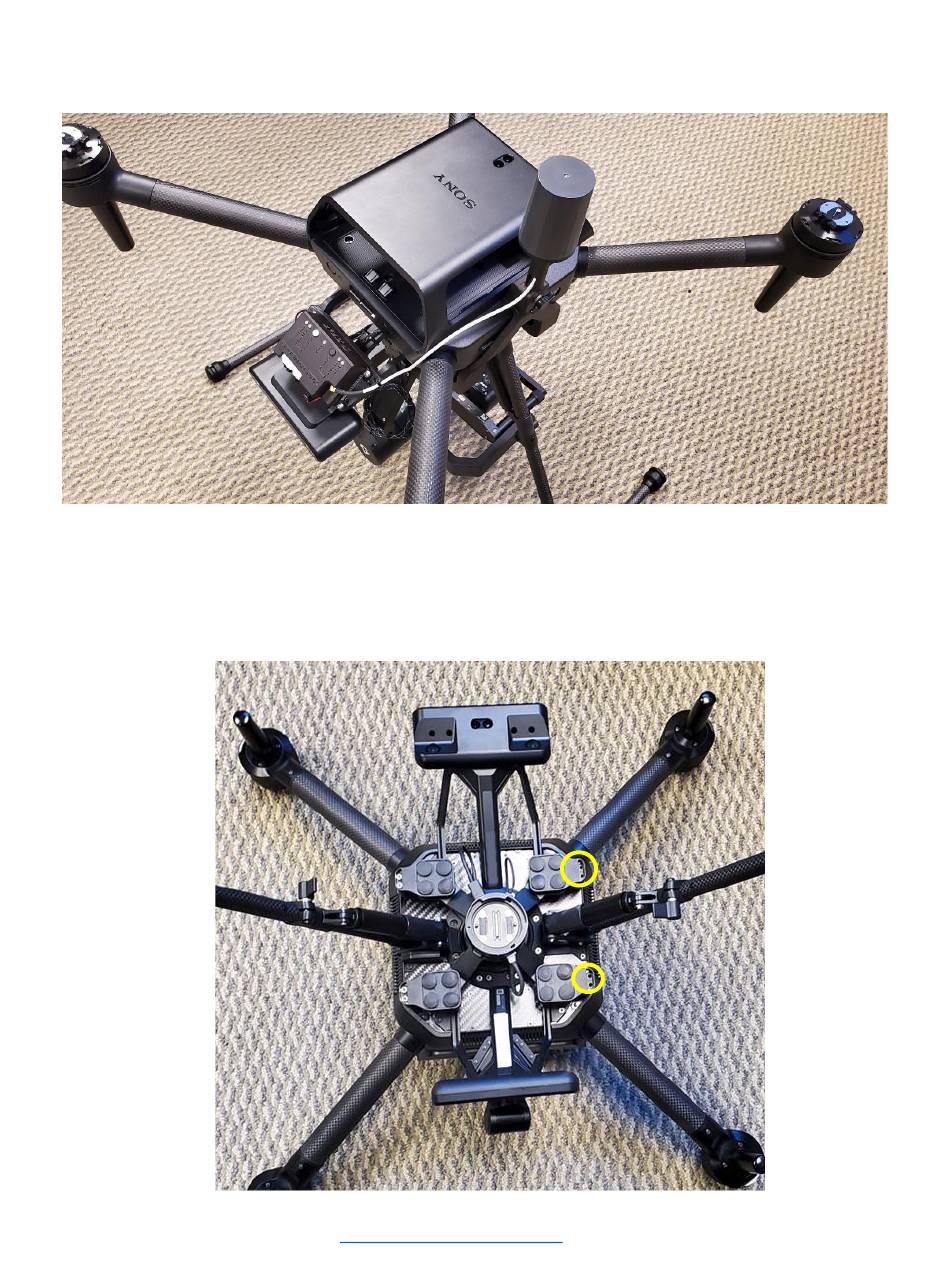

- Page 1 GeoSnap - Airpeak S1 Integration Guide INSTALLATION 1. Remove the 4 screws from the gimbal mount on the bottom of the drone (circled below) using the included 2.5mm allen wrench. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 2 2. Position the GeoSnap antenna mount to align with the 4 holes and then screw in the four 25mm long M3 screws with washers until they are tight. Note: There is thread locker pre-applied on the screws so be sure not to confuse the resistance from the thread locker with the screws being fully tight.
- Page 3 4. Install the GeoSnap control module assembly by first aligning the zip ties and wires as shown. 5. Tighten the zip ties and then cut off the excess. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 4 6. Plug in the antenna cable into the GeoSnap control module. Be sure to route the antenna cable over the drone arm. 7. Install a zip tie as shown to secure the antenna cable and provide strain relief. Then cut off the excess zip tie.
- Page 5 8. Fold the antenna mast down in preparation for the next step. 9. Flip the drone upside down and remove the gimbal power cable by unplugging it from the gimbal quick release mount and the drone. Note: be sure to keep this cable in case you need to operate the drone without the GeoSnap system in the future.
- Page 6 10. Install the provided power cable/splitter as shown. 11. Install a zip tie as shown and plug in the red JST power connector into its mating connector on the side of the GeoSnap mount plate. Trim off the end of the zip tie. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 7 12. Remove your camera from the gimbal and install the GeoSnap hotshoe module. Make sure the hotshoe module is slid all the way forward and then tighten the two screws using the included M2 allen wrench. 13. Install your camera in the gimbal as shown. Tighten the hotshoe thumb nut and the slider tray thumb screw so that the camera is secure.
- Page 8 14. If you plan on using the GeoSnap system to trigger the camera, plug the trigger cable into the trigger port at this time. (Also, be sure to plug the USB C cable back into the camera) 15. Grab the GeoSnap control module-to-hotshoe module cable and plug it into the hotshoe module.
- Page 9 16. Adhere a cable clip to the back of the gimbal and route the cable as shown. Use zip ties to loop the excess cable and then plug in the 8-pin connector. Make sure there is enough slack in the cable so the gimbal can move freely. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 10 17. Now that all the cabling is in-place, balance the gimbal according to Sony/Gremsy’s instructions. 18. The installation/integration is now complete. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
-
Page 11: Operation Notes
OPERATION NOTES A. Before each flight, make sure the cables and mounting hardware don’t interfere with the propellers. B. The GeoSnap system, mounting hardware, and cabling adds a total of 346 grams to the drone’s weight. C. The goal is to have one GeoSnap logging session per photogrammetry project. If you have to use multiple sets of drone batteries to map your entire project, we recommend hot swapping the drone’s batteries so the GeoSnap system remains powered on and logging during the swap(s). - Page 12 F. When you need to remove the gimbal from the drone, unplug the GeoSnap control module-to- hotshoe module cable here: G. All other GeoSnap documents and videos are available at: https://www.fieldofviewllc.com/downloads Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
