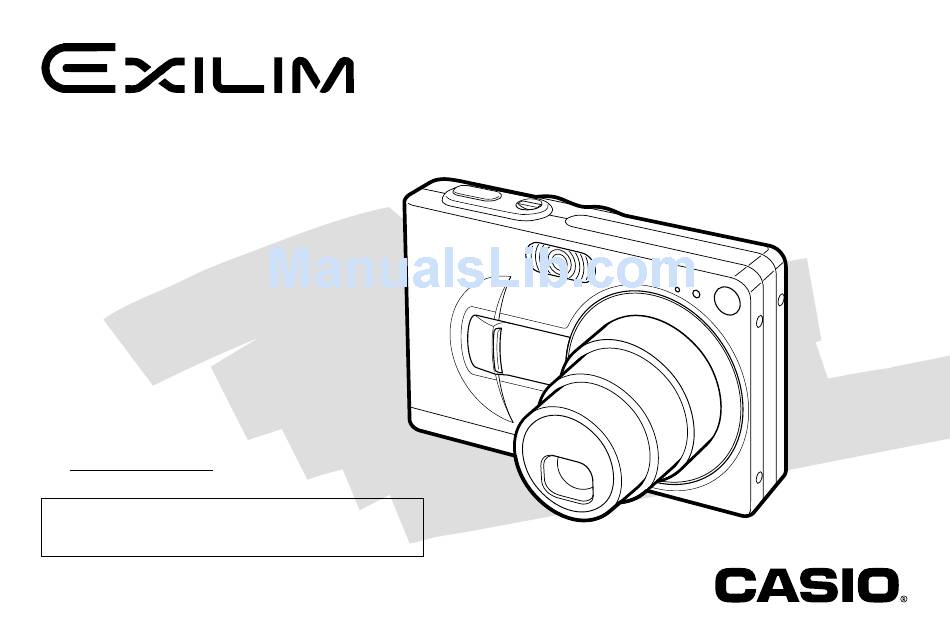

Page 1: Digital Camera
Digital Camera EX-Z30/EX-Z40 User’s Guide Thank you for purchasing this CASIO Product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official Exilim Website at http://www.exilim.com/.
Page 2: Introduction
INTRODUCTION INTRODUCTION Unpacking Check to make sure that all of the items shown below are included with your camera. If something is missing, contact your dealer as soon as possible. Rechargeable lithium ion battery Camera CD-ROM • Note that the shape of the AC adaptor depends on the area where you purchased the camera. Special AC Adaptor (Inlet Type) USB Cradle (NP-40)
Page 3: Table Of Contents
INTRODUCTION Contents INTRODUCTION Unpacking ... 2 Features ... 9 Precautions ... 11 General Precautions Test for proper operation before using the camera! Data Error Precautions Operating conditions Condensation Lens Other QUICK START GUIDE First, charge the battery! ... 15 To configure display language and clock settings ... 16 To record an image ...
Page 4 INTRODUCTION BASIC IMAGE RECORDING Recording an Image ... 45 Aiming the Camera Recording an Image Recording Precautions About Auto Focus About the REC Mode Monitor Screen Using the Optical Viewfinder ... 50 Using Zoom ... 51 Optical Zoom Digital Zoom Using the Flash ...
Page 5 INTRODUCTION PLAYBACK Basic Playback Operation ... 92 Playing an Audio Snapshot Flipping the Display ... 94 Zooming the Display Image ... 95 Resizing an Image ... 96 Cropping an Image ... 97 Playing a Movie ... 99 Displaying the 9-image View ... 100 Selecting a Specific Image in the 9-image View Displaying the Calendar Screen ...
Page 6 INTRODUCTION Using the Alarm ... 126 To set an alarm Stopping the Alarm Setting the Clock ... 127 To select your Home Time zone To set the current time and date Changing the Date Format Using World Time ... 129 To display the World Time screen To configure World Time settings To configure summer time (DST) settings...
Page 7 Viewing Album Files Saving an Album To delete an album Installing the Software from the CD-ROM ... 174 About the bundled CD-ROM (CASIO Digital Camera Software) Computer System Requirements Installing Software from the CD-ROM in Windows ... 177 Getting Started Selecting a Language Viewing the Contents of the “Read me”...
Page 8 EX-Z30/EX- Z40. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or losses suffered by you or any third party due to the use of Photo Loader and/or Photohands.
Page 9: Features
INTRODUCTION Features • High-resolution CCD for beautiful prints EX-Z30: 3.20 million pixels (3.34 million total pixels) EX-Z40: 4.00 million pixels (4.23 million total pixels) • 2.0-inch TFT color LCD monitor screen • Long battery life The camera’s low-power design combines with a large- capacity battery to provide more recording and playback between charges.
Page 10 • DCF Data Storage DCF (Design rule for Camera File system) data storage protocol provides image inter-compatibility between the digital camera and printers. • Digital Print Order Format (DPOF) (page 143) Images can be printed easily in the sequence you want using a DPOF compatible printer.
Page 11: Precautions
• Never try to open the case of the camera or attempt your own repairs. High-voltage internal components create the risk of electric shock when exposed. Always leave maintenance and repair work up to a CASIO authorized service center. • Never look at the sun or any other bright light through the camera’s viewfinder.
Page 12 AC adaptor power cord from the power outlet, and contact your dealer or nearest CASIO authorized service center. Using the camera under these conditions creates the danger of fire and electric shock.
Page 13: Test For Proper Operation Before Using The Camera
(page 17). Data Error Precautions • Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in file memory.
Page 14: Condensation
INTRODUCTION Condensation • When you bring the camera indoors on a cold day or otherwise expose it to a sudden change of temperature, there is the possibility that condensation can form on the exterior or on interior components. Condensation can cause malfunction of the camera, so you should avoid exposing it to conditions that might cause condensation.
Page 15: Quick Start Guide
QUICK START GUIDE QUICK START GUIDE First, charge the battery! Load the battery (page 26). Stopper Place the camera onto the USB cradle to charge the battery (page 28). • Note that the shape of the AC adaptor depends on the area where you purchased the camera.
Page 16: To Configure Display Language And Clock Settings
QUICK START GUIDE To configure display language and clock settings • Be sure to configure the following settings before using the camera to record images. (See page 42 for details.) 2, 3, 4, 5, 6, 7, 8, 9 Press the power button to turn on the camera. Press [ ] to select the language you want.
Page 17: To Record An Image
QUICK START GUIDE To record an image Green operation lamp Press [ ] (REC). • If the (Snapshot Mode) icon is not on the monitor screen, use the procedure under “Using the On-screen Menus” (page 39) to change the “REC Mode” setting to “ Point the camera at the subject, use the monitor screen or viewfinder to compose the image, and then press the shutter release button half way.
Page 18: To Delete An Image
QUICK START GUIDE To delete an image 2, 3, 4, 5 Press [ ] (PLAY). Press [ ] ( Use [ ] and [ ] to display the image you want to delete. Use [ ] and [ ] to select “Delete”. •...
Page 19: Contents
The following table defines the terminology used in this manual. This term as used in this Means this: manual: “this camera” or “the The CASIO EX-Z30/EX-Z40 camera” Digital Camera “file memory” The location where the camera is currently storing images you record (page 46) “battery”...
Page 20: General Guide
GETTING READY General Guide The following illustrations show the names of each component, button, and switch on the camera. Camera I Front Shutter release button Power button Flash Microphone Self-timer lamp Lens I Back Viewfinder Operation lamp ] (PLAY mode) ] (REC mode) [MENU] button Zoom button...
Page 21: Usb Cradle
Stopper Memory card slot Battery compartment USB Cradle Simply placing your CASIO digital camera onto the USB cradle lets you perform the following tasks. • Battery charging (page 28) • Automatic transfer of images to a computer (page 151) • Direct connection to a printer for printing (page 146) •...
Page 22: Monitor Screen Contents
GETTING READY Monitor Screen Contents The monitor screen uses various indicators and icons to keep you informed of the camera’s status. REC mode Flash Mode indicator None Auto Flash Off Flash On Red-eye reduction • If the camera detects that flash is required while auto flash is selected, the flash on indicator will appear when the shutter release button is pressed half...
Page 23 GETTING READY Digital zoom indicator Shutter speed value • An out of range aperture or shutter speed causes the corresponding monitor screen value to turn amber. Aperture value ISO sensitivity Zoom indicator • Left side indicates optical zoom. • Right side indicates digital zoom.
Page 24: Play Mode
ECONOMY Built-in memory selected for data storage. Memory card selected for data storage. Date and time Battery capacity IMPORTANT! • Some information may not display properly if you display an image that was recorded using a different digital camera model.
Page 25: Changing The Contents Of The Monitor Screen
GETTING READY Changing the Contents of the Monitor Screen Each press of the [DISP] button changes the contents of the monitor screen as shown below. Indicators Histogram Indicators (page 22) (page 84) IMPORTANT! • You cannot turn off the monitor screen in the following cases: In the PLAY mode, in the BESTSHOT mode, when not recording in the Movie mode.
Page 26: Attaching The Strap
GETTING READY Attaching the Strap Attach the strap to the strap ring as shown in the illustration. IMPORTANT! • Be sure to keep the strap around your wrist when using the camera to protect against accidentally dropping it. • The supplied strap is intended for use with this camera only.
Page 27 GETTING READY While pulling the stopper in the direction indicated by the arrow in the illustration, align the (– ) mark on the battery with the (– ) mark on the camera and slide the battery into the camera. (–) mark •...
Page 28: To Remove The Battery
GETTING READY To remove the battery Open the battery compartment cover. Pull the stopper in the direction indicated by the arrow. • This will cause the battery to come part way out of the slot. Release the stopper and pull the battery from the camera.
Page 29 GETTING READY NOTE • The bundled AC adaptor is designed for operation with any power supply in the range of 100V to 240V AC. Note, however, that the shape of the AC power cord plug varies according to country or geographic area.
Page 30 GETTING READY IMPORTANT! • It takes about 190 minutes to achieve a full charge. Actual charging time depends on current battery capacity and charging conditions. • Use only the USB cradle (CA-24) that comes with the camera or the optionally available rapid charger unit (BC-30L) to charge the special NP-40 rechargeable lithium ion battery.
Page 31 • If the same symptoms occur again when you place the camera on the USB cradle after taking the above steps, contact a CASIO authorized service center. I Battery Life Guidelines The battery life guideline values given below indicate the...
Page 32 GETTING READY Supported Battery: NP-40 (Rated Capacitance: 1230mAh) Storage Medium: SD Memory Card *1 Number of Shots (CIPA) • CIPA Standard • Temperature: 23°C (73°F) • Monitor Screen: On • Zoom operation between full wide to full telephoto every 30 seconds, during which two images are recorded, one image with flash;...
Page 33: Power Supply Precautions
NOTES • The term “battery” in this manual refers to the CASIO NP-40 Rechargeable Lithium Ion Battery. • Use only the USB cradle (CA-24) that comes with the camera or the optionally available rapid charger unit (BC-30L) to charge the special NP-40 rechargeable lithium ion battery.
Page 34 GETTING READY • Failure to observe any of the following precautions while using the battery creates the risk of overheating, fire, and explosion. — Never use any other type of charger except the optional charger unit specified for the battery. —...
Page 35 GETTING READY G PRECAUTIONS DURING USE • The battery is designed for use with this CASIO digital camera only. • Use only the USB cradle that comes with the camera or the specified optional charger unit to charge the battery. Never use any other type of charger unit for charging.
Page 36 • Should the cord of the AC adaptor become damaged (exposed internal wiring), request a replacement from a CASIO authorized service center. A damaged AC adaptor cord creates the danger of fire or electric shock. • Use the AC adaptor where it will not be splashed with water.
Page 37: Turning The Camera On And Off
GETTING READY Turning the Camera On and Off I To turn on the camera Press the power button, [ ] (REC) button, or [ button. This will cause the green operation lamp to light momentarily, and then power will turn on. The mode the camera enters depends on which button you pressed to turn it on.
Page 38: Configuring Power Saving Settings
GETTING READY I To turn off the camera Press the power button to turn off the camera. NOTE • You can setup the camera so it does not turn on when you press the [ ] (REC) or [ button, or to turn off when you press the [ or [ ] (PLAY) button.
Page 39: Using The On-Screen Menus
GETTING READY G See page 39 for information about how to use menus. To configure this feature: Select this setting: Sleep Sleep Auto Power Off Auto Power Off Use [ ] and [ ] to change the currently selected setting, and then press [SET]. •...
Page 40 GETTING READY Press [MENU]. [MENU] [SET] Settings [ ][ ][ ][ ] Selection cursor (indicates the currently selected item) G Menu Screen Operations When you want to do this: Do this: Move between tabs Press [ ] and [ ]. Move from the tab to the Press [ ].
Page 41 GETTING READY Press [ ] or [ ] to select the tab you want, and then press [SET] to move the selection cursor from the tab to the settings. Use [ ] and [ ] to select the feature whose setting you want to configure, and then press [ ].
Page 42: Configuring Display Language And Clock Settings
GETTING READY Configuring Display Language and Clock Settings Be sure to configure the following settings before using the camera to record images. • Display language • Home city • Date Style • Date and time Note that the current date and time settings are used by the camera to generate the date and time that are stored along with image data, etc.
Page 43: Configuring Display Language And Clock Settings
GETTING READY To configure display language and clock settings Press the power button, the [ ] (PLAY) button to turn on the camera. Use [ ], [ ], [ ], and [ ] to select the language you want, and then press [SET]. : Japanese English : English...
Page 44 GETTING READY Use [ ] and [ ] to change the date format setting, and then press [SET]. Example: December 24, 2004 To display the date like this: Select this format: 04/12/24 YY/MM/DD 24/12/04 DD/MM/YY 12/24/04 MM/DD/YY Set the current date and the time.
Page 45: Basic Image Recording
BASIC IMAGE RECORDING BASIC IMAGE RECORDING This section describes the basic procedure for recording an image. Recording an Image Aiming the Camera Use both hands to hold the camera still when shooting an image. Holding the camera with one hand increases the chance of movement, which can blur your images.
Page 46: Recording An Image
BASIC IMAGE RECORDING Recording an Image Your camera automatically adjusts shutter speed in accordance with the brightness of the subject. Images you record are stored in the camera’s built-in memory, or to a memory card if you have one loaded in the camera. •...
Page 47 BASIC IMAGE RECORDING Compose the image on the monitor screen so the main subject is within the focus frame. • The focusing range of the camera in the Auto Focus mode is approximately 40cm (1.3 feet) to infinity (∞) (page 62). •...
Page 48: Recording Precautions
BASIC IMAGE RECORDING After making sure that the image is focused properly, press the shutter release button the rest of the way down to record. • The number of images that can be stored in memory depends on the image size and image quality setting you are using (pages 58, 60).
Page 49: About Auto Focus
BASIC IMAGE RECORDING About Auto Focus • Auto Focus tends not to work well if the camera is moved during recording, or when recording the types of subjects listed below. — Solid color walls or objects with little contrast — Strongly backlit objects —...
Page 50: Using The Optical Viewfinder
BASIC IMAGE RECORDING Using the Optical Viewfinder You can conserve battery power by turning off the camera’s monitor screen (page 25) and using the optical viewfinder to compose images. Short distance Viewfinder frame to subject IMPORTANT! • The frame that is visible inside of the viewfinder indicates the image recorded at a distance of about one meter (3.3´).
Page 51: Using Zoom
BASIC IMAGE RECORDING Using Zoom Your camera is equipped with two types of zoom: optical zoom and digital zoom. Optical Zoom The range of the optical zoom factor is shown below. Optical Zoom Factor Range: 1X to 3X In the REC mode, press the zoom button to change the zoom factor.
Page 52: Digital Zoom
BASIC IMAGE RECORDING Digital Zoom Digital zoom is activated after you reach the maximum optical zoom factor (3X). It enlarges the part of the image at the center of the image screen. The range of the digital zoom factor is shown below. Digital Zoom Factor Range: 3X to 12X (in combination with optical zoom)
Page 53: Using The Flash
BASIC IMAGE RECORDING IMPORTANT! • Digital zoom is disabled whenever the monitor screen is turned off (page 25). • Using digital zoom can cause degradation of the recorded image. Using the Flash Perform the following steps to select the flash mode you want to use.
Page 54 BASIC IMAGE RECORDING To do this: Have the flash fire automatically when required (Auto Flash) Turn off the flash (Flash Off) Always fire the flash (Flash On) Fire a pre-flash followed by image recording with flash, reducing the chance of red-eye in the image (Red- eye reduction) In this case, the flash fires automatically when required...
Page 55: Flash Unit Status
BASIC IMAGE RECORDING Flash Unit Status You can find out the current flash unit status by pressing the shutter release button half way and checking the monitor screen and red operation lamp. indicator is also shown on the monitor Red operation lamp * screen when the flash unit is ready to fire.
Page 56: Using The Self-Timer
BASIC IMAGE RECORDING • Using flash in combination with another light source (daylight, fluorescent light, etc.) can result in abnormal image colors. Using the Self-timer The self-timer lets you select either a 2-second or 10- second delay of the shutter release after you press the shutter release button.
Page 57 BASIC IMAGE RECORDING To do this: Specify a 10-second self-timer Specify a 2-second self-timer Specify Triple Self-timer Disable the self-timer • With the Triple Self-timer, the camera records a series of three images in the sequence described below. 1. The camera performs a 10-second countdown and then records the first image.
Page 58: Specifying Image Size And Quality
BASIC IMAGE RECORDING Specifying Image Size and Quality You can specify the image size and image quality to suit the type of image you are recording. To specify the image size “Image size” is the size of the image, expressed as the number of vertical and horizontal pixels.
Page 59 BASIC IMAGE RECORDING NOTES • The following are guidelines for selecting the image size. IEX-Z30 When you want to do this:* Use this setting:* Print the image on paper up to 260 x 195mm (10.2 x 7.7 2048 x 1536 inches) Print the image on paper up to 260 x 173mm (10.2 x 6.8...
Page 60: To Specify Image Quality
BASIC IMAGE RECORDING To specify image quality Compressing an image before storage can cause a deterioration of its quality. The more an image is compressed, the greater the loss of quality. The image quality setting specifies the compression ratio used when an image is stored in memory.
Page 61: Other Recording Functions
OTHER RECORDING FUNCTIONS OTHER RECORDING FUNCTIONS This section describes other powerful features and functions that are available for recording. Selecting the Focus Mode You can select one of five different focus modes: Auto Focus, Macro, Pan Focus, Infinity, and Manual. In the REC mode, press [ ] •...
Page 62: Using Auto Focus
OTHER RECORDING FUNCTIONS Using Auto Focus As its name suggests, Auto Focus focuses the image automatically. The automatic focus operation starts when you press the shutter release button down half way. The following is the Auto Focus range. Range: Approximately 40cm to ∞ (1.3´ to ∞) Keep pressing [ ] ( ) until there is no focus mode indicator on the display.
Page 63: Specifying The Auto Focus Area
OTHER RECORDING FUNCTIONS To do this: Turn on Auto Pan Focus Turn off Auto Pan Focus I Specifying the Auto Focus Area You can use the following procedure to change the Auto Focus area used in the Auto Focus Mode and the Macro Mode.
Page 64: Using The Macro Mode
OTHER RECORDING FUNCTIONS Using the Macro Mode The Macro mode lets you focus automatically on close up subjects. The automatic focus operation starts when you press the shutter release button down half way. The following is the focus range in the Macro mode. Range: Approximately 6cm to 50cm (2.4˝...
Page 65: Using The Infinity Mode
OTHER RECORDING FUNCTIONS Using the Infinity Mode The Infinity mode fixes focus at infinity (∞). Use this mode when recording scenery and other faraway images. Keep pressing [ ] ( ) until the focus mode indicator shows “ ”. Record the image. Using Manual Focus With the Manual Focus mode, you can adjust the focus of an image manually.
Page 66: Using Focus Lock
OTHER RECORDING FUNCTIONS While watching the image on the monitor screen, use [ ] and [ ] to focus. Manual focus position To do this: Do this: Focus in on the subject Press [ ]. Focus out on the subject Press [ ].
Page 67: Exposure Compensation (Ev Shift)
OTHER RECORDING FUNCTIONS Keeping the shutter release button half way down, re- compose the image as you like. • This locks the focus on the subject that is currently within the focus frame. When the image is composed the way you want, press the shutter release button the rest of the way to record it.
Page 68 OTHER RECORDING FUNCTIONS Use [ ] and [ ] to change the exposure compensation value, and then press [SET]. • Pressing [SET] registers the displayed value. Up : Increases the EV value. A higher EV value is best used for light-colored subjects and backlight subjects.
Page 69: Adjusting White Balance
OTHER RECORDING FUNCTIONS Adjusting White Balance The wavelengths of the light produced by various light sources (sunlight, light bulb, etc.) can affect the color of a subject when it is recorded. White balance lets you make adjustments to compensate for different lighting types, so the colors of an image appear more natural.
Page 70: Adjusting White Balance Manually
OTHER RECORDING FUNCTIONS Adjusting White Balance Manually Under some light sources, automatic white balance under the “Auto” setting can take a long time to complete. Also, the auto white balance range (color temperature range) is limited. Manual white balance helps to ensure that colors are recorded correctly for a particular light source.
Page 71: Using The Bestshot Mode
OTHER RECORDING FUNCTIONS Using the BESTSHOT Mode Selecting one of the 21 BESTSHOT scenes automatically sets up the camera for recording a similar type of image. I Example Sample Scene • Portrait • Scenery • Night Scene • Night Scene Portrait In the REC mode, press [MENU].
Page 72 OTHER RECORDING FUNCTIONS IMPORTANT! • Sample scene number 4 is Coupling Shot scene (page 75). Sample scene number 5 is a Pre-shot scene (page 77). • BESTSHOT scenes were not recorded using this camera. They are provided as samples only. •...
Page 73: Creating Your Own Bestshot Setup
OTHER RECORDING FUNCTIONS Creating Your Own BESTSHOT Setup You can use the procedure below to save the setup of an image you recorded for later recall when you need it again. Recalling a setup you save automatically sets up the camera accordingly.
Page 74: To Delete A Bestshot User Setup
OTHER RECORDING FUNCTIONS IMPORTANT! • BESTSHOT user setups are located in the camera’s built-in memory after the built-in sample scenes. • When a BESTSHOT user setup is recalled, the monitor screen in step 4 of the procedure on page 71 displays the text “Recall User Scene”.
Page 75: Combining Shots Of Two People Into A Single Image (Coupling Shot)
OTHER RECORDING FUNCTIONS Combining Shots of Two People into a Single Image (Coupling Shot) The Coupling Shot mode lets you record images of two people and combine them into a single image. This makes it possible for you to include yourself in group images, even when there is no one else around to record the image for you.
Page 76 OTHER RECORDING FUNCTIONS Align the focus frame on the monitor screen with the subject you want on the left side of the image. • While “Coupling Shot” is selected, the “AF Area” Focus frame (page 63) setting automatically becomes “Spot”. Press the shutter release button to record the left side of the image.
Page 77: Recording A Subject Onto An Existing Background Image (Pre-Shot)
OTHER RECORDING FUNCTIONS When everything is aligned correctly, record the right side of the image. IMPORTANT! • Coupling Shot temporarily uses file memory to store data. You may get an error during Coupling Shot recording if there is not enough file memory available to store the required data.
Page 78 OTHER RECORDING FUNCTIONS • Freeze the background on the monitor screen. • Record the image, using the background on the monitor screen as a guide. • This records the image. In the REC mode, press [MENU]. Select the “REC” tab, select “REC Mode”, and then press [ ].
Page 79: Using The Movie Mode
OTHER RECORDING FUNCTIONS Next, align the focus frame with the subject, composing the subject with the semi-transparent background shown on the monitor Semi-transparent image screen. • Pressing [MENU] any time after step 5 of the above procedure cancels the background image and returns to step 5.
Page 80 OTHER RECORDING FUNCTIONS Remaining recording time Use [ ] and [ ] to select “ Movie”, and then press [SET]. Point the camera at Movie recording indicator the subject and then press the shutter release button. • Movie recording continues as long as remaining memory capacity allows, or until you stop it by pressing...
Page 81: Recording Audio
OTHER RECORDING FUNCTIONS — The camera automatically switches to the Pan Focus mode (PF) (page 64) whenever you enter the Movie Mode. — The camera focuses automatically whenever you have Auto Focus (page 62) or Macro ( ) selected as the focus mode. Note that the confirmation tone that sounds during the Auto Focus operation will be recorded in the audio.If you do not want confirmation tones in your audio, keep Pan Focus...
Page 82 OTHER RECORDING FUNCTIONS In the REC mode, press [MENU]. Select the “REC” tab, select “REC Mode”, and then press [ ]. Use [ ] and [ ] to select “ then press [SET]. • This enters the Snapshot Audio Mode. Press the shutter release button to record the image.
Page 83: Recording Your Voice
OTHER RECORDING FUNCTIONS Recording Your Voice The Voice Recording Mode provides quick and easy recording of your voice. • Audio Format: WAVE/ADPCM recording format This is the Windows standard format for audio recording. The file extension of a WAVE/ADPCM file is “.WAV”. •...
Page 84: Using The Histogram
OTHER RECORDING FUNCTIONS I Audio Recording Precautions • Keep the microphone on the front of the camera pointed at the subject. • Take care that you do not block the microphone with your fingers. • Good recording results are not possible when the camera is too far from the subject.
Page 85 OTHER RECORDING FUNCTIONS • When the histogram is too far to the left, it means that there are too many dark pixels. This type of histogram results when the overall image is dark. A histogram that is too far to the left may result in “black out”...
Page 86: Rec Mode Camera Settings
OTHER RECORDING FUNCTIONS REC Mode Camera Settings The following are the settings you can make before recording an image using a REC mode. • ISO sensitivity • Grid on/off • Image Review on/off • L/R key setting • Power on default settings •...
Page 87 OTHER RECORDING FUNCTIONS • EX-Z30 To get this: Automatic sensitivity selection Conforms to ISO 50 Conforms to ISO 100 Conforms to ISO 200 Conforms to ISO 400 • EX-Z40 To get this: Automatic sensitivity selection Conforms to ISO 50 Conforms to ISO 100 Conforms to ISO 200 Conforms to ISO 400 IMPORTANT!
Page 88: Turning The On-Screen Grid On And Off
OTHER RECORDING FUNCTIONS Turning the On-screen Grid On and Off You can display gridlines on the monitor screen to help you compose images and ensure that the camera is straight when recording. In the REC mode, press [MENU]. Select the “REC” tab, select “Grid”, and then press [ ].
Page 89: Assigning Functions To The [ ] And [ ] Keys
OTHER RECORDING FUNCTIONS Assigning Functions to the [ ] and [ ] Keys A “key customization” feature lets you configure the [ ] and [ ] keys so they change camera settings whenever they are pressed in the REC mode. After you configure the [ ] and [ ] keys, you can change the setting assigned to them without going through the menu screen.
Page 90: Specifying Power On Default Settings
OTHER RECORDING FUNCTIONS Specifying Power On Default Settings The camera’s “mode memory” feature lets you specify the power on default settings individually for the REC mode, flash mode, focus mode, white balance mode, ISO sensitivity, AF Area, digital zoom mode, manual focus position and zoom position.
Page 91: Resetting The Camera
OTHER RECORDING FUNCTIONS In the REC mode, press [MENU]. Select the “Memory” tab, select the item you want to change, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET]. To do this: Turn on mode memory so settings are restored at power on...
Page 92: Playback
The actual display image appears a short while after the preview image. This does not apply to images copied from another digital camera.
Page 93: Playing An Audio Snapshot
PLAYBACK Playing an Audio Snapshot Perform the steps below to display an audio snapshot (indicated by a indicator) and play its audio. In the PLAY mode, use [ ] and [ ] until the image you want is displayed. Press [SET]. •...
Page 94: Flipping The Display
PLAYBACK Flipping the Display The following procedure flips the image 180 degrees. This comes in handy when you want to show someone standing in front of you an image on the monitor screen. [SET] Shutter release button In the PLAY mode, use [ ] and [ ] to scroll through images on the monitor screen and display the one you want.
Page 95: Zooming The Display Image
PLAYBACK Zooming the Display Image Perform the following procedure to zoom the image currently on the monitor screen up to four times its normal size. In the PLAY mode, use [ ] and [ ] to display the image you want. Press the zoom button ( ) to enlarge...
Page 96: Resizing An Image
PLAYBACK Resizing an Image You can use the following procedure to change a snapshot image to either SXGA size (1280 x 960 pixels) or VGA size (640 x 480 pixels). • VGA is the optimum image size for attachment to e-mail messages or incorporation into Web pages.
Page 97: Cropping An Image
PLAYBACK IMPORTANT! • Resizing an image creates a new file that contains the image in the size you select. The file with the original image also remains in memory. • Images smaller than 640 x 480 pixels cannot be resized. •...
Page 98 PLAYBACK Use [ ], [ ], [ ], and [ ] to move the cropping boundary up, down, left, or right until the area of the image you want to extract is within the boundary. Press [SET] to extract the part of the image enclosed in the cropping boundary.
Page 99: Playing A Movie
PLAYBACK Playing a Movie Use the following procedure to play back a movie that was recorded in the movie mode. In the PLAY mode, press [ ] and [ ] to scroll through images until the movie you want to play is displayed.
Page 100: Displaying The 9-Image View
PLAYBACK Displaying the 9-image View The following procedure displays nine images on the monitor screen at the same time. In the PLAY mode, press the zoom button • This displays the 9-image screen with the image that was on the monitor screen in step 2 in the center, with a selection boundary around it.
Page 101: Selecting A Specific Image In The 9-Image View
PLAYBACK Selecting a Specific Image in the 9- image View Display the 9-image view. Use [ ], [ ], [ ], and [ ] to move the selection boundary up, down, left, or right until it is located at the image you want to view.
Page 102: Playing A Slide Show
PLAYBACK • Pressing [ ] while the date selection cursor is located anywhere in the top line of the calendar causes the previous month to appear. • Pressing [ ] while the date selection cursor is located anywhere in the bottom line of the calendar causes the next month to appear.
Page 103 • While audio is playing, you can use [ ] and [ ] to adjust the volume level. • Images copied from another digital camera or a computer may take longer time to appear than the slideshow interval time you specify.
Page 104: To Specify The Slideshow Images
PLAYBACK To specify the slideshow images Use [ ] and [ ] to select “Images”, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET]. To do this: Include all files in file memory in the slideshow Display a single file Include all files in the FAVORITE...
Page 105: To Specify The Slideshow Time
PLAYBACK To specify the slideshow time Use [ ] and [ ] to select “Time”. Use [ ] and [ ] to specify the time setting you want, and then press [SET]. • You can specify a time in the range of 1 to 60 minutes.
Page 106: Using The Photo Stand Feature
PLAYBACK Using the Photo Stand Feature The “Photo Stand” feature lets you specify what should appear on the camera’s monitor screen while the camera is on its USB cradle. You can play a Photo Stand slideshow without worrying about remaining battery power, or you can specify display of a particular image.
Page 107: Rotating The Display Image
• You cannot rotate an image that is protected. To rotate such an image, first unprotect it. • You may not be able to rotate a digital image that was recorded with another type of digital camera. • You cannot rotate movie or voice record images.
Page 108: Using Image Roulette
PLAYBACK Using Image Roulette Image Roulette cycles images like a slot machine on the display, before stopping at one of them. When you start an Image Roulette operation, images scroll randomly on the screen. At first, images scroll at high speed. Then the scrolling gradually slows down until a single image is stopped on the screen.
Page 109: Adding Audio To A Snapshot
PLAYBACK Adding Audio to a Snapshot The “after-recording” feature lets you add audio to snapshots after they are recorded. You can also re-record an audio image (one with a icon on it). • Audio Format: WAVE/ADPCM recording format This is the Windows standard format for audio recording. The file extension of a WAVE/ADPCM file is “.WAV”.
Page 110: To Re-Record Audio
PLAYBACK To re-record audio In the PLAY mode, use [ ] and [ ] to scroll through snapshots until the one whose audio you want to re-record is displayed. Select the “PLAY” tab, select “Dubbing”, and then press [ ]. Use [ ] and [ ] to select “Delete”, and then press [SET].
Page 111: Playing Back A Voice Recording File
PLAYBACK Playing Back a Voice Recording File Perform the following steps to play back a voice recording file. In the PLAY mode, use [ ] and [ ] to display the voice file (a file with on it) you want to play.
Page 112: Deleting Files
DELETING FILES DELETING FILES You can delete a single file, or you can delete all files currently in memory. IMPORTANT! • Note that file deletion cannot be undone. Once you delete a file, it is gone. Make sure you really do not need a file anymore before you delete it.
Page 113: Deleting All Files
DELETING FILES IMPORTANT! • If a file cannot be deleted for some reason, the message “This function is not supported for this file.” appears when you try to delete it. Deleting All Files The following procedure deletes all unprotected files currently in memory.
Page 114: File Management
FILE MANAGEMENT FILE MANAGEMENT The file management capabilities of the camera make it easy to keep track of images. You can protect files against deletion and store the files you want in the camera’s built-in memory. Folders Your camera automatically creates a directory of image storage folders in its built-in Flash memory or on the memory card.
Page 115: Protecting Files
FILE MANAGEMENT Protecting Files Once you protect a file it cannot be deleted (page 112). You can protect files individually or you can protect all files in memory with a single operation. To protect a single file In the PLAY mode, press [MENU]. Select the “PLAY”...
Page 116: To Protect All Files In Memory
FILE MANAGEMENT To protect all files in memory In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Protect”, and then press [ ]. Use [ ] and [ ] to select “All Files : On”, and then press [SET]. •...
Page 117 FILE MANAGEMENT Use [ ] and [ ] to select “Save”, and then press [SET]. • This displays the names of the files in built-in memory or on the loaded memory card. Use [ ] and [ ] to select the file you want to copy to the FAVORITE folder.
Page 118: To Display A File In The Favorite Folder
FILE MANAGEMENT To display a file in the FAVORITE folder In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Favorites”, and then press [ ]. Use [ ] and [ ] to select “Show”, and then press [SET]. •...
Page 119: To Delete A File From The Favorite Folder
FILE MANAGEMENT To delete a file from the FAVORITE folder In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Favorites”, and then press [ ]. Use [ ] and [ ] to select “Show”, and then press [SET]. Press [ ] ( Use [ ] and [ ] to select the file you want to delete from the FAVORITE folder.
Page 120: To Delete All Files From The Favorite Folder
FILE MANAGEMENT To delete all files from the FAVORITE folder In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Favorites”, and then press [ ]. Use [ ] and [ ] to select “Show”, and then press [SET]. Press [ ] ( Use [ ] and [ ] to select “All Files Delete”, and then press [SET].
Page 121: Other Settings
OTHER SETTINGS OTHER SETTINGS Configuring Sound Settings You can configure different sounds to play whenever you turn on the camera, press the shutter release button half- way or all the way, or perform a key operation. To configure sound settings In the REC mode or the PLAY mode, press [MENU].
Page 122: To Set The Volume Level
OTHER SETTINGS To set the volume level In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “Sounds”, and then press [ ]. Use [ ] and [ ] to select “Volume”. Use [ ] and [ ] to specify the volume setting you want, and then press [SET].
Page 123: Configuring Power Down Image Settings
OTHER SETTINGS IMPORTANT! • You can select any one of the following types of image as the startup image. — The camera’s built-in startup image — A snapshot you recorded with the camera — An audio snapshot you recorded with the camera •...
Page 124 OTHER SETTINGS Change the name of the file to one of the following. Snapshot Image: ENDING.JPG Movie Image: ENDING.AVI • Input the following file name only (without file name extension) if your computer is configured to hide file name extensions. File Name: ENDING •...
Page 125: Specifying The File Name Serial Number Generation Method
OTHER SETTINGS I To cancel Power Down Image settings Use the USB cable to connect the camera to your computer (page 151). Change the name of the current power down image from ENDING.JPG or ENDING.AVI to something else, or delete the current power down image from Flash memory.
Page 126 OTHER SETTINGS Using the Alarm You can configure up to three alarms that cause the camera to beep and display a specified image at the time you specify. Specifying a movie or an audio snapshot plays back the image and the audio at the assigned time. Specifying a voice recording file plays the audio.
Page 127: Stopping The Alarm
OTHER SETTINGS Stopping the Alarm When an alarm time is reached while the camera is turned off, the alarm will sound for about one minute (or until you stop it), and then the camera will turn on. To stop the alarm after it starts to sound, press any button.
Page 128: To Set The Current Time And Date
OTHER SETTINGS Use [ ] and [ ] to select “City”, and then press [ ]. Use [ ], [ ], [ ], and [ ] to select the geographical area that contains location you want to select as your Home Time zone, and then press [SET].
Page 129: Changing The Date Format
OTHER SETTINGS Changing the Date Format You can select from among three different formats for display of the date. In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “Date Style”, and then press [ ]. Use [ ] and [ ] to change the setting, and then press [SET].
Page 130: To Configure World Time Settings
OTHER SETTINGS To configure World Time settings In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “World Time”, and then press [ ]. • This displays the current World Time zone. Use [ ] and [ ] to select “World”, and then press [ ].
Page 131: To Configure Summer Time (Dst) Settings
OTHER SETTINGS To configure summer time (DST) settings In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “World Time”, and then press [ ]. • This displays the current World Time Settings. Use [ ] and [ ] to select “World”, and then press [ ].
Page 132: Changing The Display Language
OTHER SETTINGS Changing the Display Language You can use the following procedure to select one of ten language as the display language. In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “Language”, and then press [ ]. Use [ ], [ ], [ ], and [ ] to change the setting, and then press [SET].
Page 133: Power On/Off Functions
OTHER SETTINGS • PTP (PictBridge) simplifies the transfer of image data to the connected device. • Mass Storage (USB DIRECT-PRINT) causes the camera to see the computer as an external storage device. Use this setting for normal transfer of images from the camera to a computer (using the bundled Photo Loader application).
Page 134 OTHER SETTINGS To configure this operation: Power turns on when [ ] (REC) or ] (PLAY) is pressed (but does not turn off) Power turns on or off when [ (REC) is pressed in the REC mode or [ ] (PLAY) is pressed in the PLAY mode Power does not turn on or off when ] (REC) or [...
Page 135: Formatting Built-In Memory
OTHER SETTINGS Formatting Built-in Memory Formatting built-in memory deletes any data stored in it. IMPORTANT! • Note that data deleted by a format operation cannot be recovered. Check to make sure you do not need any of the data in memory before you format it. •...
Page 136: Using A Memory Card
USING A MEMORY CARD USING A MEMORY CARD You can expand the storage capabilities of your camera by using a commercially available memory card (SD memory card or MultiMediaCard). You can also copy files from built-in flash memory to a memory card and from a memory card to flash memory.
Page 137: Using A Memory Card
USING A MEMORY CARD Using a Memory Card IMPORTANT! • Make sure you turn off the camera before inserting or removing a memory card. • Be sure to orient the card correctly when inserting it. Never try to force a memory card into the slot when you feel resistance.
Page 138: To Remove A Memory Card From The Camera
• Should water or any foreign object ever get into the card slot, immediately turn off the camera, remove the battery, and contact your dealer or nearest CASIO authorized service center. • Never remove a card from the camera while the green operation lamp is flashing. Doing so can cause the file save operation to fail, and even damage the memory card.
Page 139: Memory Card Precautions
USING A MEMORY CARD Load the memory card into the camera. Turn on the camera. Next, enter the REC mode or PLAY mode and press [MENU]. Select the “Set Up” tab, select “Format”, and then press [ ]. Use [ ] and [ ] to select “Format”, and then press [SET].
Page 140: Copying Files
USING A MEMORY CARD Copying Files Use the procedures below to copy files between built-in memory and a memory card. IMPORTANT! • Only snapshot, movie files, audio snapshot, and voice recording files recorded with this camera can be copied. Other files cannot be copied. •...
Page 141: To Copy A File From A Memory Card To Built-In Memory
USING A MEMORY CARD To copy a file from a memory card to built-in memory With this procedure you can copy one file at a time. Perform steps 1 through 3 of the procedure under “To copy all the files in built-in memory to a memory card”.
Page 142: Printing Images
PRINTING IMAGES PRINTING IMAGES A digital camera provides you with a variety of different ways to print the images it records. The three main printing methods are described below. Use the method that best suits your needs. I Professional Print Service The camera’s DPOF feature lets you specify which images...
Page 143: Dpof
The letters “DPOF” stand for “Digital Print Order Format”, which is a format for recording on a memory card or other medium which digital camera images should be printed and how many copies of the image should be printed. Then you can print on a...
Page 144: To Configure Print Settings For A Single Image
PRINTING IMAGES To configure print settings for a single image In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “DPOF”, and then press [ ]. Use [ ] and [ ] to select “Select images”, and then press [ ]. Use [ ] and [ ] to display the image you want.
Page 145: To Configure Print Settings For All Images
PRINTING IMAGES To configure print settings for all images In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “DPOF”, and then press [ ]. Use [ ] and [ ] to select “All images”, and then press [ ]. Use [ ] and [ ] to specify the number of copies.
Page 146: Using Pictbridge Or Usb Direct-Print
PRINTING IMAGES Using PictBridge or USB DIRECT-PRINT You can connect the camera directly to a printer that supports PictBridge or USB DIRECT-PRINT, and perform image selection and printing using the camera monitor screen and controls. DPOF support (page 143) also lets you specify which images you want to print and how many copies of each should be printed.
Page 147 PRINTING IMAGES Use the USB cable that comes with the camera to connect the USB cradle to a printer. • Also, connect the AC adaptor to the USB cradle and plug the AC adaptor into an electrical outlet. • If you are using battery power without the AC adaptor, make sure that the battery is fully charged.
Page 148: To Print A Group Of Images
PRINTING IMAGES • To print again, repeat the above from step 9. After you are finished printing, press the USB cradle’s [USB] button, and then turn off the camera. To print a group of images Use the DPOF procedure on page 144 to specify the images in file memory that you want to print.
Page 149: Printing Precautions
PRINTING IMAGES • A message appears on the monitor screen, followed by the DPOF setting screen (page 144), if there are no DPOF settings currently configured on the camera to control the printing operation. If this happens, configure the required DPOF settings and then perform step 6 of the above procedure again.
Page 150: Print Image Matching Ii
PRINTING IMAGES PRINT Image Matching II Images include PRINT Image Matching data (mode setting and other camera setup information). A printer that supports PRINT Image Matching reads this data and adjusts the printed image accordingly, so your images come out just the way you intended when you recorded them.
Page 151: Using The Camera With A Windows Computer
In order to do this, you first need to install the USB driver located on the CD-ROM (CASIO Digital Camera Software) that comes bundled with the camera onto your computer. Note that the procedure you need to perform depends on whether you are using computer running under Windows (see below) or a Macintosh (see page 157).
Page 152 I Windows XP Users • Installation of the USB driver is not required, so jump directly to step 6. Set the bundled CD-ROM (CASIO Digital Camera Software) into the CD-ROM drive of your computer. On the menu screen that appears, click “English”.
Page 153 VIEWING IMAGES ON A COMPUTER On the screen that appears after installation is complete, select the “Yes, I want to restart my computer now.” check box and then click [Finish] to restart your computer. Connect the bundled AC adaptor to the [DC IN 5.3V] connector of the USB cradle, and then plug it in to a household power outlet.
Page 154 VIEWING IMAGES ON A COMPUTER Connect the USB cable that comes bundled with the camera to the USB cradle and your computer’s USB port. USB cable (bundled) USB port Connector A • Take care when connecting the USB cable to the USB cradle or your computer.
Page 155 VIEWING IMAGES ON A COMPUTER Press the USB cradle’s [USB] button. • This will cause the “Add New Hardware...” dialog box to appear on the computer screen as the computer automatically detects the camera’s file memory. After you install the USB driver, “Add New Hardware...” dialog box will no longer appear when you perform the above steps to establish a USB connection.
Page 156 VIEWING IMAGES ON A COMPUTER I Windows 98, 2000, Me 1. In the camera’s file memory (Removable Disk), right- click the “Dcim” folder. 2. On the shortcut menu that appears, click [Copy]. 3. Double click [My Documents] to open it. 4.
Page 157: Usb Connection Precautions
VIEWING IMAGES ON A COMPUTER USB Connection Precautions • Be sure to read the documentation that comes with your computer for other important information about USB connections. • Do not leave the same image displayed on your computer screen for a long time. Doing so can cause the image to “burn in”...
Page 158 VIEWING IMAGES ON A COMPUTER IMPORTANT! • If you want to transfer files from the camera’s built-in memory to a computer, make sure there is no memory card loaded in the camera before you place it onto the USB cradle. Connect the bundled AC adaptor to the [DC IN 5.3V] connector of the USB cradle, and then plug it in to a household power outlet.
Page 159 VIEWING IMAGES ON A COMPUTER Connect the USB cable that comes bundled with the camera to the USB cradle and your computer’s USB port. USB cable (bundled) USB port Connector A • Take care when connecting the USB cable to the USB cradle or your computer.
Page 160 VIEWING IMAGES ON A COMPUTER Press the USB cradle’s [USB] button. • Pressing the [USB] button enters the USB mode, which causes the USB cradle’s [USB] lamp to light green (page 187). Your Macintosh will see the camera’s file memory as a drive. •...
Page 161: Operations You Can Perform From Your Computer
VIEWING IMAGES ON A COMPUTER USB Connection Precautions • Be sure to read the documentation that comes with your computer for other important information about USB connections. • Do not leave the same image displayed on your computer screen for a long time. Doing so can cause the image to “burn in”...
Page 162: Using A Memory Card To Transfer Images To A Computer
VIEWING IMAGES ON A COMPUTER Using a Memory Card to Transfer Images to a Computer The procedures in this section describe how to transfer images from the camera to your computer using a memory card. Using a Computer with a Built-in SD Memory Card Slot Insert the SD memory card directly into the slot.
Page 163: Memory Data
VIEWING IMAGES ON A COMPUTER Memory Data Images recorded with this camera and other data are stored in memory using DCF (Design rule for Camera File System) protocol. DCF protocol is designed to make it easier to exchange image and other data between digital cameras and other devices.
Page 164 VIEWING IMAGES ON A COMPUTER I Folder and File Contents • DCIM folder Folder that stores all of the digital camera files • Storage folder Folder for storing files created by the digital camera • Image file File that contains an image recorded with the digital camera (File Name Extension: JPG) •...
Page 165: Image Files Supported By The Camera
VIEWING IMAGES ON A COMPUTER Image Files Supported by the Camera • Image files recorded with the CASIO EX-Z30/EX-Z40 Digital Camera • DCF protocol image files Certain DCF functions may not be supported. When displaying an image recorded on another camera model, it may take a long time for the image to appear on the display.
Page 166: Using The Camera With A Computer
USING THE CAMERA WITH A COMPUTER USING THE CAMERA WITH A COMPUTER The album feature of the camera creates files that make it possible for you to view images on your computer in a photo album layout. You can also use the applications contained on the CD-ROM that comes bundled with the camera to automate image transfer and to retouch images.
Page 167 USING THE CAMERA WITH A COMPUTER In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Create Album”, and then press [ ]. Use [ ] and [ ] to select “Create”, and then press [SET]. • This starts creation of the album, and causes the message “Busy...
Page 168: Selecting An Album Layout
USING THE CAMERA WITH A COMPUTER Selecting an Album Layout You can select from among 10 different display layouts for an album. In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Create Album”, and then press [ ]. Use [ ] and [ ] to select “Layout”.
Page 169: Background Color
USING THE CAMERA WITH A COMPUTER I Background Color You can specify white, black, or gray as the color of the album background using the procedure under “Configuring Detailed Album Settings”. I Album Type There are two album types: “Normal” and “Index/Info”. “Normal”...
Page 170 USING THE CAMERA WITH A COMPUTER I Auto Album Creation On/Off This setting controls whether an album is created automatically whenever you turn off the camera. To do this: Select this option: Turn on auto album creation Turn off auto album creation •...
Page 171: Viewing Album Files
USING THE CAMERA WITH A COMPUTER Viewing Album Files You can view and print album files using your computer’s Web browser application. Use your computer to access the data in built- in memory or on the memory card, or access a memory card with your computer (pages 151, 162).
Page 172 USING THE CAMERA WITH A COMPUTER Index Info • The following describes the information that appears on the Info Screen. This Info Screen item: File Size Resolution Quality Recording mode Light metering Shutter speed Aperture stop Exposure comp Focusing mode AF Area Flash mode Sharpness...
Page 173: Saving An Album
USING THE CAMERA WITH A COMPUTER NOTES • When printing an album page, you should set up your Web browser as described below. — Select the browser frame where the images are located. — Set margins to the lowest possible values. —...
Page 174: To Delete An Album
About the bundled CD-ROM (CASIO Digital Camera Software) The CD-ROM (CASIO Digital Camera Software) that comes bundled with the camera contains the applications described below. Installation of these applications is optional, and you should install only the ones you want to use.
Page 175 Loader (Windows version only) also includes a feature that simplifies the task of attaching images to e-mail. ∗ See the user documentation file (PDF) on the bundled “CASIO Digital Camera Software” CD-ROM for details about using Photo Loader. Photohands (for Windows) Photohands includes retouching tools for adjusting image color, contrast, and brightness, for resizing images, for changing image orientation, and for cropping images.
Page 176: Computer System Requirements
USING THE CAMERA WITH A COMPUTER Computer System Requirements Computer system requirements depend on each of the applications, as described below. Windows USB Driver* Photo Loader /2000/Me/ XP/2000/Me/98 486 or higher 486 or higher (Pentium (Pentium recommended) recommended) Memory – At least 16MB –...
Page 177: Installing Software From The Cd-Rom In Windows
“readme” file on the CD-ROM (CASIO Digital Camera Software) that comes bundled with the camera. • The software on the CD-ROM (CASIO Digital Camera Software) that comes bundled with the camera does not support operation under Mac OS X (10.0).
Page 178: Getting Started
USING THE CAMERA WITH A COMPUTER Getting Started Start up your computer and insert the CD-ROM into its CD- ROM drive. This will automatically launch the menu application, which displays a menu screen on your computer. • The menu application may not start up automatically on some computers.
Page 179: Installing An Application
USING THE CAMERA WITH A COMPUTER Installing an Application Click the “Install” button for the application you want to install. Follow the instructions that appear on your computer screen. IMPORTANT! • Be sure to follow the instructions carefully and completely. If you make a mistake when installing Photo Loader, you may not be able to browse your existing library information and HTML files that are created automatically by Photo Loader.
Page 180: User Registration
Installing Software from the CD-ROM on a Macintosh Use the procedures in this section to install the software from the bundled CD-ROM (CASIO Digital Camera Software) to your computer. Installing Software Use the following procedures to install the software.
Page 181: Viewing User Documentation (Pdf Files)
Adobe Systems website. I To view the camera user’s guide On the CD-ROM, open the “Manual” folder. Open the “Digital Camera” folder, and then open the folder for the language whose user’s guide you want to view. Open the file named “camera_xx.pdf”.
Page 182 I To read the Photo Loader user’s guide On the CD-ROM, open the “Manual” folder. Open the “Photo Loader” folder and then open the “English” folder. Open “PhotoLoader_english”. I To register as a user Internet registration only is supported. Visit the following CASIO website to register: http://world.casio.com/qv/register/...
Page 183: Menu Reference
APPENDIX APPENDIX Menu Reference The following shows lists of menus that appear in the REC mode and PLAY mode, and their settings. • The settings that are underlined in the following table are initial defaults. I REC mode G REC tab menu REC Mode Snapshot / BESTSHOT /...
Page 184 APPENDIX G Set Up tab menu Sounds Startup / Half Shutter /Shutter / Operation / Volume Startup On (Selectable image) / Off File No. Continue / Reset World Time Home / World Home Time setup (city, DST, etc.) World Time setup (city, DST, etc.) Date Style YY/MM/DD / DD/MM/YY / MM/DD/YY Adjust...
Page 185: Indicator Lamp Reference
APPENDIX G Set Up tab menu Sounds Startup / Half Shutter /Shutter / Operation / Volume Startup On (Selectable image) / Off File No. Continue / Reset World Time Home / World Home Time setup (city, DST, etc.) World Time setup (city, DST, etc.) Date Style YY/MM/DD / DD/MM/YY / MM/DD/YY Adjust...
Page 186: Rec Mode
APPENDIX REC mode Self-timer Operation Lamp Lamp Green Operational (Power on, recording enabled) Pattern 3 Flash is charging. Flash charging is complete. Auto Focus operation was successful. Pattern 3 Cannot Auto Focus. Monitor screen is off. Pattern 2 Storing image Storing movie / performing noise Pattern 1 reduction...
Page 187: Usb Cradle Indicator Lamps
APPENDIX PLAY mode Self-timer Operation Lamp Lamp Green Operational (Power on, recording enabled) One of the following operations is being performed: delete, DPOF, Pattern 3 image protect, copy, album creation, format, power down Memory card problem / Memory Pattern 2 card is unformatted.
Page 188: Troubleshooting Guide
APPENDIX Troubleshooting Guide Symptom Power does not turn on. 1) The battery is not oriented correctly. 2) The battery is dead. Camera suddenly powers 1) Auto Power Off activated (page 38). down. 2) The battery is dead. Image is not recorded 1) The camera is in the PLAY mode.
Page 189 APPENDIX Symptom The subject is out of focus The image is not focused properly. in the recorded image. The flash does not fire. 2) The battery is dead. 3) The camera is in the Movie mode. 4) A scene that selects mode is selected in the BESTSHOT Mode.
Page 190 APPENDIX Symptom Color of the playback Sunlight or light from another source is shining image is different from the directly into the lens during recording. image on the monitor screen during recording. Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera.
Page 191: If You Have Problems Installing The Usb Driver
You may not be able to install the USB driver properly if you use the USB cable to connect the camera to a computer running Windows 98 before installing the USB driver from the bundled CD-ROM (CASIO Digital Camera Software), or if you have another type of driver installed.
Page 192: Display Messages
• Out of ink • Printer internal error Record Error Image compression could not be performed during image data storage for some reason. Record the image again. SYSTEM ERROR Your camera system is corrupted. Contact your retailer or a CASIO service center.
Page 193: Specifications
Specifications Main Specifications Product ... Digital Camera Model ... EX-Z30/EX-Z40 I Camera Functions Image Files Format Snapshots ... JPEG (Exif Ver.2.2); DCF (Design rule for Camera File system) 1.0 standard; DPOF compliant Movies ...
Page 194 APPENDIX • EX-Z40 2304 x 1728 pixels 2304 x 1536 (3:2) pixels 1600 x 1200 pixels 1280 x 960 pixels 640 x 480 pixels Movies ... 320 x 240 pixels Approximate Memory Capacity and File sizes: • Snapshots EX-Z30 File Size Approximate Built-in flash Quality...
Page 195 APPENDIX • Movies (320 x 240 pixels) Data Size 300KB/second max. Delete ... Single-file, all files (with protection) Effective Pixels ... EX-Z30: 3.2 million EX-Z40: 4.0 million Imaging Element ... EX-Z30: 1/2.5-inch square pixel color (Total pixels: 3.34 million) EX-Z40: 1/2.5-inch square pixel color (Total pixels: 4.23 million) Lens/Focal Distance ...
Page 196: Power Requirements
APPENDIX Audio Recording Time Audio Snapshot ... Approximately 30 seconds maximum per image Voice Recording ... Approximately 40 minutes with built-in memory After Recording ... Approximately 30 seconds maximum per image Monitor Screen ... 2.0-inch TFT color LCD 84,960 pixels (354 x 240) Viewfinder ...
Page 197 APPENDIX *2 Continuous Recording Conditions • Temperature: 23°C (73°F) • Monitor screen: On • Flash: Off • Image recorded every 10 seconds, alternating full wide-angle and full telephoto zoom *3 Continuous Playback Conditions • Temperature: 23°C (73°F) • Scroll one image about every 10 seconds *4 Voice recording times are based on continuous recording.
Page 198 APPENDIX I Special AC Adaptor (Inlet Type) Power Requirement ... 100 to 240V AC, 50/60Hz, 83 mA Output ... 5.3V DC, 650 mA Dimensions ... 78(W) x 20(H) x 39(D) mm (3.1˝(W) x 0.8˝(H) x 1.5˝(D)) (excluding projections and cable) Weight ...

This manual is also suitable for:

Exilim ex-z30 Ex z40 - exilim 4mp digital camera Exilim ex-z40

Casio EX-Z30/EX-Z40 User Manual

Introduction

Quick Start Guide

Contents

Getting Ready

Basic Image Recording

Other Recording Functions

Playback

112 Deleting Files

File Management

Other Settings

Using a Memory Card

Printing Images

151 Viewing Images on a Computer

Using the Camera with a Computer

Appendix

Quick Links

Digital Camera

Related Manuals for Casio EX-Z30/EX-Z40

Summary of Contents for Casio EX-Z30/EX-Z40
