R3S User Manual
Vehicle Computing
R3S
User Manual
Version: 1.5
1
Date of Release: 2022-05-09

Advertisement

loading

Related Manuals for Lanner R3S

Summary of Contents for Lanner R3S

  • Page 1 R3S User Manual Vehicle Computing User Manual Version: 1.5 Date of Release: 2022-05-09...
  • Page 2 To obtain additional documentation resources and software updates for your system, please visit the Lanner Download Center. For certain categories of documents, please register for a Lanner Account at Lanner’s official website, in order to access published documents and downloadable resources.
  • Page 3 R3S User Manual Taiwan Corporate Headquarters China Lanner Electronics Inc. Beijing L&S Lancom Platform Tech. Co., Ltd. 7F, No.173, Sec.2, Datong Rd. Guodong LOFT 9 Layer No. 9 Huinan Road, Xizhi District, New Taipei City 22184, Huilongguan Town, Changping District, Beijing...
  • Page 4 R3S User Manual Intel® and Intel® Atom are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.
  • Page 5 R3S User Manual Follow these guidelines to ensure general safety: Keep the chassis area clear and dust-free during and after installation. Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your sleeves.
  • Page 6 The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create the risk of the system’s falling to the ground or other damages. Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the system or use of inappropriate installation components.
  • Page 7 R3S User Manual Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips). Installation & Operation : This equipment must be grounded.
  • Page 8 R3S User Manual Package Content..........................10 Ordering Information ........................10 System Specifications ........................11 Front Panel ............................. 13 Rear Panel ............................14 Motherboard Information......................16 Open the Chassis ..........................24 Installing the M.2 LTE Module ....................... 25 Hard Disk Installation ........................26 BIOS Setup ............................
  • Page 9 R3S User Manual Using the Ignition System Manager (ISM) ..................55 Warranty Policy ..........................57...
  • Page 10 Built for rolling stock setting, the R3S series is certified with EN50155, EN50121-3-2, EN50121-4, EN50125-3 and EN45545 standard as an IP50 rated fanless rolling stock computer. R3S not only features high - performance Intel Atom x7-E3950 CPU, but also boasts an abundance of I/O and internal expansion capabilities, including 6x M12 X-coded PoE/ PoE+ ports, 1x Removable 2.5”...
  • Page 11 R3S User Manual Intel Apollo Lake x7-E3950 1.6G 12W 1.6 GHz Frequency Platform AMI SPI Flash BIOS BIOS Chipset Fanless LPDDR4 2133MHz Technology Memory Up to 8GB (Factory default: 8GB pre-populated) Max. Capacity Memory Down Socket 6x Intel i210IT Controller...

  • Page 12: Driver Support

    R3S User Manual Win10 IoT Microsoft Windows Driver Support Linux Redhat Enterprise 5, Fedora 14. Linux Kernel 2.6.18 or later FCC/CE Class A, RoHS Safety E-13 include ISO-7637-2 Certification IP rated 50, MIL-STD-810G, EN50155, EN50121-3-2, EN50121- Certified 4, EN50125-3, EN 45545...

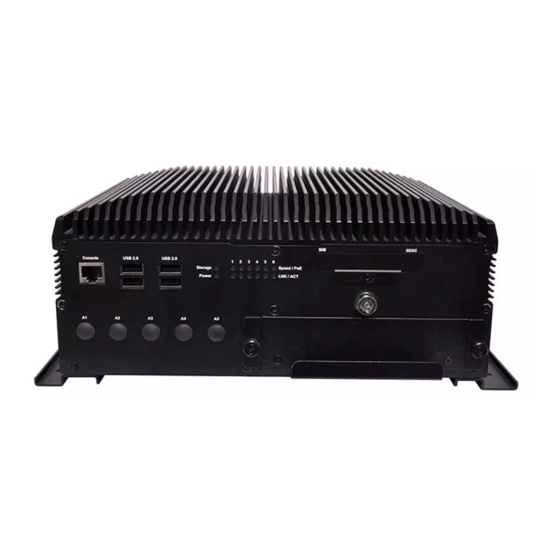

  • Page 13 R3S User Manual Description System Status LED System Power System Status Status Indicator HDD Status USB 2.0 Port 4x USB 2.0 Type A 1x RS-232 (RJ45 connector) Console Port Signals Signals COM_RTS1# COM_DTR1# COM_SOUT1 GND_COM GND_COM COM_SIN1 COM_DSR1# COM_CTS1# SDXC/SIM...
  • Page 14 R3S User Manual ˇ ˋ ˇ Grounding Point: For safety measures to help prevent people from accidentally coming in contact with electrical hazards. Description PoE Port 6x M12 X-coded 8-pin PoE/ PoE+ Port Signals Signals LANx*_MX0P LANx*_MX0N LANx*_MX1P LANx*_MX1N LANx*_MX3P...
  • Page 15 R3S User Manual 2x DB9 Male Connector for RS232/422/485 Signals Signals 1_up COM2_C_DCD_TN 2_up COM2_C_RXD_TP 3_up COM2_C_TXD_RP 4_up COM2_C_DTR_RN 5_up GND_COM 6_up COM2_C_DSR COM Port 7_up COM2_C_RTS 8_up COM2_C_CTS 9_up COM2_C_RI 1_down COM3_C_DCD_TN 2_down COM3_C_RXD_TP 3_down COM3_C_TXD_RP 4_down COM3_C_DTR_RN 5_down...
  • Page 16 R3S User Manual...
  • Page 17 R3S User Manual The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as a reference for the pin assignments and the internal connectors. Front  POE Port HDMI MIO1 MIO2 SATA PWR1 JSPI1...
  • Page 18 R3S User Manual  Rear SD Card Slot SIM Card Slots...
  • Page 19 R3S User Manual...
  • Page 20 R3S User Manual...
  • Page 21 R3S User Manual...
  • Page 22 R3S User Manual Front  Rear ...
  • Page 23 R3S User Manual...
  • Page 24 R3S User Manual To reduce the risk of personal injury, electric shock, or damage to the unit, please remove all power connections to completely shut down the device. Also, please wear ESD protection gloves when conducting the steps in this chapter.
  • Page 25 R3S User Manual 1. Locate M.2 slot. Align the notch of the module with the socket key in the slot, and insert it at 30 degrees into the socket until it is fully seated in the connector. 2. Push down on the module and secure it with the screw that comes with it.
  • Page 26 R3S User Manual To install the hard disk, 1. Loosen the two hand screws that secure the hard disk tray. 2. Pull out the tray as shown in the picture below. 3. Remove the screws shown in the picture. 4. Open the tray and Install the disk onto the tray.
  • Page 27 R3S User Manual BIOS is a firmware embedded on an exclusive chip on the system’s motherboard. Lanner's BIOS firmware offering including market-proven technologies such as Secure Boot and Intel Boot Guard technology deliver solid commitments for the shield protection against malware, uncertified sequences and other named cyber threats.
  • Page 28 R3S User Manual Setup main page contains BIOS information and project version information. Feature Description BIOS Vendor: American Megatrends Core Version: AMI Kernel version, CRB code base, X64 Compliancy: UEFI version, PI version BIOS Information Project Version: BIOS release version...
  • Page 29 R3S User Manual Select the Advanced menu item from the BIOS setup screen to enter the “Advanced” setup screen. Users can select any of the items in the left frame of the screen.
  • Page 30 R3S User Manual...
  • Page 31 R3S User Manual ■ Feature Options Description Enabled Serial Port Enables or disables Serial Port 1. Disabled IO=3F8h; IRQ = 4 → Serial Port 1 Device Settings IO=2F8h; IRQ = 11 → Serial Port 2 RS232 COM mode RS485 Configure COM port mode.
  • Page 32 R3S User Manual ■ Feature Options Description Enabled Serial Port Enables or disables Serial Port 3 ~ 6. Disabled Device Settings Assigned to IO=3E8h; IRQ = 5...
  • Page 33 R3S User Manual ■ Feature Description CPU Temp This value reports the CPU temperature. SYS Temp This value reports the System temperature. VCORE This value reports the CPU VCORE. Vddr This value reports the Vddr. VBAT This value reports the VBAT Input voltage.
  • Page 34 R3S User Manual ■ Feature Options Description Watch Dog Timer Enabled Enable or Disable Watch Dog function Disabled Timer Count Mode Second Mode Select Second Mode or Minute Mode Minute Mode Timer out Value Watch Dog Timer out Value 0-255...
  • Page 35 R3S User Manual ■ Feature Options Description SIM-1 SIM Selector1 Select which SIM card would use SIM-2 SIM Selector2 SIM-3 Select which SIM card would use SIM-4...
  • Page 36 R3S User Manual ■ Feature Options Description COM0 Enabled Console Redirection Enable or Disable. Console Redirection Disabled...
  • Page 37 R3S User Manual ■ Feature Options Description Terminal Type VT100 ANSI: Extended ASCII char set. VT100+ VT100: ASCII char set. VT-UTF8 VT100+: Extends VT100 to support color, function ANSI keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.
  • Page 38 R3S User Manual Flow Control None Flow control can prevent data loss from buffer Hardware overflow. RTS/CTS VT-UTF8 Combo Disabled Enable VT-UTF8 Combination Key Support for Key Support Enabled ANSI/VT100 terminals Recorder Mode Disabled With this mode enabled only text will be sent. This Enabled is to capture Terminal data.
  • Page 39 R3S User Manual ■ Feature Options Description Intel Virtualization Disabled When enabled, a VMM can utilize the Technology Enabled additional hardware capabilities provided by Vanderpool Technology VT-d Disabled Enable/Disable CPU VT-d Enabled...
  • Page 40 R3S User Manual ■...
  • Page 41 R3S User Manual ■ Feature Options Description Globally Enables or Disables 64bit capable Devices to Above 4G Disabled be Decoded in Above 4G Address Space (Only if Decoding Enabled System Supports 64 bit PCI Decoding). BME DMA Disabled Re-enable Bus Master Attribute disabled during PCI...
  • Page 42 R3S User Manual ■ Feature Options Description Disabled CSM Support Enables or disables CSM Support Enabled Do Not Launch Controls the execution of UEFI and Legacy PXE Network UEFI OpROM Legacy Do Not Launch Controls the execution of UEFI and Legacy...
  • Page 43 R3S User Manual ■ Feature Options Description Enables Legacy USB support. Enabled Auto option disables legacy support if no USB Legacy USB Support Disabled devices are connected; Disabled option will keep Auto USB devices available only for EFI applications. This is a workaround for OSes without XHCI hand-...
  • Page 44 R3S User Manual Select the IntelRCSetup menu item from the BIOS setup screen to enter the Platform Setup screen. Users can select any of the items in the left frame of the screen.
  • Page 45 R3S User Manual ■ Feature Options Description 2 GB 2.25 GB Max TOLUD 2.5 GB Maximum Value of TOLUD. 2.75 GB 3 GB...
  • Page 46 R3S User Manual ■ Feature Options Description Windows Android OS Selection Select the target OS Win7 Intel Linux...
  • Page 47 R3S User Manual ■...

  • Page 48: Administrator Password

    R3S User Manual Select the Security menu item from the BIOS setup screen to enter the Security Setup screen. Users can select any of the items in the left frame of the screen. Feature Description If ONLY the Administrator's password is set, it only limits access to Setup and is only asked for when entering Setup.
  • Page 49 R3S User Manual Select the Boot menu item from the BIOS setup screen to enter the Boot Setup screen. Users can select any of the items in the left frame of the screen. Feature Options Description The number of seconds to wait for setup Setup Prompt Timeout activation key.
  • Page 50 R3S User Manual Select the Save and Exit menu item from the BIOS setup screen to enter the Save and Exit Setup screen. Users can select any of the items in the left frame of the screen. ■ Discard Changes and Exit Select this option to quit Setup without saving any modifications to the system configuration.
  • Page 51 R3S User Manual ■ Save Changes and Reset When Users have completed the system configuration changes, select this option to save the changes and reset from BIOS Setup in order for the new system configuration parameters to take effect. The following window will appear after selecting the “Save Changes and Reset”...

  • Page 52: System Power

    R3S User Manual The status explanations of LED indicators on Front Panel are as follows: HDD Activity Status Blinking Amber Data access activities No data access activities System Power Solid Green The system is powered on The system is powered off...
  • Page 53 R3S User Manual The system comes with a controller to ensure that the device is well-shielded against premature failure at the boot or shutdown phase. When installing: 1. Make sure both your vehicle and the system are turned off. 2. Follow the wiring definition and illustration below to connect the vehicle battery and ignition (ACC) to the in-vehicle system through the 5-pin M12 male connector marked as “DC Input”...
  • Page 54 R3S User Manual The diagram below describes the cycle of system’s power states controlled by the Ignition System Manager (ISM) when the appropriate timer control parameters are set. (by ISM tool) System OS Running Ignition board supplies power to the main board (by ISM tool) Note: When the system’s shutdown timer starts counting down 60sec, using ignition or External PWR_BTN to...
  • Page 55 R3S User Manual Command Format: 1. Host communication interface: COM#6 (RS-232) 2. Support baud rate: 57600/ 8N1 3. Communication protocol: ANSI terminal. GET VariableName SET VariableName value...
  • Page 56 R3S User Manual Example:...
  • Page 57 R3S User Manual 1. All products are under warranty against defects in materials and workmanship for a period of one year from the date of purchase. 2. The buyer will bear the return freight charges for goods returned for repair within the warranty period;...
  • Page 58 R3S User Manual When requesting RMA service, please fill out the following form. Without this form enclosed, your RMA cannot be processed.
