Philips ITS4843B Installation Manual

Intellivue smart-hopping 1.4 ghz access point
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

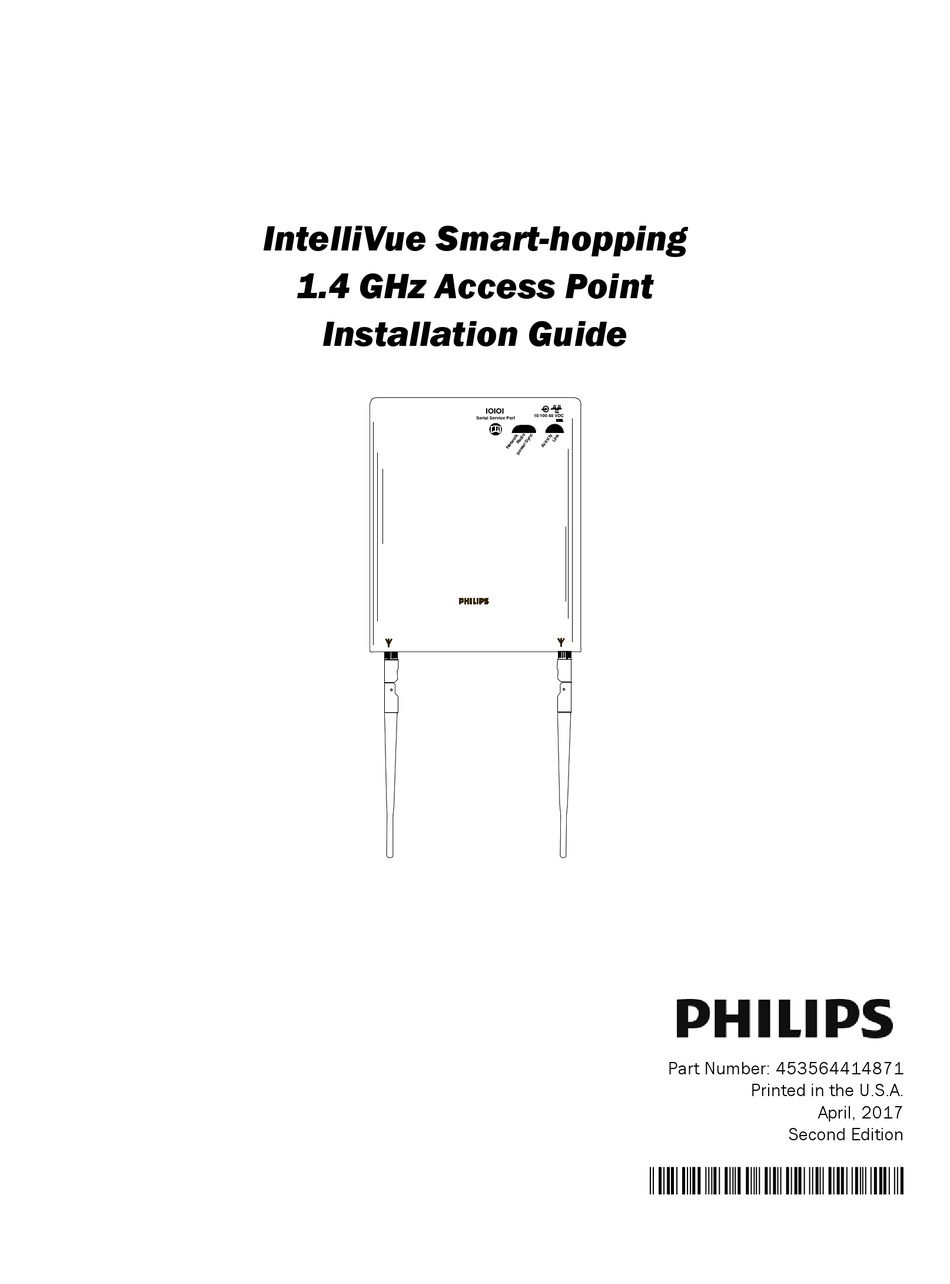

IntelliVue Smart-hopping
1.4 GHz Access Point
Installation Guide
IOIOI
10/100 48 VDC
Serial Service Port
Part Number: 453564414871
Printed in the U.S.A.
April, 2017
Second Edition
453564414871

Advertisement

Table of Contents
loading

Related Manuals for Philips ITS4843B

Summary of Contents for Philips ITS4843B

  • Page 1 IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide IOIOI 10/100 48 VDC Serial Service Port Part Number: 453564414871 Printed in the U.S.A. April, 2017 Second Edition 453564414871...
  • Page 2 Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by Philips Medical Systems may cause harmful radio frequency interference, and void your authority to operate this equipment.

  • Page 3: Table Of Contents

    ITS4843D Installation Procedure ........2-3 ITS4843B and ITS4843C Installation Procedure ......2-6 Mounting the IntelliVue Smart-hopping Core AP to a Wall (Fixed Mount) .
  • Page 4 Ordering Replacement Parts......... . 3-5 Philips Sales and Support Offices Worldwide ......3-8 CORPORATE HEADQUARTERS: .
  • Page 5 About This Guide This IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide provides complete instructions and procedures for installing the Philips IntelliVue Smart-hopping 1.4 GHz Core Access Point and Remote Antennas. This section describes the document and includes: • Audience •...
  • Page 6 • Chapter 3, Maintaining the IntelliVue Smart-hopping 1.4 GHz Core Access Point, provides procedures to maintain and troubleshoot operation of the Philips IntelliVue Smart-hopping 1.4 GHz Core Access Point. Notational Conventions This guide uses the following notational conventions to convey...
  • Page 7 IntelliVue Smart-hopping Sync Unit at the clinical site. • Upgrading IntelliVue Smart-hopping Access Point Controllers and Access Points - gives procedures to use the Philips IntelliVue Smart- hopping APC and AP Upgrade Tool to install and synchronize the firmware version on IntelliVue Smart-hopping APCs and APs.
  • Page 8 Database Domain(s) and the IntelliVue Smart-hopping Infrastructure wireless subnet. • IntelliVue Patient Monitor (IPM) - The IntelliVue Patient Monitor relays real-time physiological waveforms and trends to the Philips IntelliVue Information Center (PIIC) or Philips IntelliVue Information Center iX (PIIC iX).
  • Page 9 About This Guide infrastructure used in a routed topology to connect IntelliVue Smart- hopping Infrastructure devices. • Partnered APC - Configurable element within an AP Group used to determine which APC will manage the operation of the AP members of a particular AP Group.
  • Page 10 About This Guide...
  • Page 11 Overview This chapter provides a high-level overview of the IntelliVue Smart-hopping ITS4843B, ITS4843C, and ITS4843D 1.4 GHz Core Access Points and includes: • Introduction • A General Description of the IntelliVue Smart-hopping Core Access Point • Connectors and Status Indicators (ITS4834D) •...

  • Page 12: Introduction

    Chapter 1: Overview Introduction The IntelliVue Smart-hopping infrastructure uses a cellular wireless architecture to provide two-way communications between IntelliVue Patient Monitors and the IntelliVue Information Center. Using the “IntelliVue Smart-hopping” wireless protocol, the IntelliVue Smart-hopping infrastructure provides monitoring capabilities for ambulatory patients within a wide coverage area.

  • Page 13: A General Description Of The Intellivue Smart-Hopping Core Access Point

    A General Description of the IntelliVue Smart-hopping Core Access Point A General Description of the IntelliVue Smart-hopping Core Access Point The IntelliVue Smart-hopping Core Access Point (AP), Model ITS4843B, ITS4843C, and ITS4843D (Radiohead) (Figure 1-2), provides an air-link to transmit and receive data between IntelliVue Smart-hopping IntelliVue Patient Monitors and the Philips IntelliVue Information Center via the IntelliVue Smart-hopping infrastructure.

  • Page 14: Core Ap Mounting Options

    Chapter 1: Overview The ITS4843B/C Core AP is a modular antenna infrastructure consisting of a Core AP (CAP) with up to two connected Model ITS4846A Remote Antennas (RAs). A 74- foot (22.6 m) coaxial and unshielded twisted pair (UTP) cable bundle is used to connect a Remote Antenna to a Core AP.

  • Page 15: Intellivue Patient Monitor Mobility

    A General Description of the IntelliVue Smart-hopping Core Access Point interruption. Each Sync Unit provides synchronization for up to 12 APs. The Sync Unit also distributes the common reference clock signal needed by the IntelliVue Smart-hopping infrastructure as a whole. IntelliVue Patient Monitor Mobility The IntelliVue Smart-hopping infrastructure supports seamless roaming of IntelliVue Patient Monitors within the area of coverage.

  • Page 16: Management Interfaces

    • Default Gateway • AP Type Connectors and Status Indicators (ITS4834D) Figure 1-3 shows the ITS4843D and Figure 1-4 shows the ITS4843B/C controls and connectors on the 1.4 GHz IntelliVue Smart-hopping Core AP and Remote Antenna IntelliVue Smart- hopping Core Access...

  • Page 17: Intellivue Smart-Hopping Core Ap Connectors

    Connectors and Status Indicators (ITS4834D) IntelliVue Smart-hopping Core AP Connectors Note the following connectors on the IntelliVue Smart-hopping Core AP: • Ethernet Interface - The AP provides a 100 Base-T Ethernet interface with an RJ-45 connector to connect the Core AP to the IntelliVue Smart-hopping Sync Unit.
  • Page 18 Chapter 1: Overview • Ferrule Cable Connector to Core AP - A standard 75 Ohm connector is provided for the cable that connects the Remote Antenna to its Core AP. The cable carries RF and DC sense signals from the Core AP. Note If an installed, powered Remote Antenna becomes disconnected from its Core AP via its Coax/UTP cable bundle, you must reconnect the Coax/UTP cable bundle to the RA and Core AP, and then cycle power to the connected Core AP before the RA...

  • Page 19: Connectors And Status Indicators (Its4834B And Its4834C)

    Connectors and Status Indicators (ITS4834B and ITS4834C) Connectors and Status Indicators (ITS4834B and ITS4834C) Figure 1-4 shows the controls and connectors on the 1.4 GHz IntelliVue Smart- hopping Core AP and Remote Antenna. Coaxial Cable Connectors IntelliVue Smart- to Remote Antennas (1 & 2) Activity LED Link LED hopping Core Access...

  • Page 20: Remote Ap Connectors

    Chapter 1: Overview Table 1-2: AP Ethernet Interface Pin Signals Signal Description Receive Pair RX - Conductor 0V Power Return 0V Power Return • Serial Port - The serial port is used only for manufacturing purposes. • UTP Cable Connectors to Remote Antennas - Two standard RJ-45 connectors are provided for the UTP cables that connect the Core AP to its Remote Antennas.Each UTP cable carries 5.5 VDC power, Transmit, Receive and Antenna Diversity Control signals to the Remote Antenna.

  • Page 21: Intellivue Smart-Hopping Core Ap Status Leds

    Connectors and Status Indicators (ITS4834B and ITS4834C) IntelliVue Smart-hopping Core AP Status LEDs The IntelliVue Smart-hopping Core AP provides the following status LEDs. • Wired/Ethernet Activity - The Core AP provides two LEDs to indicate wired/ Ethernet activity to the IntelliVue Smart-hopping infrastructure. During normal operation, these LEDs indicate the following information: Link LED - Link present/Ethernet connection.

  • Page 22: Specifications

    Chapter 1: Overview Specifications Table 1-4: Model ITS4843B, ITS4843C, and ITS4843D (Radiohead) 1.4 GHz Core Access Point Specifications Specification Value Physical: Chassis (only) Dimensions (H x W x L) 30 mm x 204 mm x 243 mm (1.2 in x 8.0 in x 9.6 in) Local Antenna (only) Dimensions 160 mm (6.3 inches L) Sleeve Dipole...
  • Page 23 Specifications Table 1-4: Model ITS4843B, ITS4843C, and ITS4843D (Radiohead) 1.4 GHz Core Access Point Specifications Specification Value Fire Safety Model ITS4843B/C/D 1.4 GHz Core Access Points are Listed for use within "Other Spaces Used for Environmental Air (Plenum)" per NFPA70: 2011, Article 300.22.
  • Page 24 Chapter 1: Overview Table 1-5: Model ITS4846A 1.4 GHz Remote Antenna Specifications Specification Value Power Sensing 802.3af-compliant RF Diversity Uses Dual Antenna, selects antenna with best signal. Antenna Type Sleeve Dipole > 10dB over 1395MHz to 1432MHz in 50 Ohms. LED Indicators Power and Connection LED notification on RJ-45 connector.

  • Page 25: Ordering Information

    Two SMA-style connectors. Ordering Information Table 1-7: IntelliVue Smart-hopping 1.4 GHz Access Point Part Numbers Device/Option Part Number/Option Number ITS4843B 1.4 GHz Enhanced IntelliVue Smart-hopping Access Point 989803171211 ITS4843C 1.4 GHz Enhanced IntelliVue Smart-hopping Access Point 989803171211 (High power AP) ITS4843D Radiohead 1.4 GHz Enhanced IntelliVue Smart-hopping...

  • Page 26: Regulatory Information

    Chapter 1: Overview Regulatory Information Table 1-8: IntelliVue Smart-hopping 1.4 GHz Access Point Regulatory Information Description Philips part#: FCC ID: Model# Software 1.4 GHz Enhanced IntelliVue Smart-hopping 989803171211 PQC-4843B ITS4843B C.00.07 Access Point 1.4 GHz Enhanced IntelliVue Smart-hopping High 989803171211...
  • Page 27 Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point This chapter provides procedures to physically install the Philips IntelliVue Smart-hopping 1.4 GHz Core Access Point and includes: • Access Point Placement Guidelines • ITS4843D Installation Procedure • ITS4843B and ITS4843C Installation Procedure •...

  • Page 28: Access Point Placement Guidelines

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Access Point Placement Guidelines Warning You must use the ITS4843D 1.4 GHz Core Access Point and the ITS4846B RTX Remote Antenna with each other. This Access Point and Remote Antenna are not supported for use with other 1.4 GHz Access Points and Remote Antennas.

  • Page 29: Its4843D Installation Procedure

    ITS4843D Installation Procedure ITS4843D Installation Procedure To install the ITS4843D IntelliVue Smart-hopping 1.4 GHz Core Access Point: 1. Mount the IntelliVue Smart-hopping 1.4 GHz Core Access Point and Remote Antennas within the clinic where they can communicate with 1.4 GHz IntelliVue Patient Monitors.
  • Page 30 Core Access Point and the equipment closet in which the IntelliVue Smart-hopping infrastructure devices are installed. ITS4843B and ITS4843C Access Points use Unshielded Twisted Pair cables. ITS4843D Access Points require Shielded Twisted Pair cables to protect the system from power line transients.
  • Page 31 ITS4843D Installation Procedure Distance = less than 20 inches (50cm) Figure 2-2: Installing a Ferrite Block on the UTP Cable to the IntelliVue Smart-hopping Infrastructure 7. Connect the Access Point to the IntelliVue Smart-hopping Sync Unit only when appropriate as part of the overall IntelliVue Smart-hopping installation. a) After initially connecting and powering the Core AP, verify that the two status LEDs on each of its connected Remote Antennas are lit.

  • Page 32: Its4843B And Its4843C Installation Procedure

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point ITS4843B and ITS4843C Installation Procedure To install the IntelliVue Smart-hopping 1.4 GHz Core Access Point: 1. Mount the IntelliVue Smart-hopping 1.4 GHz Core Access Point and Remote Antennas within the clinic where they can communicate with 1.4 GHz IntelliVue Patient Monitors.
  • Page 33 Core Access Point and the equipment closet in which the IntelliVue Smart-hopping infrastructure devices are installed. ITS4843B and ITS4843C Access Points use Unshielded Twisted Pair cables. ITS4843D Access Points require Shielded Twisted Pair cables to protect the system from power line transients.
  • Page 34 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Distance = less than 20 inches (50cm) Figure 2-4: Installing a Ferrite Block on the UTP Cable to the IntelliVue Smart-hopping Infrastructure 7. Connect the Access Point to the IntelliVue Smart-hopping Sync Unit only when appropriate as part of the overall IntelliVue Smart-hopping installation.

  • Page 35: Mounting The Intellivue Smart-Hopping Core Ap To A Wall (Fixed Mount)

    Mounting the IntelliVue Smart-hopping Core AP to a Wall (Fixed Mount) Mounting the IntelliVue Smart-hopping Core AP to a Wall (Fixed Mount) You can mount the IntelliVue Smart-hopping Core Access Point to a wall using the mounting screws and screw anchors supplied with the AP. We recommend that you mount the Core AP high on the wall as close to the ceiling as possible.

  • Page 36: Mounting The Intellivue Smart-Hopping Core Ap To A Wall

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Mounting the IntelliVue Smart-hopping Core AP to a Wall (CA Earthquake Rated) You can mount the IntelliVue Smart-hopping Core Access Point onto walls using an optional California (CA) earthquake-rated wall plate. We recommend that you mount the Core AP high on the wall as close to the ceiling as possible.
  • Page 37 Mounting the IntelliVue Smart-hopping Core AP to a Wall (CA Earthquake Rated) 4. Using a 5/64-inch (2 mm) Allen (i.e., hexagonal) wrench, secure the four supplied M3 X 0.5 hex-head shoulder screws to the back of the Core AP as shown in Figure 2-6.

  • Page 38: Mounting The Intellivue Smart-Hopping Core Ap Above A Ceiling Tile

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Mounting the IntelliVue Smart-hopping Core AP Above a Ceiling Tile You can mount the IntelliVue Smart-hopping Core Access Point above a ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit (862415-K05) for the Core AP and Remote Antennas.
  • Page 39 Mounting the IntelliVue Smart-hopping Core AP Above a Ceiling Tile Use These Holes Marked AM2 Bend Down Tighten Collar Grommets Units: millimeters inches Figure 2-8: Possible Above the Ceiling Core AP Mounting Position IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-13...
  • Page 40 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Use These Holes Marked AM4 Bend Down Tighten Collar Grommets Units: millimeters inches Figure 2-9: Alternative Above the Ceiling Core AP Mounting Position 2-14...

  • Page 41: Mounting The Intellivue Smart-Hopping Core Ap Below A Ceiling Tile

    Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Fixed Mount) Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Fixed Mount) You can mount the IntelliVue Smart-hopping Access Point below a ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit (862415-K05) for the Core AP and Remote Antennas.
  • Page 42 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Units: millimeters inches Figure 2-10: Core AP Below Ceiling Tile Hole Locations and Dimensions 2-16...
  • Page 43 Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Fixed Mount) Use the Screw Locations Marked AB Figure 2-11: Core AP Below Ceiling Tile Mounting Rail Screw Locations IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-17...
  • Page 44 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Bend Down Tighten Collar Figure 2-12: Mounting the Core AP Below a Ceiling Tile (Fixed Mount) Note that there are additional holes in the mounting rails to allow for tethering to other permanent structures where local building codes require this type of installation.
  • Page 45 Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Quick Release) Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Quick Release) You can mount the IntelliVue Smart-hopping Access Point below a ceiling tile by using an optional quick release wall plate along with the mounting rails provided in the Above &...
  • Page 46 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Units: millimeters inches Figure 2-13: Core AP Below Ceiling Tile Hole Locations and Dimensions 2-20...
  • Page 47 Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Quick Release) Use the Screw Locations Marked AB Figure 2-14: Core AP Below Ceiling Tile Mounting Rail Screw Locations IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-21...
  • Page 48 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Bend Down Tighten Collar Insert M3.5 Security Screw through this View Port and Tighten Using a Torx T10 Screwdriver. Figure 2-15: Mounting the Core AP Below a Ceiling Tile (Quick Release 10.
  • Page 49 Mounting the IntelliVue Smart-hopping Core AP Below a Ceiling Tile (Quick Release) the Core AP so that the shoulder screw heads are securely in the grooves of the wall plate. 11. Using a Torx T10 screw driver, secure the Core AP to the wall plate by screwing the supplied M3 0.5 X 0.6 T-10 Torx Head security screw into the PEM nut in the wall plate as shown in Figure 2-15.
  • Page 50 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Mounting the IntelliVue Smart-hopping Remote Antenna to a Wall (Fixed Mount) You can mount the IntelliVue Smart-hopping Remote Antenna (RA) to a wall using the mounting screws and screw anchors supplied with the RA. We recommend that you mount the RA high on the wall as close to the ceiling as possible.
  • Page 51 Mounting the IntelliVue Smart-hopping Remote Antenna to a Wall (Fixed Mount) that protrude from the wall. Slide the RA chassis down so that the screw heads are securely in the grooves in the back of the RA chassis. IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-25...

  • Page 52: Mounting The Intellivue Smart-Hopping Remote Antenna To A Wall

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Mounting the IntelliVue Smart-hopping Remote Antenna to a Wall (CA Earthquake Rated) You can mount the IntelliVue Smart-hopping Remote Antenna onto walls using an optional California (CA) earthquake-rated wall plate. Use of this quick release wall plate enables you to relocate 1.4 GHz IntelliVue Smart-hopping RAs within your facility quickly and easily.
  • Page 53 Mounting the IntelliVue Smart-hopping Remote Antenna to a Wall (CA Earthquake Rated) 4. While holding the RA chassis with its antennas pointing down as shown in Figure 2-17, fit the openings in the back of the RA chassis over the two mounting studs that protrude from the wall plate, and then slide the RA chassis down so that the mounting studs are securely in the grooves in the back of the RA chassis.

  • Page 54: Mounting The Intellivue Smart-Hopping Remote Antenna Above A Ceiling Tile

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Mounting the IntelliVue Smart-hopping Remote Antenna Above a Ceiling Tile (Mounting Rails) You can mount the IntelliVue Smart-hopping Remote Antenna (RA) above a ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit (862415-K05) for the Core AP and Remote Antennas.
  • Page 55 Mounting the IntelliVue Smart-hopping Remote Antenna Above a Ceiling Tile (Mounting Rails) Unmarked Use These Holes Marked as Noted Grommets Units: millimeters inches Figure 2-18: Possible Above the Ceiling Remote Antenna Mounting Position IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-29...
  • Page 56 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Use These Holes Marked RM4 Grommets Units: millimeters inches Figure 2-19: Alternative Above the Ceiling Remote Antenna Mounting Position 2-30...

  • Page 57: Mounting The Intellivue Smart-Hopping Remote Antenna Above A Ceiling Tile

    Mounting the IntelliVue Smart-hopping Remote Antenna Above a Ceiling Tile (Tether Mount) Mounting the IntelliVue Smart-hopping Remote Antenna Above a Ceiling Tile (Tether Mount) You can mount the IntelliVue Smart-hopping Remote Antenna (RA) above a ceiling tile without the use of mounting rails if the following conditions are met: •...
  • Page 58 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point 8. Place the RA across the top of the tile. 9. Replace the tile back onto the ceiling frame structure with the RA antennas hanging down through the ceiling. Wiring connections to the RA can be accessed via the open adjacent tile.

  • Page 59: Mounting The Intellivue Smart-Hopping Remote Antenna Below A Ceiling Tile

    Mounting the IntelliVue Smart-hopping Remote Antenna Below a Ceiling Tile (Fixed Mount) Mounting the IntelliVue Smart-hopping Remote Antenna Below a Ceiling Tile (Fixed Mount) You can mount the IntelliVue Smart-hopping Remote Antenna (RA) below a ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit (862415-K05) for the Core AP and Remote Antennas.
  • Page 60 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Units: millimeters inches Figure 2-20: RA Below Ceiling Tile Hole Locations and Dimensions 2-34...
  • Page 61 Mounting the IntelliVue Smart-hopping Remote Antenna Below a Ceiling Tile (Fixed Mount) Use the Screw Locations Marked RB Figure 2-21: RA Below Ceiling Tile Mounting Rail Screw Locations IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-35...
  • Page 62 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Bend Down Tighten Collar Figure 2-22: Mounting the RA Below a Ceiling Tile (Fixed Mount) 2-36...

  • Page 63: Mounting The Intellivue Smart-Hopping Ra Below A Ceiling Tile

    Mounting the IntelliVue Smart-hopping RA Below a Ceiling Tile (Quick Release) Mounting the IntelliVue Smart-hopping RA Below a Ceiling Tile (Quick Release) You can mount the IntelliVue Smart-hopping Remote Antenna below a ceiling tile by using an optional quick release wall plate along with the mounting rails provided in the Above &...
  • Page 64 Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Units: millimeters inches Figure 2-23: RA Below Ceiling Tile Hole Locations and Dimensions 2-38...
  • Page 65 Mounting the IntelliVue Smart-hopping RA Below a Ceiling Tile (Quick Release) Use the Screw Locations Marked RB Figure 2-24: RA Below Ceiling Tile Mounting Rail Screw Locations IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide 2-39...

  • Page 66: Ap Configuration Information

    Chapter 2: Installing the IntelliVue Smart-hopping 1.4 GHz Core Access Point Bend Down Tighten Collar Figure 2-25: Mounting the RA Below a Ceiling Tile (Quick Release AP Configuration Information Refer to the IntelliVue Smart-hopping Infrastructure Installation and Service Guide for complete details about configuring the IntelliVue Smart-hopping AP. Access Point Startup Sequence Upon power on/start up, the IntelliVue Smart-hopping Core Access Point will perform a Power-on-Self-Test (POST) to ensure that its basic components are fully...
  • Page 67 Maintaining the IntelliVue Smart-hopping 1.4 GHz Core Access Point This chapter provides procedures and information for maintaining the Philips IntelliVue Smart-hopping 1.4 GHz Core Access Point and includes: • Maintenance Procedure • Troubleshooting the Core AP Using its LEDs • Replacing a Core AP or Remote Antenna •...

  • Page 68: Maintenance Procedure

    Chapter 3: Maintaining the IntelliVue Smart-hopping 1.4 GHz Core Access Point Maintenance Procedure To ensure that IntelliVue Smart-hopping 1.4 GHz Core Access Point (AP) and Remote Antenna (RA) continue to operate properly, you should perform the following maintenance tasks periodically: •...
  • Page 69 Power/Sync, Radio, Network RA Connection LEDs Status LEDs ITS4843B/C Core Access Point Figure 3-1: IntelliVue Smart-hopping Core Access Point LEDs A summary of the Core AP system status LEDs is given below to help you troubleshoot any AP operational problems that may arise.

  • Page 70: Troubleshooting The Remote Antenna Using Its Leds

    LEDs, then make written note of the LED lighting and sequence of colors, replace the unit, and send the defective unit back to Philips with the explanation of LEDs sequence and colors displayed. Refer to Chapter 4 of the IntelliVue Smart- hopping Infrastructure Installation and Service Guide for complete AP replacement procedures.

  • Page 71: Replacing A Core Ap Or Remote Antenna

    Philips Field Service Engineer/Customer Engineer or the Philips Customer Care Solutions Center for information on ordering a replacement unit and returning the defective unit. Use the following toll-free number to contact the Philips Customer Care Solutions Center: • Telephone: (+1) 800-722-9377...
  • Page 72 Chapter 3: Maintaining the IntelliVue Smart-hopping 1.4 GHz Core Access Point Table 3-1: Ordering Core Access Point Replacement Parts (ITS4843D) Description Part Number 453564235171 Radiohead 1.4 GHz Enhanced IntelliVue Smart-hopping High power Access Point with RTX Remote Antenna, 1.4 GHz. Complete AP unit includes the following: AP Case (top cover and shell), Main PC Board, Radio Module PC Board, and Two External Antennas.
  • Page 73 Ordering Replacement Parts Table 3-3: Ordering Core Access Point Replacement Parts (ITS4843B and ITS4843C) Description Part Number 453564235171 IntelliVue Core Access Point, 1.4 GHz. Complete AP unit includes the following: AP Case (top cover and shell), Main PC Board, Radio Module PC Board, and Two External Antennas.

  • Page 74: Philips Sales And Support Offices Worldwide

    Chapter 3: Maintaining the IntelliVue Smart-hopping 1.4 GHz Core Access Point Philips Sales and Support Offices Worldwide Please call your local sales office listed in your telephone directory or a regional office listed below for the location of your nearest sales office.
  • Page 75 Index Access points cluster AP descriptions 1-3 Ethernet interface on cluster APs 1-7, 1-9 illustration of 3-3, 3-4 illustration of cluster AP 1-3 mounting options for cluster AP 1-4 overview of Cluster APs 1-3 placement guidelines 2-2 serial port 1-7, 1-10 status LEDs 1-11, 3-3 Act LED 1-11, 3-3 Coaxial Cable Connectors on Core AP 1-7, 1-10...
  • Page 76 (CA earthquake rated) 2-26 to a wall (fixed mount) 2-24 Network LED 1-11, 3-3 Overview of the ITS 1-2 Philips Customer Care Solutions Center, contacting 3-5 Power over Ethernet (PoE) Unit description of 1-ix Power source 1-4...
  • Page 77 Wireless Medical Telemetry Service (WMTS) band 1-2 IntelliVue Smart-hopping 1.4 GHz Access Point Installation Guide Index-3...
  • Page 78 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
