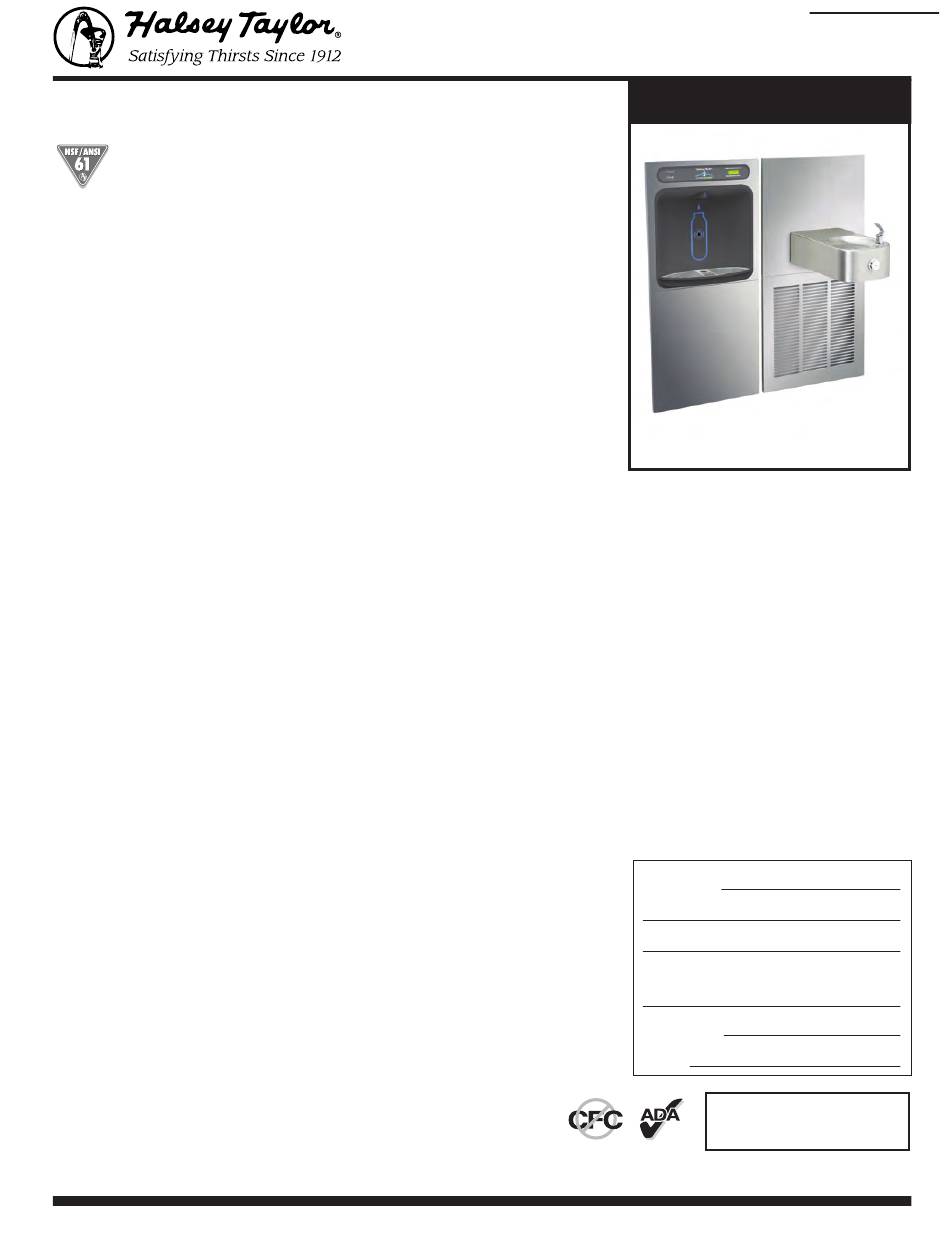

Halsey Taylor HydroBoost HTHBWF-HRFER Quick Start Manual

MODEL HTHBWF-HRFER
These water coolers are certified to
NSF/ANSI 61 and 372.
GENERAL

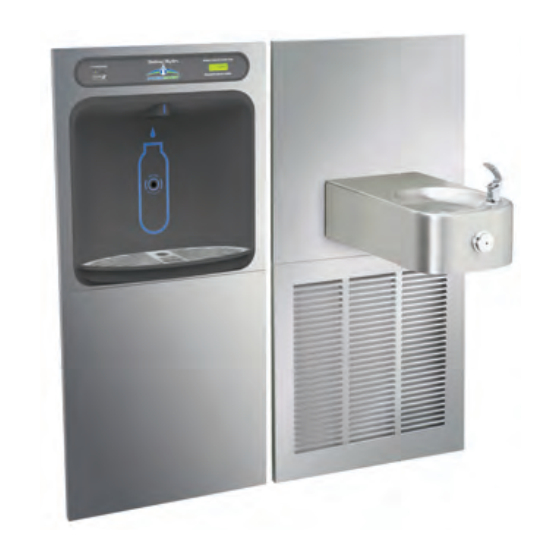

In-wall, recessed bottle filling station paired
with the single Contour refrigerated fountain ™
Includes 3000 gallon capacity WaterSentry
Plus filtration system.
HYDROBOOST BOTTLE FILLER ®
In-wall, recessed design with solid lower panel.
Quick fill rate is 1.1 gallons per minute. Includes
laminar flow to provide a clean fill with minimal
splash and easy maintenance. Equipped with
automatic 20-second shut-off timer. User inter-
face design makes touchless operation intuitive.
Key plastic components are integrated with silver
ion anti-microbial protection to inhibit growth of
mold and mildew.
Designed with hinged top and bottom stainless
steel panels for easy access and service.
GREEN COUNTER
™
Visually displays count of plastic bottles saved
from waste. (Based on 16 oz. bottles)
®
WATERSENTRY PLUS FILTRATION
Equipped with the HWF3000 WaterSentry Plus
Filter which is designed to reduce lead particles
and chlorine. Also reduces discoloration and
odors from incoming water. Features include the
Quick-Disconnect,1/4 turn installation and auto
inlet shut-off valve that closes when the filter is
removed.
Green, yellow, and red LEDs visually indicate
when filter maintenance is required. For service
replacement, order as:
55898C - Single replacement filter
55898C_3PK - Filter three pack.
55898C_12PK - Filter twelve pack.
55898C_24PK - Filter twenty-four pack.
55898C_48PK - Filter forty-eight pack.
FOUNTAIN
Features contoured basin and softly rounded corners
and edges.
HALSEY TAYLOR DOUBLE BUBBLER
Exclusive one-piece, chrome-plated two-stream mound-
building bubbler with non-removable anti-squirt feature
and integral hood insures a satisfying drink of water.
AUTOMATIC STREAM HEIGHT REGULATOR
Self-closing assembly is located inside unit to prevent
tampering. A constant stream height is automatically
maintained under line pressure that varies from 20 to
105 psi.
PUSHBUTTON ACTIVATION
Self-closing, vandal-resistant pushbutton does not
require grasping or twisting.
MOUNTING FRAMES
Manufactured from corrosion resistant, galvanized
steel. Open construction design for ease of installation.
Mounting frames can be shipped in advance for rough-
in installation.
SUGGESTED SPECIFICATION
Model HTHBWF-HRFER provides 8.0 gph
of 50ºF drinking water at 90ºF ambient and 80ºF
®
inlet water. Bottle filler shall be recessed design
and include electronic sensor activation with 20-
second automatic water shut-off. Shall provide
1.1 gpm flow rate with laminar flor to prevent
splashing. Shall include anti-microbial protected
plastic components to prevent mold and mildew.
Shall include WaterSentry Plus filter, certified to
NSF/ANSI 61 and 372 for lead reduction, with
visual monitor to indicate when replacement is
necessary. Shall include visual display of plastic
bottles saved from waste. Fountain shall be oval
design with self-closing pushbars and contoured
basin. Shall include water conservation bubbler
with auto stream height regulator. Shall include
SJ8 water chiller. Shall meet ADA guidelines for
reach ranges, when properly installed. Shall be
lead-free design which meets the Safe Drinking
Water Act and is certified to NSF/ANSI 61 & 372.
Shall be certified to UL399 and CAN/CSA 22.2
®
No. 120 electrial requirements.
™
halseytaylor.com
HALSEY TAYLOR, 2222 CAMDEN COURT, OAK BROOK, ILLINOIS 60523
HydroBoost In-Wall Bottle Filler
®
Each HTHBWF-HRFER is shipped in 6 cartons
including:
HYDROBOOST Station with Solid Lower Panel
HRF-ER Fountain
Mounting Frames (2)
HWF3000 WaterSentry
Cooling unit - SJ8
NOTE: Continued product improvement makes
specifications subject to change without
notice. See Halsey Taylor website for most
current spec sheet.
