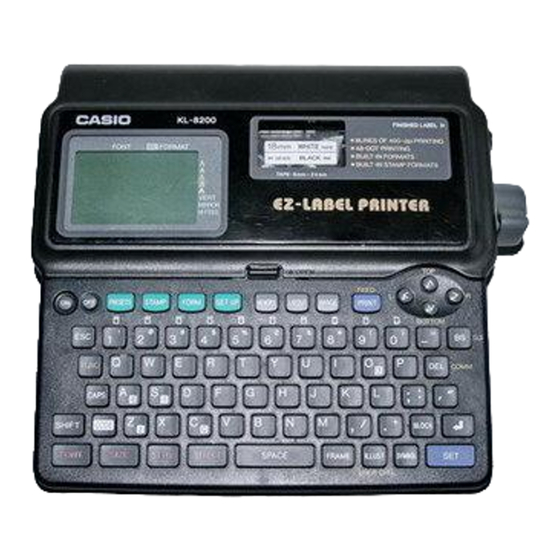

LABEL PRINTER
KL-8200
(ZX-579)
OCT. 1996
KL-8200
R

Advertisement

Table of Contents
loading

Summary of Contents for Casio KL-8200

  • Page 1 (without price) LABEL PRINTER KL-8200 (ZX-579) OCT. 1996 KL-8200...
  • Page 2: Table Of Contents

    CONTENTS 1. SPECIFICATIONS --------------------------------------------------------------------------------- 1 2. MEASUREMENT ----------------------------------------------------------------------------------- 2 3. CLEANING THE PRINTER HEAD AND ROLLER ---------------------------------------- 2 4. RESET OPERATION ----------------------------------------------------------------------------- 3 5. BLOCK DIAGRAM -------------------------------------------------------------------------------- 4 6. PRECAUTIONS ------------------------------------------------------------------------------------ 5 7. LSI PIN FUNCTION ------------------------------------------------------------------------------- 6 8. DIAGNOSTIC PROGRAM ----------------------------------------------------------------------- 7 9.
  • Page 3: Specifications

    1. SPECIFICATIONS Model: KL-8200 Input Keyboard layout: Typewriter (QWERTY) Character Types Alpha (English and other languages): 52 (A ~ Z, a ~ z), 99 (Á, ß, Ç, Z etc.) Numbers: Symbols/Greek and Russian characters: Illustrations: Display Type: Liquid crystal display...
  • Page 4: Measurement

    2. MEASUREMENT 1. DC POWER SOURCE 50 mA BACK UP 10 µA DISPLAY (OFF) 20 mA 1000 mA 25 µA POWER OFF PRINTING 850 mA 2. CHECK VOLTAGE 4.5 V ± 2.5 % 2.5 V ± 2.5 % OFF VOLTAGE LOW BATTERY VOLTAGE (Note: Test voltage: DC 12 V ±...
  • Page 5: Reset Operation

    4. RESET OPERATION Resetting initialize the memory You should reset the memory of the label printer before using it for the first time, after you have not used it for a long time, or if nothing happens when you turn power on. Important! Resetting label printer memory clears its memory of all input data.
  • Page 6: Block Diagram

    5. BLOCK DIAGRAM — 4 —...
  • Page 7: Precautions

    6. PRECAUTIONS To prevent damage of the thermal head caused by static electricity when assembling the chassis ass’y into the unit, the following steps must be followed; 1. Turn the power switch off. 2. Discharge the capacitor C302 on the PCBZ570-3. 3.
  • Page 8: Lsi Pin Function

    7. LSI PIN FUNCTION CPU (T6C37): LSI1 Name I / O Function Read signal for memory devices Write signal for memory devices +5 V source 4~15, 17~25 A0~A11, EA12~EA20 Address bus Ground (0 V) source +5 V source Chip enable signal for ROM Chip enable signal for RAM RNK1 Thermal head rank setting...
  • Page 9: Diagnostic Program

    8. DIAGNOSTIC PROGRAM Note: Make the reset operation after RAM check, because the RAM check break the data stored in RAM. Check item Operation Display N o t e (BOOT) Press ON while pressing Main menu 0:ALL 1:RAM 8:CP keys, SPACE + P Whenever returning to the main 2:LCD 3:KEY...
  • Page 10 (6 COM) press any key. PRINT CHECK-2 Refer to the following figure-2. NOW PRINTING (7 PR2) When finisned printing it will CASIO COMPUT return to the main menu. CASIO COMPUT CASIO COMPUT CP CHECK Press after To return to the main menu,...
  • Page 11: Error Messages

    9. ERROR MESSAGES Message Cause and Recommended Action SAME NAME ALREADY Name being assigned to a preset format is already used. Use a different name. USED! DATA ITEM NOT No match for characters specified for a search operation. Change to other FOUND! characters or use sequential search.
  • Page 12: Schematic Diagrams

    10. SCHEMATIC DIAGRAMS 10-1. Main Block — 10 —...
  • Page 13: Power Supply

    10-2. Power Supply — 11 —...
  • Page 14: Lcd Block

    10-3. LCD Block — 12 —...
  • Page 15: Sub Block

    10-4. Sub Block — 13 —...
  • Page 16: Parts List

    2105 2331 MOS-IC S-80745AN-D9-T1 2259 0959 CHIP DIGITAL TRANSISTOR DTC114YKT-146 2390 0364 SCHOTTKY DIODE MA713-TX 6408 3580 STRAND WIRE SUB ASS'Y A414306*1 The following electronic parts will be not supplied from CASIO. R100 CHIP JUMPER MCR10EZHJ000 R15~16 CHIP RESISTOR MCR10EZHJ470 R13~14...
  • Page 17 3335 4592 LCD LD-B8288A 5610 7620 HEAT SEAL A-L277 A313215-1 5610 7630 HEAT SEAL B-L277 A313216-1 6407 9310 PC JOINER A-L277 A414075-1 The following electronic parts will be not supplied from CASIO. R203 CHIP RESISTOR MCR10EZHJ124 R202 CHIP RESISTOR MCR10EZHJ334 R201...
  • Page 18: Exploded View

    12. EXPLODED VIEW — 16 —...
  • Page 20 MA1200661A...
