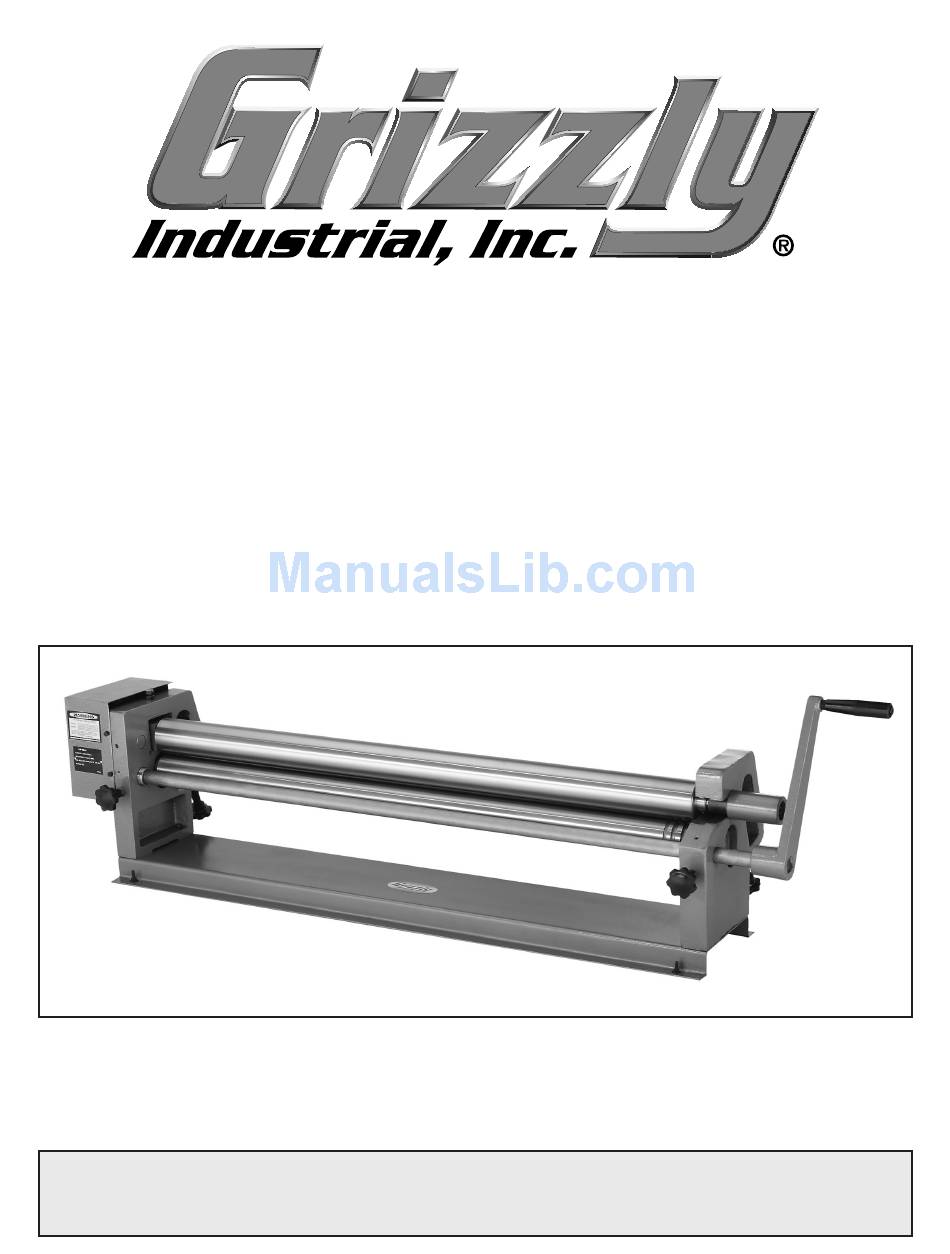

INtRODUctION foreword We are proud to offer the Model g5771 50" slip roll. this machine is part of a growing grizzly family of fine metalworking machinery. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of grizzly’s com-...
Identification List (figures 1 and 2) A. gear assembly Cover b. upper roller c. rear roller D. removable Bushing E. Crank radius adjustment Knob G. thickness adjustment Knob h. lower roller Crank shaft roller Sample Illustration (figure 2) throughout this manual, diagrams are used to illustrate how the components of the machine are used during the various steps of operation.
Machine Data Sheet MACHINE DATA SHEET GRIZZLY MODEL G5771 50" SLIP ROLL Overall Dimensions: Capacities: Construction: Features: Specifications, while deemed accurate, are not guaranteed. g5771 50" slip roll 16 gauge...
Additional Safety for Slip Rolls MEtAL EDGES. always chamfer and de- burr sharp metal edges before inserting them into the slip roll. sharp edges on sheet metal can cause severe cuts. hAND PROtEctION. always wear leather gloves when using this tool. PINchING hAzARD.
SEctION 2: SEtUP Setup Safety this machine presents serious injury hazards to untrained users. Read through this entire manu- al to become familiar with the controls and opera- tions before starting the machine! Wear safety glasses dur- ing the entire setup pro- cess! this machine and its com- ponents are very heavy.
Inventory the following is a description of the main compo- nents shipped with your machine. lay the compo- nents out to inventory them. Note: If you can't find an item on this list, check the mounting location on the machine or examine the packaging materials carefully.
G2544—Solvent cleaner & Degreaser a great product for removing the waxy shipping grease from your machine during clean up. figure 4. Cleaner/degreaser available from grizzly. g5771 50" slip roll 16 gauge Site considerations floor Load refer to the Machine Data Sheet for the weight and footprint specifications of your machine.
Assembly the Model g5771 comes from the factory almost fully assembled. all that is required to assemble are the crank and handle. to assemble your machine: thread the crank handle into the small end of the crank and tighten, as shown in figure 6. Crank handle Crank figure 6.
OMMEND that you read books, trade maga- zines, or get formal training before begin- ning any projects. Regardless of the con- tent in this section, Grizzly Industrial will not be held liable for accidents caused by lack of training. g5771 50" slip roll 16 gauge...
Preparation Before every use, follow these procedures to set up your slip roll for safe, accurate, and efficient use. to prepare the slip roll for use: turn the thickness adjust knob to lower the lower roller to approximately upper roller. use calipers or a spacer to set the distance between the rollers evenly at each end (figure 12).
remove the workpiece from between the rollers, then raise the lower roller slightly by rotating each thickness adjust knob approxi- mately ⁄ turn. also, make sure the rear roller is lowered completely and will not interfere with the workpiece as it exits the machine (figure 15).
Page 18
turn the crank clockwise to feed the workpiece until its edge is directly above the rear roller, as shown in figure 18. figure 18. Feeding the workpiece. turn the radius adjust knobs to lift the rear roller until the desired radius bend is reached (figure 19).
creating cylinders the Model g5771 slip roll can be used to easily and accurately create cylinders. if you know the diameter of the cylinder you want to create, use the formula below to calculate the length of material needed. c=πD C=Circumference (length of Material needed) π=pi (approximately 3.142)
Page 20
turn the crank clockwise to feed the workpiece until it is approximately half way through the rollers. turn the radius adjust knobs to lift the rear roller until the desired radius bend is reached (figure 23). Make sure to turn the knobs equal amounts so the rear roller is always parallel with the other rollers.
Continue to process the workpiece until the cylinder is formed, as shown in figure 27. —if the ends of the cylinder do not meet, lift the rear roller equally at both ends, then process the entire cylinder through the slip roll again.
Removing Workpiece to remove cylindrical workpieces: loosen the hex bolt and jam nut that secure the upper roller at the gearbox (figure 29). upper roller Jam nut Bushing Bolt figure 29. Hex bolt and jam nut. slide the removable bushing outward. this will release the upper roller from the stand (figure 30).
aCCessories SEctION 4: AccESSORIES G5618—Deburring tool with two blades the quickest tool for smoothing freshly sheared metal edges. Comes with two blades, one for steel and aluminum and one for brass and cast iron. figure 33. Model g5618 deburring tool. G2871—boeshield t-9 12 oz Spray ®...
Page 24
G4956—Super Nibbler the super nibbler is just the ticket for cutting sheet metal up to ⁄ " thick. extremely narrow headed design allows cuts in hard-to-reach areas, yet still features a safety guard to prevent flying splinters. ⁄ " overall. figure 37.
SEctION 5: MAINtENANcE Schedule For optimum performance from your machine, follow this maintenance schedule and refer to any specific instructions given in this section. Daily check: • loose mounting bolts. • any other unsafe condition. Weekly Maintenance: • Clean machine. •...
SEctION 6: SERvIcE review the troubleshooting and procedures in this section to fix or adjust your machine if a problem devel- ops. if you need replacement parts or you are unsure of your repair skills, then feel free to call our technical support at (570) 546-9663.
REF PART # DESCRIPTION P5771001 BASE PW06M FLAT WASHER 12MM PLW05M LOCK WASHER 12MM PB75M HEX BOLT M12-1.75 X 35 P5771005 LIFT STAND PK19M KEY 5 X 5 X 14 P5771007 SETTING KNOB P5771008 SET SCREW M10 X 30 P5771009 RIGHT STAND P5771010 GEAR LOCKING SHAFT...
