Zennio MINiBOX 0-10V X3 Technical Documentation

3 fold 0-10V analog input/output multifunction module
ZIO3X010
FEATURES
•
3 connections than can be configured as 0-10V output, 0-10V input or
4-20mA input
•
Manual operation of the 0-10VDC outputs
•
1 fan coil module
•
3 thermostats
•
10 logic functions
•
Total data saving on power failure
•
Integrated KNX BCU
•
Dimensions 67 x 90 x 36mm (2 DIN units)
•
DIN rail mounting according to IEC 60715 TH35, with fixing clamp
•
Conformity with the CE directives (CE-mark on the right side)
1. Multifunction inputs/outputs
5. Programming/Test LED
Programming/Test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode.
Programming/Test LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. The manual mode
is indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it emits a red flash.
GENERAL SPECIFICATIONS
CONCEPT
Type of device
Voltage (typical)
Voltage range
KNX supply Maximum
consumption
Connection type
External power supply
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Minimum clearances
Response on KNX bus failure
Response on KNX bus restart
Operation indicator
Weight
PCB CTI index
Housing material
¹ Maximum consumption in the worst-case scenario (KNX Fan-In model).
© Zennio Avance y Tecnología S.L.
2. 0-10V output status LED
6. KNX connector
Voltage
29VDC (typical)
24VDC¹
Edition 1
3
4
5
3. 0-10V output control button
DESCRIPTION
Electric operation control device
29VDC SELV
21..31VDC
mA
18.5
25
Typical TP1 bus connector for 0.80mm Ø rigid cable
Not required
0°C .. +55°C
-20°C .. +55°C
5 .. 95%
5 .. 95%
Class B
III
Continuous operation
Type 1
Long
IP20, clean environment
Independent device to be mounted inside electrical panels with DIN rail (IEC
60715)
Not required
Data saving according to parameterization
Data recovery according to parameterization
The programming LED indicates programming mode (red) and test mode
(green). Each output LED indicates its status
80g
175V
PC FR V0 halogen free
Further information
MINiBOX 0-10V X3
TECHNICAL DOCUMENTATION
2
6

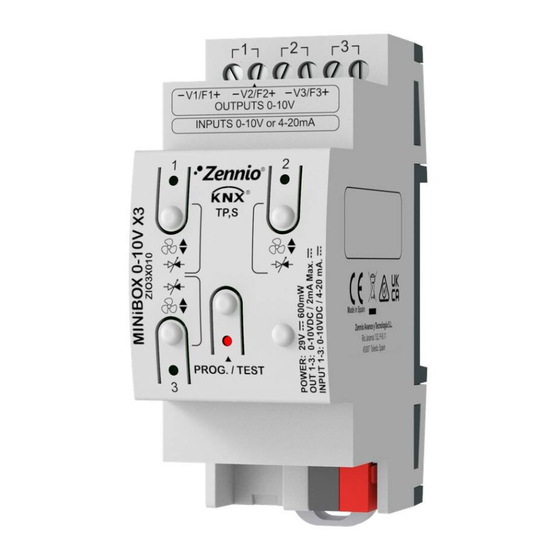

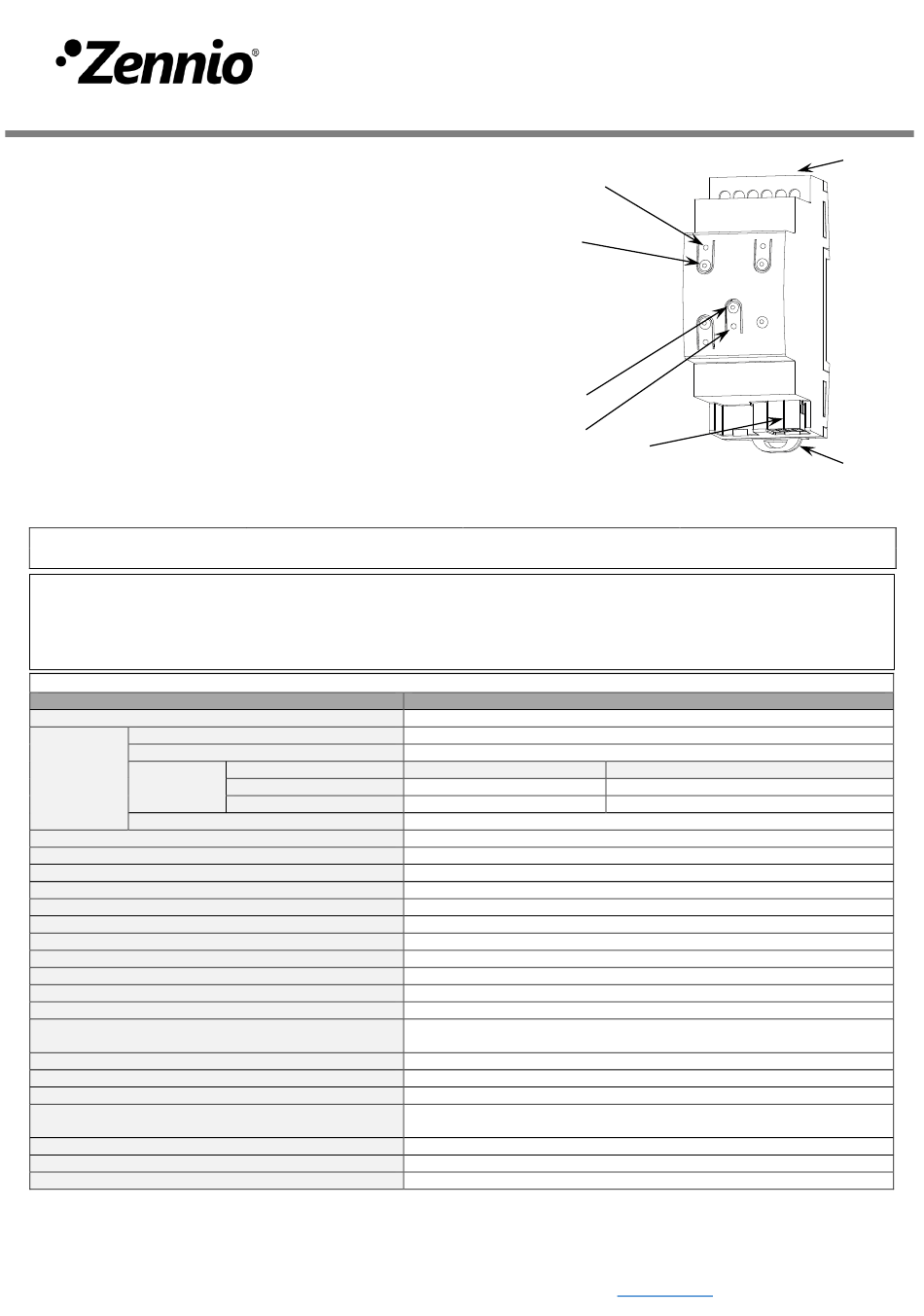

Figure 1: MINiBOX 0-10V X3
4. Programming/Test button
7. Fixing clamp
mW
536.5
600
www.zennio.com
1
7
Page 1/2
