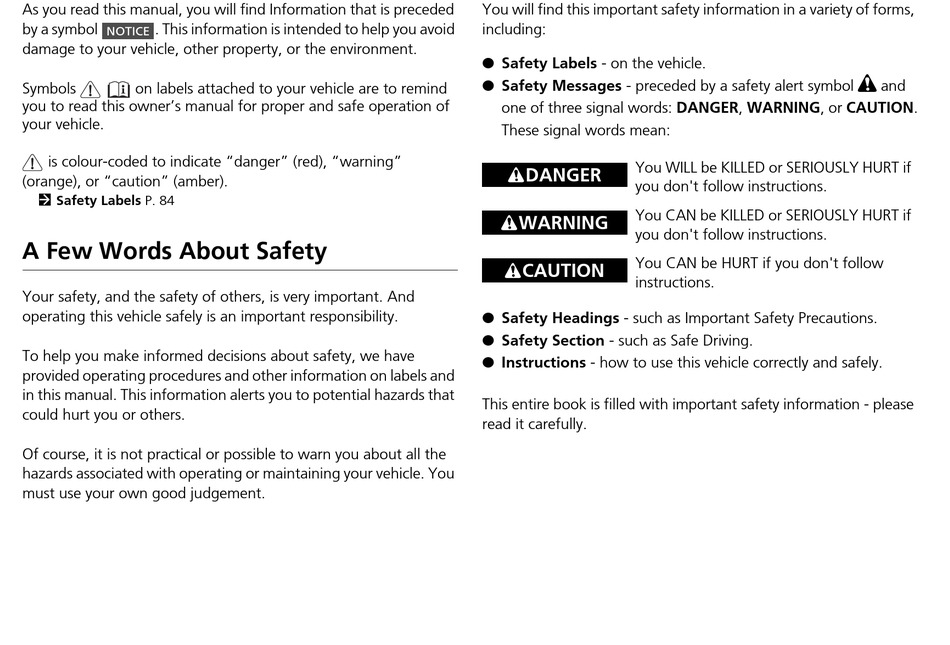

Page 1 As you read this manual, you will find Information that is preceded You will find this important safety information in a variety of forms, by a symbol . This information is intended to help you avoid including: NOTICE damage to your vehicle, other property, or the environment. ●...
Page 2 However this data may be accessed by Honda, its authorised However this data may be accessed by Honda, its authorised dealers and authorised repairers, employees, representatives and...
Page 3: Table Of Contents
Audio System Basic Operation P. 235 Customized Features P. 290 The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. 2 Driving P. 325 Before Driving P. 326 Towing a Trailer P.
Page 4 P. 227 Honda Sensing P. 358 Braking P. 406 Parking Your Vehicle P. 415 Driving P. 325 Honda Smart Parking Assist System P. 439 Refueling P. 467 Turbo Engine Vehicle P. 472 Maintenance P. 473 Maintenance Schedule P. 482 Maintenance Under the Bonnet P. 486 Replacing Light Bulbs P.
Page 5 Quick Reference Guide Visual Index Right-hand drive models ❙ Hazard Warning Button ❙ Audio System (P 228) ❙ Navigation System () See Navigation System Manual ❙ System Indicators (P 86) ❙ Gauges (P 125) ❙ Driver Information Interface (P 126) ❙...
Page 6 Left-hand drive models ❙ Brightness Control (P 188) ❙ TRIP Button (P128 ) ❙ System Indicators (P 86) ❙ Gauges (P 125) ❙ Driver Information Interface (P 126) ❙ Audio System (P 228) ❙ Navigation System () See Navigation System Manual ❙...
Page 7 Visual Index ❙ Wipers/Washers (P 186) ❙ CAMERA Button (P 430) ❙ Headlights/Turn Signals (P 176,177) ❙ Fog Lights (P 180) ❙ LaneWatch (P 356) ❙ Paddle Shifter (Shift down) (P 343) ❙ Left Selector Wheel (P 126) ❙ (home) Button (P 126) ❙...
Page 8 Right-hand drive models ❙ Passenger’s Front Airbag (P 47) ❙ Accessory Power Socket (P 215) ❙ Shift Lever Continuously Variable Transmission (CVT) (P 339, 341) ❙ Driver’s Front Airbag (P 47) ❙ Interior Fuse Box (P 559) ❙ Memory Buttons (P 192) ❙...
Page 9 Visual Index Left-hand drive models ❙ Power Window Switches (P 168) ❙ Master Door Lock Switch (P 161) ❙ Door Mirror Controls (P 195) ❙ Driver’s Front Airbag (P 47) ❙ USB Port (P 229) ❙ Passenger’s Front Airbag (P 47) ❙...
Page 10 ❙ Rearview Mirror (P 194) ❙ Front Map Lights (P 208) ❙ Sunroof Switch (P 171) ❙ Sunglasses Holder (P 220) ❙ Sun Visors ❙ Vanity Mirrors ❙ Side Curtain Airbags (P 52) ❙ Seat Belts (P 34) ❙ Ceiling Light (P 207) Models without sunroof ❙...
Page 11 Visual Index ❙ Maintenance Under the Bonnet (P 486) ❙ Windscreen Wipers (P 186, 506) ❙ Power Door Mirrors (P 195) ❙ Side Turn Signal/Emergency Indicator Lights (P 176, 497) ❙ Door Lock/Unlock Control (P 154) ❙ Headlights (P 177, 497) ❙...
Page 12 Eco Assist System (P346) Ambient Meter Ambient Meter ● With SPORT mode off, the colour of the ambient meter changes to green to indicate that the vehicle is being driven in a fuel efficient manner. The message is displayed for a few seconds when the ECON button is pressed.
Page 13 Safe Driving (P29) Before Driving Checklist (P30) ● Before driving, check that the front seats, head restraints, steering wheel, and mirrors have been properly adjusted. Seat Belts (P34) ● Fasten your seat belt and sit upright well back in the seat. ●...
Page 14 Instrument Panel (P85) Indicators /Driver Information Interface /Gauges (P86) (P126) (P125) Head-Up Display (P144) Immobilizer System Indicator/ Security System Alarm Indicator Head-Up Display Speedometer Driver Information Interface Turbo Meter Fuel Gauge Tachometer M (7-speed manual shift mode) Indicator Shift Indicator Temperature Gauge Shift Lever Position Indicator/ Transmission System Indicator...
Page 15 Controls (P149) Clock Turn Signals Select Set Date or Set Time. (P150) (P176) To adjust time Adjust the dates, hours and minutes by Right-hand drive models selecting Left Turn Select Save to set the date or time. The clock is automatically updated through the GPS, so the time does not need to be adjusted.
Page 16 Lights Wipers and Washers Models with automatic intermittent wipers (P177) AUTO should always be turned OFF before (P186) the following situations in order to prevent Light Control Switches severe damage to the wiper system: Wiper/Washer Control Lever ● Cleaning the windscreen High Beam Adjustment Ring ●...
Page 17 Unlocking the Driver’s Boot Power Windows (P164) (P168) Door from the Inside ● Press the boot opener on the driver’s ● With the power mode is ON, open and door to unlock and open the boot. close the power windows. (P160) ●...
Page 18 Climate Control System (P223) ● Press the AUTO button to activate the climate control system. ● Press the button to turn the system on or off. ● Press the button to defrost the windscreen. Dashboard vents and Dashboard and floor Floor vents Floor and vents, and back of...
Page 19 Features (P227) ● Audio Remote Controls (Seek/Skip) Buttons Roll up or down: To cycle through the Radio: Press to change the (P 232) audio modes, roll up or down and then preset station. press the left selector wheel: (home) Button iPod, USB device, Bluetooth®...
Page 20 Audio System (P 235) For navigation system operation () See the Navigation System Manual Audio/Information Screen (Clock) Button (Map) Button (Home) Button (Back) Button (Phone) Button (Day/Night) Button (Audio) Button SOURCE Button (Seek/Skip) Button (Seek/Skip) Button Selector Knob VOL/ (Volume/Power) Knob * Not available on all models...
Page 21 Driving (P325) Continuously Variable Transmission 7-Speed Manual Shift Mode (P343) ● Allows you to manually shift the transmission up or down without (P 339, 341) removing your hands from the steering wheel. ● Shift to and depress the brake pedal when starting the engine.
Page 22 VSA On and Off Deflation Warning (P352) ● The Vehicle Stability Assist (VSA) system System (P 354) helps to stabilise the vehicle during ● Detects a change in tyre conditions and cornering, and helps to maintain traction overall dimensions due to decrease in tyre while accelerating on loose or slippery pressures.
Page 23 Refueling (P467) Fuel recommendation: Thai models Unleaded petrol/gasohol up to E85 (15% petrol and 85% ethanol), research octane number 91 or higher Except Thai models Unleaded petrol, research octane number 91 or higher Fuel tank capacity: 56 L Unlock the driver’s door using the master door lock switch.
Page 24 Honda Sensing (P358) Collision Mitigation Lane Keeping Assist Honda Sensing is a driver support system which employs the use of two distinctly Braking System (CMBS) System (LKAS) (P 386) different kinds of sensors, a radar sensor located at the lower part of the front...
Page 25 Maintenance (P473) Under the Bonnet (P486) ● Check engine oil, engine coolant, and windscreen washer Wiper Blades (P506) fluid. Add when necessary. ● Replace blades if they leave streaks ● Check brake fluid. across the windscreen. ● Check the battery condition monthly. Pull the bonnet release handle under the corner of the dashboard.
Page 26 Handling the Unexpected (P531) Flat Tyre Engine Won’t Start Overheating (P533) (P541) (P549) ● If the battery is dead, jump start using a ● Park in a safe location. If you do not see ● Park in a safe location and replace the booster battery.
Page 27 What to Do If The power mode does not The steering wheel may be locked. ● change from VEHICLE OFF Move the steering wheel left and right while ● pressing the ENGINE START/STOP button. (LOCK) to ACCESSORY. Why? The power mode does not The shift lever should be moved to change from ACCESSORY to VEHICLE OFF (LOCK).
Page 28 Why do the doors lock If you do not open the doors within 30 seconds, the doors are after I unlocked the doors? relocked automatically for security. Why does the beeper The beeper sounds when: sound when I open the The power mode is in ACCESSORY.
Page 29 Depressing the accelerator Fasten the driver’s seat belt. ● pedal does not release the Check if the transmission is in . If so, select any other ● parking brake position. automatically. Why? Why do I hear a screeching The brake pads may need to be replaced. Have your vehicle sound when I apply the inspected by a dealer.
Page 30: Safe Driving
Safe Driving You can find many safety recommendations throughout this chapter, and throughout this manual. For Safe Driving Front Airbags (SRS) ......47 Exhaust Gas Hazard Important Safety Precautions....30 Side Airbags........50 Carbon Monoxide Gas....... 83 Your Vehicle’s Safety Features.... 32 Side Curtain Airbags ......
Page 31: For Safe Driving
For Safe Driving The following pages explain your vehicle’s safety features and how to use them properly. The safety precautions below are ones that we consider to be among the most important. 1Important Safety Precautions Important Safety Precautions Some countries prohibit the use of mobile phones ■...
Page 32 uuFor Safe DrivinguImportant Safety Precautions ■ Pay appropriate attention to the task of driving safely Engaging in mobile phone conversation or other activities that keep you from paying close attention to the road, other vehicles, and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert some attention away from driving.
Page 33: Your Vehicle's Safety Features
uuFor Safe DrivinguYour Vehicle’s Safety Features Your Vehicle’s Safety Features 1Your Vehicle’s Safety Features Your vehicle is equipped with many features that work together to help to protect you and your passengers during a crash. Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering...
Page 34: Safety Checklist
uuFor Safe DrivinguSafety Checklist Safety Checklist For the safety of you and your passengers, make a habit of checking these items 1Safety Checklist each time before you drive. If the door and/or boot open message appears on the • Adjust your seat to a position suitable for driving. Be sure the front seats are driver information interface, a door and/or the boot is not completely closed.
Page 35: Seat Belts
Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you 1About Your Seat Belts connected to the vehicle so that you can take advantage of many built-in safety WARNING features. They also help to keep you from being thrown against the inside of the vehicle, against any passengers, or out of the vehicle.
Page 36 uuSeat BeltsuAbout Your Seat Belts ■ Lap/shoulder seat belts 1About Your Seat Belts All five seating positions are equipped with lap/shoulder seat belts with emergency Seat belts cannot completely protect you in every locking retractors. In normal driving the retractor lets you move freely while keeping crash.
Page 37 uuSeat BeltsuAbout Your Seat Belts ■ Seat Belt Reminder 1Seat Belt Reminder The indicator will also come on if a front passenger ■ Front seats does not fasten their seat belt within six seconds after The seat belt system includes an indicator on the power mode is set to ON.
Page 38 uuSeat BeltsuAbout Your Seat Belts ■ Rear seats : Latched Your vehicle monitors rear seat belt use. The driver information interface notifies you if : Unlatched any of the rear seat belts are used. The display appears when: • A rear door is opened or closed. •...
Page 39 uuSeat BeltsuAbout Your Seat Belts ■ 1Automatic Seat Belt Tensioners Automatic Seat Belt Tensioners The seat belt tensioners can only operate once. The front seats and the outer rear seats are equipped with automatic seat belt If a tensioner is activated, the SRS indicator will come tensioners to enhance safety.
Page 40: Fastening A Seat Belt
uuSeat BeltsuFastening a Seat Belt Fastening a Seat Belt After adjusting a front seat to the proper position, and while sitting upright and well 1Fastening a Seat Belt back in the seat: No one should sit in a seat with an inoperative seat 2 Adjusting the Seats P.
Page 41 uuSeat BeltsuFastening a Seat Belt 3. Position the lap part of the belt as low as 1Fastening a Seat Belt possible across your hips, then pull up on WARNING the shoulder part of the belt so the lap part Lap belt as low as fits snugly.
Page 42 uuSeat BeltsuFastening a Seat Belt ■ 1Adjusting the Shoulder Anchor Adjusting the Shoulder Anchor After an adjustment, make sure that the shoulder The front seats have adjustable shoulder anchors to accommodate taller and shorter anchor position is secure. occupants. 1. Move the anchor up and down while The shoulder anchor height can be adjusted to four pushing the release button.
Page 43 uuSeat BeltsuFastening a Seat Belt ■ 1Advice for Pregnant Women Advice for Pregnant Women Each time you have a checkup, ask your doctor if it is If you are pregnant, the best way to protect yourself and your unborn child when okay for you to drive.
Page 44: Seat Belt Inspection
uuSeat BeltsuSeat Belt Inspection Seat Belt Inspection Regularly check the condition of your seat belts as follows: 1Seat Belt Inspection WARNING • Pull each belt out fully, and look for frays, cuts, burns, and wear. • Check that the latch plates and buckles work smoothly and the belts retract Not checking or maintaining seat belts can easily.
Page 45: Anchorage Points
uuSeat BeltsuAnchorage Points Anchorage Points When replacing the seat belts, use the Front Seat anchorage points shown in the images. The front seats have a lap/shoulder belt. The rear seat has three lap/shoulder belts. Rear Seat...
Page 46: Airbags
Airbags Airbag System Components The front, front side, and side curtain • An electronic control unit that, when the airbags are deployed according to the power mode is in ON, continually direction and severity of impact. The airbag monitors information about the various system includes: impact sensors, seat and buckle sensors, airbag activators, seat belt tensioners,...
Page 47 uuAirbagsuAirbag System Components ■ 1Important Facts About Your Airbags Important Facts About Your Airbags Do not attempt to deactivate your airbags. Together, Airbags can pose serious hazards. To do their job, airbags must inflate with airbags and seat belts provide the best protection. tremendous force.
Page 48: Types Of Airbags
uuAirbagsuTypes of Airbags Types of Airbags Your vehicle is equipped with three types of airbags: 1Types of Airbags • Front airbags: Airbags in front of the driver’s and front passenger’s seats. The airbags can inflate whenever the power mode is •...
Page 49 uuAirbagsuFront Airbags (SRS) ■ Operation Front airbags are designed to inflate during moderate-to-severe frontal collisions. When the vehicle decelerates suddenly, the sensors send information to the control unit which signals one or both front airbags to inflate. A frontal collision can be either head-on or angled between two vehicles, or when a vehicle crashes into a stationary object, such as a concrete wall.
Page 50 uuAirbagsuFront Airbags (SRS) ■ When front airbags should not deploy Minor frontal crashes: Front airbags were designed to supplement seat belts and help to save lives, not to prevent minor scrapes, or even broken bones that might occur during a less than moderate-to-severe frontal crash. Side impacts: Front airbags can provide protection when a sudden deceleration causes a driver or front passenger to move towards the front of the vehicle.
Page 51: Side Airbags
uuAirbagsuSide Airbags Side Airbags The side airbags help to protect the torso and pelvis of the driver or a front 1Side Airbags passenger during a moderate-to-severe side impact. Do not attach accessories on or near the side airbags. They can interfere with the proper operation of the ■...
Page 52 uuAirbagsuSide Airbags ■ When a side airbag deploys with little or no visible damage Because the airbag system senses sudden acceleration, a strong impact to the side of the vehicle’s framework can cause a side airbag to deploy. In such cases, there may be little or no damage, but the side impact sensors detected a severe enough impact to deploy the airbag.
Page 53: Side Curtain Airbags
uuAirbagsuSide Curtain Airbags Side Curtain Airbags The side curtain airbags help to protect the heads of the driver and passengers in 1Side Curtain Airbags outer seating positions during a moderate-to-severe side impact. The side curtain airbags are most effective when an occupant is wearing their seat belt properly and ■...
Page 54: Airbag System Indicators
uuAirbagsuAirbag System Indicators Airbag System Indicators If a problem occurs in the airbag system, the SRS indicator will come on and a message appears on the driver information interface. 1Supplemental Restraint System (SRS) Indicator WARNING ■ Supplemental Restraint System (SRS) Indicator Ignoring the SRS indicator can result in ■...
Page 55: Airbag Care
uuAirbagsuAirbag Care Airbag Care You do not need to, and should not, perform any maintenance on or replace any 1Airbag Care airbag system components yourself. However, you should have your vehicle The removal of airbag components from the vehicle is inspected by a dealer in the following situations: prohibited.
Page 56: Pop-Up Hood System
Pop-up Hood System About the Pop-up Hood System The pop-up hood system is designed to help to reduce the possible head injuries of 1About the Pop-up Hood System a pedestrian if they experience a frontal impact with your vehicle. WARNING ■...
Page 57 uuPop-up Hood System uAbout the Pop-up Hood System The following conditions may also activate the system. 1About the Pop-up Hood System • A severe impact on the underside of your vehicle. For the pop-up hood system to work properly: • Driving over speed bumps at high speed, or over a large pothole. •...
Page 58: Pop-Up Hood System Care
uuPop-up Hood System uPop-up Hood System Care ■ 1System Warning Message for Pop-up Hood System Warning Message for Pop-up Hood ■ WARNING When the power mode is set to ON A system warning message appears on the Ignoring the pop-up hood message can driver information interface if there is a result in a malfunction of the pop-up hood.
Page 59: Child Safety
Child Safety Protecting Child Passengers Each year, many children are injured or killed in vehicle crashes because they are 1Protecting Child Passengers either unrestrained or not properly restrained. In fact, vehicle crashes are the Front Passenger’s Sun Visor number one cause of death of children aged 12 and under. WARNING To reduce the number of child deaths and injuries, infants and children should be properly restrained when they ride in a vehicle.
Page 60 uuChild SafetyuProtecting Child Passengers • Any child who is too small to wear a seat belt must be properly restrained in an 1Protecting Child Passengers approved child restraint system that is properly secured to the vehicle using the WARNING seat belt or the child restraint anchorage system. Children who are unrestrained or •...
Page 61 uuChild SafetyuProtecting Child Passengers 1Protecting Child Passengers Models with lockable retractor seat belts WARNING Allowing a child to play with a seat belt or wrap one around their neck can result in serious injury or death. Instruct children not to play with any seat belt and make sure any unused seat belt a child can reach is buckled, fully retracted, and locked.
Page 62 uuChild SafetyuProtecting Child Passengers 1Protecting Child Passengers WARNING: Use the power window lock button to prevent children from opening the windows. Using this feature will prevent children from playing with the windows, which could expose them to hazards or distract the driver. 2 Opening/Closing the Power Windows P.
Page 63: Safety Of Infants And Small Children
uuChild SafetyuSafety of Infants and Small Children Safety of Infants and Small Children ■ 1Protecting Infants Protecting Infants WARNING An infant must be properly restrained in a rear-facing, reclining child restraint system until the infant reaches the child restraint system manufacturer’s weight or height Placing a rear-facing child restraint system limit for the seat, and the infant is at least one year old.
Page 64 uuChild SafetyuSafety of Infants and Small Children When properly installed, a rear-facing child restraint system may prevent the driver 1Protecting Infants or a front passenger from moving their seat all the way back, or from locking their Many experts recommend use of a rear-facing child seat-back in the desired position.
Page 65 uuChild SafetyuSafety of Infants and Small Children ■ 1Protecting Smaller Children Protecting Smaller Children WARNING If a child is at least one year old and has exceeded the weight and height limitations of a rear-facing child restraint system, the child should be properly restrained in a Placing a front-facing child restraint system firmly secured front-facing child restraint system until they exceed the weight and in the front seat can result in serious injury...
Page 66 Proper installation is key to maximising your child’s safety. We recommend a rear-facing or a front facing Honda genuine ISOFIX child restraint system for infants or The flexible type may not be available in your country.
Page 67 uuChild SafetyuSafety of Infants and Small Children Malaysian models 1Selecting a Child Restraint System ■ Child Restraint Systems Standards Example of UN Regulation No. 44 approval label If a child restraint system (whether an i-Size/ISOFIX type or one that is fitted with a “Mass group”...
Page 68 uuChild SafetyuSafety of Infants and Small Children Malaysian models ■ Locations for Child Restraint System Installation Suitable for universal restraint systems installed with vehicle safety belts. Suitable for forward facing universal restraint systems installed with vehicle safety belts. Suitable for i-Size and ISOFIX child restraints systems.
Page 69 ISO/B3 booster seat *4:The named Child Restraint Systems (CRS) reflect Honda's recommendations at the date of publication. You should speak to an authorised dealer for up to date details relating to our recommended CRSs. Other CRS may also be suitable - please consult CRS manufacturers for recommended vehicle lists.
Page 70 Malaysian models ■ Malaysian Genuine CRS List Mass Group Child Restraint System Category Honda baby safe Universal Group 0 Honda baby safe ISOFIX Semi-universal ISOFIX up to 10kg Semi-universal ISOFIX Honda ISOFIX Neo (Rear facing) Honda baby safe Universal Group 0+...
Page 71 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Lower Anchorage-Compatible Child Restraint System Installing a Lower Anchorage-Compatible Child Restraint System WARNING A lower anchorage-compatible child restraint system can be installed in either of the two outer rear seats. A child restraint system is attached to the lower anchorages Never attach two child restraint system to with either the rigid or flexible type of connectors.
Page 72 uuChild SafetyuSafety of Infants and Small Children 3. Place the child restraint system on the Lower Anchorages vehicle seat, then attach the child restraint system to the lower anchorages according to the instructions that came with the child restraint system. When installing the child restraint Rigid-Type system, make sure that the lower...
Page 73 uuChild SafetyuSafety of Infants and Small Children 1Installing a Lower Anchorage-Compatible Child Restraint System Child restraint system with tether strap Australian and New Zealand models 4. Open the tether anchorage cover behind WARNING: Never use a hook that does not come the head restraint.
Page 74 uuChild SafetyuSafety of Infants and Small Children 6. Tighten the tether strap as instructed by the Other top tether type child restraint system manufacturer. Tether Strap 7. Make sure the child restraint system is Hook firmly secured by rocking it forward and back, and side to side;...
Page 75 uuChild SafetyuSafety of Infants and Small Children ■ 1Installing a Child Restraint System with a Lap/Shoulder Seat Belt Installing a Child Restraint System with a Lap/Shoulder Seat Belt To check if the lap/shoulder belt is equipped with the 1. Place the child restraint system on the lockable retractor, pull the shoulder part of the lap/ vehicle seat.
Page 76 uuChild SafetyuSafety of Infants and Small Children 5. Grab the shoulder part of the seat belt near 1Installing a Child Restraint System with a Lap/Shoulder Seat Belt the buckle, and pull up to remove any slack A child restraint system that is not properly secured from the lap part of the belt.
Page 77 uuChild SafetyuSafety of Infants and Small Children All models 6. Make sure the child restraint system is firmly secured by rocking it forward and back, and side to side; little movement should be felt. 7. Make sure any unused seat belt that a child can reach is buckled.
Page 78 uuChild SafetyuSafety of Infants and Small Children ■ Adding Security with a Tether 1Adding Security with a Tether WARNING: Child restraint anchorages are designed A tether anchorage point is provided behind Australian and New Zealand models to withstand only those loads imposed by correctly each or outer rear seating position.
Page 79 uuChild SafetyuSafety of Infants and Small Children Outer position Straight top tether type in outer position 2. Pull up the head restraint to its highest position, then route the tether strap Tether Strap through the head restraint legs. Make sure Hook the strap is not twisted.
Page 80 uuChild SafetyuSafety of Infants and Small Children Straight top tether type in centre position Straight top tether type in centre position 2. Route the tether strap over the top of the head restraint. Make sure the strap is not Tether Strap twisted.
Page 81: Safety Of Larger Children
uuChild SafetyuSafety of Larger Children Safety of Larger Children ■ 1Safety of Larger Children Protecting Larger Children WARNING The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for a child who Allowing a child aged 12 or under to sit in must sit in front.
Page 82 uuChild SafetyuSafety of Larger Children ■ 1Booster Seats Booster Seats When installing a booster seat, make sure to read the If a lap/shoulder seat belt cannot be used instructions that came with it, and install the seat properly, position the child in a booster seat in accordingly.
Page 83 uuChild SafetyuSafety of Larger Children ■ Protecting Larger Children - Final Checks Your vehicle has a rear seat where children can be properly restrained. If you ever have to carry a group of children, and a child must ride in front: •...
Page 84: Exhaust Gas Hazard
Exhaust Gas Hazard Carbon Monoxide Gas The engine exhaust from this vehicle contains carbon monoxide, a colourless, 1Carbon Monoxide Gas odourless, and highly toxic gas. As long as you properly maintain your vehicle, WARNING carbon monoxide gas will not get into the interior. Carbon monoxide gas is toxic.
Page 85: Safety Labels
Safety Labels Label Locations These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels carefully. If a label comes off or becomes hard to read, contact a dealer for a replacement. Sun Visor Sun Visor Child Safety/SRS Airbag...
Page 86: Instrument Panel
Instrument Panel This chapter describes the buttons, indicators, and gauges that are used while driving. Indicators ..........86 Driver Information Interface Warning and Information Messages....105 Gauges and Displays Gauges..........125 Driver Information Interface ..... 126 Head-Up Display ......144 * Not available on all models...
Page 87: Indicators
Indicators Supplemental Restraint Parking Brake and  CRUISE CONTROL  P. 93  P. 99 P. 87 System Indicator Brake System Indicator Indicator (Red) Auto High-Beam  Immobilizer System P. 93 Parking Brake and  Indicator P. 98  Indicator Brake System P.
Page 88 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when the parking brake • Comes on while driving - Make sure the is applied and goes off when it is parking brake is released. Check the brake released. fluid level. •...
Page 89 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on if there is a problem • Stays on constantly - Have your vehicle with a system related to braking checked by a dealer. other than the conventional brake • Comes on while driving - Avoid using the system.
Page 90 Models with Honda smart parking ● assist system With this message appears, your vehicle still has normal braking ability but Honda smart Comes on if there is a problem ● parking assist system can not be activated. with the Honda smart parking assist system.
Page 91 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when the automatic Automatic brake hold system is on. Brake Hold 2 Automatic Brake Hold P. 410 System Indicator Automatic • Comes on when the automatic Brake Hold brake hold is activated. —...
Page 92 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Indicates the current shift lever Shift Lever position. Position — 2 Shifting P. 339, 341 Indicator M (7-speed • Comes on when the 7-speed manual shift manual shift mode is applied. mode) — 2 7-Speed Manual Shift Mode P.
Page 93 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Blinks and the beeper sounds for • The beeper stops and the indicator goes off a few seconds if you are not when you and the front passenger fasten wearing a seat belt when you set their seat belts.
Page 94 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on if there is a problem • Stays on constantly - Have your vehicle Anti-lock with the ABS. checked by a dealer. With this indicator on, Brake System your vehicle still has normal braking ability (ABS) but no anti-lock function.
Page 95 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Blinks when VSA is active. • Stays on constantly - Have your vehicle • Comes on if there is a problem with checked by a dealer. the VSA system or hill start assist 2 Vehicle Stability Assist (VSA) System P.
Page 96 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when you deactivate VSA. 2 VSA On and Off P. 352 Vehicle Stability Assist (VSA) OFF • Comes on if the VSA system is • Drive a short distance at more than 20 km/h. Indicator deactivated temporarily after the The indicator should go off.
Page 97 uuIndicatorsu Indicator Name On/Blinking Explanation Message • May come on briefly if the power • Comes on while driving - Stop in a safe mode is set to ON and the vehicle place, check tyre pressures, and inflate the is not moved within 45 seconds, to tyre(s) if necessary.
Page 98 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Blinks when you operate the turn • Does not blink or blinks rapidly signal lever. 2 Replacing Light Bulbs P. 497 • Blink along with all turn signals Turn Signal when you press the hazard and Hazard warning button.
Page 99 uuIndicatorsu Indicator Name On/Blinking Explanation Message Blinks if the immobilizer system Blinks - You cannot start the engine. Set the ● ● cannot recognise the key power mode to VEHICLE OFF, then select the information. ON mode again. Indicator Immobilizer Repeatedly blinks - The system may be ●...
Page 100 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when the ECON mode is on. ECON Mode 2 ECON Mode P. 346 Indicator • Comes on when you press the SPORT button. SPORT Mode • The ambient meter remains lit up 2 SPORT Mode P.
Page 101 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on if there is a problem • Stays on constantly - Have your vehicle with ACC with Low Speed Follow. checked by a dealer. Adaptive Cruise Control • Comes on if the ACC with Low •...
Page 102 uuIndicatorsu Indicator Name On/Blinking Explanation Message Adaptive Comes on when you press the ● Cruise Control MAIN button. (ACC) with 2 Adaptive Cruise Control (ACC) with Low Speed — Low Speed Follow P. 370 Follow Indicator (Green) Comes on if there is a problem Stays on constantly - Have your vehicle Lane Keeping ●...
Page 103 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on if there is a problem • Stays on constantly - Have your vehicle with the Road Departure checked by a dealer. Mitigation system or CMBS. Safety Support Indicator (Amber) • Comes on if the Road Departure •...
Page 104 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when the Road • Indicator may come on temporarily when Departure Mitigation system and/ passing through an enclosed space, such as or CMBS shuts itself off. a tunnel. • The area around the radar sensor is blocked by dirt, mud, etc.
Page 105 uuIndicatorsu Indicator Name On/Blinking Explanation Message • Comes on when the Road • Stays on - The area around the camera is Departure Mitigation system and/ blocked by dirt, mud, etc. Stop your vehicle or CMBS shuts itself off. in a safe place and wipe the debris off with a soft cloth.
Page 106: Driver Information Interface Warning And Information Messages
uuIndicatorsuDriver Information Interface Warning and Information Messages Driver Information Interface Warning and Information Messages The following messages appear only on the driver information interface. Press the (home) button, select Warnings, then press the left selector wheel to see the message again with the system message indicator on. Message Condition Explanation...
Page 107 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears if any door or the boot is not completely • Disappears when all doors and the boot are closed. closed. • Appears if any door or the boot is opened while driving.
Page 108 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears if there is a problem with the shutter grille, • Power output will be reduced, so you may not be able and the radiator coolant temperature is too high. to accelerate or maintain your current speed.
Page 109 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears when the engine coolant temperature gets abnormally high. 2 Overheating P. 549 • Appears if the automatic brake hold is automatically • Immediately depress the brake pedal. cancelled while it is in operation. •...
Page 110 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears when the automatic brake hold button is • Press the automatic brake hold button with the brake pressed without depressing the brake pedal while the pedal depressed. automatic brake hold is in operation. 2 Automatic Brake Hold P.
Page 111 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears when the steering wheel is locked. • Move the steering wheel left and right while pressing the ENGINE START/STOP button. • Appears when the power mode is in ACCESSORY. —...
Page 112 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears when the keyless remote battery becomes • Replace the battery as soon as possible. weak. 2 Replacing the Button Battery P. 519 • Appears if you try to start the engine when the •...
Page 113 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears as soon as a problem is detected in the keyless • Appears constantly - Have your vehicle checked by a access system or keyless starting system. dealer. • Appears if you press the ENGINE START/STOP button while the vehicle is moving.
Page 114 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation Have your vehicle checked by a dealer as soon as Models with pop-up hood system ● Appears when there is a problem with the pop-up possible. ● hood system. 2 Pop-up Hood System P. 55 Models with rear seat belt reminder Appears when any of the rear seat belts are latched or ●...
Page 115 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears if there is a problem with the automatic • Appears while driving - Manually turn the lights on, lighting control system. and have your vehicle checked by a dealer. •...
Page 116 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears when ACC with Low Speed Follow has been • You can resume the set speed after the condition that caused ACC with Low Speed Follow to cancel automatically cancelled.
Page 117 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears when pressing the SET/– button while the • ACC with Low Speed Follow cannot be set. distance between your vehicle and the vehicle ahead of 2 Adaptive Cruise Control (ACC) with Low Speed Follow P.
Page 118 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears when the vehicle is stopped on a very steep • ACC with Low Speed Follow has been automatically slope while ACC with Low Speed Follow is in cancelled.
Page 119 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears when the parking brake is applied • ACC with Low Speed Follow has been automatically automatically while ACC with Low Speed Follow is in cancelled.
Page 120 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears if the VSA or traction control function • ACC with Low Speed Follow has been automatically operates while ACC with Low Speed Follow is in cancelled.
Page 121 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears if anything covers the radar sensor cover and • When the radar sensor gets dirty, stop your vehicle in a prevents the sensor from detecting a vehicle in front. safe place, and wipe off dirt using a soft cloth.
Page 122 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Except Singaporean, Bruneian, Malaysian, Australian and New Zealand models Message Condition Explanation • Keep the vehicle within the lane you are driving. Lane Keeping Assist System (LKAS) •...
Page 123 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Singaporean, Bruneian, Malaysian, Australian and New Zealand models Message Condition Explanation • Appears if the vehicle is about to veer out of the • Take direct control of the steering and keep the vehicle detected lane.
Page 124 uuIndicatorsuDriver Information Interface Warning and Information Messages Models with ACC with Low Speed Follow Message Condition Explanation • Appears when the LKAS is in operation, or the LKAS • If any other system indicators come on, such as the button is pressed, but there is a problem with a system VSA, ABS and brake system, take appropriate action.
Page 125 uuIndicatorsuDriver Information Interface Warning and Information Messages Message Condition Explanation • Appears if the ECON mode or SPORT mode cannot be changed due to certain situations, such as a system 2 ECON Mode P. 346 error or adverse driving conditions. 2 SPORT Mode P.
Page 126: Gauges And Displays
Gauges and Displays Gauges Gauges include the speedometer, fuel gauge, and related indicators. They are displayed when the power mode is in ON. ■ Speedometer Displays your driving speed in km/h. ■ Fuel Gauge 1Fuel Gauge NOTICE Displays the amount of fuel left in the fuel tank. You should refuel when the reading approaches Running out of fuel can cause the engine to misfire, damaging the catalytic converter.
Page 127: Driver Information Interface
uuGauges and DisplaysuDriver Information Interface Driver Information Interface The driver information interface shows the odometer, trip meter, outside temperature, and other gauges. It also displays important messages such as warnings and other helpful information. ■ 1Switching the Display Switching the Display To go back to the previous screen, press the ■...
Page 128 uuGauges and DisplaysuDriver Information Interface P. 135 P. 147 P. 130 P. 143 P. 135 P. 132 P. 138 P. 137 Left Selector Wheel (home) Button P. 139 P. 136 Roll the left selector wheel. P. 134 P. 142 * Not available on all models Continued...
Page 129 uuGauges and DisplaysuDriver Information Interface ■ Sub display Press the TRIP button to change the display. Right-hand drive models TRIP TRIP TRIP TRIP Button Left-hand drive models Odometer Trip A Trip B Outside temperature TRIP Button...
Page 130 uuGauges and DisplaysuDriver Information Interface ■ Odometer Shows the total number of kilometres that your vehicle has accumulated. ■ 1Trip Meter Trip Meter Switch between trip meter A and trip meter B by Shows the total number of kilometres driven since the last reset. Meters A and B can pressing the TRIP Button.
Page 131 uuGauges and DisplaysuDriver Information Interface ■ Range & Fuel Roll the left selector wheel to switch between trip computer A and trip computer B. Trip Computer A Range Average Fuel Economy Instant Fuel Economy Trip Meter Trip Computer B Left Selector Wheel Roll the left selector wheel.
Page 132 uuGauges and DisplaysuDriver Information Interface ■ Trip meter 1Trip meter Shows the total number of kilometres driven since the last reset. Meters A and B can Switch between trip meter A and trip meter B by be used to measure two separate trips. rolling the left selector wheel.
Page 133 uuGauges and DisplaysuDriver Information Interface ■ Speed & Time Roll the left selector wheel to switch between trip computer A and trip computer B. Trip Computer A Average Speed Elapsed Time Trip Meter Trip Computer B Left Selector Wheel Roll the left selector wheel.
Page 134 uuGauges and DisplaysuDriver Information Interface ■ Trip meter 2 Trip meter P. 131 ■ 1Elapsed Time Elapsed Time You can change when to reset the elapsed time. Shows the time elapsed since the last time Trip A or Trip B was reset. 2 Customized Features P.
Page 135 uuGauges and DisplaysuDriver Information Interface ■ 1Navigation Navigation You can select whether to have the turn-by-turn ■ Compass display come on or not during route guidance. Shows the compass screen. 2 Customized Features P. 290 Models with navigation system When the compass or turn-by-turn directions are displayed, you can control some navigation system functions on the driver information interface by scrolling the left selector wheel.
Page 136 uuGauges and DisplaysuDriver Information Interface ■ 1Warnings Warnings If there are no Warnings, No Current Information 2 Driver Information Interface Warning and message appears on the driver information interface. Information Messages P. 105 (Example) ■ Maintenance Shows the remaining oil life. 2 Displaying the Oil Monitor System Information P.
Page 137 uuGauges and DisplaysuDriver Information Interface ■ Phone Shows the current phone information. 2 Hands-Free Telephone (HFT) System P. 309 ■ 1Tachometer Tachometer You can turn on or off the tachometer display when Shows the number of engine revolutions per you does not select the Tachometer on the driver minute.
Page 138 uuGauges and DisplaysuDriver Information Interface Models with SPORT mode ■ Turbo Meter When the turbo charger is producing boost, this meter shows the boost pressure. When the SPORT mode is turned on while the tachometer appears, the turbo meter appears on the driver information interface.
Page 139 uuGauges and DisplaysuDriver Information Interface ■ Rear Seat Belt Reminder Appears when any of the rear seat belts are latched or unlatched. 2 Seat Belt Reminder P. 36 * Not available on all models...
Page 140 uuGauges and DisplaysuDriver Information Interface ■ 1Driver Attention Monitor Driver Attention Monitor The Driver Attention Monitor cannot always detect if The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is the driver is tired or inattentive. being driven in a manner consistent with drowsy or inattentive driving. If it Regardless of the system’s feedback, if you are determines that the vehicle is being driven in such a manner, it will display the feeling tired, stop in a safe location and rest for as...
Page 141 uuGauges and DisplaysuDriver Information Interface If two bars light up, the Driver Attention Level Low message will appear. If one bar lights up, the Driver Attention Level Low. Take A Rest message will appear, a beep will sound, and the steering wheel will vibrate.
Page 142 uuGauges and DisplaysuDriver Information Interface ■ The Driver Attention Monitor resets when: • The engine is turned off. • The driver unfastens the seat belt and opens the door while the vehicle is stopped. ■ For the Driver Attention Monitor to function: 1For the Driver Attention Monitor to function: •...
Page 143 uuGauges and DisplaysuDriver Information Interface ■ 1Driving Support Information Driving Support Information In case ACC with Low Speed Follow is not activated, Shows the distance between your vehicle and when the distance between your vehicle and the the vehicle detected ahead. vehicle ahead becomes to small, the section behind Informs you whether ACC with Low Speed the vehicle icon turns amber and alerts you.
Page 144 uuGauges and DisplaysuDriver Information Interface ■ 1Safety Support Safety Support If a system is indicated by the colour amber, have Indicates the state of the Road Departure Mitigation system and CMBS such as On, your vehicle checked by a dealer immediately. Off, or Failure, by colour and letters.
Page 145: Head-Up Display
uuGauges and DisplaysuHead-Up Display Head-Up Display Shows the current mode for ACC with Low Speed Follow, tachometer, shift lever position indicator, or turn-by-turn directions along with the vehicle speed. You can choose which item to be displayed using the (HUD) button on the steering wheel.
Page 146 uuGauges and DisplaysuHead-Up Display The display also shows the following warnings. Lane Departure Warning • Lane Departure Warning: When your vehicle is too close to the traffic lane lines, the lane departure warning appears. 2 Lane Keeping Assist System (LKAS) P.
Page 147 uuGauges and DisplaysuHead-Up Display ■ To Change Head-Up Display Content Each time you press the (HUD) button on the steering wheel, the head-up display content will change. Head-Up Display Vehicle Speed Tachometer, Shift Lever Position Indicator, M (7-speed manual shift mode) Indicator/Shift Indicator, Vehicle Speed Current Mode for ACC with...
Page 148 uuGauges and DisplaysuHead-Up Display ■ Vehicle Speed Shows your driving speed in km/h. ■ Tachometer Shows the number of engine revolutions as a bar graph. ■ Shift Lever Position Indicator Shows the current shift lever position. ■ M (7-speed manual shift mode) Indicator/Shift Indicator Shows the current mode for the 7-speed manual shift mode.
Page 150: Controls
Controls This chapter explains how to operate the various controls necessary for driving. Clock ..........150 Adjusting the Mirrors Sunroof ..........171 Locking and Unlocking the Doors Operating the Switches Around the Interior Rearview Mirror ....194 Key Type and Functions ....151 Steering Wheel Power Door Mirrors ......
Page 151: Clock
Clock Adjusting the Clock You can adjust the time manually in the audio/information screen, with the power 1Adjusting the Clock mode in ON. The clock is automatically updated through the GPS, so the time does not need to be adjusted. ■...
Page 152: Locking And Unlocking The Doors
Locking and Unlocking the Doors Key Type and Functions This vehicle comes with the following key: 1Key Type and Functions Use the keys to start and stop the engine, and All the keys have an immobilizer system. The to lock and unlock all the doors, boot, and immobilizer system helps to protect against vehicle theft.
Page 153 uuLocking and Unlocking the DoorsuKey Type and Functions ■ Key Number Tag 1Key Number Tag Keep the key number tag separate from the key in a Contains a number that you will need if you safe place outside of your vehicle. purchase a replacement key.
Page 154: Low Keyless Remote Signal Strength
uuLocking and Unlocking the DoorsuLow Keyless Remote Signal Strength Low Keyless Remote Signal Strength The vehicle transmits radio waves to locate the keyless remote when locking/ 1Low Keyless Remote Signal Strength unlocking the doors and fuel fill door, opening the boot, or to start the engine. Communication between the keyless remote and the vehicle consumes the keyless remote’s battery.
Page 155: Locking/Unlocking The Doors From The Outside
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside Locking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors from the Outside Using the Keyless Access System If the interior light switch is in the door activated When you carry the keyless remote, you can position, the interior light comes on when you unlock lock/unlock the doors, fuel fill door and open the doors.
Page 156 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Unlocking the doors and the boot 1Using the Keyless Access System Grab the front door handle: • After locking the door, you have up to 2 seconds All doors and fuel fill door unlock. during which you can pull the door handle to Some exterior lights flash twice and the confirm whether the door is locked.
Page 157 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ Locking the vehicle (Walk away auto 1Locking the vehicle (Walk away auto lock) lock) The auto lock function is set to OFF as the factory When you walk away from the vehicle while default setting.
Page 158 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside To temporarily deactivate the function: 1Locking the vehicle (Walk away auto lock) 1. Set the power mode to OFF. The auto lock function does not operate when any of 2. Open the driver’s door. the following conditions are met.
Page 159 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Using the Remote Transmitter Using the Remote Transmitter If you do not open a door within 30 seconds of ■ Locking the doors unlocking the vehicle with the remote transmitter, Press the lock button.
Page 160 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside ■ 1Locking/Unlocking the Doors Using a Key Locking/Unlocking the Doors Using a Key When you lock/unlock the driver’s door with the key, If the lock or unlock button of the keyless remote does not work, use the key all the other doors lock/unlock at the same time.
Page 161: Locking/Unlocking The Doors From The Inside
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside Locking/Unlocking the Doors from the Inside ■ 1Using the Lock Tab Using the Lock Tab When you lock/unlock the door using the lock tab on ■ Locking a door the driver’s door, all the other doors, fuel fill door To Lock Lock Tab Push the lock tab forward.
Page 162 uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside ■ Using the Master Door Lock Switch Press the master door lock switch in (as shown) to lock or unlock all doors and fuel fill Master Door door. Lock Switch To Lock To Unlock...
Page 163: Childproof Door Locks
uuLocking and Unlocking the DoorsuChildproof Door Locks Childproof Door Locks The childproof door locks prevent the rear doors from being opened from the inside 1Childproof Door Locks regardless of the position of the lock tab. To open the door from the inside when the childproof door lock is on, put the lock tab in the ■...
Page 164: Auto Door Locking/Unlocking
uuLocking and Unlocking the DoorsuAuto Door Locking/Unlocking Auto Door Locking/Unlocking Your vehicle locks or unlocks all doors automatically when a certain condition is met. 1Auto Door Locking/Unlocking You can turn off or change to another auto door ■ Auto Door Locking locking/unlocking setting using the audio/ information screen.
Page 165: Opening And Closing The Boot
Opening and Closing the Boot Precautions for Opening/Closing the Boot ■ Opening the boot Open the boot all the way. If it is not fully opened, the boot lid may begin to close under its own weight. ■ Closing the boot Keep the boot lid closed while driving to: Avoid possible damage.
Page 166 uuOpening and Closing the BootuUsing the Boot Release Button Using the Boot Release Button Push up the release button on the boot lid 1Using the Boot Release Button Boot Release Button after all the doors are unlocked. • If you forget the keyless remote inside, the beeper 2 When You Cannot Open the Boot P.
Page 167: Security System
Security System Immobilizer System The immobilizer system prevents a key that has not been pre-registered from 1Immobilizer System starting the engine. Each key contains electronic transmitters that use electronic NOTICE signals to verify the key. Leaving the key in the vehicle can result in theft or accidental movement of the vehicle.
Page 168: Security System Alarm
uuSecurity SystemuSecurity System Alarm Security System Alarm The security system alarm activates when the boot, bonnet or doors are forcibly 1Security System Alarm opened. The alarm does not activate if the boot or doors are opened with the built- Do not alter the system or add other devices to it. in key , remote transmitter or keyless access system.
Page 169: Opening And Closing The Windows
Opening and Closing the Windows Opening/Closing the Power Windows The power windows can be opened and closed when the power mode is in ON, 1Opening/Closing the Power Windows using the switches on the doors. WARNING The driver’s side switches can be used to open and close all the windows. Closing a power window on someone’s The power window lock button on the driver’s side must be switched off (indicator hands or fingers can cause serious injury.
Page 170 uuOpening and Closing the WindowsuOpening/Closing the Power Windows ■ 1Opening/Closing the Power Windows Opening/Closing the Windows without Auto-Open/Close Function Auto Reverse To open: Push the switch down. If a power window senses resistance when closing To close: Pull the switch up. automatically, it will stops closing and reverse direction.
Page 171 uuOpening and Closing the WindowsuOpening/Closing the Power Windows Except Thai and Malaysian models ■ 1Opening/Closing the Windows with the key Opening/Closing the Windows with the key Models with sunroof To open : Unlock the driver’s door with the If you open/close the windows with the key, the key.
Page 172: Sunroof
Sunroof Opening/Closing the Sunroof You can only operate the sunroof when the power mode is in ON, use the switch in 1Opening/Closing the Sunroof the front of the ceiling to open and close the sunroof. WARNING ■ Using the Sunroof switch Opening or closing the sunroof on someone’s hands or fingers can cause ■...
Page 173 uuSunroof uOpening/Closing the Sunroof 1Opening/Closing the Sunroof Except Australian and New Zealand models The power sunroof can be operated for up to 10 minutes after you set the power mode to VEHICLE OFF. Australian and New Zealand models The power sunroof can be operated for up to 45 seconds after you set the power mode to VEHICLE OFF.
Page 174: Engine Start/Stop Button
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button 1ENGINE START/STOP Button ■ Changing the Power Mode ENGINE START/STOP Button Operating Range You can start the engine when the keyless remote is inside the vehicle. VEHICLE OFF (LOCK) The button is off. Operating Range The steering wheel is locked.
Page 175 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ 1ENGINE START/STOP Button Automatic Power Off If the power mode does not change from VEHICLE If you leave the vehicle for 30 to 60 minutes with the transmission in P and the OFF to ACCESSORY, press the ENGINE START/STOP power mode in ACCESSORY, the vehicle automatically goes into the mode similar to button while moving the steering wheel left and...
Page 176 uuOperating the Switches Around the Steering WheeluENGINE START/STOP Button ■ 1Keyless Remote Reminder Keyless Remote Reminder When the keyless remote is within the system’s Warning buzzers may sound from inside and/ operational range, and the driver’s door is closed, the or outside the vehicle to remind you that the warning function cancels.
Page 177: Turn Signals
uuOperating the Switches Around the Steering WheeluTurn Signals Turn Signals The turn signals can be used when the power Right-hand drive models mode is in ON. Left Turn ■ One-touch turn signal When you lightly push up or down and release the turn signal lever, the exterior turn signals and turn signal indicator blink three times.
Page 178: Light Switches
uuOperating the Switches Around the Steering WheeluLight Switches Light Switches ■ 1Light Switches Manual Operation If you leave the power mode in VEHICLE OFF while Rotating the light switch turns the lights on High Beams the lights are on, a chime sounds when the driver’s and off, regardless of the power mode door is opened.
Page 179 uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Automatic Operation (automatic lighting control) Automatic Operation (automatic lighting control) The light sensor is in the location shown below. Automatic lighting control can be used when Do not cover this light sensor with anything; the power mode is in ON.
Page 180 uuOperating the Switches Around the Steering WheeluLight Switches ■ 1Automatic Operation (automatic lighting control) Automatic Lighting Off Feature We recommend that you turn on the lights manually The headlights, all other exterior lights, and the instrument panel lights turn off 15 when driving at night, in a dense fog, or in dark areas seconds after you set the power mode to VEHICLE OFF, take the remote with you, such as long tunnels or parking facilities.
Page 181: Fog Lights
uuOperating the Switches Around the Steering WheeluFog Lights Fog Lights When the position lights are on, turn the fog light switch on to use the fog lights. Fog Light Switch * Not available on all models...
Page 182: Active Cornering Lights
uuOperating the Switches Around the Steering WheeluActive Cornering Lights Active Cornering Lights Enhance the visibility of the corner(s) when making a turn. With the power mode in 1Active Cornering Lights ON, the headlights on, and the vehicle speed at less than 40 km/h, the cornering The active cornering lights go off automatically after light(s) comes on either when operating the turn signals or the steering wheel, or five minutes.
Page 183: Daytime Running Lights
uuOperating the Switches Around the Steering WheeluDaytime Running Lights Daytime Running Lights The position/daytime running lights come on when the following conditions have 1Daytime Running Lights been met: The position lights serve as daytime running lights. • The power mode is in ON. •...
Page 184: Auto High-Beam
uuOperating the Switches Around the Steering WheeluAuto High-Beam Auto High-Beam The front sensor camera detects the light sources ahead of the vehicle such as the 1Auto High-Beam lights of a preceding or oncoming vehicle, or street lights. When you are driving at The auto high-beam system does not always operate night, the system automatically switches the headlights between low beam and high in every situation.
Page 185 uuOperating the Switches Around the Steering WheeluAuto High-Beam ■ Automatic switching between high-beam and low-beam 1How to Use the Auto High-Beam When auto high-beam is active, the headlights switch between high beam and low In the following cases, the auto high-beam system beam based on the following conditions.
Page 186 uuOperating the Switches Around the Steering WheeluAuto High-Beam ■ 1How to Turn Off the Auto High-Beam How to Turn Off the Auto High-Beam If you turn the auto high-beam system off, the system You can turn the auto high-beam system off. If you want to turn the system off or does not operate until you turn the system on.
Page 187: Wipers And Washers
uuOperating the Switches Around the Steering WheeluWipers and Washers Wipers and Washers ■ 1Wipers and Washers Windscreen Wipers/Washers NOTICE The windscreen wipers and washers can be Do not use the wipers when the windscreen is dry. used when the power mode is in ON. The windscreen will get scratched, or the rubber blades will get damaged.
Page 188 uuOperating the Switches Around the Steering WheeluWipers and Washers ■ 1Automatic Intermittent Wipers Automatic Intermittent Wipers The rainfall sensor is in the location shown below. When you push the lever down to AUTO, the windscreen wipers sweep once, and go into the automatic mode.
Page 189: Brightness Control
uuOperating the Switches Around the Steering WheeluBrightness Control Brightness Control ■ 1Brightness Control Adjusting the Instrument Panel Brightness The brightness of the instrument panel will be When the power mode is in ON, you can use Right-hand drive models reduced when the following conditions: the brightness control button /dial to adjust...
Page 190 uuOperating the Switches Around the Steering WheeluBrightness Control ■ Adjusting the Head-Up Display Brightness When the head-up display is on, press and hold the HUD button until its brightness level indicator on the driver information interface. Brighten: Press the button. Dim: Press the button.
Page 191: Rear Demister Button
uuOperating the Switches Around the Steering WheeluRear Demister Button Rear Demister Button Press the rear demister button to demist the rear window when the power mode is 1Rear Demister Button in ON. This system consumes a lot of power, so turn it off when the window has been demister.
Page 192: Driving Position Memory System
uuOperating the Switches Around the Steering WheeluDriving Position Memory System Driving Position Memory System You can store two driver’s seat (except for power lumbar) position with the driving 1Driving Position Memory System position memory system. Using the audio/information screen you can disable When you unlock and open the driver’s door with a remote transmitter, or keyless the automatic seat adjustment function.
Page 193 uuOperating the Switches Around the Steering WheeluDriving Position Memory System ■ 1Storing a Position in Memory Storing a Position in Memory After you press the SET button, the storing operation 1. Set the power mode to ON. Adjust the will be cancelled when: driver’s seat to the desired position.
Page 194: Adjusting The Steering Wheel
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel Adjusting the Steering Wheel The steering wheel height and distance from your body can be adjusted so that you 1Adjusting the Steering Wheel can comfortably grip the steering wheel in an appropriate driving posture. WARNING 1.
Page 195: Adjusting The Mirrors
Adjusting the Mirrors Interior Rearview Mirror Adjust the angle of the rearview mirror when you are sitting in the correct driving 1Adjusting the Mirrors position. Keep the inside and outside mirrors clean and adjusted for best visibility. ■ Rearview Mirror with Day and Night Positions Adjust the mirrors before you start driving.
Page 196: Power Door Mirrors
uuAdjusting the MirrorsuPower Door Mirrors Power Door Mirrors You can adjust the door mirrors when the Folding power mode is in ON. Button ■ Mirror position adjustment L/R selector switch: Select the left or right mirror. After adjusting the mirror, return the switch to the centre position.
Page 197 uuAdjusting the MirrorsuPower Door Mirrors ■ 1Automatic Folding Door Mirror Function Automatic Folding Door Mirror Function You cannot turn the automatic folding out ■ Folding in the door mirrors automatically if they have been folded in using the Press the lock button on the keyless remote, or touch the door lock sensor on the folding button.
Page 198: Adjusting The Seats
Adjusting the Seats Front Seats Adjust the driver’s seat as far back as possible 1Adjusting the Seats Allow sufficient while allowing you to maintain full control of space. WARNING the vehicle. You should be able to sit upright, well back in the seat and be able to Sitting too close to a front airbag can result adequately press the pedals without leaning in serious injury or death if the front...
Page 199 uuAdjusting the SeatsuFront Seats ■ Adjusting the Seat Positions ■ Adjusting the front power seats Seat-back Angle Adjustment Horizontal Position Adjustment (Passenger’s seat only) (Passenger’s seat only) Horizontal Position Adjustment Height Adjustment (Driver’s seat only) Seat-back Angle Adjustment Driver’s seat is shown. * Not available on all models...
Page 200 uuAdjusting the SeatsuFront Seats ■ Lumbar Support Adjustment Switch Lumbar Press the top: To move the lumbar support Support Adjustment Switch Press the bottom: To move the lumbar support down. Press the front: To increase the entire lumbar support. Press the rear: To decrease the entire lumbar support.
Page 201 uuAdjusting the SeatsuFront Seats ■ 1Adjusting the Seat-Backs Adjusting the Seat-Backs WARNING Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space Reclining the seat-back too far can result in between your chest and the airbag cover in serious injury or death in a crash.
Page 202: Rear Seats
uuAdjusting the SeatsuRear Seats Rear Seats ■ 1Folding Down the Rear Seat Folding Down the Rear Seat The rear seat-back can be folded down to 1. Remove the centre shoulder belt from the accommodate bulkier items in the boot. guide. Guide Never drive with the seat-back folded down and the boot lid open.
Page 203: Maintain A Proper Sitting Position
uuAdjusting the SeatsuMaintain a Proper Sitting Position Maintain a Proper Sitting Position After all occupants have adjusted their seats and head restraints, and put on their 1Maintain a Proper Sitting Position seat belts, it is very important that they continue to sit upright, well back in their WARNING seats, with their feet on the floor until the vehicle is safely parked and the engine is off.
Page 204: Head Restraints
uuAdjusting the SeatsuHead Restraints Head Restraints Your vehicle is equipped with head restraints in all seating positions. 1Head Restraints WARNING ■ Adjusting the Front and Rear Outer Head Restraint Positions Improperly positioning head restraints Head restraints are most effective for reduces their effectiveness and increases protection against whiplash and other rear- the likelihood of serious injury in a crash.
Page 205 uuAdjusting the SeatsuHead Restraints To raise the head restraint: Pull it upward. Front To lower the head restraint: Push it down while pressing the release button. Rear...
Page 206 uuAdjusting the SeatsuHead Restraints ■ Removing and Reinstalling the Head Restraints Head restraints can be removed for cleaning or repair. 1Removing and Reinstalling the Head Restraints WARNING To remove the head restraint: Pull the restraint up as far as it will go. Then push the release button, and pull the Failure to reinstall, or correctly reinstall, the restraint up and out.
Page 207: Armrest
uuAdjusting the SeatsuArmrest Armrest ■ Using the Front Seat Armrest The console lid can be used as an armrest. ■ Using the Rear Seat Armrest Pull down the armrest in the centre seat-back.
Page 208: Interior Lights/Interior Convenience Items
Interior Lights/Interior Convenience Items Interior Lights ■ 1Interior Light Switches Interior Light Switches In the door activated position, the interior lights fade ■ Models with sunroof out and go off about 30 seconds after the doors are The interior lights come on regardless of Front closed.
Page 209 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ Map Lights ■ Front Models with sunroof The map lights can be turned on and off by pressing the (map light) buttons or the lenses Models without sunroof * Not available on all models...
Page 210 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ Rear 1Map Lights Models with sunroof The map lights can be turned on and off by Models with sunroof pressing the (map light) buttons or the When the interior light switch is in the door activated lenses position and any door is open, the rear map lights will not go off when you press the button.
Page 211 uuInterior Lights/Interior Convenience ItemsuInterior Lights ■ Ambient Lights (on front roof) When the position lights are on, push the ambient light switch to turn the ambient lights Ambient Lights * Not available on all models...
Page 212 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items Interior Convenience Items ■ 1Glove Box Glove Box WARNING Pull the handle to open the glove box. An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.
Page 213 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Driver’s Side Pocket Pull the handle to open the pocket.
Page 214 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Console Compartment Pull the handle to open the console compartment. ■ Removable tray The tray in the console compartment is detachable. To remove the tray, simply pull it Continued...
Page 215 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Beverage Holders Beverage Holders NOTICE ■ Front seat beverage holders Spilled liquids can damage the upholstery, carpeting, Are located in the console between the front and electrical components in the interior. seats. Be careful when you are using the beverage holders. Hot liquid can scald you.
Page 216 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Rear seat beverage holders Fold the armrest down and pull up on the lid to use the rear seat beverage holders. When you put back the armrest in the rear centre seatback, make sure the lid is closed properly.
Page 217 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Wireless Charger Wireless Charger CAUTION To use the wireless charger, the power mode must be in ACCESSORY or ON. Charge a compatible device on the area indicated by the mark as follows: Metal objects between the charge pad 1.
Page 218 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ When charging does not start 1Wireless Charger Perform one of the solutions in the following table. NOTICE Do not place any magnetic recording media or Indicator Cause Solution precision machines within the charging area while charging.
Page 219 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items 1Wireless Charger Burn risk: Any metal objects placed between pad and device may become hot. * Not available on all models...
Page 220 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Coat Hook Coat Hook The coat hook is not designed for large or heavy There is a coat hook on the rear left grab items. handle. Pull it down to use it. ■ 1Luggage Hooks Luggage Hooks Heavy objects may damage the hook.
Page 221 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Sunglasses Holder Sunglasses Holder Keep the holder closed while driving except when To open the sunglasses holder, push and accessing stored items. release the indent. To close, push it again until it latches. You can store eyeglasses and other small Push items in this holder.
Page 222 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ 1Front Seat Heaters Front Seat Heaters WARNING The power mode must be in ON to use the seat heaters. Heat induced burns are possible when using seat heaters. Persons with a diminished ability to sense temperature (e.g., persons with diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should not use seat...
Page 223 uuInterior Lights/Interior Convenience ItemsuInterior Convenience Items ■ Boot Pass-through Cover Slide down the knob to open the cover. You have access to the boot from this opening in Key Cylinder the rear seat-back. The cover latches when Knob you push it back to the original position. You can lock and unlock this cover using the built-in key.
Page 224: Climate Control System
Climate Control System Using Automatic Climate Control The automatic climate control system maintains the interior temperature you select. 1Using Automatic Climate Control The system also selects the proper mix of heated or cooled air that raises or lowers If any buttons are pressed while using the climate the interior temperature to your preference as quickly as possible.
Page 225 uuClimate Control SystemuUsing Automatic Climate Control ■ Switching between the recirculation and fresh air modes Press the (recirculation) button and switch the mode depending on environmental conditions. Recirculation mode (indicator on): Recirculates air from the vehicle’s interior through the system. Fresh air mode (indicator off): Maintains outside ventilation.
Page 226 uuClimate Control SystemuUsing Automatic Climate Control ■ 1Synchronization Mode Synchronization Mode When you press the button, the system changes to synchronization mode. When the system is in dual mode, the driver side temperature and the passenger side temperature can be set separately. SYNC Button Passenger’s Side Driver’s Side...
Page 227: Automatic Climate Control Sensors
uuClimate Control SystemuAutomatic Climate Control Sensors Automatic Climate Control Sensors The automatic climate control system is Sensor equipped with sensors. Do not cover or spill any liquid on them. Sensor...
Page 228: Features
Features This chapter describes how to operate technology features. Audio System Playing an iPod ........ 258 Hands-Free Telephone (HFT) System ...309 About Your Audio System....228 Playing a USB Flash Drive ....261 USB Ports ......... 229 Playing Bluetooth® Audio....264 Audio System Theft Protection ..
Page 229: Audio System
Audio System About Your Audio System The audio system features AM/FM radio. It can also play USB flash drives, and iPod, 1About Your Audio System iPhone and Bluetooth® devices. iPod, iPhone and iTunes are trademarks of Apple Inc. You can operate the audio system from the buttons and knobs on the panel, the remote controls on the steering wheel, or the icons on the touchscreen interface.
Page 230: Usb Ports
uuAudio SystemuUSB Ports USB Ports Install the device USB connector or the USB flash drive to the USB port. 1USB Ports ■ In the Centre Pocket • Do not leave the iPod or USB flash drive in the In the Centre Pocket The USB port (2.5A) is for charging devices, vehicle.
Page 231 uuAudio SystemuUSB Ports ■ Rear of the centre console Rear of the centre console The USB ports (2.5A) are only for charging devices. * Not available on all models...
Page 232: Audio System Theft Protection
uuAudio SystemuAudio System Theft Protection Audio System Theft Protection The audio system is disabled when it is disconnected from the power source, such as when the battery is disconnected or goes dead. In certain conditions, the system may display a code entry screen. If this occurs, reactivate the audio system. ■...
Page 233: Audio Remote Controls
uuAudio SystemuAudio Remote Controls Audio Remote Controls Allow you to operate the audio system while driving. The information is shown on 1Audio Remote Controls the driver information interface or head-up display Some modes appear only when an appropriate + /VOL - (Volume) Buttons device or medium is used.
Page 234 uuAudio SystemuAudio Remote Controls Roll up or down: To cycle through the audio modes, roll up or down and then press the left selector wheel: USB1 USB2 Bluetooth® Audio Smartphone Connection (Apple CarPlay/Android Auto) * Not available on all models Continued...
Page 235 uuAudio SystemuAudio Remote Controls (Seek/Skip) Buttons • When listening to the radio Press : To select the next preset radio station. Press : To select the previous preset radio station. Press and hold : To select the next strong station. Press and hold : To select the previous strong station.
Page 236: Audio System Basic Operation
Audio System Basic Operation To use the audio system function, the power mode must be in ACCESSORY or ON. 1Audio System Basic Operation (Home) Button: Press to go to the home These indications are used to show how to operate (Clock) Button screen.
Page 237 uuAudio System Basic Operationu Selector Knob: Rotate left or right to scroll through the available choices. Press to set your selection. (Day/Night) Button: Press to change the audio/information screen brightness. Press once and select to make an adjustment. Each time you press , the mode switches among the daytime mode, nighttime mode and off mode.
Page 238: Audio/Information Screen
uuAudio System Basic OperationuAudio/Information Screen Audio/Information Screen Displays the audio status and wallpaper. From this display, you can go to various 1Audio/Information Screen setup options. Touchscreen Operation • Use simple gestures - including touching, swiping, ■ and scrolling - to operate certain audio functions. Switching the Display •...
Page 239 uuAudio System Basic OperationuAudio/Information Screen ■ Trip Computer Displays the trip computer information. • Current Drive tab: Displays the current trip information. • Trip A/Trip B tab: Displays information for the current and three previous drives. The information is stored every time you reset Trip A/B. To reset the Trip A/B, select Settings, then select Delete Trip History.
Page 240 uuAudio System Basic OperationuAudio/Information Screen ■ Compass Displays the compass screen. ■ Turns on and off the traffic information. ■ Camera Displays the multi-view camera system screen. 2 Multi-View Camera System P. 429 * Not available on all models Continued...
Page 241 uuAudio System Basic OperationuAudio/Information Screen ■ 1Wallpaper Setup Wallpaper Setup The wallpaper you set up on Clock Faces cannot be You can change, store, and delete the wallpaper on the audio/information screen. displayed on the driver information interface. • The file name must be less than 64 bytes. ■...
Page 242 uuAudio System Basic OperationuAudio/Information Screen ■ Select wallpaper 1Wallpaper Setup 1. Select Clock. You cannot delete the initially imported wallpapers. 2. Select Settings. 3. Select Clock Faces. 4. Select a desired wallpaper. 5. Select Set. The display will return to the Clock Faces screen. ■...
Page 243 uuAudio System Basic OperationuAudio/Information Screen ■ 1Home Screen Home Screen The home screen has 2 pages. You can add up to 7 ■ To change to a next screen pages. Press the button to go directly back to the first page of the home screen from any page.
Page 244 uuAudio System Basic OperationuAudio/Information Screen ■ To add app icons on the home screen 1To add app icons on the home screen App icons can be added on the home screen. You can add app icons by the following procedure. 1.
Page 245 uuAudio System Basic OperationuAudio/Information Screen ■ To move icons on the home screen 1To move icons on the home screen You can change location on the home screen. Select Tips to show tips. To hide them, select it again. 1. Select and hold an icon. The screen switches to the customization screen.
Page 246 uuAudio System Basic OperationuAudio/Information Screen ■ To remove icons on the home screen 1To remove icons on the home screen You can delete the icons on the home screen. Apps will not be deleted by deleting the icon on the 1.
Page 247 uuAudio System Basic OperationuAudio/Information Screen ■ To shortcut icons on the home screen 1To shortcut icons on the home screen You can store up to three icons on the upper left of the home screen. Select Tips to show tips. To hide them, select it again. 1.
Page 248 uuAudio System Basic OperationuAudio/Information Screen ■ Status Area 1. Select the system status icon. The status area appears. 2. Select an item to see the details. 3. Press the button or select the system status icon to close the area. System Status Icon Status Area...
Page 249 uuAudio System Basic OperationuAudio/Information Screen ■ 1Customizing the Meter Customizing the Meter You can store up to three customized configurations. You can edit, show, or hide the meter contents on the driver information interface. To select or customize a configuration, select Select 1.
Page 250: Adjusting The Sound
uuAudio System Basic OperationuAdjusting the Sound Adjusting the Sound 1. Press the button. 1Adjusting the Sound 2. Select an audio source icon. The SVC adjusts the volume level based on the 3. Select Sound. vehicle speed. As you go faster, audio volume increases.
Page 251: Display Setup
uuAudio System Basic OperationuDisplay Setup Display Setup You can change the brightness of the audio/information screen. ■ 1Changing the Screen Brightness Changing the Screen Brightness You can change the Contrast and Black Level 1. Press the button. settings in the same manner. 2.
Page 252 uuAudio System Basic OperationuDisplay Setup ■ Selecting an Audio Source Select the source icon Source Select Screen Source List Icons SOURCE Button Select the current source icon or press the SOURCE button, then select an icon on the source list to switch the audio source.
Page 253: Playing Am/Fm Radio
uuAudio System Basic OperationuPlaying AM/FM Radio Playing AM/FM Radio Audio/Information Screen Preset Icons (Back) Button Tune the radio frequency for preset Press to go back to the previous memory. display. Select and hold the preset icon to Seek Buttons store that station. Select >...
Page 254 uuAudio System Basic OperationuPlaying AM/FM Radio ■ 1Preset Memory Preset Memory The ST indicator appears on the display indicating To store a station: stereo FM broadcasts. 1. Tune to the selected station. Stereo reproduction in AM is not available. 2. Select and hold the preset Icon for the station you want to store. Switching the Audio Mode Roll the left selector wheel or select the audio source ■...
Page 255 uuAudio System Basic OperationuPlaying AM/FM Radio ■ Scan Samples each of the strongest stations on the selected band for 10 seconds. To turn off scan, select Stop or ■ 1Radio Data System (RDS) Radio Data System (RDS) When you select an RDS-capable FM station, the RDS Provides text data information related to your selected RDS-capable FM station.
Page 256: Playing Dab (Digital Audio Broadcasting)
uuAudio System Basic OperationuPlaying DAB (Digital Audio Broadcasting) Playing DAB (Digital Audio Broadcasting) Audio/Information Screen Settings Icon Select settings to display and customize DAB settings. Sound Icon Select to display the sound settings. Preset Icons Tune the preset frequency. Select and hold the preset icon to store that ensemble.
Page 257 uuAudio System Basic OperationuPlaying DAB (Digital Audio Broadcasting) ■ 1Preset Memory Preset Memory Switching the Audio Mode To store a service: Roll the left selector wheel or select the audio source 1. Tune to the selected service. icon on the screen. 2.
Page 258 uuAudio System Basic OperationuPlaying DAB (Digital Audio Broadcasting) ■ Scan Samples each of the receivable ensemble or service on the selected service for 10 seconds. To turn off scan, select Stop or ■ Change scan mode 1. Select Settings. 2. Select Scan Mode. 3.
Page 259: Playing An Ipod
uuAudio System Basic OperationuPlaying an iPod Playing an iPod Using your USB connector, connect the iPod to the USB ports, then select the USB mode. 2 USB Ports P. 229 Audio/Information Screen Sound Icon Select to display the sound settings. (Back) Button Cover Art Press to go back to the previous...
Page 260 uuAudio System Basic OperationuPlaying an iPod ■ 1Playing an iPod How to Select a Song from the Music Search List Available operating functions vary on models or 1. Select Browse. versions. Some functions may not be available on the 2. Select a search category (e.g., Artists, vehicle’s audio system.
Page 261 uuAudio System Basic OperationuPlaying an iPod ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select shuffle and repeat modes when playing a file. Shuffle ■ Shuffle/Repeat Shuffle off: Shuffle mode to off. Select shuffle or repeat icon repeatedly until a Shuffle All Songs: Plays all available songs in a selected list (playlists, artists, albums, songs, genres,...
Page 262: Playing A Usb Flash Drive
uuAudio System Basic OperationuPlaying a USB Flash Drive Playing a USB Flash Drive Your audio system reads and plays audio files on a USB flash drive in either MP3, WMA, MP4A, AAC, FLAC, WAV, MP4, or AVI format. Connect your USB flash drive to the USB ports, then select the USB mode. 2 USB Ports P.
Page 263 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1Playing a USB Flash Drive How to Select a File from the Music Search List Use the recommended USB flash drives. 1. Select Browse. 2 General Information on the Audio System 2.
Page 264 uuAudio System Basic OperationuPlaying a USB Flash Drive ■ 1How to Select a Play Mode How to Select a Play Mode Play Mode Menu Items You can select repeat and random modes when playing a file. Random ■ Random/Repeat Random off: Random mode to off. Select random or repeat icon repeatedly until Random All Tracks: Plays all files in random order.
Page 265: Playing Bluetooth® Audio
uuAudio System Basic OperationuPlaying Bluetooth® Audio Playing Bluetooth® Audio Your audio system allows you to listen to music from your Bluetooth-compatible 1Playing Bluetooth® Audio phone. Not all Bluetooth-enabled phones with streaming This function is available when the phone is paired and connected to the vehicle’s audio capabilities are compatible ask a dealer.
Page 266 uuAudio System Basic OperationuPlaying Bluetooth® Audio ■ 1To Play Bluetooth® Audio Files To Play Bluetooth® Audio Files To play the audio files, you may need to operate your 1. Make sure that your phone is paired and phone. If so, follow the phone maker’s operating connected to the system.
Page 267: Smartphone Connection
uuAudio System Basic OperationuSmartphone Connection Smartphone Connection Some of your smartphone apps can be displayed and operated on the audio/ 1Smartphone Connection information screen when the phone is connected to the audio system. You can Park in a safe place before connecting your phone connect your phone using a cable, or wirelessly.
Page 268 uuAudio System Basic OperationuSmartphone Connection To use smartphone connection, you need to first pair your smartphone to the audio system via Bluetooth®. 2 Phone Setup P. 314 Microphone Audio/Information Screen (Home) Button Press to go back to the home screen. Smartphone Connection Icon (Back) Button Press to go back to the previous...
Page 269 uuAudio System Basic OperationuSmartphone Connection Except iPhone ■ 1Connecting Your Smartphone Connecting Your Smartphone The phone is rechargeable while being connected to 1. Connect your phone to the audio system the USB port. However, if the phone is overloaded via Bluetooth®. with many operational tasks, the battery level may 2 Phone Setup P.
Page 270: Wi-Fi Connection
uuAudio System Basic OperationuWi-Fi Connection Wi-Fi Connection You can connect the audio system to the Internet using Wi-Fi on the audio/ 1Wi-Fi Connection information screen. If your phone has wireless hotspot capabilities, the system can Wi-Fi and Wi-Fi Direct a registered trademark of Wi-Fi be tethered to the phone.
Page 271 uuAudio System Basic OperationuWi-Fi Connection ■ 1Wi-Fi mode (after the initial setting has been made) Wi-Fi mode (after the initial setting has been made) iPhone users Make sure your phone’s Wi-Fi setting is in access point (tethering) mode. You may need to go through an initial setup for Wi-Fi connection again after you boot your phone.
Page 272: Siri Eyes Free
uuAudio System Basic OperationuSiri Eyes Free Siri Eyes Free You can talk to Siri using to press and hold the (Talk) button on the steering 1Siri Eyes Free wheel when your iPhone is paired to the Hands-Free Telephone (HFT) system. Siri is a trademark of Apple Inc.
Page 273: Apple Carplay
While connected to Apple CarPlay, calls are only made through Apple CarPlay. If you want to make a call with the Hands-Free Telephone system, turn Select the Honda icon to go Apple CarPlay icon Apple CarPlay OFF or detach the USB cable from your back to the home screen iPhone.
Page 274 Apple CarPlay functionality and services. ■ Honda cannot and does not provide any warranty or Setting Up Apple CarPlay guarantee of future Apple CarPlay performance or After you have connected your iPhone to the system via the front USB port, use the functionality.
Page 275 uuAudio System Basic OperationuApple CarPlay ■ 1Operating Apple CarPlay with Siri Operating Apple CarPlay with Siri Below are examples of questions and commands for Press and hold the talk button to activate Siri. Siri: • What movies are playing today? •...
Page 276: Android Auto
uuAudio System Basic OperationuAndroid Auto Android Auto When you connect an Android phone to the audio system via the front USB port, 1Android Auto Android Auto is automatically initiated. When connected via Android Auto, you can To use Android Auto, you need to download the use the audio/information screen to access the Phone, Google Maps (Navigation), Android Auto app from Google Play to your smartphone.
Page 277 Android phone. When the vehicle is in motion, it is not possible to make keyboard cessation of Android Auto functionality and services. entries. Stop the vehicle in a safe location to undertake a search or provide other Honda cannot and does not provide any warranty or guarantee of future Android Auto performance or inputs.
Page 278 uuAudio System Basic OperationuAndroid Auto Music and audio Play Google Play Music and music apps that are compatible with Android Auto. To switch between music apps, press this icon. Go back to the Home Screen. Voice Operate Android Auto with your voice. ■...
Page 279 Press and hold the talk button to operate Android Auto with your voice. voice recognition: • Reply to text. • Call my wife. • Navigate to Honda. • Play my music. • Send a text message to my wife. • Call flower shop.
Page 280: Audio Error Messages
Audio Error Messages iPod/USB Flash Drive If an error occurs while playing an iPod or USB flash drive, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution Appears when an incompatible device is connected. Disconnect the device. Then turn USB error the audio system off, and turn it on again.
Page 281 uuAudio Error MessagesuAndroid/Apps Android/Apps If an error occurs while using the audio system or apps, you may see the following error messages. If you cannot clear the error message, contact a dealer. Error Message Solution Unfortunately, **** has Error has occurred within app, select OK on the screen to close the app. stopped.
Page 282: General Information On The Audio System
General Information on the Audio System Compatible iPod, iPhone, and USB Flash Drives ■ 1iPod, and iPhone Model Compatibility iPod, and iPhone Model Compatibility This system may not work with all software versions of these devices. Model iPod touch (5th to 6th generation) released between 2012 and 2015 iPhone 4s/iPhone 5/iPhone 5s/iPhone 5c/iPhone 6/iPhone 6 Plus/iPhone 6s/ iPhone 6s Plus/iPhone SE/iPhone 7/iPhone 7 Plus ■...
Page 283 uuGeneral Information on the Audio SystemuLegal Information on Apple CarPlay/Android Auto Legal Information on Apple CarPlay/Android Auto ■ OWNER’S MANUAL LICENSE/LIABILITY STATEMENTS USE OF APPLE CARPLAY IS SUBJECT TO YOUR AGREEMENT TO THE CARPLAY TERMS OF USE, WHICH ARE INCLUDED AS PART OF THE APPLE iOS TERMS OF USE.
Page 284 TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL HONDA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR...
Page 285 uuGeneral Information on the Audio SystemuAbout Open Source Licences About Open Source Licences To see the open source licence information, follow these steps. 1. Press the button. 2. Select Settings. 3. Select System. 4. Select About. 5. Select Legal Information. 6.
Page 286 uuGeneral Information on the Audio SystemuLicence Information Licence Information ■ DOLBY DIGITAL Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. ■ For DTS patents, see http://patents.dts.com. Manufactured under licence from DTS Licensing Limited.
Page 287 uuGeneral Information on the Audio SystemuLicence Information ■ Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PANASONIC CORPORATION is under licence. Other trademarks and trade names are those of their respective owners. ■...
Page 288 uuGeneral Information on the Audio SystemuLicence Information ■ Apple “Made for iPod,” and “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Page 289 uuGeneral Information on the Audio SystemuLicence Information ■ MPEG Mpeg4 Visual THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUALA STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO...
Page 290 uuGeneral Information on the Audio SystemuLicence Information AVC/H.264 THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO.
Page 291: Customized Features
Customized Features Use the audio/information screen to customize certain features. 1Customized Features When you customize settings: ■ How to customize • Make sure that the vehicle is at a complete stop. • With the power mode in ON, select Settings, then select a setting item. Shift to To customize other features, select Settings.
Page 292 uuCustomized Featuresu ■ Customization flow Press the button. Day & Time Set Date & Time Automatic Date & Time Select Settings. Set Date Set Time Time Zone Automatic Time Zone (Select time zone) Auto Daylight Saving Time Date Format Time Format Language System Touch Panel...
Page 293 uuCustomized Featuresu Caption Caption Accessibility Text-to-speech output Language Text Size Caption style Status About Legal Information Factory Data Reset Detail App Manager Information Recent Location Requests Apps...
Page 294 uuCustomized Featuresu Wi-Fi Change Mode (Available Networks/Connected Devices) Connections Bluetooth + Connect New Device (Saved Devices) Smartphone Apple CarPlay Connection Android Auto Display Day Mode Night Mode Treble Sound Bass / Treble Midrange Bass Subwoofer Balance / Fader DTS Neural Surround Speed Volume Compensation...
Page 295 uuCustomized Featuresu Deflation Warning System Driver Assist Head-Up Warning System Setup Forward Collision Warning Distance ACC Vehicle Ahead Detected Beep Vehicle Lane Keeping Assist Suspend Beep Road Departure Mitigation Setting Driver Attention Monitor Meter Setup Adjust Outside Temp. Display Alarm Volume Control Config.
Page 296 uuCustomized Featuresu Driving Position Memory Position Link Setup Seat Position Movement at Entry/Exit Keyless Access Keyless Access Beep Volume Setup Smart Entry Beep Remote Start System ON/OFF Lighting Setup Headlight Auto OFF Timer Interior Light Dimmer Duration Auto Light Sensitivity Instrument Illumination Sensitivity Headlight Integration With Wipers Door/Window...
Page 297 uuCustomized Featuresu Camera Rear Camera Fixed Guideline Dynamic Guideline LaneWatch Show with turn signal Display Time after Turn Signal Off Show Reference Line Guidelines Multi View Fixed Guideline Camera Dynamic Guideline Settings Show camera after shifting from reverse Back-in parking mode setting Cross Traffic Monitor * Not available on all models...
Page 298 uuCustomized Featuresu ■ List of customizable options Setup Customizable Features Description Selectable Settings Group Automatic Selects ON to have the GPS automatically adjust Date & /OFF the clock. Select OFF to cancel this function. Time Date & Adjusts date. Set Date —...
Page 299 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group English (United Kingdom) , English (United States) , or Language Changes the display language. Thai See other selectable languages on the screen. Touch Panel Sets the sensitivity of the touch panel screen. High/Normal Sensitivity System...
Page 300 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Caption Turns the subtitles on and off. ON/OFF Default See other selectable Language Change the subtitle language. languages on the screen. Very small/Small/ Text Size Change the subtitle Text Size. Caption Normal /Large Use app defaults...
Page 301 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Factory Data Resets all the settings to their factory default. Continue/Cancel Reset 2 Defaulting All the Settings P. 308 Displays the Android system memory and apps App Manager — System information. Detail Information Recent Location...
Page 302 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Day Mode Adjusts the settings of the audio/information Display — screen. Night Mode 2 Display Setup P. 250 Treble Midrange Bass / Treble Bass Adjusts the settings of the audio speakers’ sound. Sound Subwoofer —...
Page 303 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Causes the system to beep when the system ACC Vehicle Ahead detects a vehicle, or when the vehicle goes out of ON/OFF Detected Beep the ACC with Low Speed Follow range. Causes the system to beep when Lane Keeping Lane Keeping Assist ON/OFF...
Page 304 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group When Fully Refueled/ Changes the setting of how to reset trip meter A Manual Reset “Trip A” Reset Timing and average fuel economy A. When Ignition Is Turned OFF When Fully Refueled/ Changes the setting of how to reset trip meter B Manual Reset “Trip B”...
Page 305 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Keyless Access Beep Changes the beep volume of unlocking /locking the High /Low doors. Volume Keyless Access Causes the beeper to sound when you unlock/lock Smart Entry Beep /OFF the doors. Setup Remote Start System Turns the remote engine start feature on and off.
Page 306 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Changes the setting for the automatic locking OFF/With Vehicle Auto Door Lock feature. Speed /Shift From P OFF/Shift To P Changes the setting for when the doors unlock Auto Door Unlock When Ignition Is automatically.
Page 307 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Selects whether the guidelines come on the rear Fixed Guideline /OFF camera monitor. 2 Multi-View Rear Camera P. 427 Rear Camera Selects whether the guidelines come on the rear Dynamic Guideline /OFF camera monitor.
Page 308 uuCustomized Featuresu Setup Customizable Features Description Selectable Settings Group Selects whether to turn on the reference line Fixed /OFF display. Guideline 2 Multi-View Camera System P. 429 Guidelines Selects whether to turn on the projection line Dynamic /OFF display. Guideline 2 Multi-View Camera System P.
Page 309 uuCustomized FeaturesuDefaulting All the Settings Defaulting All the Settings Reset all the menu and customized settings as the factory defaults. 1Defaulting All the Settings When you transfer the vehicle to a third party, reset ■ Defaulting System Settings all settings to default and delete all personal data. 1.
Page 310: Hands-Free Telephone (Hft) System
Using HFT phone. For a list of compatible phones, pairing procedures, and special feature capabilities, ask a ■ HFT Buttons dealer or your local Honda. To use the system, the Bluetooth setting must be /VOL (Volume) Buttons Microphone (home) Button 2 Phone Setup P.
Page 311 (Back) button: Press to go back to the previous screen, or cancel a command. trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Honda Motor Co., Ltd., is under (Talk) button: licence. Other trademarks and trade names are those Press to access Voice Portal.
Page 312 uuHands-Free Telephone (HFT) SystemuUsing HFT ■ 1HFT Status Display HFT Status Display The information that appears on the audio/ The audio/information screen notifies you when there is an incoming call. information screen varies between phone models. Bluetooth Indicator Signal Strength Appears when your phone is Battery Level Status connected to HFT.
Page 313 uuHands-Free Telephone (HFT) SystemuHFT Menus HFT Menus The power mode must be in ACCESSORY or ON to use the system. 1HFT Menus To use HFT, you must first pair your Bluetooth- ■ Phone settings screen compatible mobile phone to the system while the vehicle is parked.
Page 314 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ Phone menu screen 1. Press the button. 2. Select Phone. Recent Calls Display the last outgoing, incoming and missed calls. Display the last outgoing calls. Dialed Missed Display the last missed calls. Display the last incoming calls. Received Favourite contacts (Existing entry list)
Page 315 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ Phone Setup ■ Bluetooth® setup You can turn Bluetooth® function on and off. 1. Press the button. 2. Select Settings. 3. Select Connections. 4. Select Bluetooth. 5. Select Options. 6. Select Bluetooth, then ON.
Page 316 Bluetooth® devices using your These icons indicate the following: phone. : The phone is compatible with Bluetooth® Audio. From your phone, search for Honda : The phone can be used with HFT. HFT. If there is an active connection to Apple CarPlay 6.
Page 317 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ To change the currently paired phone 1To change the currently paired phone 1. Go to the phone settings screen. If no other phones are found or paired when trying to 2 Phone settings screen P. 312 switch to another phone, HFT will inform you that the 2.
Page 318 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ 1Ring Tone Ring Tone Vehicle: The fixed ring tone sounds from the You can change the ring tone setting. speakers. 1. Go to the phone settings screen. Phone: Depending on the make and model of the 2 Phone settings screen P.
Page 319 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ 1Automatic Import of Mobile Phonebook and Call History Automatic Import of Mobile Phonebook and Call History On some phones, it is necessary to set up it enabled ■ When Automatic Phone Sync is set to to be imported the mobile phonebook.
Page 320 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ Favourite Contacts To store a number as a favourite contact: Recent Calls Screen 1. Go to the phone menu screen. 2 Phone menu screen P. 313 2. Select the Recent Calls, Contacts, or Keypad screen. 3.
Page 321 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ To edit a favourite contact 1. Go to the phone menu screen. 2 Phone menu screen P. 313 2. Select Favourite contacts. 3. Select Edit on the favourite contact entry you want to edit. 4.
Page 322 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ 1Making a Call Making a Call Once a call is connected, you can hear the voice of You can make calls by inputting any phone the person you are calling through the audio number, or by using the imported speakers.
Page 323 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ To make a call using the imported phonebook 1. Go to the phone menu screen. 2 Phone menu screen P. 313 2. Select Contacts. 3. Select a name. You can sort by First Name or Surname.
Page 324 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ To make a call using the call history 1To make a call using the call history Call history is stored by All, Dialed, Missed, The call history appears only when a phone is and Received. connected to the system.
Page 325 uuHands-Free Telephone (HFT) SystemuHFT Menus ■ 1Receiving a Call Receiving a Call Call Waiting When there is an incoming call, an audible Press the button to put the current call on hold to notification sounds (if activated) and the answer the incoming call. Incoming Call...
Page 326: Driving
Continuously Variable Transmission... 338 Lane Keeping Assist System (LKAS)..386 Multi-View Camera System .... 429 Shifting ........339, 341 Road Departure Mitigation System... 397 Honda Smart Parking Assist System ... 439 SPORT Mode ........345 Front Sensor Camera ....... 403 Refueling ECON Mode ........
Page 327: Before Driving
Before Driving Driving Preparation Check the following items before you start driving. ■ 1Exterior Checks Exterior Checks NOTICE • Make sure there are no obstructions on the windows, door mirrors, exterior When doors are frozen shut, use warm water around lights, or other parts of the vehicle.
Page 328 uuBefore DrivinguDriving Preparation ■ 1Interior Checks Interior Checks The headlight aim is set by the factory, and does not • Store or secure all items on board properly. need to be adjusted. However, if you regularly carry Carrying too much luggage, or improperly storing it, can affect your vehicle’s heavy items in the boot, have the aiming readjusted handling, stability, stopping distance, and tyres, and make it unsafe.
Page 329 uuBefore DrivinguDriving Preparation • Be sure items placed on the floor behind the front seats cannot roll under the seats. They can interfere with the driver’s ability to operate the pedals, or the operation of the seats. • Everyone in the vehicle must fasten their seat belt. 2 Fastening a Seat Belt P.
Page 330 uuBefore DrivinguLoad Limit Load Limit When you load luggage, the total weight of the vehicle, all passengers, and luggage 1Load Limit must not exceed the maximum permissible weight. WARNING 2 Specifications P. 566 Overloading or improper loading can affect Australian and New Zealand models handling and stability and cause a crash in The load for the front and rear axles also must not exceed the maximum permissible which you can be hurt or killed.
Page 331: Towing A Trailer
Towing a Trailer Your vehicle is not designed to tow a trailer. Attempting to do so can void your warranties.
Page 332: When Driving
When Driving Starting the Engine 1. Make sure the parking brake is applied. 1Starting the Engine The parking brake indicator (red) comes Keep your foot firmly on the brake pedal when on for 30 seconds when you pull up the starting the engine.
Page 333 uuWhen DrivinguStarting the Engine 3. Press the ENGINE START/STOP button 1Starting the Engine without depressing the accelerator pedal. Bring the keyless remote close to the ENGINE START/STOP button if the battery in the keyless remote is weak. 2 If the Keyless Remote Battery is Weak P.
Page 334 uuWhen DrivinguStarting the Engine ■ 1Remote Engine Start Remote Engine Start WARNING You can remotely start the engine using the keyless remote. Engine exhaust contains toxic carbon ■ To start the engine monoxide. Press the button, then press and hold Breathing carbon monoxide can kill you or button.
Page 335 uuWhen DrivinguStarting the Engine ■ To stop the engine 1Remote Engine Start • You have already used the remote twice to start Go within the range, the engine. and try again. • Another registered keyless remote is in the vehicle. •...
Page 336 uuWhen DrivinguStarting the Engine 1Remote Engine Start While the engine is running, the vehicle will automatically activate climate control. When it is warm outside: • The climate control system is activated in auto mode. When it is cold outside: • The demister is activated at a moderately warm temperature.
Page 337 uuWhen DrivinguStarting the Engine ■ 1Starting to Drive Starting to Drive When the engine was started using the button on When the engine was started using the button on the keyless access remote the keyless access remote 1. Depress the brake pedal and press the ENGINE START/STOP button The engine stops when the transmission position is simultaneously.
Page 338: Precautions While Driving
uuWhen DrivinguPrecautions While Driving Precautions While Driving ■ In a Fog 1Precautions While Driving CAUTION: Do not drive on the road where water is Visibility becomes low when it is foggy. When you drive, turn on the low beam deep. Driving through deep water will cause damage headlights even during the daytime.
Page 339: Continuously Variable Transmission
uuWhen DrivinguContinuously Variable Transmission ■ 1Precautions While Driving Other Precautions If the power mode is set to ACCESSORY while If there is a strong impact with something under the vehicle, stop in a safe location. driving, the engine will shut down and all steering Check the underside of the vehicle for damage or any fluid leaks.
Page 340: Shifting
uuWhen DrivinguShifting Models without paddle shifters Shifting 1Shifting Change the shift position in accordance with your driving needs. You cannot change the power mode from ON to VEHICLE OFF unless the shift lever is in ■ Shift lever positions The vehicle may move very slightly even in while the engine is cold.
Page 341 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come Shift Lever Position Indicator to a complete standstill can damage the transmission.
Page 342 uuWhen DrivinguShifting Models with paddle shifters Shifting 1Shifting Change the shift position in accordance with your driving needs. You cannot change the power mode from ON to VEHICLE OFF unless the shift lever is in ■ Shift lever positions The vehicle may move very slightly even in while the engine is cold.
Page 343 uuWhen DrivinguShifting ■ 1Shift Lever Operation Shift Lever Operation NOTICE When you change the shift lever from vice versa, come to a complete stop and keep the brake pedal depressed. Operating the shift lever before the vehicle has come Tachometer’s red zone to a complete standstill can damage the transmission.
Page 344 uuWhen DrivinguShifting ■ 17-Speed Manual Shift Mode 7-Speed Manual Shift Mode In the 7-speed manual shift mode, the transmission Use the paddle shifters to change between 1st and 7th speeds without releasing shifts up or down by operating either paddle shifter your hands from the steering wheel.
Page 345 uuWhen DrivinguShifting ■ 17-Speed Manual Shift Mode Operation 7-Speed Manual Shift Mode Operation Each paddle shift operation makes a single speed change. To change continuously, release the paddle shifter Paddle Shifter Paddle Shifter before pulling it again for the next speed. (Shift down) (Shift up) The shift indicator blinks when you cannot shift up or...
Page 346: Sport Mode
uuWhen DrivinguSPORT Mode SPORT Mode SPORT Mode SPORT Button Indicator To turn the SPORT mode on and off, press the SPORT button. The SPORT mode increases engine performance and transmission. This mode is suitable for driving on hills or through curves on mountain roads. The SPORT mode is turned off every time you start the engine, even if you turned it on the last time you drove the vehicle.
Page 347: Econ Mode
uuWhen DrivinguECON Mode ECON Mode 1ECON Mode While in ECON mode, the climate control system has greater temperature fluctuations. The ECON button turns the ECON mode on and off. The ECON mode helps you improve your fuel economy by adjusting the performance of the engine, transmission, climate control system, and cruise control *1 : Models without SPORT mode...
Page 348: Cruise Control
uuWhen DrivinguCruise Control Cruise Control Maintains a constant vehicle speed without having to keep your foot on the 1Cruise Control accelerator. Use cruise control on motorways or open roads where you can travel at WARNING a constant speed with little acceleration or deceleration. Improper use of the cruise control can lead When to use to a crash.
Page 349 uuWhen DrivinguCruise Control ■ To Set the Vehicle Speed SET/– Button Press and release On when cruise control begins Take your foot off the pedal and press the SET/– button when you reach the desired speed. The moment you release the SET/– button, the set speed is fixed, and cruise control begins.
Page 350 uuWhen DrivinguCruise Control ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed You can set the vehicle speed using the SET/– button Increase or decrease the vehicle speed using the RES/+ or SET/– buttons on the on the steering wheel when adjusting the speed with steering wheel.
Page 351 uuWhen DrivinguCruise Control ■ 1To Cancel To Cancel Resuming the prior set speed: To cancel cruise control, do any of the After cruise control has been cancelled, you can still following: CANCEL resume the prior set speed by pressing the RES/+ Button •...
Page 352: Vehicle Stability Assist (Vsa) System
uuWhen DrivinguVehicle Stability Assist (VSA) System Vehicle Stability Assist (VSA) System VSA helps to stabilise the vehicle during cornering if the vehicle turns more or less 1Vehicle Stability Assist (VSA) System than what was intended. It also assists in maintaining traction on slippery surfaces. The VSA may not function properly if tyre type and It does so by regulating engine output and selectively applying the brakes.
Page 353 uuWhen DrivinguVehicle Stability Assist (VSA) System ■ 1Vehicle Stability Assist (VSA) System VSA On and Off In certain unusual conditions when your vehicle gets This button is on the driver side control panel. Right-hand drive models stuck in shallow mud or fresh snow, it may be easier To partially disable VSA functionality/features, to free it with the VSA temporarily switched off.
Page 354: Agile Handling Assist
uuWhen DrivinguAgile Handling Assist Agile Handling Assist Lightly brakes the front wheels, as needed, when you turn the steering wheel, and 1Agile Handling Assist helps support the vehicle’s stability and performance during cornering. The agile handling assist cannot enhance stability in all driving situations.
Page 355: Deflation Warning System
uuWhen DrivinguDeflation Warning System Deflation Warning System Instead of directly measuring the pressure in each tyre, the deflation warning system 1Deflation Warning System on this vehicle monitors and compares the rolling radius and rotational The system does not monitor the tyres when driving characteristics of each wheel and tyre while you are driving to determine if one or at low speed.
Page 356 uuWhen DrivinguDeflation Warning System You can initialise the system from the 1Deflation Warning System customized feature on the audio/information The vehicle stability assist (VSA) system, vehicle stability screen. assist (VSA) OFF, adaptive cruise control (ACC) with Low Speed Follow , safety support , and low tyre 1.
Page 357: Lanewatch
uuWhen DrivinguLaneWatch LaneWatch LaneWatch is an assistance system that allows you to check the passenger side rear 1LaneWatch areas displayed on the audio/information screen when the turn signal is activated to WARNING the passenger’s side. A camera in the passenger side door mirror monitors these areas and allows you to check for vehicles, in addition to your visual check and use Failure to visually confirm that it is safe to of the passenger door mirror.
Page 358 uuWhen DrivinguLaneWatch ■ Customizing the LaneWatch settings 1LaneWatch You can customize the following items using the audio/information screen. LaneWatch display does not come on when the • Show with turn signal: Selects whether LaneWatch display comes on when transmission is in you operate the turn signal lever.
Page 359: Honda Sensing
Honda Sensing Honda Sensing is a driver support system which employs the use of two distinctly different kinds of sensors: a radar sensor located at the lower part of the front bumper and a front sensor camera mounted to the interior side of the windscreen, behind the rearview mirror.
Page 360 uuHonda Sensing ■ Operation Switches for the ACC with Low Speed Follow/LKAS ■ MAIN Button Press to activate standby mode for ACC with MAIN Button Low Speed Follow and LKAS. Or press to CANCEL Button cancel these systems. ■ LKAS Button Press to activate or cancel the LKAS.
Page 361 uuHonda Sensing ■ 1Driver Information Interface Content Driver Information Interface Content Models with head-up display You can see the current state of ACC with You can have the head-up display show you the Low Speed Follow and LKAS. current state of each function. 2 Head-Up Display P.
Page 362: Collision Mitigation Braking System (Cmbs)
uuHonda Sensing uCollision Mitigation Braking System (CMBS) Collision Mitigation Braking System (CMBS) Can assist you when there is a possibility of your vehicle colliding with a vehicle or a 1Collision Mitigation Braking System (CMBS) pedestrian detected in front of yours. The CMBS is designed to alert you when a Important Safety Reminder potential collision is determined, as well as to reduce your vehicle speed to help The CMBS is designed to reduce the severity of an...
Page 363 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ When the system activates 1Collision Mitigation Braking System (CMBS) The camera in the CMBS is also designed to detect The system provides visual and audible alerts of a possible collision, and stops if the pedestrians.
Page 364 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ Collision Alert Stages The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS may not go through all of the stages before initiating the last stage. CMBS Distance between vehicles The radar sensor...
Page 365 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ 1Collision Mitigation Braking System (CMBS) CMBS On and Off The CMBS may automatically shut off, and the safety When you turn the CMBS on and off, do the Right-hand drive models support indicator (amber) will come and stay on following.
Page 366 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ CMBS Conditions and Limitations The system may automatically shut off and the safety support indicator (amber) will come on under certain conditions. Some examples of these conditions are listed below. Other conditions may reduce some of the CMBS functions. 2 Front Sensor Camera P.
Page 367 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ Vehicle conditions • Headlight lenses are dirty or the headlights are not properly adjusted. • The outside of the windscreen is blocked by dirt, mud, leaves, wet snow, etc. • The inside of the windscreen is fogged. •...
Page 368 uuHonda Sensing uCollision Mitigation Braking System (CMBS) Limitations applicable to pedestrian detection only • When there is a group of people in front of your vehicle walking together side by side. • Surrounding conditions or belongings of the pedestrian alter the pedestrian’s shape, preventing the system from recognizing that the person is a pedestrian.
Page 369 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ With Little Chance of a Collision The CMBS may activate even when you are aware of a vehicle ahead of you, or when there is no vehicle ahead. Some examples of this are: ■...
Page 370 uuHonda Sensing uCollision Mitigation Braking System (CMBS) ■ On a curve When driving through curves, your vehicle comes to a point where an oncoming vehicle is right in front of you. ■ Through a low bridge at high speed You drive under a low or narrow bridge at high speed. ■...
Page 371: Adaptive Cruise Control (Acc) With Low Speed Follow
uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow Adaptive Cruise Control (ACC) with Low Speed Follow Helps to maintain a constant vehicle speed and a set following-interval behind a 1Adaptive Cruise Control (ACC) with Low Speed Follow vehicle detected ahead of yours and, if the detected vehicle comes to a stop, can WARNING decelerate and stop your vehicle, without you having to keep your foot on the brake or the accelerator.
Page 372 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ How to activate the system 1Adaptive Cruise Control (ACC) with Low Speed Follow When the MAIN button is pressed, both ACC with How to use Low Speed Follow and the Lane Keeping Assist ACC (green) is on in the driver information System (LKAS) are either turned on or off.
Page 373 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ 1Adaptive Cruise Control (ACC) with Low Speed Follow To Set the Vehicle Speed The vehicle stability assist (VSA) system, vehicle stability assist (VSA) OFF, adaptive cruise control (ACC) with Low Speed Follow, safety support, and SET/−...
Page 374 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow When ACC with Low Speed Follow starts Set Vehicle Interval operating, the vehicle icon, interval bars and set speed appear on the driver information interface. When you use ACC with Low Speed Follow, Straight Driving Assist (a feature of the Electric Power Steering system) is activated.
Page 375 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ 1When in Operation When in Operation If the vehicle ahead of you slows down abruptly, or if ■ There is a vehicle ahead another vehicle cuts in front of you, the beeper ACC with Low Speed Follow monitors if a vehicle ahead of you enters the ACC with sounds, a message appears on the driver information Low Speed Follow range.
Page 376 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ There is no vehicle ahead 1When in Operation Your vehicle maintains the set speed without Even if the interval between your vehicle and the having to keep your foot on the brake or vehicle detected ahead is short, ACC with Low Speed accelerator pedal.
Page 377 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ A vehicle detected ahead is within ACC with Low Speed Follow range and 1A vehicle detected ahead is within ACC with Low Speed Follow slows to a stop range and slows to a stop Your vehicle also stops, automatically.
Page 378 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ 1ACC with Low Speed Follow Conditions and Limitations ACC with Low Speed Follow Conditions and Limitations For directions on the proper handling of the radar The system may automatically shut off and the ACC with Low Speed Follow sensor, refer to the following page.
Page 379 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ Detection limitations • A vehicle suddenly crosses in front of you. • The interval between your vehicle and the vehicle ahead of you is too short. • A vehicle cuts in front of you at a slow speed, and it brakes suddenly. •...
Page 380 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow • When driving through a narrow iron bridge. • When the vehicle ahead of you brakes suddenly. • When the vehicle ahead of you has a unique shape. Radar detects upper section of an empty Panel lorry, carrier lorry.
Page 381 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ 1To Adjust the Vehicle Speed To Adjust the Vehicle Speed If a vehicle detected ahead is going at a speed slower Increase or decrease the vehicle speed using the RES/+ or SET/– button on the than your increased set speed, ACC with Low Speed steering wheel.
Page 382 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ To Set or Change Following-Interval Press the (Interval) button to change the ACC with Low Speed Follow following- interval. Each time you press the button, the following- interval (the interval behind a vehicle detected ahead of you) setting cycles through short, middle, long, and extra long following- intervals.
Page 383 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow The higher your vehicle’s following speed is, the longer the short, middle, long or 1To Set or Change Following-Interval extra long following-interval becomes. See the following examples for your The driver must in all circumstances preserve a reference.
Page 384 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ 1To Cancel To Cancel Resuming the prior set speed: After you have To cancel ACC with Low Speed Follow, do any cancelled ACC with Low Speed Follow, you can MAIN CANCEL of the following:...
Page 385 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow ■ Automatic cancellation 1Automatic cancellation The beeper sounds and a message appears on the driver information interface when Even though ACC with Low Speed Follow has been ACC with Low Speed Follow is automatically cancelled. Any of these conditions may automatically cancelled, you can still resume the prior cause the ACC with Low Speed Follow to automatically cancel: set speed.
Page 386 uuHonda Sensing uAdaptive Cruise Control (ACC) with Low Speed Follow The ACC with Low Speed Follow automatic cancellation can be also triggered by the following causes. In these cases, the parking brake will be automatically applied. • The driver’s seat belt is unfastened when the vehicle is stationary. •...
Page 387: Lane Keeping Assist System (Lkas)
uuHonda Sensing uLane Keeping Assist System (LKAS) Lane Keeping Assist System (LKAS) Except Singaporean, Bruneian, Malaysian, Australian and New Zealand models 1Lane Keeping Assist System (LKAS) Provides steering input to help to keep the vehicle in the middle of a detected lane Important Safety Reminders and provides tactile and visual alerts if the vehicle is detected drifting out of its lane.
Page 388 uuHonda Sensing uLane Keeping Assist System (LKAS) Singaporean, Bruneian, Malaysian, Australian and New Zealand models 1Lane Keeping Assist System (LKAS) Provides steering input to help to keep the vehicle in the middle of a detected lane The LKAS may not function as designed while driving and provides tactile, audible and visual alerts if the vehicle is detected drifting out of in frequent stop and go traffic, or on roads with its lane.
Page 389 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ Lane Keep Support Function Provides assistance to keep the vehicle in the centre of the lane. When the vehicle nears a white or yellow line, steering force of the electric power steering will become stronger.
Page 390 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ Lane Departure Warning Function Except Singaporean, Bruneian, Malaysian, Australian and New Zealand models When the vehicle enters the warning area, the LKAS alerts you with slight steering wheel vibration as well as a warning display. Singaporean, Bruneian, Malaysian, Australian and New Zealand models When the vehicle enters the warning area, the LKAS alerts you with slight steering wheel vibration, and audible and visual warnings.
Page 391 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ 1When the System can be Used When the System can be Used If the vehicle drifts toward either left or right lane line The system can be used when the following conditions are met. due to the system applying torque, turn off the LKAS •...
Page 392 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ How to activate the system 1. Press the MAIN button. The LKAS is on in the driver information MAIN Button interface. The system is ready to use. 2. Press the LKAS button. Lane outlines appear on the driver LKAS Button information interface.
Page 393 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ 1To cancel To cancel Pressing the MAIN button also turns ACC with Low To cancel the LKAS: Speed Follow on and off. MAIN Button Press the MAIN or LKAS button. The LKAS is turned off every time you stop the engine, even if you turned it on the last time you drove the vehicle.
Page 394 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ The system operation is suspended if you: • Set the wipers to HI. Turning the wipers off or setting it to LO resumes the LKAS. • Set the wiper switch to AUTO and the wipers operate at high speed.
Page 395 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ The LKAS may automatically be cancelled when: • The camera temperature gets extremely high or low. • The camera behind the rearview mirror, or the area around the camera, including the windscreen, gets dirty. •...
Page 396 uuHonda Sensing uLane Keeping Assist System (LKAS) ■ Roadway conditions • Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected lights, road spray, high contrast). • Driving on a road with temporary lane markings. • Faint, multiple, or varied lane markings are visible on the roadway due to road repairs or old lane markings.
Page 397 uuHonda Sensing uLane Keeping Assist System (LKAS) • When objects on the road (curb, guard rail, pylons, etc.) are recognised as white lines (or yellow lines). • Driving on roads with double lines. Lane void of lines at junction ■ Vehicle conditions •...
Page 398: Road Departure Mitigation System
uuHonda Sensing uRoad Departure Mitigation System Road Departure Mitigation System Alerts and helps to assist you when the system detects a possibility of your vehicle 1Road Departure Mitigation System unintentionally crossing over detected lane markings and/or leaving the roadway Important Safety Reminder Like all assistance systems, the Road Departure altogether.
Page 399 uuHonda Sensing uRoad Departure Mitigation System Except Singaporean, Bruneian, Malaysian, Australian and New Zealand models 1Road Departure Mitigation System If the system operates several times without detecting driver response, the system If LKAS is off and you have selected Early from the beeps to alert you.
Page 400 uuHonda Sensing uRoad Departure Mitigation System ■ 1How the System Activates How the System Activates The Road Departure Mitigation system may The system becomes ready to start searching for lane markings when all the automatically shut off and the safety support following conditions are met: indicator (amber) comes and stays on.
Page 401 uuHonda Sensing uRoad Departure Mitigation System ■ 1Road Departure Mitigation System On and Off Road Departure Mitigation System On and Off When you have selected Warning Only from the When you turn the Road Departure Mitigation Right-hand drive models customized options using the audio/information system on and off, do the following.
Page 402 uuHonda Sensing uRoad Departure Mitigation System ■ Road Departure Mitigation System Conditions and Limitations The system may not properly detect lane markings and the position of your vehicle under certain conditions. Some examples of these conditions are listed below. ■ Environmental conditions •...
Page 403 uuHonda Sensing uRoad Departure Mitigation System ■ Roadway conditions • Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected lights, road spray, high contrast). • Driving on a road with temporary lane markings. • Faint, multiple, or varied lane markings are visible on the roadway due to road repairs or old lane markings.
Page 404: Front Sensor Camera
If this mirror. Camera occurs, we recommend that you replace the windscreen with a genuine Honda replacement windscreen. Making even minor repairs within the camera’s field of vision or installing an aftermarket replacement windscreen may also cause the system to operate abnormally.
Page 405 uuHonda Sensing uFront Sensor Camera To help to reduce the likelihood that high interior temperatures will cause the 1Front Sensor Camera camera’s sensing system to shut off, when parking, find a shady area or face the If the Some Driver Assist Systems Cannot front of the vehicle away from the sun.
Page 406: Radar Sensor
uuHonda Sensing uRadar Sensor Radar Sensor The radar sensor is at the lower part of the 1Radar Sensor front bumper. Avoid strong impacts to the radar sensor cover. For the CMBS to work properly: • Always keep the radar sensor cover clean. Radar •...
Page 407: Brake System
Braking Brake System ■ 1Braking Parking Brake When you depress the brake pedal, you may hear a Use the parking brake to keep the vehicle stationary when parked. When the whirring sound from the engine compartment. This is parking brake is applied, you can manually or automatically release it. because the brake system is in operation, and it is normal.
Page 408 uuBrakinguBrake System ■ Automatic parking brake feature operation 1Parking Brake If the automatic parking brake feature has been activated: In the following situations, the parking brake • The parking brake is applied automatically when you set the power mode to automatically operates.
Page 409 uuBrakinguBrake System ■ Activating and deactivating the automatic parking brake feature 1Parking Brake With the power mode is in ON, carry out the following steps to either activate or The parking brake cannot be released automatically deactivate the automatic parking brake feature. while the following indicators are on: •...
Page 410 uuBrakinguBrake System ■ 1Foot Brake Foot Brake Check the brakes after driving through deep water, Your vehicle is equipped with disc brakes at all four wheels. The brake assist system or if there is a buildup of road surface water. If increases the stopping force when you depress the brake pedal hard in an necessary, dry the brakes by lightly depressing the emergency situation.
Page 411 uuBrakinguBrake System ■ 1Automatic Brake Hold Automatic Brake Hold WARNING Keeps the brake applied after releasing the brake pedal until the accelerator pedal is pressed. You can use this system while the vehicle is temporarily stopped, like at Activating the automatic brake hold system traffic lights and in heavy traffic.
Page 412 uuBrakinguBrake System ■ The system automatically cancels when: 1Automatic Brake Hold • You engage the parking brake. While the system is activated, you can turn off the • You depress the brake pedal and put the transmission into P or engine or park the vehicle through the same procedure as you normally do.
Page 413: Anti-Lock Brake System (Abs)
uuBrakinguAnti-lock Brake System (ABS) Anti-lock Brake System (ABS) ■ 1Anti-lock Brake System (ABS) NOTICE Helps to prevent the wheels from locking up, and helps you to retain steering The ABS may not function correctly if you use a tyre control by pumping the brakes rapidly, much faster than you. of the wrong size or type.
Page 414: Brake Assist System
uuBrakinguBrake Assist System Brake Assist System Is designed to assist the driver by generating greater braking force when you depress the brake pedal hard during emergency braking. ■ Brake assist system operation Press the brake pedal firmly for more powerful braking. When brake assist operates, the pedal may wiggle slightly and an operating noise may be heard.
Page 415: Emergency Stop Signal
uuBrakinguEmergency Stop Signal Except Latin American, Bangladeshi and Sri Lankan models Emergency Stop Signal 1Emergency Stop Signal Activates when you brake hard while driving at 60 km/h or above to alert drivers The emergency stop signal is not a system that can behind you about sudden braking by rapidly flashing hazard warning lights.
Page 416: Parking Your Vehicle
Parking Your Vehicle When Stopped 1. Depress the brake pedal firmly. 1Parking Your Vehicle 2. With the brake pedal depressed, pull up the electric parking brake switch slowly, WARNING but fully. 3. Put the transmission into The vehicle can roll away if left 4.
Page 417 uuParking Your VehicleuWhen Stopped 1When Stopped In extremely cold temperatures, the parking brake may freeze up if applied. If such temperatures are expected, do not apply the parking brake but, if parking on a slope, either turn the front wheels so they will contact the curb if the vehicle rolls down the slope or block the wheels to keep the vehicle from moving.
Page 418: Parking Sensor System
uuParking Your VehicleuParking Sensor System Parking Sensor System The corner and centre sensors monitor obstacles around your vehicle, and the 1Parking Sensor System beeper, driver information interface and audio/information screen let you know the Even when the system is on, always confirm if there is approximate distance between your vehicle and the obstacle.
Page 419 uuParking Your VehicleuParking Sensor System ■ Parking sensor system on and off 1Parking sensor system on and off With the power mode in ON, press the Right-hand drive models When you set the power mode to ON, the system will parking sensor system button to turn on or off be in the previously selected condition.
Page 420 uuParking Your VehicleuParking Sensor System ■ Screen Operation 1Screen Operation You can switch between split view off and Models without multi-view The split screen tab disappears, and the split view camera system split view on by touching the split screen tab. returns to the last camera view mode under the following conditions: Split View Off...
Page 421 uuParking Your VehicleuParking Sensor System Models with multi-view camera system Split View Off Split Screen Split View On...
Page 422 uuParking Your VehicleuParking Sensor System ■ When the distance between your vehicle and obstacles becomes shorter Distance between the Bumper and Obstacle Length of the Indicator Audio/Information Screen intermittent beep Corner Sensors Centre Sensors Front : About 100-60 cm Comes on Moderate —...
Page 423 uuParking Your VehicleuParking Sensor System ■ 1Turning off All Rear Sensors Turning off All Rear Sensors When you put the transmission into , the indicator 1. Make sure that the parking sensor system is not activated. Set the power mode to in the parking sensor system button blinks as a VEHICLE OFF.
Page 424: Cross Traffic Monitor
uuParking Your VehicleuCross Traffic Monitor Cross Traffic Monitor Monitors the rear view displayed on the audio/information screen when reversing, 1Cross Traffic Monitor and alerts you if a vehicle approaching from a rear corner is captured by a camera. CAUTION The system is convenient especially when you are getting out of a parking space Cross Traffic Monitor cannot detect all backwards.
Page 425 uuParking Your VehicleuCross Traffic Monitor ■ 1Cross Traffic Monitor How the System Works Cross Traffic Monitor may not detect or may delay The system activates when: detecting an approaching vehicle, or may alert • The power mode is in ON. detection without an approaching vehicle under the •...
Page 426 uuParking Your VehicleuCross Traffic Monitor ■ 1Cross Traffic Monitor When the System Detects a Vehicle For proper operation, always keep the rearview camera lens clean wipe away dirt or moisture with a Detecting Guidelines Arrow Icon soft moist cloth. 1When the System Detects a Vehicle If the comes on when the shift lever is in there may be a problem with the Cross Traffic...
Page 427 uuParking Your VehicleuCross Traffic Monitor ■ Cross Traffic Monitor On and Off The system can be turned on and off on the audio/information screen by tapping the icon. You can also switch the system on and off using the audio/information screen. 2 Customized Features P.
Page 428: Multi-View Rear Camera
Multi-View Rear Camera About Your Multi-View Rear Camera The audio/information screen can display your vehicle’s rear view. The display 1About Your Multi-View Rear Camera automatically changes to the rear view when the transmission is put into The rear camera view is restricted. You cannot see the corner ends of the bumper or what is underneath ■...
Page 429 uuMulti-View Rear Camera uAbout Your Multi-View Rear Camera You can view three different camera modes on the audio/information screen. 1About Your Multi-View Rear Camera Touch the appropriate icon to switch the mode. You can change the Fixed Guideline and /Dynamic : Wide view mode Guideline settings.
Page 430: Multi-View Camera System
Multi-View Camera System Is a four camera system that views areas commonly known as “blind spots” from 1Multi-View Camera System different angles, then displays the images on the audio/information screen. This WARNING system can be used to: Failure to visually assess the area around •...
Page 431 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras Displaying an Image From the Multi-View Cameras ■ For frontal views: 1Displaying an Image From the Multi-View Cameras CAMERA Press the CAMERA button or Camera icon If you press the CAMERA button or Camera icon Button when the vehicle is stationary or moving at 20 while the vehicle speed is more than 25 km/h, the...
Page 432 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras ■ Camera Locations and Images Front view Camera Side view Cameras Ground View An overhead view created by the combination of images captured by four cameras. Front Left and View Right Side View Ground...
Page 433 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras Rearview Camera Ground View An overhead view created by the combination of images captured by four cameras. Rear Rear Wide Normal View View Ground Ground View View or CAMERA button or CAMERA button Rear Normal...
Page 434 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras ■ 1Displaying an Image From the Multi-View Cameras Reference Lines and Guide Lines The positions/distances indicated by the guide lines Following can be displayed when the multi-view camera system is on. and camera views on the display may differ from the Fixed Guideline: Helps you to get a sense of a distance between your vehicle and actual positions/distances due to the changes in the...
Page 435 The system can be used when you are: 2 Honda Smart Parking Assist System P. 439 When the system activates, the parking sensor automatically turns on, and at operation end, it returns to the last state before using the system.
Page 436 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras ■ 1Using the Multi-View Camera Using the Multi-View Camera The ground view can be displayed even with the door ■ Checking for obstacles at the back of your vehicle mirrors folded. However, the viewable angle and The display automatically changes to the rear view when the shift lever position is blind spot change.
Page 437 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras ■ Checking for the sides of your vehicle 1Checking for the sides of your vehicle You can display the front ground view screen using all the four cameras for the When the vehicle speed exceeds 25 km/h, the front system.
Page 438 uuMulti-View Camera System uDisplaying an Image From the Multi-View Cameras ■ Checking from the front blind view at intersections 1Checking from the front blind view at intersections The front blind view screen is useful when you need to check for vehicles crossing The front blind view is a wide-angled view.
Page 439 An error message is displayed while the multi-view camera system is in use. Do not use the multi-view camera or the Honda smart parking assist system and contact a dealer. The image does not come on the screen when you press the CAMERA button or Camera icon on the audio/information screen and the vehicle is moving at 20 km/h or slower.
Page 440: Honda Smart Parking Assist System
What is the Honda Smart Parking Assist System? WARNING The Honda smart parking assist system helps ease the burden of parking by steering the vehicle when the driver is reversing into a perpendicular space, or reversing into Do not rely too much on the Honda or pulling out of a parallel space.
Page 441 uuHonda Smart Parking Assist System ■ Reversing into or pulling out of a parallel space marked with lines 1Honda Smart Parking Assist System For information on how to use the sonar sensors, Right approach refer to the following page: 2 Sonar Sensors P. 465 Once the system is activated, messages appear on the screen and a buzzer periodically sounds to assist the driver.
Page 442 Smart Parking Assist System ■ How to use the Honda Smart Parking Assist System First, press CAMERA button to activate the multi-view camera, then select the screen to activate the system. After that, select Parking Mode and then follow the steps below as well as the on-screen and a buzzer sound.
Page 443 uuHonda Smart Parking Assist System ■ Pulling out of a parallel parking space After you have selected Parking Mode, follow the instructions. If an error occurs during a parking operation, an alarm will sound, an error message will be displayed, and the system will deactivate. 2 When the System is Cancelled during Operation P.
Page 444 uuHonda Smart Parking Assist System ■ 1Operation Switch and Screen Display Operation Switch and Screen Display If you need to cancel the operation, press the Use the touch-screen switches to turn the system on or off, or to switch between switch or the CAMERA button.
Page 445 The two green frames displayed opposite each other are used as guide to help you may be a problem with the system. Cancel the operation and consult with a Honda dealer. determine when to stop the vehicle so that it is within proper range of the parking 2 Error Messages P.
Page 446 uuHonda Smart Parking Assist System ■ Buzzer Once you have activated the system, messages will appear on the screen and a buzzer will periodically sound to assist you with the operation. Also, indicators on the screen will light up to indicate the status of the system. Continued...
Page 447 uuHonda Smart Parking Assist System ■ 1Reversing into a Parking Space Marked with Parking Lines Reversing into a Parking Space Marked with Parking Lines This system is not a substitute for your vehicle control but for your convenience only. Setting Assist Press [Start] to park inside green frame Targeted Space...
Page 448 Be careful when placing your hands on forward your vehicle slowly. Back In PP In PP Out the steering wheel while the Honda Occasionally depress the brake pedal. smart parking assist system is in If the length of the intermittent beeps Start Start operation.
Page 449 7. The steering wheel automatically turns. 1Reversing into a Parking Space Marked with Parking Lines While the beeper sounds intermittently, The Honda smart parking assist system can be useful reverse your vehicle slowly. Occasionally only when there are no obstacles around the parking depress the brake pedal.
Page 450 Back In PP In PP Out Mode Tab Be careful when placing your hands on Targeted the steering wheel while the Honda Start Start Space Check Your Surroundings smart parking assist system is in Lines Cancel operation.
Page 451 1Parallel Parking into a Parking Space Marked with Parking Lines While in operation: Place your hands on the steering wheel, The Honda smart parking assist system can be useful Comes on in white and follow the messages respectively only when there are no obstacles around the parking...
Page 452 uuHonda Smart Parking Assist System 7. The steering wheel automatically turns. While the beeper sounds intermittently, reverse your vehicle slowly. Occasionally depress the brake pedal. If the vehicle does not stop even after a buzzer sounds or the message “Stop Vehicle”...
Page 453 uuHonda Smart Parking Assist System ■ For the Smart Parking Assist System to Work Properly The following conditions are not suitable for the system’s proper operation. Determine if the system can be used when: • The vehicle is on an incline. •...
Page 454 Start Start Be careful when placing your hands on Check Your Surroundings the steering wheel while the Honda Cancel smart parking assist system is in operation. Select the left or right depending The system cancels operation five minutes after you on which side you want to pull have selected the left or right side for parking.
Page 455 1Parallel Pull Out from a Parking Space While in operation: steering wheel position until the Stop the The Honda smart parking assist system can be useful Comes on in white car message appears. If the assist start only when there are no obstacles around the parking...
Page 456 uuHonda Smart Parking Assist System 9. The steering wheel automatically turns. 1Parallel Pull Out from a Parking Space While the beeper sounds intermittently, If a vehicle on the road is approaching from behind, reverse your vehicle slowly. Occasionally depress the brake pedal and stop the vehicle. depress the brake pedal.
Page 457 Smart Parking Assist System ■ For the Honda Smart Parking Assist System to Work Properly The following conditions are not suitable for the system’s proper operation. Determine if the system can be used when: • The vehicle is on an incline.
Page 458 System System When moving the vehicle backward or forward on a The following parking spaces are not suitable when using the Honda smart parking steep downward slope, be careful not to apply too assist system. much pressure to the accelerator pedal.
Page 459 uuHonda Smart Parking Assist System ■ ■ ■ Inclined Elevated Unpaved ■ ■ Slippery (snowy) Slippery (icy)
Page 460 ■ Error Messages comes on in orange, the Honda smart parking assist system has a problem. Do not use the system and have your vehicle checked by a dealer. If you do not see in orange, you may find a solution from a message on the screen.
Page 461 uuHonda Smart Parking Assist System Messages Causes Solutions Door mirrors are folded. Press the door mirror folding button to unfold the door ● ● Extend door mirrors mirrors. Switch VSA ON VSA is deactivated. Turn the VSA system on. ● ●...
Page 462 uuHonda Smart Parking Assist System ■ When the System is Cancelled during Operation A beep and a message notify you. Follow the corresponding solution. Messages Causes Solutions Start from step 2, framing your parking space with the targeted lines. ● Or, park your vehicle manually.
Page 463 uuHonda Smart Parking Assist System Messages Causes Solutions Restart the parking assist. The parking sensors automatically turns on. ● Park assist cancelled 2 Reversing into a Parking Space Marked with Parking Lines P. 446 Parking sensor Parking sensors are turned off. ●...
Page 464 uuHonda Smart Parking Assist System Messages Causes Solutions The vehicle is on a surface tyres ● are likely to spin, making it Do not use the system. Park manually. ● difficult for the system to control the steering wheel. When forwarding: The shift ●...
Page 465 ● as possible. If any of the following problems occur while you are using the Honda smart parking assist system, press CAMERA button to cancel the operation and have your vehicle checked by a Honda dealer: • The image captured by camera disappears.
Page 466 Hit the area around the sensors. • Attempt to take apart any sensor. Front Centre Sensor Rear Corner Sensor Consult with a Honda dealer if: • A sensor has been subjected to shock. • Work needs to be done to the area around a sensor.
Page 467 uuHonda Smart Parking Assist System uSonar Sensors In the following circumstances the sonar sensors may not be able to detect an 1Sonar Sensors obstacle, and as a result, the system may not work properly. Do not modify the suspension. Altering the height of ■...
Page 468: Fuel Information
Refueling Fuel Information ■ Fuel recommendation 1Fuel Information Thai models NOTICE Unleaded petrol/gasohol up to E85 (15% petrol and 85% ethanol), Use of petrol that contains lead presents the following risks: research octane number 91 or higher • Damage to the exhaust system including the catalytic converter Use of lower octane petrol can cause a persistent, heavy metallic knocking noise that •...
Page 469 uuRefuelinguFuel Information Models for other countries Unleaded petrol, research octane number 91 or higher Use of lower octane petrol can cause a persistent, heavy metallic knocking noise that can lead to engine damage. ■ Fuel tank capacity: 56 L...
Page 470: How To Refuel
uuRefuelinguHow to Refuel How to Refuel 1. Stop your vehicle with the service station 1How to Refuel pump on the left side of the vehicle in the WARNING rear. 2. Turn off the engine. Petrol is highly flammable and explosive. 3.
Page 471 uuRefuelinguHow to Refuel 6. Place the fuel fill cap in the holder. 7. Insert the fuel filler nozzle fully. When the tank is full, the filler nozzle will click off automatically. This leaves space in the fuel tank in case the fuel expands with a change in the temperature.
Page 472: Fuel Economy And Co Emissions
Fuel Economy and CO Emissions Improving Fuel Economy and Reducing CO Emissions Achieving fuel economy and reducing CO emissions is dependent on several 1Improving Fuel Economy and Reducing CO Emissions factors, including driving conditions, load weight, idling time, driving habits, and Direct calculation is the recommended method to vehicle condition.
Page 473: Turbo Engine Vehicle
Turbo Engine Vehicle Handling Precautions The turbocharger is a high-precision device to obtain greater horsepower by 1Turbo Engine Vehicle delivering a large volume of compressed air into the engine using a turbine driven by The scheduled maintenance intervals for replacing the engine’s exhaust gas pressure.
Page 474: Maintenance
Maintenance This chapter discusses basic maintenance. Before Performing Maintenance Recommended Engine Oil ....488 Tyre Service Life ....... 511 Inspection and Maintenance .... 474 Oil Check......... 490 Tyre and Wheel Replacement... 512 Safety When Performing Maintenance ..475 Adding Engine Oil......491 Tyre Rotation ........
Page 475: Before Performing Maintenance
Before Performing Maintenance Inspection and Maintenance For your safety, perform all listed inspections and maintenance to keep your vehicle in good condition. If you become aware of any abnormality (noise, smell, insufficient brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer. Refer to the Service Book that came with your vehicle/maintenance schedule in this owner’s manual for detailed maintenance and inspection information.
Page 476: Safety When Performing Maintenance
uuBefore Performing MaintenanceuSafety When Performing Maintenance Safety When Performing Maintenance Some of the most important safety precautions are given here. However, we cannot 1Safety When Performing Maintenance warn you of every conceivable hazard that can arise in performing maintenance. WARNING Only you can decide whether you should perform a given task.
Page 477: Parts And Fluids Used In Maintenance Service
Performing MaintenanceuParts and Fluids Used in Maintenance Service Parts and Fluids Used in Maintenance Service The use of Honda genuine parts and fluids is recommended when maintaining and servicing your vehicle. Honda genuine parts are manufactured according to the...
Page 478: Oil Monitor System
Oil Monitor System If the remaining distance to the next engine oil maintenance period is 1,500 km or less, you will see the oil monitor system messages every time you set the power mode to ON. The messages notify you when to change the engine oil, or when to bring your vehicle to a dealer for indicated maintenance services.
Page 479 uuOil Monitor SystemuDisplaying the Oil Monitor System Information 4. Press the left selector wheel to go to the oil monitor system information screen. The maintenance service item and the remaining distance appears on the driver information interface along with maintenance items due soon. The system message indicator ( ) stays on in the instrument panel after the maintenance period reached.
Page 480 uuOil Monitor SystemuDisplaying the Oil Monitor System Information ■ Oil Monitor System Information on the Driver Information Interface Warning Message Oil Life Display Explanation Information NORMAL NORMAL When you select the oil monitor system information screen, the remaining engine oil life, or the remaining engine oil and oil filter life is displayed.
Page 481 uuOil Monitor SystemuDisplaying the Oil Monitor System Information Warning Message Oil Life Display Explanation Information SERVICE DUE NOW SERVICE DUE NOW When the remaining life of the engine The engine oil, or the engine oil and oil oil, or the remaining life of the engine filter have almost reached the end of oil and oil filter is 500 km or less, the their service life, and the maintenance...
Page 482 uuOil Monitor SystemuDisplaying the Oil Monitor System Information ■ 1Resetting the Display Resetting the Display NOTICE Reset the engine oil monitor system information if you have performed the Failure to reset the engine oil life after a maintenance maintenance service. service results in the system showing incorrect maintenance intervals, which can lead to serious mechanical problems.
Page 483: Maintenance Schedule
Maintenance Schedule If your vehicle comes with the Service Book, the maintenance schedule for your vehicle is available in the book. For vehicles without the Service Book, refer to the following maintenance schedule. The maintenance schedule outlines the minimum required maintenance that you should perform to ensure the troublefree operation of your vehicle.
Page 484 uuMaintenance Scheduleu Except Australian and New Zealand models km X 1,000 Service at the indicated distance or time - whichever comes first. months Replace engine oil Turbo When indicator comes on or 1 year Replace engine oil filter Turbo When indicator comes on or 2 years Replace air cleaner element Every 30,000 km Every 40,000km...
Page 485 uuMaintenance Scheduleu km X 1,000 Service at the indicated distance or time - whichever comes first. months Replace transmission fluid • • • • • Replace dust and pollen filter • • • • • • • • • • Inspect front and rear brakes Every 10,000 km or 6 months Replace brake fluid...
Page 486: Maintenance Record
uuMaintenance ScheduleuMaintenance Record Except Australian and New Zealand models Maintenance Record Have your servicing dealer record all required maintenance below. Keep receipts for all work done on your vehicle. Km or Month Date Sign or Stamp 20,000 km (or 12 Mo.) 40,000 km (or 24 Mo.) 60,000 km...
Page 487: Maintenance Under The Bonnet
Maintenance Under the Bonnet Maintenance Items Under the Bonnet Right-hand drive models Left-hand drive models Brake Fluid (Black Cap) Brake Fluid (Black Cap) Engine Oil Fill Cap Engine Oil Dipstick (Orange) Battery Engine Coolant Reserve Tank Washer Fluid (Blue Cap) Radiator Cap...
Page 488: Opening The Bonnet
uuMaintenance Under the BonnetuOpening the Bonnet Opening the Bonnet 1. Park the vehicle on a level surface, and set 1Opening the Bonnet Bonnet Release Handle the parking brake. NOTICE 2. Pull the bonnet release handle under the Do not open the bonnet when the wiper arms are driver’s side lower outside corner of the raised.
Page 489: Recommended Engine Oil
Genuine Engine Oil Commercial Engine Oil • Genuine Honda Motor Oil • API service SM or higher grade fuel-efficient oil • ACEA A5/B5 Genuine Honda Motor Oil 0W-20*1, 0W-30 0W-20, 0W-30 Genuine Motor Oil 5W-30 5W-30 Genuine Motor Oil 10W-30 10W-30...
Page 490 Under the BonnetuRecommended Engine Oil Thai models Genuine Engine Oil Commercial Engine Oil • Honda Genuine Engine Oil • ACEA C2/C3 Type 2.0 0W-20 Genuine Motor Oil 0W-20*1 5W-30 Ambient Temperature Ambient Temperature *1:Formulated to improve fuel economy.
Page 491: Oil Check
uuMaintenance Under the BonnetuOil Check Oil Check We recommend that you check the engine oil level every time you refuel. 1Oil Check Park the vehicle on level ground. If the oil level is near or below the lower mark, slowly Wait approximately three minutes after turning the engine off before you check the add oil being careful not to overfill.
Page 492: Adding Engine Oil
uuMaintenance Under the BonnetuAdding Engine Oil Adding Engine Oil 1. Unscrew and remove the engine oil fill cap. 1Adding Engine Oil 2. Add oil slowly. NOTICE 3. Reinstall the engine oil fill cap, and tighten Do not fill the engine oil above the upper mark. it securely.
Page 493: Engine Coolant
Under the BonnetuEngine Coolant Engine Coolant 1Engine Coolant Specified coolant: Honda All Season Antifreeze/Coolant Type 2 WARNING This coolant is premixed with 50% antifreeze and 50% water. Do not add any straight antifreeze or water. Removing the radiator cap while the engine is hot can cause the coolant to spray We recommend you check the engine coolant level every time you refuel.
Page 494 uuMaintenance Under the BonnetuEngine Coolant ■ 1Radiator Radiator NOTICE 1. Make sure the engine and radiator are Radiator Cap Pour the fluid slowly and carefully so you do not spill cool. any. Clean up any spills immediately; they can 2. Turn the radiator cap 1/8 turn anticlockwise damage components in the engine compartment.
Page 495: Transmission Fluid
(CVT) fluid. Any damage caused by using a transmission fluid that is not equivalent to HCF-2 is not covered by Honda’s 2 Maintenance Schedule P. 482 new vehicle limited warranty. Do not attempt to check or change the continuously variable transmission fluid...
Page 496: Brake Fluid
uuMaintenance Under the BonnetuBrake Fluid Brake Fluid 1Brake Fluid Specified fluid: Brake Fluid with DOT 3 or DOT 4 NOTICE ■ Checking the Brake Fluid Brake fluid marked DOT 5 is not compatible with your vehicle’s braking system and can cause extensive The fluid level should be between the MIN Right-hand drive models damage.
Page 497: Refilling Window Washer Fluid
uuMaintenance Under the BonnetuRefilling Window Washer Fluid Refilling Window Washer Fluid Check the amount of window washer fluid. 1Refilling Window Washer Fluid If the level is low, fill the washer reservoir. NOTICE Do not use engine antifreeze or a vinegar/water solution in the windscreen washer reservoir.
Page 498: Replacing Light Bulbs
Fog Lights boot, have the aiming readjusted at a dealer or by a qualified technician. Fog lights are LED type. Have an authorised Honda dealer inspect and replace the light assembly. Front Turn Signal Lights Front turn signal lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.
Page 499 1Taillights, Brake Lights and Rear Turn Signal Light Bulbs When replacing, use the following bulbs. Brake lights and taillights are LED type. Have an Brake Light: LED authorised Honda dealer inspect and replace the light Taillight: LED assembly. Rear Turn Signal Light: 21 W (Amber) 1.
Page 500 uuReplacing Light BulbsuTaillights, Brake Lights and Rear Turn Signal Light Bulbs 4. Turn the socket to the left and remove it. Bulb 5. Push and turn the old bulb to the right and remove it, and insert a new bulb. Socket...
Page 501 When replacing, use the following bulbs. 1Taillights, Brake Lights and Back-Up Light Bulbs Taillights and brake lights are LED type. Have an Taillight: LED authorised Honda dealer inspect and replace the light Brake Light: LED assembly. Back-Up Light: 16 W When removing the clip, insert a flat-tip screwdriver, 1.
Page 502 uuReplacing Light BulbsuTaillights, Brake Lights and Back-Up Light Bulbs Right side 2. Turn the socket to the right and remove it. 3. Remove the old bulb and insert a new bulb. Bulb Socket...
Page 503 Light BulbsuRear Licence Plate Light Rear Licence Plate Light Rear licence plate light is LED type. Have an authorised Honda dealer inspect and replace the light assembly. High-Mount Brake Light High-mount brake light is LED type. Have an authorised Honda dealer inspect and replace the light assembly.
Page 504 uuReplacing Light BulbsuOther Light Bulbs Other Light Bulbs ■ Models with ambient light Models without ambient light Ceiling Light Bulb ■ ■ Front Map Light Bulbs Front Map Light Bulbs When replacing, use the following bulb. When replacing, use the following bulbs. When replacing, use the following bulbs.
Page 505 uuReplacing Light BulbsuOther Light Bulbs ■ ■ ■ Rear Map Light Bulbs* Vanity Mirror Light Bulbs Boot Light Bulb When replacing, use the following bulbs. When replacing, use the following bulbs. When replacing, use the following bulb. Rear Map Light: 5 W Vanity Mirror Light: 2 W Boot Light: 5 W 1.
Page 506 uuReplacing Light BulbsuOther Light Bulbs ■ ■ Glove Box Light Bulb Door Courtesy Light Bulbs When replacing, use the following bulb. When replacing, use the following bulbs. Glove Box Light: 3.4 W Door Courtesy Light: 3.8 W (2 CP) Bulb Bulb 1.
Page 507: Checking And Maintaining Wiper Blades
Checking and Maintaining Wiper Blades Checking Wiper Blades If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces of the blade may scratch the window glass. Changing the Wiper Blade Rubber 1Changing the Wiper Blade Rubber 1.
Page 508 uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber 4. Press up on and hold the tab, then slide Wiper Arm the holder off the wiper arm. Holder 5. Pull the end of the wiper blade in the Wiper direction of the arrow in the image until it Blade is out of the holder’s end cap.
Page 509 uuChecking and Maintaining Wiper BladesuChanging the Wiper Blade Rubber 7. Insert the flat side of the new wiper blade onto the bottom part of the holder. Insert the blade all the way. Wiper Blade 8. Install the end of the wiper blade into the cap.
Page 510: Checking Tyres
Checking and Maintaining Tyres Checking Tyres To safely operate your vehicle, your tyres must be of the proper type and size, in 1Checking Tyres good condition with adequate tread, and properly inflated. WARNING ■ Inflation guidelines Using tyres that are excessively worn or Properly inflated tyres provide the best combination of handling, tread life, and improperly inflated can cause a crash in comfort.
Page 511 uuChecking and Maintaining TyresuChecking Tyres ■ Inspection guidelines 1Checking Tyres Every time you check inflation, also examine the tyres and valve stems. Have a dealer check the tyres if you feel a consistent Look for: vibration while driving. New tyres and any that have •...
Page 512: Wear Indicators
uuChecking and Maintaining TyresuWear Indicators Wear Indicators The groove where the wear indicator is Example of a Wear located is 1.6 mm shallower than elsewhere Indicator mark on the tyre. If the tread has worn so that the indicator is exposed, replace the tyre. Worn out tyres have poor traction on wet roads.
Page 513: Tyre And Wheel Replacement
uuChecking and Maintaining TyresuTyre and Wheel Replacement Tyre and Wheel Replacement Replace your tyres with radials of the same size, load range, speed rating, and 1Tyre and Wheel Replacement maximum cold tyre pressure rating (as shown on the tyre’s sidewall). Using tyres of WARNING a different size or construction can cause certain vehicle systems such as the ABS and Vehicle Stability Assist (VSA) system to work incorrectly.
Page 514: Tyre Rotation
uuChecking and Maintaining TyresuTyre Rotation Tyre Rotation Rotating tyres according to the maintenance schedule helps to distribute wear more 1Tyre Rotation evenly and increase tyre life. Tyres with directional tread patterns should only be rotated front to back (not from one side to the other). ■...
Page 515: Snow Traction Devices
uuChecking and Maintaining TyresuSnow Traction Devices Snow Traction Devices If driving on snowy or frozen roads, mount winter tyres, or tyre chains; reduce 1Snow Traction Devices speed; and maintain sufficient distance between vehicles when driving. WARNING Be particularly careful when operating the steering wheel or brakes to prevent skidding. Using the wrong chains, or not properly installing chains, can damage the brake Use tyre chains, winter tyres, or all season tyres when necessary or according to the law.
Page 516 uuChecking and Maintaining TyresuSnow Traction Devices • Because your vehicle has limited tyre clearance, we strongly recommend using the 1Snow Traction Devices chains listed below: If your vehicle is equipped with summer tyres, be aware that these tyres are not designed for winter Original Tyre Size Chain Type driving conditions.
Page 517: Battery
Battery Checking the Battery The condition of the battery is monitored by a 1Battery sensor located on the negative terminal of the WARNING battery. If there is a problem with this sensor, the driver information interface will display a The battery gives off explosive hydrogen gas during normal operation.
Page 518 uuBatteryuChecking the Battery 1Battery Emergency Procedures Eyes: Flush with water from a cup or other container for at least 15 minutes. (Water under pressure can damage the eye.) Call a physician immediately. Skin: Remove contaminated clothing. Flush the skin with large quantities of water. Call a physician immediately.
Page 519 uuBatteryuCharging the Battery Charging the Battery Disconnect both battery cables to prevent damaging your vehicle’s electrical system. Always disconnect the negative (-) cable first, and reconnect it last.
Page 520: Remote Transmitter Care
Remote Transmitter Care Replacing the Button Battery If the indicator does not come on when the button is pressed, replace the battery. 1Replacing the Button Battery WARNING ■ Keyless Remote CHEMICAL BURN HAZARD Battery type: CR2032 The battery that powers the remote transmitter can cause severe internal burns 1.
Page 521: Climate Control System Maintenance
Climate Control System Maintenance Dust and Pollen Filter ■ 1Dust and Pollen Filter When to Replace the Dust and Pollen Filter If the airflow from the climate control system Replace the dust and pollen filter according to your vehicle’s recommended deteriorates noticeably, and the windows fog up maintenance schedule.
Page 522 uuClimate Control System MaintenanceuDust and Pollen Filter 5. Push in the tabs on the corners of the filter 1Dust and Pollen Filter Dust and case cover, and remove it. Pollen Filter If you are not sure how to replace the dust and pollen 6.
Page 523: Interior Care
Cleaning Interior Care Use a vacuum cleaner to remove dust before using a cloth. 1Interior Care Use a damp cloth with a mixture of mild detergent and warm water to remove dirt. Do not spill liquids inside the vehicle. Use a clean cloth to remove detergent residue. Electrical devices and systems may malfunction if liquids are splashed on them.
Page 524 uuCleaninguInterior Care ■ 1Maintaining Genuine Leather Maintaining Genuine Leather It is important to clean or wipe away dirt or dust as To properly clean leather: soon as possible. Spills can soak into leather resulting 1. Use a vacuum or soft dry cloth first to remove any dirt or dust. in stains.
Page 525: Exterior Care
uuCleaninguExterior Care Exterior Care Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches on painted surfaces. A scratch on a painted surface can result in body rust. If you find a scratch, promptly repair it. ■...
Page 526 uuCleaninguExterior Care ■ 1Applying Wax Applying Wax NOTICE A good coat of automotive body wax helps to protect your vehicle’s paint from the Chemical solvents and strong cleaners can damage elements. Wax will wear off over time and expose your vehicle’s paint to the the paint, metal, and plastic on your vehicle.
Page 527 uuCleaninguExterior Care ■ Maintaining Aluminium Wheels Aluminium is susceptible to deterioration caused by salt and other road contaminants. When necessary, as early as possible use a sponge and mild detergent to wipe away these contaminants. Do not use a stiff brush or harsh chemicals (including some commercial wheel cleaners).
Page 528 uuCleaninguExterior Care ■ 1Hydrophilic Mirror Hydrophilic Mirror To keep the hydrophilicity of the mirrors: Your vehicle’s door mirror surface is coated with hydrophilic film. Follow the next • Do not apply wax or water repellent agent on the steps when the mirrors become less hydrophilic. mirror surface.
Page 529: Accessories And Modifications
When properly installed, mobile phones, alarms, two- way radios, radio antennas, and low-powered audio systems should not interfere with your vehicle’s computer controlled systems, such as your airbags and anti-lock brakes. Honda Genuine accessories are recommended to ensure proper operation on your vehicle.
Page 530: Modifications
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle is intended to be used with automobile system diagnostic devices or with other devices that Honda has approved. Use of any other type of device may adversely affect the vehicle’s electronic systems or allow them to be compromised, possibly resulting in a system malfunction, drained battery, or other unexpected problems.
Page 532: Handling The Unexpected
Handling the Unexpected This chapter explains how to handle unexpected troubles. Tools Fuses If the Charging System Indicator Comes On ... 552 Types of Tools ........532 If the Malfunction Indicator Lamp Comes Fuse Locations ......... 557 If a Tyre Goes Flat On or Blinks ........
Page 533: Tools
Tools Types of Tools 1Types of Tools The tools are stored in the boot. Detachable Towing Hook Jack Handle Bar Wheel Nut Wrench/ Jack Jack Handle Tool Case Phillips-head Flat-tip Grip Screwdriver Screwdriver * Not available on all models...
Page 534: If A Tyre Goes Flat
If a Tyre Goes Flat Changing a Flat Tyre If a tyre goes flat while driving, grasp the steering wheel firmly, and brake gradually 1Changing a Flat Tyre to reduce speed. Then, stop in a safe place. Replace the flat tyre with a compact Follow compact spare precautions: spare tyre.
Page 535 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1Changing a Flat Tyre Getting Ready to Replace the Flat Tyre WARNING: The jack can only be used for helping an 1. Open the boot floor lid. emergency vehicle breakdown, not for changing the regular seasonal tyre or any other normal maintenance or repair operation.
Page 536 uuIf a Tyre Goes FlatuChanging a Flat Tyre 6. Place the compact spare tyre (wheel side up) under the vehicle body, near the tyre that needs to be replaced. 7. Loosen each wheel nut about one turn using the wheel nut wrench. Continued...
Page 537 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1How to Set Up the Jack How to Set Up the Jack WARNING 1. Place the jack under the jacking point closest to the tyre to be changed. The vehicle can easily roll off the jack, seriously injuring anyone underneath.
Page 538 uuIf a Tyre Goes FlatuChanging a Flat Tyre 3. Raise the vehicle, using the jack handle bar 1How to Set Up the Jack and the jack handle, until the tyre is off the Do not use the jack with people or luggage in the ground.
Page 539 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ 1Replacing the Flat Tyre Replacing the Flat Tyre Do not over tighten the wheel nuts by applying extra 1. Remove the wheel nuts and flat tyre. torque using your foot or a pipe. 2.
Page 540 uuIf a Tyre Goes FlatuChanging a Flat Tyre ■ Storing the Flat Tyre 1Storing the Flat Tyre WARNING 1. Remove the centre cap. Centre cap Loose items can fly around the interior in a crash and can seriously injure the occupants.
Page 541 uuIf a Tyre Goes FlatuChanging a Flat Tyre Models with deflation warning system ■ Deflation Warning System and the Compact Spare Tyre If you replace a flat tyre with the compact spare tyre, the low tyre pressure/deflation warning system indicator comes on while you are driving. After driving for a few kilometres, Check System will appear on the driver information interface and the indicator will start blinking for a short time and then stay on;...
Page 542: Engine Does Not Start
Engine Does Not Start Checking the Engine If the engine does not start, check the starter. 1Checking the Engine If you must start the vehicle immediately, use an assisting vehicle or booster battery to jump start it. 2 Jump Starting P. 544 Starter condition Checklist Starter doesn’t turn or turns...
Page 543: If The Keyless Remote Battery Is Weak
uuEngine Does Not StartuIf the Keyless Remote Battery is Weak If the Keyless Remote Battery is Weak If the beeper sounds, the To Start, Hold Remote Near Start Button message appears on the driver information interface, and the ENGINE START/STOP button flashes, and the engine won’t start, start the engine as follows: 1.
Page 544: Emergency Engine Stop
uuEngine Does Not StartuEmergency Engine Stop Emergency Engine Stop The ENGINE START/STOP button may be used to stop the engine due to an 1Emergency Engine Stop emergency situation even while driving. If you must stop the engine, do either of the Do not press the ENGINE START/STOP button while following operations: driving unless it is absolutely necessary for the engine...
Page 545: Jump Starting
Jump Starting ■ 1Jump Starting Jump Starting Procedure WARNING Turn off the power to electric devices, such as audio and lights. Turn off the engine, then open the bonnet. A battery can explode if you do not follow 1. Open the cover on the positive + terminal. the correct procedure, seriously injuring 2.
Page 546 uuJump Startingu 5. Connect the other end of the second 1Jump Starting Engine Mounting Bolt jumper cable to the engine mounting bolt Battery performance degrades in cold conditions and as shown. Do not connect this jumper cable may prevent the engine from starting. to any other part.
Page 547 uuJump Startingu ■ 1What to Do After the Engine Starts What to Do After the Engine Starts The vehicle stability assist (VSA) system, vehicle stability Once your vehicle’s engine has started, remove the jumper cables in the following assist (VSA) OFF, adaptive cruise control (ACC) with order.
Page 548: Shift Lever Does Not Move
Shift Lever Does Not Move Follow the procedure below if you cannot move the shift lever out of the position. Right-hand drive models ■ Releasing the Lock 1. Set the parking brake. 2. Remove the built-in key from the keyless Release Button remote.
Page 549 uuShift Lever Does Not Moveu Left-hand drive models ■ Releasing the Lock 1. Set the parking brake. 2. Remove the built-in key from the keyless remote. 3. Open the centre pocket. 2 Centre Pocket P. 211 4. Remove the cover in the centre pocket. Cover 5.
Page 550: Overheating
Overheating How to Handle Overheating Overheating symptoms are as follows: 1How to Handle Overheating • The temperature gauge pointer is at the mark or the engine suddenly loses WARNING power. • Stop Driving When Safe. Engine Temperature Too Hot. message appears on Steam and spray from an overheated the driver information interface.
Page 551 uuOverheatinguHow to Handle Overheating ■ Next thing to do 1How to Handle Overheating 1. Check that the cooling fan is operating and WARNING Reserve stop the engine once the temperature Tank gauge pointer comes down. Removing the radiator cap while the If the cooling fan is not operating, engine is hot can cause the coolant to spray immediately stop the engine.
Page 552: Indicator, Coming On/Blinking
Indicator, Coming On/Blinking If the Low Oil Pressure Warning Appears ■ Reasons for the warning to appear 1If the Low Oil Pressure Warning Appears Appears when the engine oil pressure is low. NOTICE ■ What to do as soon as the warning Running the engine with low oil pressure can cause appears serious mechanical damage almost immediately.
Page 553: If The Charging System Indicator Comes On
uuIndicator, Coming On/BlinkinguIf the Charging System Indicator Comes On If the Charging System Indicator Comes On ■ Reasons for the indicator to come on 1If the Charging System Indicator Comes On Comes on when the battery is not being charged. If you need to stop temporarily, do not turn off the ■...
Page 554: If The Brake System Indicator (Red) Comes On Or Blinks
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks If the Brake System Indicator (Red) Comes On or Blinks ■ Reasons for the indicator to come on 1If the Brake System Indicator (Red) Comes On or Blinks •...
Page 555: If The Brake System Indicator (Red) Comes On Or Blinks At The Same Time When The Brake System Indicator (Amber) Comes On
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) comes on or blinks at the same time when the Brake System Indicator (Amber) comes on If the Brake System Indicator (Red) comes on or blinks at the same time when the Brake System Indicator (Amber) comes on ■...
Page 556: If The Electric Power Steering (Eps) System Indicator Comes On
uuIndicator, Coming On/BlinkinguIf the Electric Power Steering (EPS) System Indicator Comes On If the Electric Power Steering (EPS) System Indicator Comes On ■ Reasons for the indicator to come on • Comes on when there is a problem with the EPS system. •...
Page 557: If The Low Tyre Pressure/Deflation Warning System Indicator Comes On Or Blinks
uuIndicator, Coming On/BlinkinguIf the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks Models with deflation warning system If the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks 1If the Low Tyre Pressure/Deflation Warning System Indicator ■ Reasons for the indicator to come on or blink Comes On or Blinks A tyre pressure is significantly low, or the deflation warning system has...
Page 558: Fuse Locations
Fuses Fuse Locations If any electrical devices are not working, set the power mode to VEHICLE OFF and check to see if any applicable fuse is blown. ■ Engine Compartment Fuse Box Located near the battery. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.
Page 559 uuFusesuFuse Locations ■ Circuit protected and fuse rating Circuit Protected Amps Circuit Protected Amps − − (40 A) − − − Circuit Protected Amps Main Fan Motor 30 A Back Up 10 A Battery 125 A R/M 2 30 A Horn 10 A −...
Page 560 uuFusesuFuse Locations ■ Interior Fuse Box Located under the dashboard. Fuse locations are shown on the label on the side panel. Locate the fuse in question by the fuse number and label number. Right-hand drive models Fuse Box Fuse Label Left-hand drive models Fuse Box Fuse Label...
Page 561 uuFusesuFuse Locations ■ Circuit protected and fuse rating Circuit Protected Amps Circuit Protected Amps − (10 A) Driver’s Power Seat 10 A Circuit Protected Amps Lumbar Support (10 A) − − − − − − − − − (10 A) Left Side Door 10 A Seat Heater...
Page 562: Inspecting And Changing Fuses
uuFusesuInspecting and Changing Fuses Inspecting and Changing Fuses 1. Set the power mode to VEHICLE OFF. Turn 1Inspecting and Changing Fuses Blown Fuse headlights and all accessories off. NOTICE 2. Open the fuse box cover in the engine Replacing a fuse with one that has a higher rating compartment.
Page 563: Emergency Towing
Emergency Towing Call a professional towing service if you need to tow your vehicle. 1Emergency Towing NOTICE ■ Flat bed equipment Trying to lift or tow your vehicle by the bumpers will The operator loads your vehicle on the back of a truck. cause serious damage.
Page 564: When You Cannot Unlock The Fuel Fill Door
When You Cannot Unlock the Fuel Fill Door ■ 1When You Cannot Unlock the Fuel Fill Door What to Do When Unable to Unlock the Fuel Fill Door After taking these steps, contact a dealer to have the If you cannot unlock the fuel fill door, use the following procedure. vehicle checked.
Page 565: When You Cannot Open The Boot
When You Cannot Open the Boot ■ 1When You Cannot Open the Boot What to Do When Unable to Open the Boot Following up: If you cannot open the boot, use the following procedure. After taking these steps, contact a dealer to have the 1.
Page 566: Information
Information This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation. Specifications........566 Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number ......... 568 Devices that Emit Radio Waves ..569 * Not available on all models...
Page 567: Specifications
Specifications ■ ■ ■ Vehicle Specifications Fuel Light Bulbs Model ACCORD Unleaded petrol, research octane number Headlights (Low Beam) of 91 or higher 1,464 kg Headlights (High Beam) Fuel: 1,464-1,495 kg Unleaded petrol/gasohol up to E85 (15% Fog Lights Type 1,471-1,489 kg petrol and 85% ethanol), research octane Position/Daytime Running Lights...
Page 568 ■ ■ ■ Brake Fluid Engine Coolant Brake Specified Brake Fluid with DOT 3 or DOT 4 Specified Honda All Season Antifreeze/Coolant Type2 Type Power assisted Ratio 50/50 with distilled water Front Ventilated disc 6.03 L Rear Solid disc ■...
Page 569: Identification Numbers
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission Number 1Vehicle Identification Number (VIN), Engine Number and Transmission Number Your vehicle has a 17-digit vehicle identification number (VIN) used to register your The interior vehicle identification number (VIN) is vehicle for warranty purposes, and for licensing and insuring your vehicle.
Page 570 Devices that Emit Radio Waves The following products and systems on your vehicle emit radio waves when in operation. Adaptive Cruise Control (ACC) with Low Speed Follow/ Keyless Access System Hands-Free Telephone System Collision Mitigation Braking System (CMBS) Singaporean models DA107248 DA107248 DB03227...
Page 571 Index Index Numbers Recirculation/Fresh Air Mode ... 223, 224 MP3/WMA/AAC ........261 Sensors ........... 226 Reactivating ..........231 7-Speed Manual Shift Mode ....343 Synchronization Mode......225 Remote Controls........232 Operation ..........344 Using Automatic Climate Control .... 223 Security Code ......... 231 Selecting an Audio Source ......
Page 572 Front Map Light........503 Installing a Child Restraint System with a Lap/ Front Turn Signal Lights ......497 Shoulder Seat Belt ........74 Battery ............516 Glove Box Light ........505 Larger Children ......... 80 Charging System Indicator ....90, 552 Headlights ..........
Page 573 Continuously Variable Transmission Devices that Emit Radio Waves ....569 Creeping ..........338 Dimming Eco Assist System........11 Fluid ............494 Headlights..........177 ECON Mode..........346 Kickdown ..........338 Rearview Mirror........194 Indicator ........... 99 Operating the Shift Lever ... 20, 340, 342 Dipstick (Engine Oil).........
Page 574 Glass (care) ........522, 525 Hill Start Assist System ......336 Foot Brake ..........409 Glove Box ..........211 Honda Sensing........23, 358 Front Airbags (SRS) ........47 Front Seat Heaters ........221 Front Seats..........197 Handling the Unexpected ......531 Adjusting ..........
Page 575 Anti-lock Brake System (ABS) ..... 93 Security System Alarm ....... 98 Keys............151 Auto High-Beam........93 Shift Lever Position ........91 Lockout Prevention ......... 159 Automatic Brake Hold......90, 410 SPORT Mode ........99, 345 Number Tag..........152 Automatic Brake Hold System.... 90, 410 Supplemental Restraint System....
Page 576 Keys............151 Tyres ............509 Viscosity ..........488 Using a Key..........159 Under the Bonnet ........486 Open Source Licences....... 284 Lockout Prevention System ..... 159 Malfunction Indicator Lamp ....90, 552 Opening Low Battery Charge ......... 552 Map Lights ..........208 Boot............
Page 577 Pop-up Hood System ........55 Resetting a Trip Meter ..... 129, 131 Select Lever ........ 20, 339, 341 Pop-up Hood System Care ......57 Road Departure Mitigation ..... 397 Operation ......... 20, 340, 342 Power Windows........168 On and Off..........400 Selecting a Child Restraint System ....
Page 578 Engine Won’t Start ........541 USB Ports........... 229 System Message Indicator ......98 Noise When Braking ........28 Using the Honda Smart Parking Assist Overheating ..........549 System ............. 439 Puncture/Flat Tyre ........533 Using the Keyless Access System ..... 154 Rear Door Won’t Open ......
Page 579 Watts ............566 Wear Indicators (Tyre) ......511 Wheel Nut Wrench (Jack Handle)..532, 537 Wi-Fi Connection ........269 Window Washers........186 Adding/Refilling Fluid....... 496 Switch ............. 186 Windows (Opening and Closing)..... 168 Windscreen Cleaning.......... 522, 525 Defrosting ..........224 Washer Fluid..........

Honda Accord 2020 Manual

Particular Model.

Safe Driving

Instrument Panel

Controls

Features

Driving

Maintenance

Handling the Unexpected

Quick Links

Chapters

Related Manuals for Honda Accord 2020

Summary of Contents for Honda Accord 2020
