GE JGBP25GERSA Dimensions And Installation Information

JGBP25GER
GE 30" Free-Standing Gas Range
®

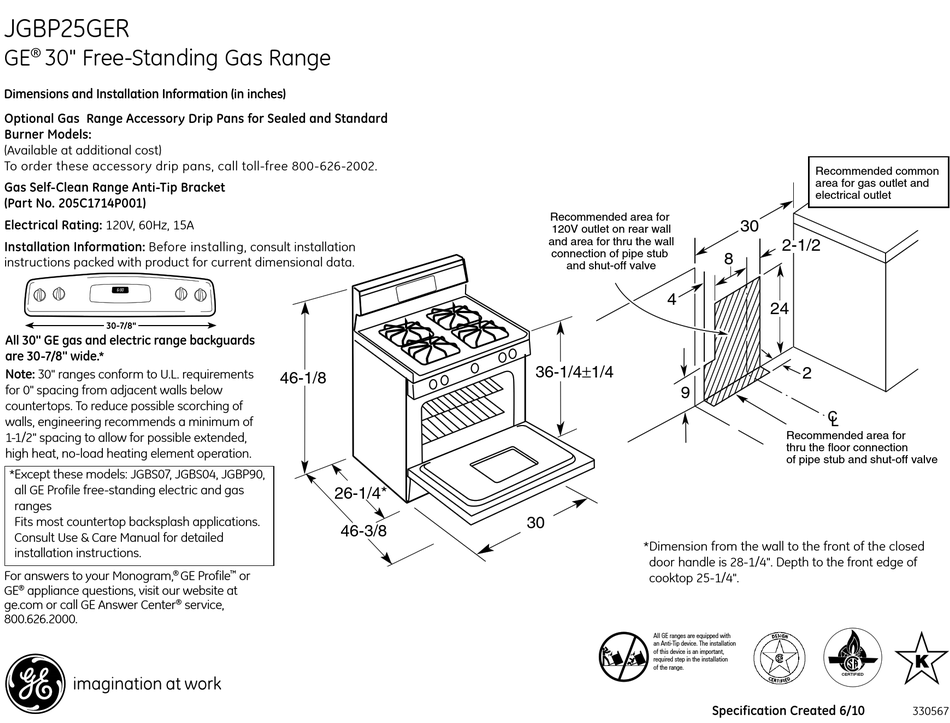

Dimensions and Installation Information (in inches)
Optional Gas Range Accessory Drip Pans for Sealed and Standard
Burner Models:
(Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 15A
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, JGBP90,
all GE Profile free-standing electric and gas
ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
46-1/8
26-1/4*
Installation Information (Dimensions in inches)
46-3/8
46-1/8
26-1/4*
46-3/8
or
™
service,
36-1/4±1/4
Recommended area for
30
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
*Dimension from wall
to front of closed
door handle is 29".
36-1/4±1/4
30
*Dimension from wall
to front of closed
door handle is 29".
30" FS Gas Ranges-CL
30
8
and shut-off valve
4
9
Recommended area for
120V outlet on rear wall
and area for thru the wall
* Dimension from the wall to the front of the closed
connection of pipe stub
and shut-off valve door handle is 28-1/4". Depth to the front edge of
cooktop 25-1/4".
4
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 6/10
