GE JGB820DEP Dimensions And Installation Information

JGB820DEP
GE 30" Free-Standing Self-Clean Free-Standing Gas Range
®

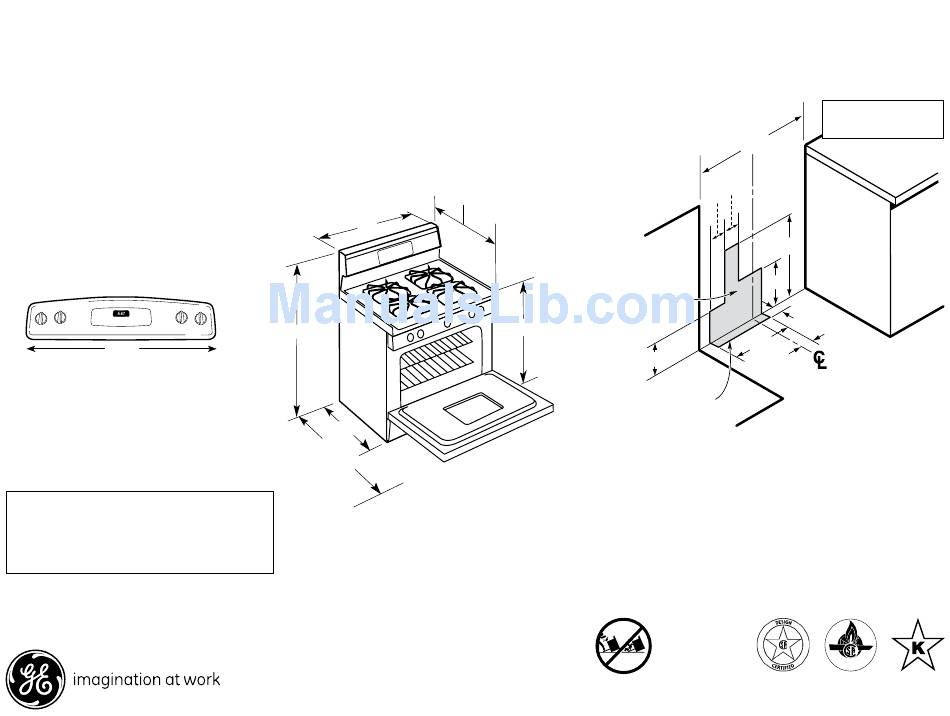

Dimensions and Installation Information (in inches)
Optional Gas Range Accessory Drip Pans for Sealed
and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans, call toll-free
800-626-2002.
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 9A
Installation Information: Before installing, consult
installation instructions packed with product
for current dimensional data.
30-7/8"
All 30" GE gas and electric range backguards
are 30-7/8" wide.*
Note: 30" ranges conform to U.L. requirements
for 0" spacing from adjacent walls below
countertops. To reduce possible scorching of
walls, engineering recommends a minimum of
1-1/2" spacing to allow for possible extended,
high heat, no-load heating element operation.
* Except these models: JGBS07, JGBS04, all GE
Profile free-standing electric and gas ranges
Fits most countertop backsplash applications.
Consult Use & Care Manual for detailed
installation instructions.
For answers to your Monogram,
®
GE appliance questions, visit our website at
®
geappliances.com or call GE Answer Center
service, 800.626.2000.
47
"
26-5/8"
47-1/16"
Depth with
door open
30
47
"
26-5/8"
47-1/16"
Depth with
door open
GE Profile or
™
®
36-1/4 ± 1/4
29" Depth with door closed
(includes handle)
Depth varies
depending on model.
See specifications
Recommended
sheet for your model.
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
36-1/4 ± 1/4
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
Recommended
area for 120V outlet
on rear wall and
area for thru the
wall connection
of pipe stub and
shut-off valve
Recommended area
for thru the floor
connection of pipe stub
and shut-off valve
30
4
4
24
13
2
14-1/2
9
Recommended common
area for gas outlet and
electrical outlet
30
4
4
24
13
2
2-1/2
14-1/2
9
All GE ranges are equipped
with an Anti-Tip device. The
installation of this device is
an important, required step in
the installation of the range.
Specification Revised 2/10
Recommended common
area for gas outlet and
electrical outlet
2-1/2
CERTIFIED
330436
