Summary of Contents for Philips Brilliance 241P8

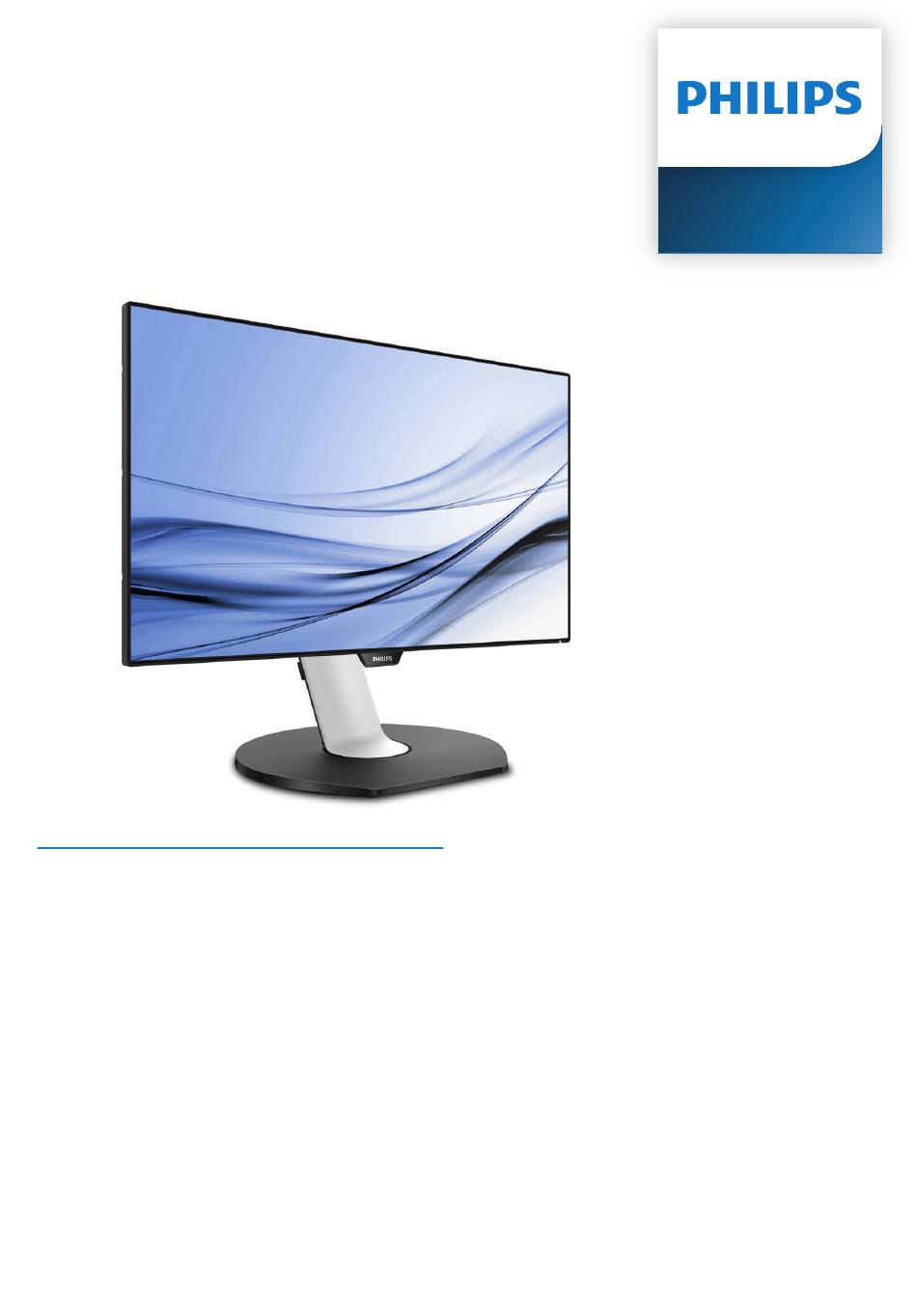

- Page 1 S line Brilliance 230S8 241P8 www.philips.com/welcome EN User manual Customer care and warranty 21 Troubleshooting & FAQs...
-
Page 2: Table Of Contents
5.1 Resolution & Preset Modes ..19 6. Power Management ....20 7. Customer care and warranty .. 21 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..... 21 7.2 Customer Care & Warranty ..24 8. Troubleshooting & FAQs ..25 8.1 Troubleshooting ...... -
Page 3: Important
• Please use approved power cord provided by Philips all the time. If your power cord is missing, please 1.1 Safety precautions and contact with your local service maintenance center. - Page 4 1. Important • Reposition your screen to • Do not store or use the monitor in appropriate height and angle locations exposed to heat, direct according to your height. sunlight or extreme cold. • Adjusting the brightness and • In order to maintain the best contrast to appropriate level.
-
Page 5: Notational Descriptions
1. Important Service 1.2 Notational Descriptions • The casing cover should be opened The following subsections describe only by qualified service personnel. notational conventions used in this • If there is any need for any document. document for repair or integration, please contact with your local Notes, Cautions and Warnings service center. -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end- of-life management primarily entails This marking on the product or on participation in national take-back... -
Page 7: Setting Up The Monitor
Top Victory Investments Ltd. or one of its a liates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. - Page 8 2. Setting up the monitor Connect to PC Connecting to your PC 1. Connect the power cord to the back Fast Charger of the monitor firmly. 2. Turn off your computer and unplug its power cable. 2 3 4 3.
-
Page 9: Operating The Monitor
Description of the On Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen To power on the monitor, gently press instruction window. - Page 10 2. Setting up the monitor The OSD Menu Resolution notification Below is an overall view of the structure This monitor is designed for optimal of the On-Screen Display. You can use performance at its native resolution, this as a reference when you want to 1920 ×...
-
Page 11: Remove The Base Assembly For Vesa Mounting
2. Setting up the monitor Swivel 2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. +175° -175° 1. Extend the monitor base to its maximum height. -
Page 12: Softblue Technology Introduction
LED displays can cause damage to different parts of 100mm the eye and affect vision over time. Philips SoftBlue feature uses a smart 100mm technology to reduce the harmful blue light waves without affecting the color or image of the display. -
Page 13: Image Optimization
How does it work? SmartImage is an exclusive, leading edge Philips technology that analyzes the content displayed on your screen. Based on a scenario you select, SmartImage dynamically enhances the contrast, color saturation and sharpness... - Page 14 LCD monitors. Typical uniformity is measured • Photo: This profile combines color around 75-80%. By enabling Philips saturation, dynamic contrast and SmartUniformity feature, display sharpness enhancement to display uniformity is incr eased to above photos and other images with 95%.
-
Page 15: Smartcontrast
3. Image Optimization 3.2 SmartContrast What is it? Unique technology that dynamically analyzes displayed content and automatically optimizes a Monitor's contrast ratio for maximum visual clarity and viewing enjoyment, stepping up backlighting for clearer, crisper and brighter images or dimming backlighting for clear display of images on dark backgrounds. -
Page 16: Powersensor
4. PowerSensor™ detection signal for distances up to 4. PowerSensor™ 120 cm or 47 inches. (Setting 4) • Since some dark colored clothing How does it work? tends to absorb infrared signals even when the user is within 100 cm • PowerSensor works on principle or 40 inches of the display, step up of transmission and reception of... - Page 17 4. PowerSensor™ • If the PowerSensor structure in your monitor is of the foldable type, please ensure it is unfolded in order for it to work correctly. You can turn the PowerSensor On or Off via the OSD control. Please note that in the folded position, the PowerSensor will not turn On even if the OSD is set to “On”...
-
Page 18: Technical Specifications
5.Technical Specifications 5. Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Optimum Resolution 1920 x 1080 @ 60 Hz Response time (typical) 14 ms(GtG) SmartResponse time 5 ms(GtG) SmartContrast 50,000,000:1 Pixel Pitch 0.275(H) mm x 0.275(V) mm Viewing Angle... - Page 19 5.Technical Specifications Power AC Input AC Input AC Input Consumption Voltage at Voltage at Voltage at 100VAC , 50Hz 115VAC , 50Hz 230VAC, 50Hz Normal Operation 19.17W (typ.) 18.98W (typ.) 19.09W (typ.) Sleep (Standby) <0.3W <0.3W <0.3W <0.3W <0.3W <0.3W Off (AC switch) AC Input AC Input...
- Page 20 Finish Texture Note 1. EPEAT Gold or Silver is valid only where Philips registers the product. Please visit www.epeat.net for registration status in your country. 2. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 21: Resolution & Preset Modes
5.Technical Specifications 5.1 Resolution & Preset Modes Maximum Resolution 1920 x 1080 @ 60 Hz (analog input) 1920 x 1080 @ 60 Hz (digital input) Recommended Resolution 1920 x 1080 @ 60 Hz (digital input) H. freq Resolution V. freq (Hz) (kHz) 31.47 720 x 400... -
Page 22: Power Management
6.Power Management 6. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 23: Customer Care And Warranty
Pixel Defect Policy single black pixel. Other combinations of lit and dark sub pixels appear as Philips strives to deliver the highest single pixels of other colors. quality products. We use some of the industry's most advanced... - Page 24 Proximity of Pixel Defects Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. Three adjacent lit sub pixels (one white pixel).
- Page 25 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT Monitor panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
-
Page 26: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 27: Troubleshooting & Faqs
• Disconnect the monitor from mains • First, ensure that the power button power source immediately for safety on the front of the monitor is in the • Contact with Philips customer OFF position, then press it to the service representative immediately. ON position. - Page 28 For further assistance, refer to the period may cause "burn in", also Consumer Information Centers list known as "after-imaging " or "ghost and contact Philips customer service imaging", on your screen. "Burn-in", representative. "after-imaging", or "ghost imaging" * Functionality different according to is a well-known phenomenon in display.
-
Page 29: General Faqs
• Shut down your computer, that the panel surface is not disconnect your old monitor and subjected to excessive shocks reconnect your Philips LCD monitor. and is protected from sharp or blunt objects. When handling the • Turn on your monitor and then turn on your PC. - Page 30 Can I connect my LCD monitor to image” or “ghost image” symptoms any PC, workstation or Mac? that will not disappear and cannot be Ans.: Yes. All Philips LCD monitors are repaired. The damage mentioned above fully compatible with standard is not covered under your warranty.
- Page 31 8.Troubleshooting & FAQs Ans.: Your LCD monitor works best at its native resolution of 1920 x 1080 @ 60 Hz. For best display, please use this resolution. Q13: How to unlock/lock my hot key? Ans.: Please press for 10 seconds to unlock/lock the hot key, by doing so, your monitor pops out “Attention”...
- Page 32 Top Victory Investments Ltd. or one of its affiliates. Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
