- Page 1 Joerns Healthcare User-Service Manual Joerns Lifting and Repositioning ® Model HPL700, HPL700WSC To avoid injury, read user’s manual before using. redefining patient handling...
-
Page 2: Important Precautions
“Equipment Identification” section along with a full accessories designed by any other manufacturer description of damaged goods. is prohibited and will void Joerns Healthcare’s warranty. Use only Hoyer slings and accessories to maintain user safety and product utility. Warning: Hoyer floor lifts are intended to be used for persons within the specified weight limit indicated for the lift. - Page 3 Joerns Lifting and Repositioning ® Hoyer HPL700 and HPL700 WSC ® Warning: Before attempting a transfer, the user Warning: Avoid violent shock during must be assessed by a qualified professional. transportation. Warning: Hoyer lifts must be used by qualified Warning: Do not touch or use a lift with bare ®...
-
Page 4: Table Of Contents
Joerns Lifting and Repositioning ® Table of Contents Hoyer HPL700 and HPL700 WSC ® Important Precautions ..........................2 Specifications ............................. 5 6-Point Spreader Bar Weight Electrical Specifications Electrical Shock Protection Degree of Shock Protection Introduction ..............................5 Assembly and Preparation ........................6... -
Page 5: Specifications

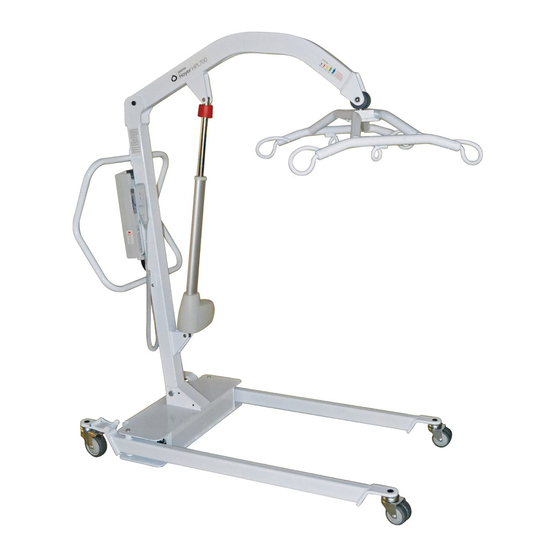

Battery Capacity ......3.2 Ampere Hours Charger Rated Input ....110-240 VAC 50/60Hz ____ The Hoyer HPL700 is suitable for patients in the Charger Rated Output ..29.5 VDC 19WMAX ..sitting, sitting/recumbent and recumbent positions. -
Page 6: Assembly And Preparation
Warning: The Hoyer HPL700 is heavy and ® will need to be lifted with care. You may need assistance to lift the Hoyer HPL700 from the carton. Carton Contents Place the carton in a clear working area and open carefully. The carton contains: Figure 1 •... -
Page 7: Always Check The Following Before Operation
Joerns Lifting and Repositioning ® Hoyer HPL700 and HPL700 WSC ® 6. Insert the 3/8" carriage bolt and nut removed in Step 2, and torque to 20 ft-lb (27 N-M). 7. Attach the front and rear covers (Figures 4 and 5), using the screws provided. -
Page 8: Operation
(the only 8. Slings exception is when lifting a patient from the The Hoyer HPL700 has a 6 point spreader bar. floor). The lift will then be able to move to The 6 point system uses slings with webbing the center of gravity of the lift. -
Page 9: 6-Point Spreader Bar System
Insert the quick release pin fully into the sleeve until it Your Hoyer HPL700 lift uses 6-point spreader bar. ® locks into position (Figure 10 and 11). You must The removal of this system is completed easily by check that the pin is securely fitted. -
Page 10: Removal
Joerns Lifting and Repositioning ® Hoyer HPL700 and HPL700 WSC ® Caution: Keep the batteries fully charged. Place Removal the battery on charge whenever it is not in use. If it is more convenient to do so, place on charge every Caution: Be sure to support the weight of the night. -
Page 11: Maintenance Schedule And Daily Check List
Maintenance, Inspection and Testing Joerns Healthcare recommends a thorough inspection and test of the Hoyer HPL700 lift and lifting accessories, slings, scales, etc. is carried out on a regular basis. Inspection frequency varies with location so you must check with your dealer or local government agency on how often an inspection is required. -
Page 12: Lifter Maintenance Checklist
Joerns Lifting and Repositioning ® Hoyer HPL700 and HPL700 WSC ® Lifter Maintenance Checklist To be Inspected by User Spreader Bar Check the spreader bar for freedom of rotation and swing. Check for wear on the central ✔ ✔ pivot. Check for firm attachment to the boom. - Page 13 Joerns Lifting and Repositioning ® Hoyer HPL700 and HPL700 WSC ® To be Inspected by User Fasteners Check that all fasteners are properly retained (Bolts have nuts, pins have clips, etc.) ✔ ✔ Base Components Inspect components internal to the base (remove the rear cover and tip the lift on its side).
-
Page 14: Warranty
Joerns Healthcare to be (and variations). defective. HPL700 Lifts are guaranteed for a period of two (2) years from the date of delivery against defects Warranty replacement parts are covered by the in materials and workmanship under normal use terms of this warranty until the product’s original...
