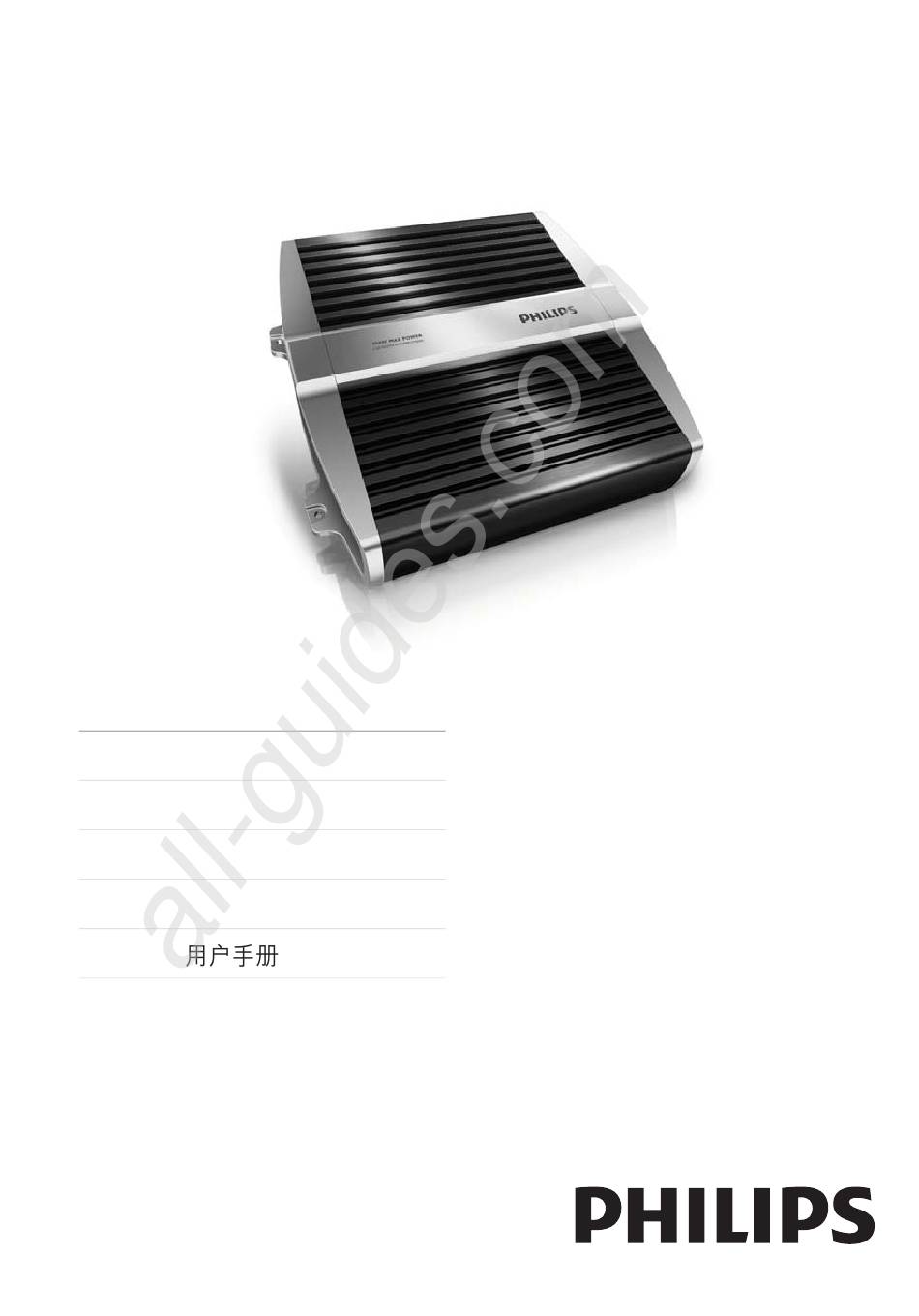

- Page 1 All manuals and user guides at all-guides.com Register your product and get support at www.philips.com/welcome CMQ205 User manual Manual del usuario PT-BR Manual do Usuário Руководство пользователя 37 ZH-CN...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Contents 1 Important Safety Notice 2 Your car power amplifier Introduction What’s in the box Overview of the main unit 3 Installation Mount the amplifier in car Connect speakers Connect car audio Connect power 4 Use your power amplifier Select filter mode Select LPF frequency... -
Page 3: Important
Any changes or modifications made to this of the unit. Doing so may damage the device that are not expressly approved by active speakers. Philips Consumer Lifestyle may void the user’s • To ensure safe driving, adjust the volume authority to operate the equipment. -
Page 4: Your Car Power Amplifier
All manuals and user guides at all-guides.com 2 Your car power Overview of the main unit amplifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. (30A) Introduction With the amplifier, you can enjoy high quality... -
Page 5: Installation
All manuals and user guides at all-guides.com i FUSE: 30AX1 3 Installation j POWER • To connect +12V-DC power wire, ground wire, and remote control Note wire. • Follow all mounting and wiring instructions. Mount the amplifier in car You can mount the amplifier either under a seat or on the rear tray. -
Page 6: Connect Speakers
All manuals and user guides at all-guides.com Connect speakers Connect car audio Option 1: Line input connection Note Connect the amplifier to the car audio with an RCA cable (not supplied). • Use speakers with an impedance of 2 to 8 ohm (4 to 8 ohm when used as a bridged amplifier). - Page 7 All manuals and user guides at all-guides.com (30A) To a metal point of the car Less than 450mm (18 in) Remote output Car audio unit Fuse (40A) +12V car battery • If your car audio does not have remote output, connect the remote input terminal (REM) to the accessory power supply.
-
Page 8: Use Your Power Amplifier
All manuals and user guides at all-guides.com 4 Use your power Adjust input level amplifier To ensure sound quality, adjust input level to match it with the car audio’s output voltage. Check the line output voltage of the connected car audio. Select filter mode Rotate INPUT LEVEL to select a matched voltage: 0.3V to 6V. -
Page 9: Replace Fuse
All manuals and user guides at all-guides.com 5 Product Take out the disc or tape and turn off the car audio. information Check the cause of the malfunction. If the amplifier is overheated, let it cool down. Note Replace fuse •... -
Page 10: Troubleshooting
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. - Page 11 All manuals and user guides at all-guides.com © 2010 Koninklijke Philips Electronics N.V. All rights reserved. CMQ205_00_UM_V1.0...
