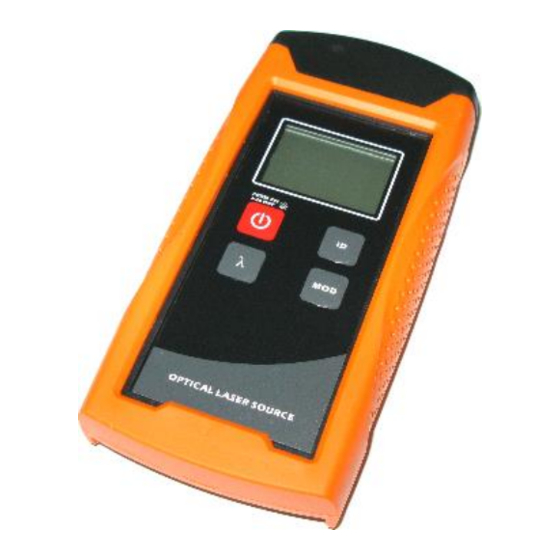

XtendLan XL-FLS1315 User Manual

Optical laser source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

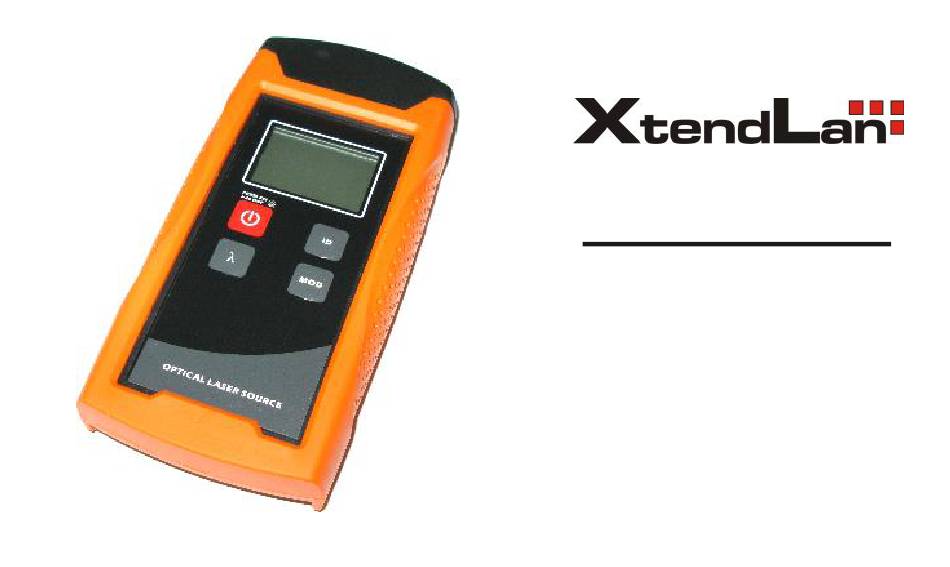

XL-FLS1315
USER'S GUIDE
Optical Laser Source

Advertisement

Table of Contents
loading

Related Manuals for XtendLan XL-FLS1315

Summary of Contents for XtendLan XL-FLS1315

  • Page 1 XL-FLS1315 USER'S GUIDE Optical Laser Source...

  • Page 2: Precautions For Use

    ¨ WARNING VISIBLE LASER RADIATION You are cautioned that changes or modifications not espressly approved in this document AVOD EYE OR SKIN EXPOSURE TO DIRECT OR SCA TTERED RADIA TION SEMICONDUCTOR LASER could void yout authority to operate this equipment. Wavelength:635-650nm To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
  • Page 3 Check the accessories Standard Edition Soft Bag...
  • Page 4 Description Laser Source Connector AC/DC Socket Power Button 5 Wavelength ID 6 Output wavelength switch button Load modulation...

  • Page 5: Installing The Battery

    Installing the battery 1. Pull the battery cover 2.Installing the battery 3.Push the battery cover 4.Complete...
  • Page 6 On/Off and Permanent On Press button to turn on the meter . Press button again for two seconds or more to turn off the meter. This meter has power-saving function, if ten minutes without any operation, the device will automatically shut down. If you need to disable this function, only need to press the button for 2 seconds when you turn on the meter till it displays 'PERM'.

  • Page 7: Backlight Function

    Backlight Function When the meter is power on , short press the button, you can control the backlight function on or off. The backlight function is used when you want to use the meter at night or darker occasions.

  • Page 8: Select Wavelength

    Select Wavelength Atter pressinq button, you can select the required outp ut wavelengths. Details refer to the parameters table. The power meter or other measuring equipments should select correspond wavelength of laser source.
  • Page 9 Modulation output After pressing button, you can load a modulation current output laser. This instrument has three modulation for selection: 270Hz, 1 kHz, 2 kHz.

  • Page 10: Wavelength Identification

    Wavelength identification Press Button. the laser source will output with wavelength ID an d LCD will display ’Id'. and if works with the paired power meter with WAVE ID function. the optical power meter will change to the same wavelength automatically.

  • Page 11: Power Indicator

    Power Indicator Four levels indicatio n of power detection Represents the rema ining 8 0%--- J 00% electricity Represents the rema ining 40%---80% electricity Represents the rema ining 20%---40% electricity Represents the rema ining electricity less tlnan 20%...
  • Page 12 Charge The instrument has a charging function. When use rechargeable batteries and a low battery indication shows on the instrument, you should promptly shut down it and recharge. Long time under voltage will shorten the lifetime of the rechargeable battery. Connect the AC adapter to the device correctly, it can charge automatically.

  • Page 13: Detail Parameters

    Detail parameters Output length }nm] 1310 / 1550 Output power > -6dBm Laser type Fabry-Perot Laser Diode Optical adapter FC/PC Modulation wave 270Hz / 1kHz / 2kHz Auto off Battery type 2x AA Battery lifetime > 40 hours Waterproof Can prevent small splash Size (h, w, d)mm 140 x 62 32 Weight...
